Default M45 results with rudimentary engine management and E85

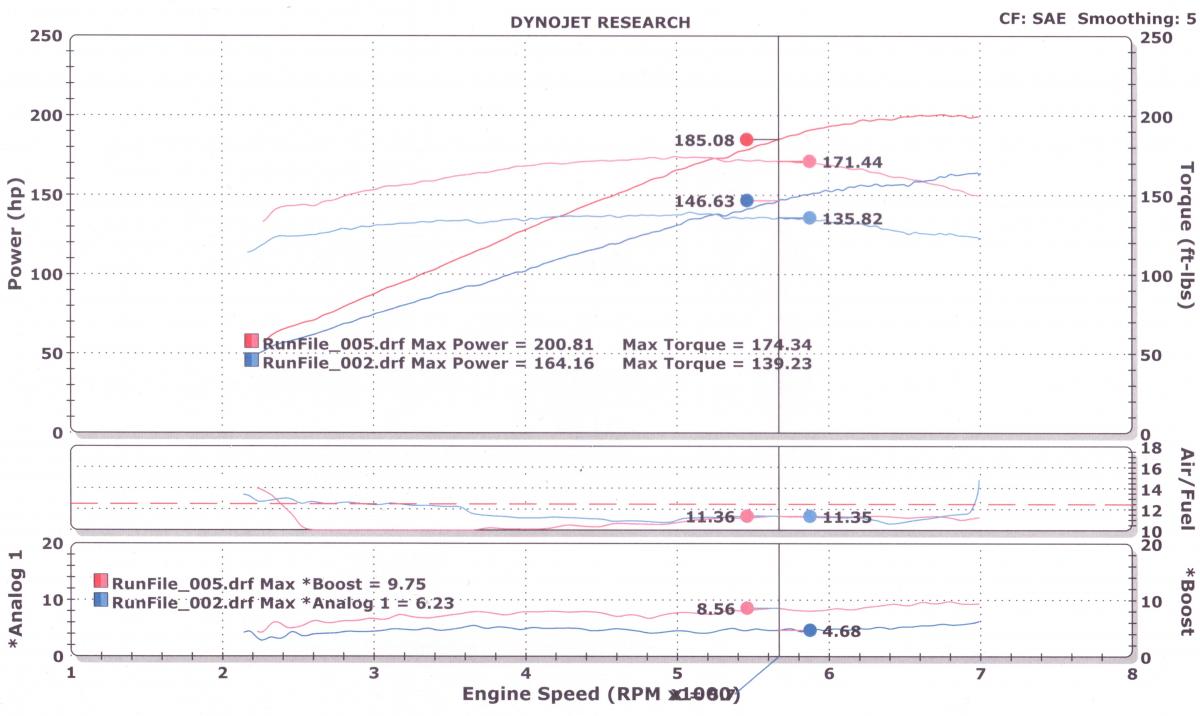

Here are my results from the M45 setup back when I was at 5.5 psi and then at around 8.5 to 9.0 psi from upgraded pulleys. This is all non-intercooled on E85 running an old school non-adjustable power card and RX8 injectors.



I am temporarily without forced induction since I sold the M45 and am awaiting delivery of my BEGI S6 system. While waiting I am tuning the naturally aspirated portion of my MS3 maps... I am considering doing a dyno run just for ***** and giggles after I finalize the naturally aspirated tune on E85.

Later,

Keith
Attached Thumbnails
M45 results with rudimentary engine management and E85-new-vs-old.jpg
Twodoor is offline   Reply With Quote
Old 04-15-2014, 04:41 PM   #2
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 871
Total Cats: 93
Default

What year car and engine? Any bolts on's currently? I'd be curious to see the NA E85 plot.
acedeuce802 is online now   Reply With Quote
Old 04-15-2014, 05:19 PM   #3
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Quote:
Originally Posted by acedeuce802 View Post
What year car and engine? Any bolts on's currently? I'd be curious to see the NA E85 plot.
1999, with a 01+ header and a quick and dirty cone filter bolted directly to the throttle body and the GM air temp sensor strapped to the outside of the cone filter.

Keith
Twodoor is offline   Reply With Quote
Old 04-15-2014, 05:22 PM   #4
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I actually really wanna see the N/A E85 results.
curly is offline   Reply With Quote
Old 04-15-2014, 05:40 PM   #5
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

In for NA E85 dyno that is higher than the [email protected]
thenuge26 is offline   Reply With Quote
Old 04-15-2014, 06:17 PM   #6
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

There was an article in grassroots a while back where they dyno ed a miata running MS with a bunch of different fuels. The E85 made power even without boost.
Full_Tilt_Boogie is offline   Reply With Quote
Old 04-15-2014, 11:48 PM   #7
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Quote:
Originally Posted by thenuge26 View Post
In for NA E85 dyno that is higher than the [email protected]
I don't anticipate anything like that, it would be nice... but not really in the cards on this engine. I could see close to low boost M45 results with some 11.5:1 compression pistons, but with the stock pistons I am not anticipating a huge number.

I am shooting for 12.5:1 A/F ratio (measured on a gasoline scaled wide band) and aggressive timing. If I do take it to the dyno, it will not be a tuning session, just blowing $85 to satisfy my curiosity.

Keith
Twodoor is offline   Reply With Quote
