Default NA swap 1999 NB8, Garett 2560 at 11psi, 3" exhaust, water injection, FM Manifold

The list is as follow:
- Adaptronic
- FM Manifold and turbo outlet
- RX8 Injectors
- 2.5" downpipe and 3" all the way with 3" muffler box and no CAT
- Garrett 2560, 11psi
- AEM water injection (ONLY WATER)
- Toyota COP

Running a faily conservative tune, power is at wheels.Looks about right?

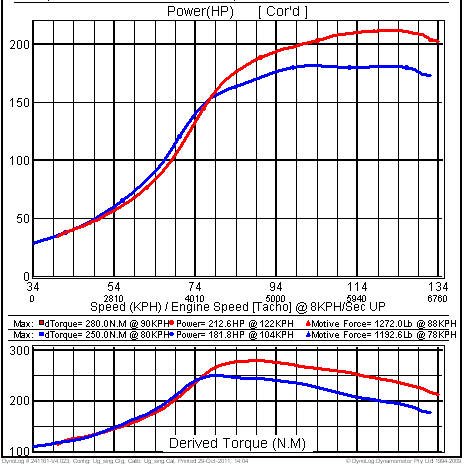

BLUE LINE 2.5" exhaust, RED LINE 3" exhaust.

Attached Thumbnails
NA swap 1999 NB8, Garett 2560 at 11psi, 3" exhaust, water injection, FM Manifold-2vs3.jpg

Last edited by nismo502; 11-01-2011 at 11:24 AM.
nismo502 is offline   Reply With Quote
Old 11-01-2011, 09:24 AM   #2
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

How much boost?
thirdgen is offline   Reply With Quote
Old 11-01-2011, 11:19 AM   #3
Junior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: singapore
Posts: 228
Total Cats: 2
Default

Quote:
Originally Posted by thirdgen View Post
How much boost?
my bad,forgot to mention, its about 11psi.
nismo502 is offline   Reply With Quote
Old 11-01-2011, 11:43 AM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Its not bad.
Considering your overall mild setup, small turbo, and low boost.
There's room for improvement, esp since you're running w/i, you could probably push it a bit more, but it aint bad imo.
18psi is offline   Reply With Quote
Old 11-01-2011, 04:57 PM   #5
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Who makes dyno software that comes up with stupid random X-axis tick values?

e.g. 2810, 4010 RPM, with 4 ticks between them, instead of 3000, 4000 RPM?

Idiotic.
JasonC SBB is offline   Reply With Quote
Old 11-01-2011, 05:13 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Yes it is very annoying and stupid.
18psi is offline   Reply With Quote
Old 11-06-2011, 02:00 PM   #7
Junior Member
iTrader: (1)

Sentic's Avatar

Join Date: Feb 2008
Location: Sweden
Posts: 435
Total Cats: 5
Default

Same boost with 2,5" and 3" exhaust?
Sentic is offline   Reply With Quote
Old 11-06-2011, 03:04 PM   #8
Junior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: singapore
Posts: 228
Total Cats: 2
Default

Quote:
Originally Posted by Sentic View Post
Same boost with 2,5" and 3" exhaust?
Yes, same boost.
Interestingly, boost comes slightly on the 3" exhaust.
nismo502 is offline   Reply With Quote
Old 11-06-2011, 03:05 PM   #9
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

30hp from changing the exhaust?
flounder is offline   Reply With Quote
Old 11-06-2011, 03:10 PM   #10
Junior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: singapore
Posts: 228
Total Cats: 2
Default

I was running a fairly restrictive down pipe and I changed itnto the fm ones along with the 3" exhaust.
nismo502 is offline   Reply With Quote
Old 11-06-2011, 03:56 PM   #11
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Quote:
Originally Posted by flounder View Post
30hp from changing the exhaust?
Very possible. I gained something like 40 going from stock exhaust to 3" back in the day. Night and day difference.
18psi is offline   Reply With Quote
