92 MX-5, stock 1.6 GT2860RS @17-18 PSI - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Reply



LinkBack Thread Tools Search this Thread
Old 11-04-2011, 01:09 PM   #1
Newb
Thread Starter

Join Date: May 2009
Location: Estonia
Posts: 37
Total Cats: 0
Default 92 MX-5, stock 1.6 GT2860RS @17-18 PSI

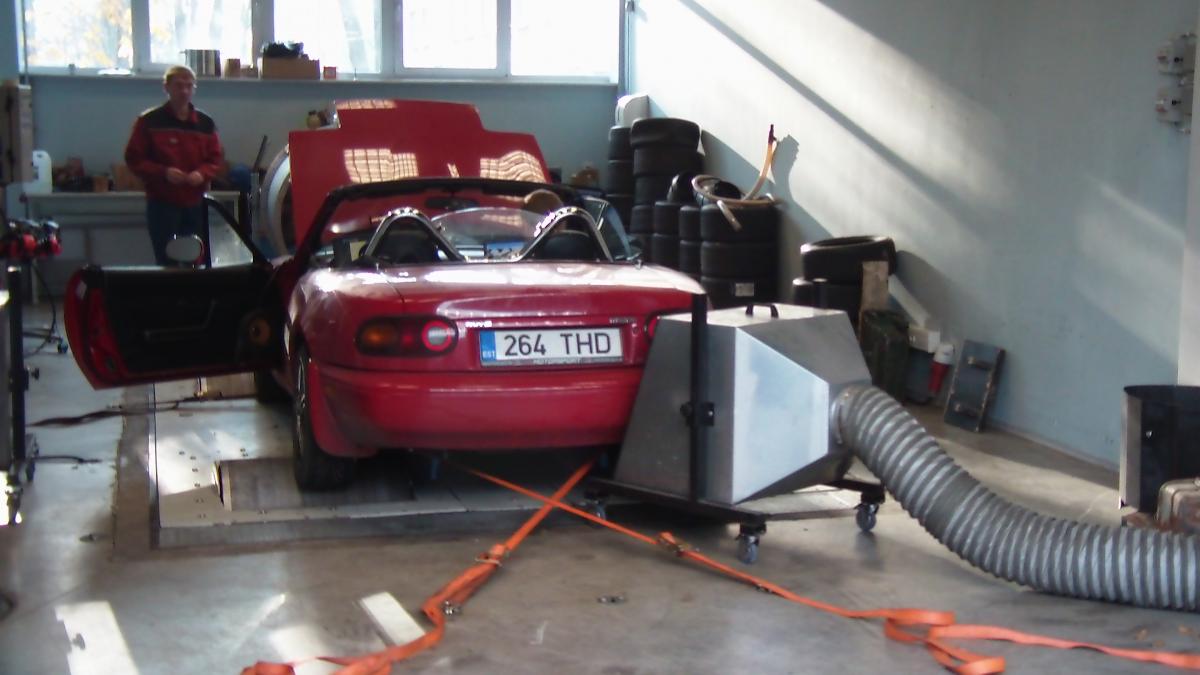

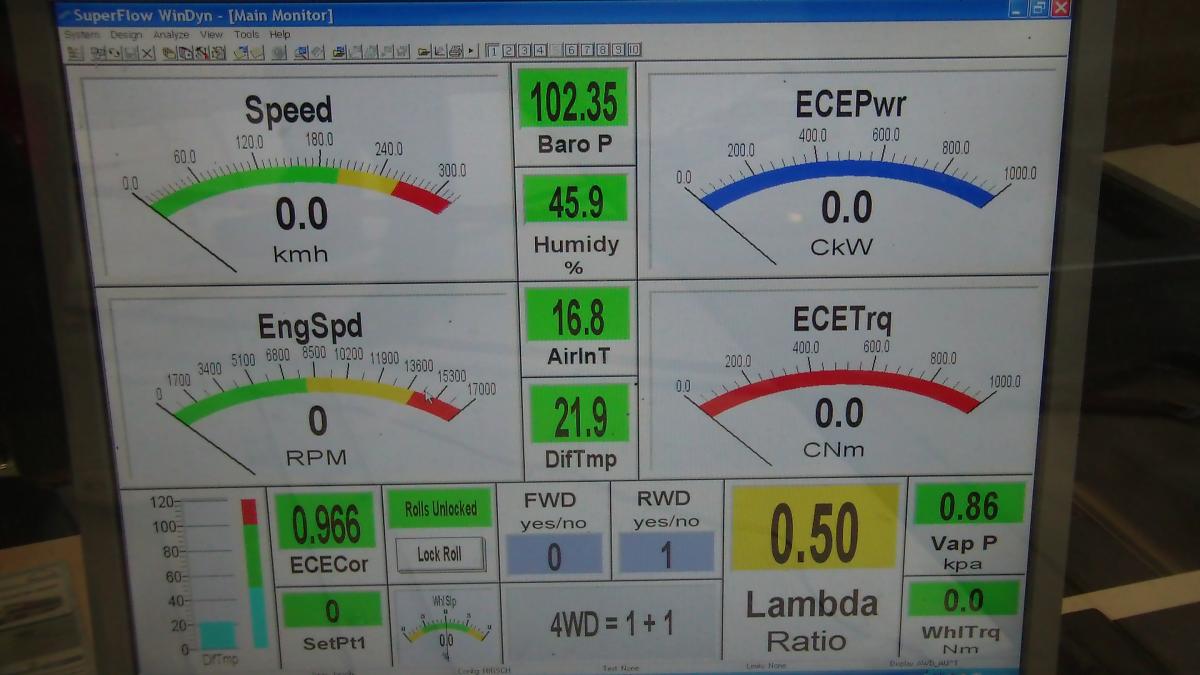

Did a run on Superflow 4wd dyno today after building 3" DP last night.
Setup:
1.6 stock engine 203t.km (rebuilded ~20t.km ago)
RX-7 460cc injectors
BEGI Cast manifold from Shanghai-S kit
3" DP
2,5" exchaust
MBC
Noname IC (2,5" inlet/outlet)
IC piping 2,5"
MSPNP
Coolant reroute
1.8 lightened flywheel and FM Level 1 clutch
Garret GT2860RS with 0.64 A/R
3" AEM airfilter

174,2kw(236,8WHP)\281,6Nm(207.7lb-ft)
Boost 17-18 PSI (still creeping 2-3PSI)
Not the createst one, but car pulls strong and fun to drive.
Will post proper dyno file, video and log/setup from MS over the weekend
Attached Thumbnails
92 MX-5, stock 1.6 GT2860RS @17-18 PSI-sam_0033.jpg   92 MX-5, stock 1.6 GT2860RS @17-18 PSI-sam_0036.jpg   92 MX-5, stock 1.6 GT2860RS @17-18 PSI-sam_0038.jpg
redeagle is offline   Reply With Quote
Old 11-07-2011, 02:14 PM   #2
Newb
Thread Starter

Join Date: May 2009
Location: Estonia
Posts: 37
Total Cats: 0
Default

Here's one of the log files from dyno (hope someone cares to comment it).

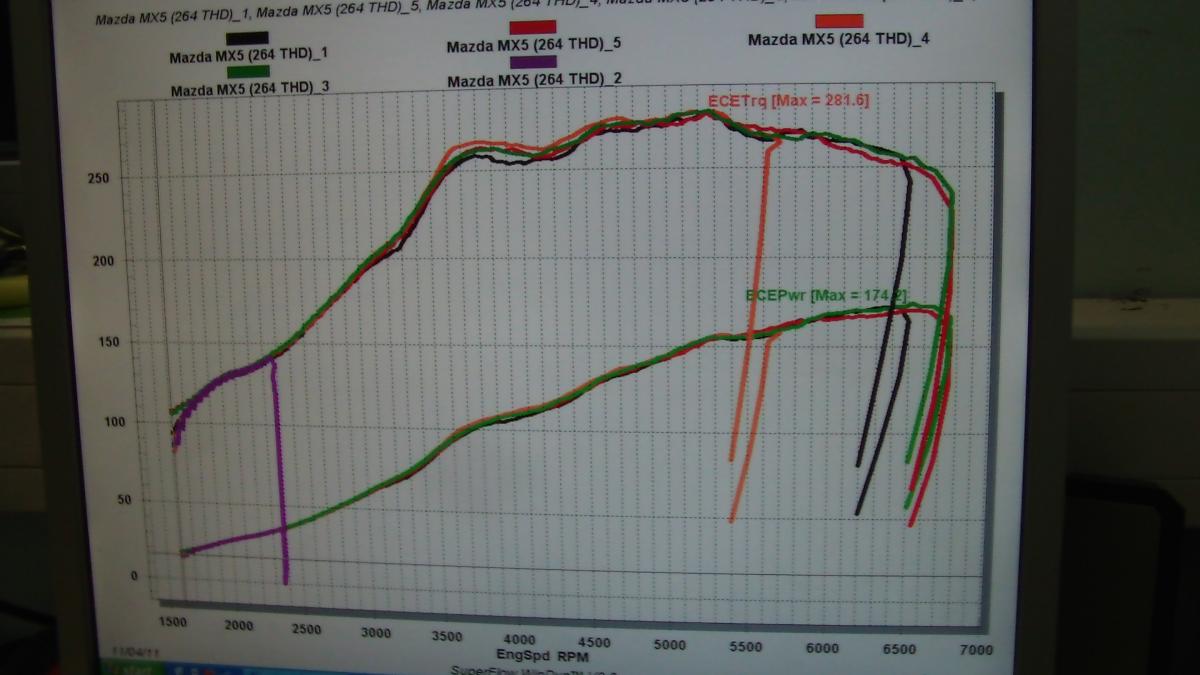

Also better graph on best run.
Attached Files
File Type: msl 2011-11-04_11.52.46.msl (177.2 KB, 210 views)
File Type: msl 2011-11-04_11.56.54.msl (263.2 KB, 96 views)
File Type: pdf ECE Corrected Wheel Power vs RPM.pdf (48.5 KB, 233 views)
redeagle is offline   Reply With Quote
Old 11-09-2011, 07:41 PM   #3
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

Something isn't right. That power seems low for that boost level and turbo. Pushing the limits of your 1.6 too.
rccote is offline   Reply With Quote
Old 11-10-2011, 12:24 AM   #4
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

peak torque in ft-lbs should be

70 to 72 ft-lbs * 1.6L * (1+boost/14.7)

At 17 psi should be > 240 ft-lbs or 323 N-m
JasonC SBB is offline   Reply With Quote
Old 11-11-2011, 04:07 AM   #5
Newb
Thread Starter

Join Date: May 2009
Location: Estonia
Posts: 37
Total Cats: 0
Default

It is lower than most dyno pulls here.
I can think of 3 reasons:

1. Something wrong with engine/setup altough engine sounds healty and compression/leakdown shows no issues (headjob is unknow quality so might benefit fromthere)
2. Euro 1.6 has different cam profile
3. Dyno i used reads low, really wanted to do comparison on dynojet one we have here, but it's broken at the moment.
redeagle is offline   Reply With Quote
Old 11-15-2011, 07:57 AM   #6
Junior Member
iTrader: (1)

Join Date: Jul 2010
Location: Louisville, KY
Posts: 196
Total Cats: 0
Default

280hp on 460's seems high for the injectors. I was running out of injector at about 260 even with methanol.
PatrickB is offline   Reply With Quote
Old 11-15-2011, 09:08 AM   #7
Newb
Thread Starter

Join Date: May 2009
Location: Estonia
Posts: 37
Total Cats: 0
Default

I think these 460cc measured 490cc and dutycycle according to log is 79-80
redeagle is offline   Reply With Quote
Old 11-15-2011, 12:04 PM   #8
Junior Member
iTrader: (1)

Join Date: Jul 2010
Location: Louisville, KY
Posts: 196
Total Cats: 0
Default

I was reading it wrong thats 236whp thats sounds right i was thinking it said 280hp. Does seem a little low for that pressure and that turbo, but who knows with dynos honestly it could just be reading low. If you can take it the track and get a mph and time you would know what its making.
PatrickB is offline   Reply With Quote
Old 11-18-2011, 12:09 AM   #9
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

How much timing are you running in boost?
dustinb is offline   Reply With Quote
Old 11-18-2011, 01:34 AM   #10
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

I saw your log and you AFR under boost are oscilate between 11.9 and 12.2 and as you increase on RPM is set around 12.1. Is it me or that a bit too lean for the boost he is running?
buffon01 is offline   Reply With Quote
Old 11-24-2011, 03:13 PM   #11
Junior Member
iTrader: (1)

Join Date: Jul 2010
Location: Louisville, KY
Posts: 196
Total Cats: 0
Default

Yeah seems lean should be low 11's
PatrickB is offline   Reply With Quote
