Default went to the dyno today....

( Pictures to come )

I finally made it to the dyno today. I did 3 runs one at 14psi, one at 15psi and one at 16psi. It was warm ( 66*) and humid outside today since we are having unseasonably warm weather but its better than dynoing in the middle of the summer heat. Also this was on a mustang dyno and not a Dynojet so numbers may be slightly lower. Ok so here is the power I made....

13-14psi = 264.4hp 241.8tq
15-15.5psi = 283.4hp 266.9tq
16psi = 294.3hp 270tq

AFR's were never more lean than 12.5 at ANY point during these runs. I was around 11.5-12.0 up to 4k, then I had a little lean 12.3-12.5 lean spike @ 4300 ( full boost ). After 4500 AFR's dropped all the way down to 10.5 and stayed there. I was losing power due to the overwhelming richness up top. I cant wait to get a standalone so I can lean it out up top. I was running 110 octane fuel just as a precaution as well. Overall I am happy with the numbers. I am waiting on the pics to be emailed to me so they will be up shortly.
F20turbo is offline   Reply With Quote
Old 12-01-2006, 01:49 AM   #2
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

....
damn...nice
miatamania is offline   Reply With Quote
Old 12-01-2006, 01:51 AM   #3
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

Thanks for making those runs with the water injection
Kelly is offline   Reply With Quote
Old 12-01-2006, 01:52 AM   #4
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

All over again I am envious of someone elses setup.
cjernigan is offline   Reply With Quote
Old 12-01-2006, 01:58 AM   #5
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

You are a madman! Awsome numbers, I hope that you'll be posting over at m.net for some entertainment!
jayc72 is offline   Reply With Quote
Old 12-01-2006, 02:01 AM   #6
Senior Member

Join Date: Mar 2005
Location: Holiday, FL
Posts: 563
Total Cats: 0
Default

wow that much power on 330cc injectors? bad *** buddy, awesome!
Fritch is offline   Reply With Quote
Old 12-01-2006, 02:03 AM   #7
Senior Member
Thread Starter

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

Quote:
Originally Posted by Wideopentuning View Post
Thanks for making those runs with the water injection
No problem son, check your PM's.
F20turbo is offline   Reply With Quote
Old 12-01-2006, 02:03 AM   #8
Junior Member

Join Date: Nov 2005
Location: PA/DC
Posts: 468
Total Cats: 0
Default

nice!
Snowsurfer03 is offline   Reply With Quote
Old 12-01-2006, 02:04 AM   #9
Senior Member
Thread Starter

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

Quote:
Originally Posted by Fritch View Post
wow that much power on 330cc injectors? bad *** buddy, awesome!
Say hello to 115psi of fuel pressure.
F20turbo is offline   Reply With Quote
Old 12-01-2006, 02:06 AM   #10
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

At 115psi that's got to be on the verge of boom Well done none the less.

I'm begining to wonder if the RC Engineering calculations aren't a little cautious.
jayc72 is offline   Reply With Quote
Old 12-01-2006, 02:12 AM   #11
Senior Member
Thread Starter

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

Quote:
Originally Posted by jayc72 View Post
At 115psi that's got to be on the verge of boom Well done none the less.

I'm begining to wonder if the RC Engineering calculations aren't a little cautious.
Been like that for 4 years... I would say they will be fine
F20turbo is offline   Reply With Quote
Old 12-01-2006, 02:17 AM   #12
Senior Member

Join Date: Mar 2005
Location: Holiday, FL
Posts: 563
Total Cats: 0
Default

still that much power with only a AFPR and Bipes is pretty damn good no matter how much pressure
Fritch is offline   Reply With Quote
Old 12-01-2006, 02:34 AM   #13
Junior Member

Join Date: Nov 2005
Location: PA/DC
Posts: 468
Total Cats: 0
Default

Quote:
Originally Posted by Fritch View Post
still that much power with only a AFPR and Bipes is pretty damn good no matter how much pressure
WOAH NOW WAIT A MINUTE! You are making that much power with only an AFPR and Bipes?!

Not to mention on the crappy mustang dyno.
Snowsurfer03 is offline   Reply With Quote
Old 12-01-2006, 02:36 AM   #14
Senior Member
Thread Starter

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

Quote:
Originally Posted by Snowsurfer03 View Post
WOAH NOW WAIT A MINUTE! You are making that much power with only an AFPR and Bipes?!

Not to mention on the crappy mustang dyno.
I wouldnt call the mustang dyno "crappy" I think its a better dyno personally. Sure its numbers are a little lower. But it offers a more realistic power level, some dynojets are inflated a little I think. Yeah, I have a Bipes, AFPR setup. I just know the ins and outs of it. I can get the most out of what I have.
F20turbo is offline   Reply With Quote
Old 12-01-2006, 02:39 AM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

wheres the graph dude?! nice numbers!!!

but think about what he could make with a perfectly flat AFR...
Braineack is offline   Reply With Quote
Old 12-01-2006, 02:56 AM   #16
Senior Member
Thread Starter

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

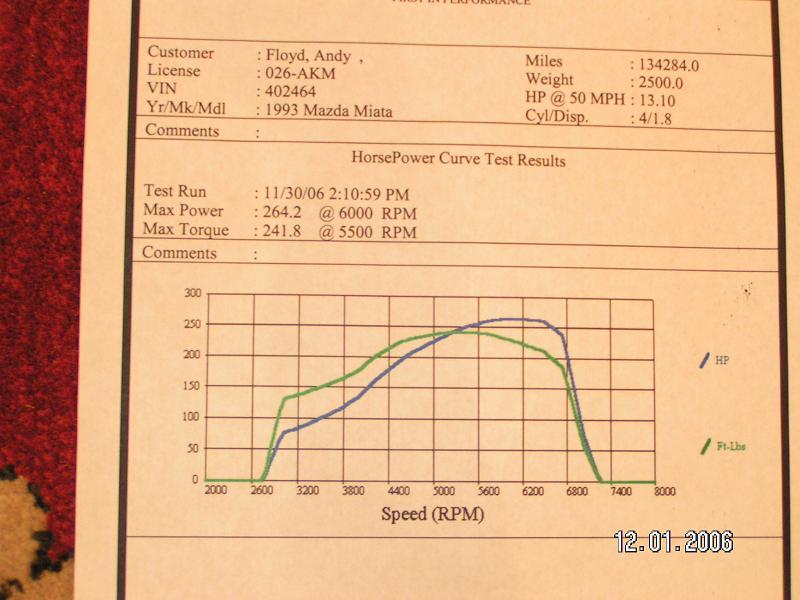

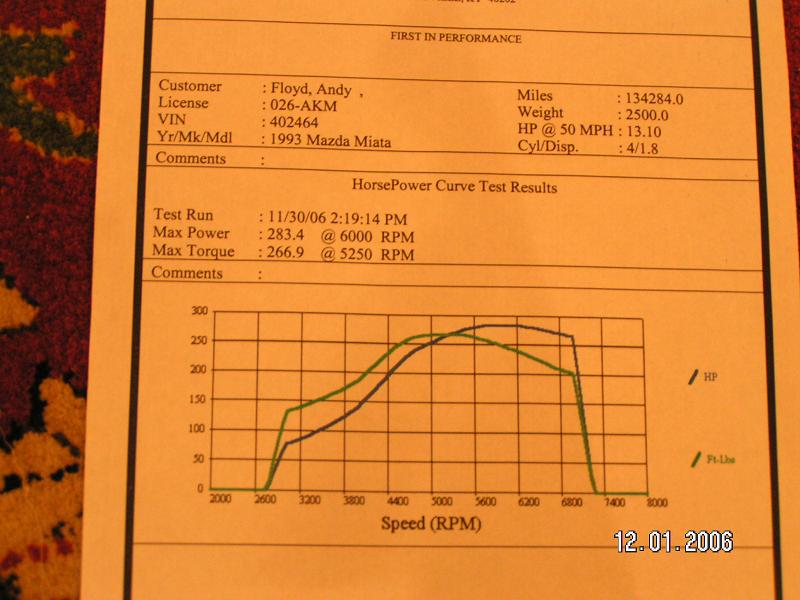

OK so Im waiting on an email so I can have betetr dyno charts but here are the plots for now. As you can see torque drops off in the upper rpms. I need to lean it out up top and I need a better intake manifold.
Attached Thumbnails
went to the dyno today....-14psi.jpg   went to the dyno today....-15psi.jpg   went to the dyno today....-16psi.jpg
F20turbo is offline   Reply With Quote
Old 12-01-2006, 03:04 AM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Quote:
Originally Posted by jayc72 View Post
At 115psi that's got to be on the verge of boom Well done none the less.

I'm begining to wonder if the RC Engineering calculations aren't a little cautious.

well if he's pushing the duty cycle to .94-.97 or so it's plausible.
Braineack is offline   Reply With Quote
Old 12-01-2006, 03:14 AM   #18
Senior Member
Thread Starter

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

Quote:
Originally Posted by braineack View Post
well if he's pushing the duty cycle to .94-.97 or so it's plausible.
I dont think the duty % is that high since the stock ecu is still controlling the injectors the duty cycle is whatever the stock 1.6L ecu allows...not sure what it is but would guess its not past .85.
F20turbo is offline   Reply With Quote
Old 12-01-2006, 03:20 AM   #19
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

With what we've seen on the 1.8 injectors and now with the 330's it's obvious that the numbers from RC have a lot of safety built into them.

What is interesting is that a lot of the experts say that you can't get this kind of power with a stock ECU. Guess the bandaids work.
jayc72 is offline   Reply With Quote
Old 12-01-2006, 04:46 AM   #20
I'm Miserable!

Join Date: Oct 2006
Location: QLD, Australia
Posts: 44
Total Cats: 0
Default

Why lean out the mixture? Why not bump the timing up instead, that'll give you more power. Or doesn't the Bipes give you enough control?
white90na is offline   Reply With Quote
