Default Build your own VR conditioner

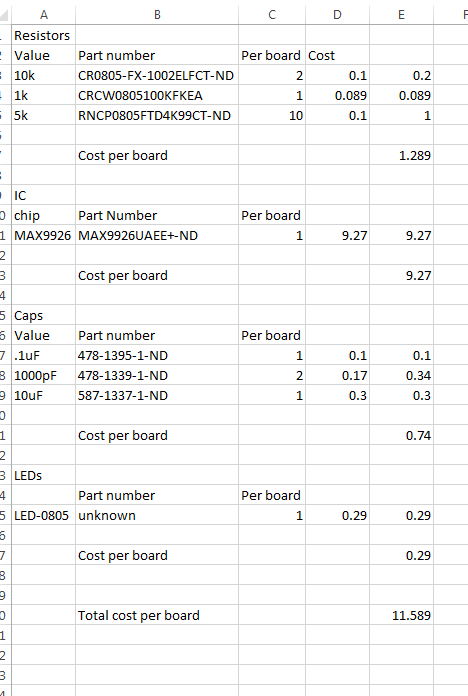

<p>The quick and dirty version (just how yall like it)</p><p>I'm personally using this for ABS sensors and traction control with megasquirt.</p><p>Steps:</p><p>1. Read this ****</p><p>2. Get the gerber files from this&nbsp;link</p><p>3. Go to OSHPark and get 3 boards made for $5 (share with your friends, you probably only need one board)</p><p>4. Order a bunch of this **** (I ordered 2 extra of everything in case I **** up soldering it all)</p><p><a href="http://imgur.com/tBSx4rZ" target="_blank"><img alt="" src="https://www.miataturbo.net/attachment.php?attachmentid=146714&amp;dateline=14 39356067" /></a></p><p>5. Learn to surface mount solder.</p><p>6....?</p><p>7. Profit?!?!</p><p>I'll be updating this as I build them. I'll also attach the spreadsheet tomorrow when I get back to my work computer.</p>
Attached Thumbnails
Build your own VR conditioner-tbsx4rz.png
aidandj is offline   Reply With Quote
Old 08-12-2015, 09:26 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

cool.

this is something I always wanted to add to my car but never got around to it.
Braineack is offline   Reply With Quote
Old 08-12-2015, 09:26 AM   #3
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,925
Default

The MAX9926 is probably the best VR decoder ASIC on the market today. Good choice.
Joe Perez is offline   Reply With Quote
Old 08-12-2015, 10:16 AM   #4
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Thats what my research has led me to believe. I think you said something along the lines if the noise rejection defies physics?
aidandj is offline   Reply With Quote
Old 08-12-2015, 12:44 PM   #5
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>Parts list with Digi-key part numbers.</p>
Attached Files
File Type: xls vr conditioner parts.xls (26.5 KB, 195 views)
aidandj is offline   Reply With Quote
Old 08-12-2015, 11:29 PM   #6
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

I had 3 of those chips built onto DIP conversion boards by some company in canada for pretty cheap for a different project. I think it came out to like $20 per + shipping. Mainly because I really really didnt feel like dealing with a surface mount chip on a protoboard.
Leafy is offline   Reply With Quote
Old 08-13-2015, 02:21 AM   #7
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>Details?</p>
aidandj is offline   Reply With Quote
Old 08-13-2015, 02:25 PM   #8
I'm Miserable!

Join Date: Jul 2015
Posts: 60
Total Cats: 0
Default

Indeed we use the MAX9926 in our ME221 ECUs - good for VR or even hall if the other side is left floating
Motorsport-Electronics is offline   Reply With Quote
Old 08-14-2015, 10:57 PM   #9
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by aidandj View Post
<p>Details?</p>
Proto Advantage - QSOP-16 to DIP-16 SMT Adapter (0.635 mm / 25 mil pitch)

chose pins and IC assembled from up top, and put in the digikey part number of the chip you want and presto it'll be at your door in like 2 weeks.
Leafy is offline   Reply With Quote
Old 08-14-2015, 11:02 PM   #10
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>Thats ******* awesome. Thanks.</p>
aidandj is offline   Reply With Quote
Old 08-14-2015, 11:04 PM   #11
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,925
Default

Quote:
Originally Posted by Leafy View Post
Proto Advantage - QSOP-16 to DIP-16 SMT Adapter (0.635 mm / 25 mil pitch)

chose pins and IC assembled from up top, and put in the digikey part number of the chip you want and presto it'll be at your door in like 2 weeks.
I've purchased their adapter boards in the bast (though I did my own assembly, because I'm a bad-*** with a soldering iron.) Good-quality parts at an excellent price.

Surface-mount isn't hard to do IF you have the right tools and are experienced with general soldering work. A Radio-Shack iron isn't the right tool. In fact, my fancy Weller is just barely adequate even with the expensive tip in it. When I worked at Harris, I took all my surface-mount work into the lab and used the $500 Metcal iron and the Bousch & Lomb stereomicroscope.

Moral: you can do it yourself if you try. But if you can pay someone else $6 to do it for you with the right tools, go that route.
Joe Perez is offline   Reply With Quote
Old 08-27-2015, 01:23 AM   #12
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

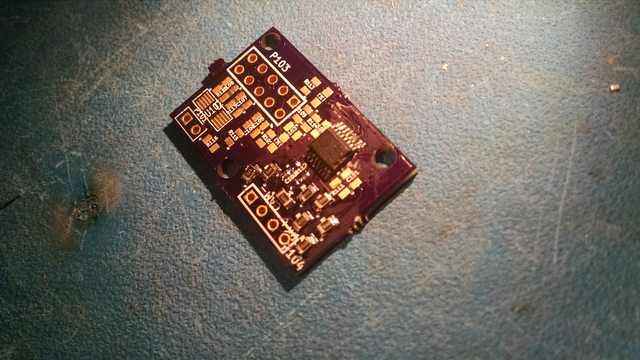

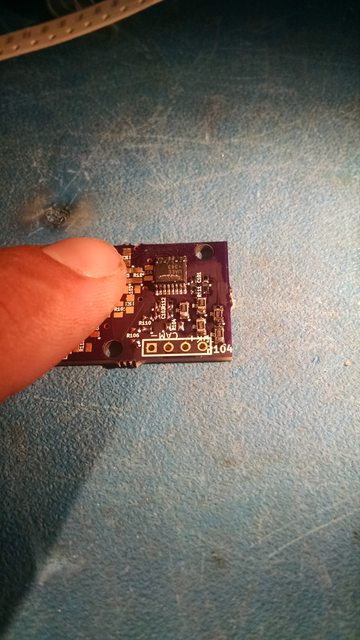

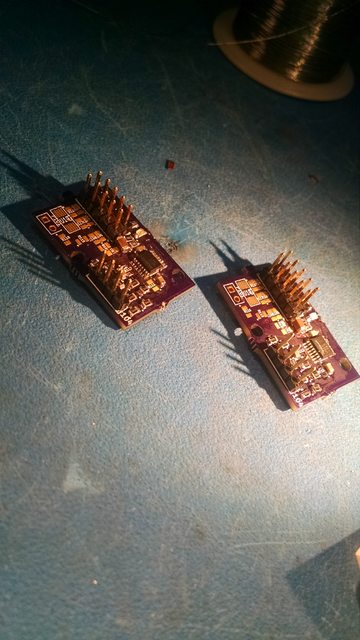

<p>Had some fun learning how to surface mount solder</p><p><br /><br /><br /><br /></p><p>And here it is working</p><p>
</p>
Attached Thumbnails
Build your own VR conditioner-unmhcfdl.jpg   Build your own VR conditioner-aussypdl.jpg   Build your own VR conditioner-sjx3unal.jpg   Build your own VR conditioner-ylx1g9jl.jpg   Build your own VR conditioner-ol8jrsrl.jpg

aidandj is offline   Reply With Quote
Old 08-27-2015, 01:38 AM   #13
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Just to be sure, this is just sine to square, right? No front/rear comparison, something that could be fed to a dinosaur ms2 as "knock."
deezums is offline   Reply With Quote
Old 08-27-2015, 01:39 AM   #14
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>just 2 channels of sine to square.</p><p>Buy an ms3 buddy Do you already have a 3.0 board?</p>
aidandj is offline   Reply With Quote
Old 08-27-2015, 02:00 AM   #15
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

What is a 3.0 board? Will a Ms3 daughterboard thing work in place of my ms2 microsquirt?

I need to buy a ms3 and sell this diypnp, should have done ms3 from the start...
deezums is offline   Reply With Quote
Old 08-27-2015, 02:01 AM   #16
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>Nope. If its a diypnp then no.</p><p>Do it. Keep an eye out on ebay and classifieds here. turbofan got his for like 350.</p>
aidandj is offline   Reply With Quote
Old 08-27-2015, 10:30 AM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

I've been soldering daily/weekly for the last 7 years or so. I stil dont want to attempt a componet like that.
Braineack is offline   Reply With Quote
Old 08-27-2015, 10:31 AM   #18
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Do it deezums. I have one more of these boards.
aidandj is offline   Reply With Quote
Old 08-27-2015, 05:14 PM   #19
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

So many other things need money spent on them...

I still need a rollbar, and new tires.

Who wants to buy my diypnp, lol
deezums is offline   Reply With Quote
Old 08-27-2015, 05:15 PM   #20
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>
Quote:
Originally Posted by Braineack View Post
I've been soldering daily/weekly for the last 7 years or so. I stil dont want to attempt a componet like that.
</p><p>Told you I'd beat you in a fight.</p><p>I probably wouldn't try it without the microscope. It makes things 10000x easier.</p>
