Old 11-10-2015, 12:29 PM   #41
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Seriously, I hand solder 0402s without a microscope.
Reverant is offline   Reply With Quote
Old 11-10-2015, 12:44 PM   #42
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

I just lay them on the board and then will the solder into place with my mind. Chuck Norris is jealous of my mad SMC skillz.
Joe Perez is offline   Reply With Quote
Old 11-10-2015, 12:46 PM   #43
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

I believe that. But the pins on the max922X are ******* small. Way smaller than the 0402.
aidandj is offline   Reply With Quote
Old 11-10-2015, 12:59 PM   #44
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

just tape it in place. scotch.
Braineack is offline   Reply With Quote
Old 11-10-2015, 01:10 PM   #45
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

Quote:
Originally Posted by aidandj View Post
I believe that. But the pins on the max922X are ******* small. Way smaller than the 0402.
For those, I did use the good microscope at work. It's not so much the size as the pitch- there's not much space between the pins.
Joe Perez is offline   Reply With Quote
Old 11-10-2015, 01:11 PM   #46
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

0402 isn't bad. I have super shakey hands so placing them sucks, but the soldering isn't bad. But mother ****** those pins are small on the max.
aidandj is offline   Reply With Quote
Old 11-10-2015, 01:16 PM   #47
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

I can solder tiny chips with no hands.

I just put it in my toaster oven and snack on solder paste as I wait, that stuff is tasty on ice. **** RoHS, they take my trans fat they ain't taking my paste.
deezums is offline   Reply With Quote
Old 11-10-2015, 05:20 PM   #48
Junior Member
iTrader: (1)

Join Date: May 2014
Posts: 248
Total Cats: 13
Default

I don't have any experience with surface mount components and pretty limited experience with soldering. I do a lot of clusterfucky stuff with wiring, not so much with circuit boards and 0 with SMCs. I learned to do some through hole components at a summer camp when I was 12 and in college. I've got 3 chances to get it right, hopefully one sticks.
stoves is offline   Reply With Quote
Old 11-27-2015, 03:03 PM   #49
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

I thought that at least the NB sensors already generate a square wave. Never checked though. Not sure if it's 12V or 5V. In any case, just running it through a double inverter should get a nice square 5V signal. I'm not even sure why we go through all the signal conditioning trouble with the MS, other than the signal conditioning circuits are already there when following the assembly instructions, so we may as well use them.

Somebody who actually scoped the signals and understands what the MS conditioning circuitry does, please correct me!
stefanst is offline   Reply With Quote
Old 11-27-2015, 03:11 PM   #50
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

And on the soldering:
I'm too old and have bad eyes, shaky hands and all that good stuff. Trying to hand-solder 0402 components is totally frustrating under those conditions.
So for SMD I usually get a stencil from oshstencils. Spread some paste, add components under a $25 Ebay microscope, bake it in the old toaster-oven for a few minutes and Bob's your uncle.
stefanst is offline   Reply With Quote
Old 11-27-2015, 03:58 PM   #51
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

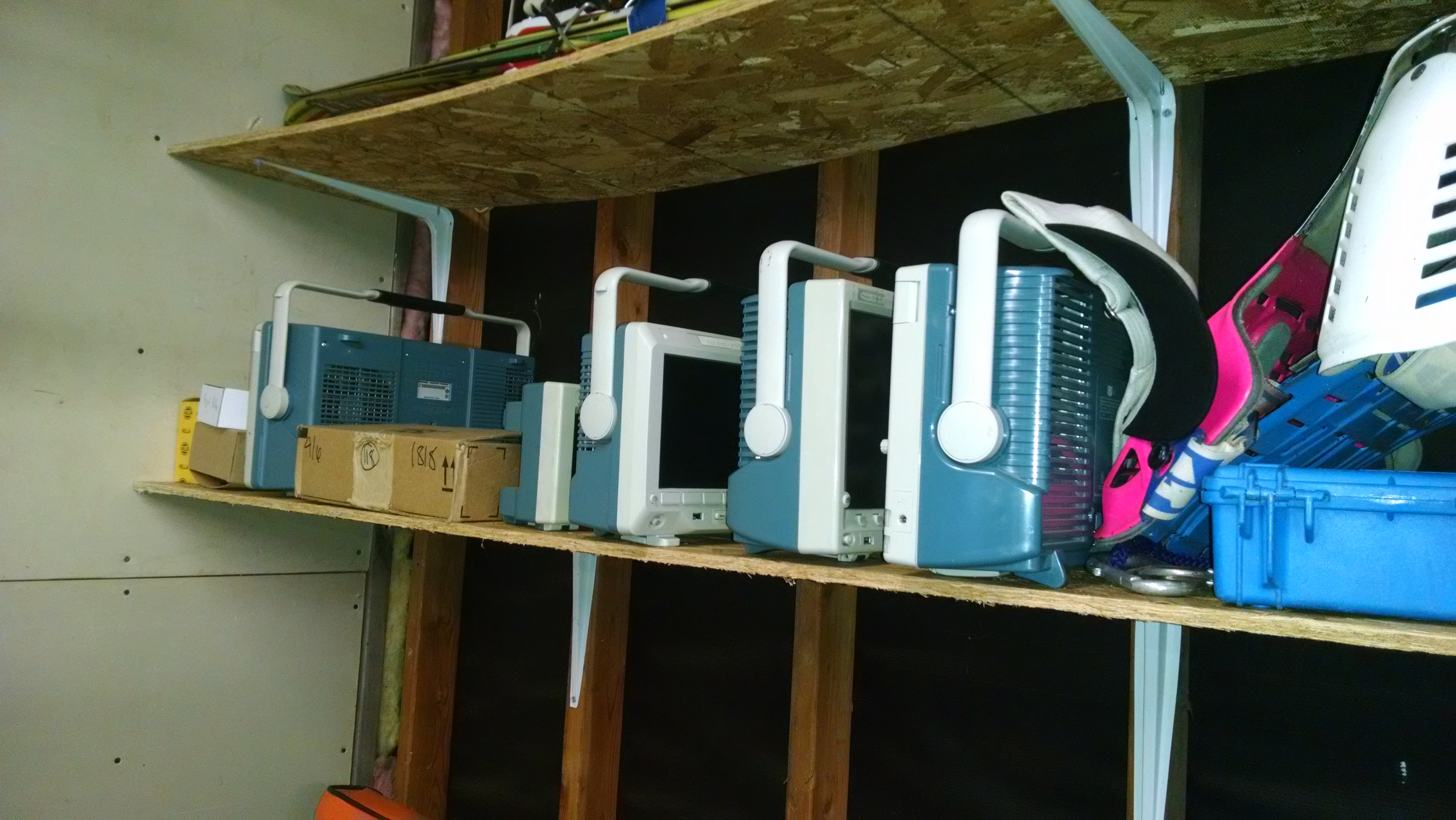

Did someone say scope?



Not sure what sensor your referring to. Both the ABS and Speed sensors output a VR sensor sine wave.
Attached Thumbnails
Build your own VR conditioner-lvbvyk9.jpg
aidandj is offline   Reply With Quote
Old 11-27-2015, 04:18 PM   #52
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Doh!
I was referring to the CAM and CRANK sensors. Didn't even consider ABS and Speed.
Never had any issues with my speed sensor though. Seems to be reading accurately and reliably. My '99 doesn't have ABS, so that's pointless to check.
stefanst is offline   Reply With Quote
Old 11-27-2015, 04:23 PM   #53
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

This is for driving an NB cluster when you don't have a speed sender. Or using ABS as speed inputs into the MS.
aidandj is offline   Reply With Quote
Old 11-27-2015, 04:32 PM   #54
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Now this whole thread finally makes sense to me!
stefanst is offline   Reply With Quote
Old 11-29-2015, 12:44 PM   #55
Junior Member

Join Date: May 2012
Location: Jersey City, NJ
Posts: 108
Total Cats: 10
Default

Glad to see some rusEfi stuff here
russian is offline   Reply With Quote
Old 11-29-2015, 12:46 PM   #56
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Thanks for your stuff russian. I'm kinda interested in doing a rusEfi build. Next miata I build will probably attempt to run on one
aidandj is offline   Reply With Quote
Old 11-29-2015, 05:07 PM   #57
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Man, all this talk about soldering under a microscope... My hands shake so much I've always been proud of how decent I could solder regular sized things lol.
Schuyler is offline   Reply With Quote
Old 11-29-2015, 05:35 PM   #58
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by Schuyler View Post
Man, all this talk about soldering under a microscope... My hands shake so much I've always been proud of how decent I could solder regular sized things lol.
Get off the crack. It stops the hand shaking.
aidandj is offline   Reply With Quote
Old 11-30-2015, 12:53 AM   #59
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Quote:
Originally Posted by aidandj View Post
Get off the crack. It stops the hand shaking.
My hands only shake when I get off the ethanol.
stefanst is offline   Reply With Quote
