Default DIYPNP optional components questions

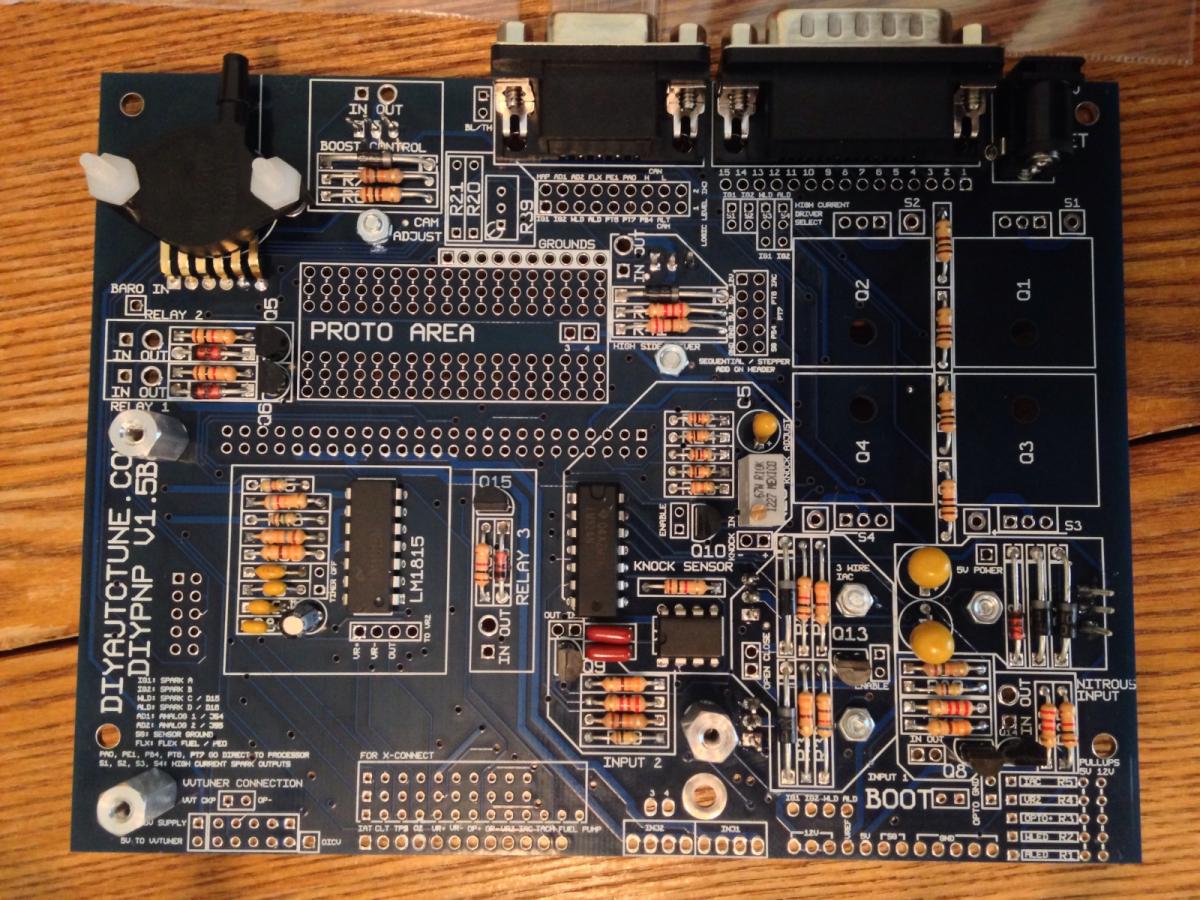

I'm just finishing up assembling my main board on my diypnp kit for my '96

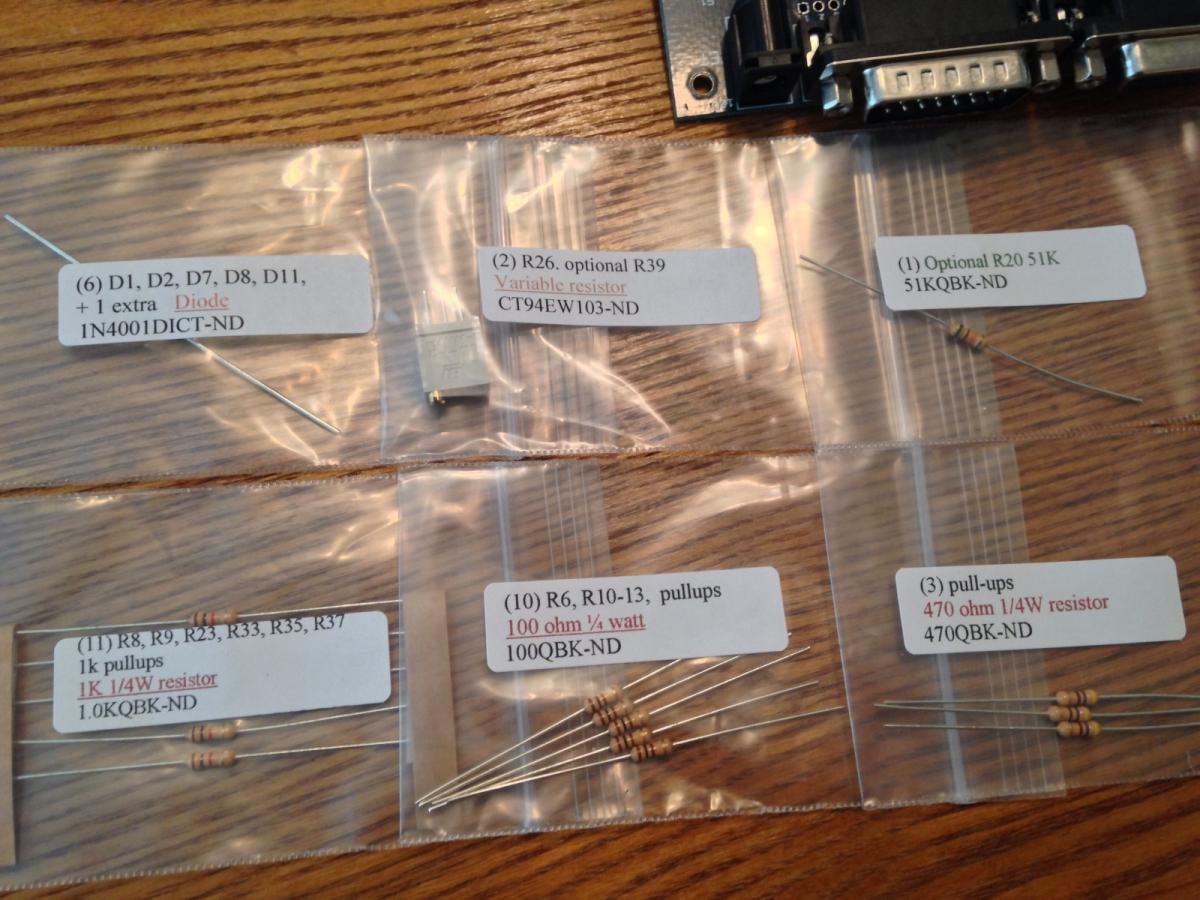

Now that I am about to start putting in the microsquirt module and other final pieces I just want to clarify as to whether or not I need to use any of the optional parts that I was left with after assembling the main board:


I understand that these are optional pieces for vehicle-specific applications but can't seem to figure out whether or not i'm going to need to install any of these for my use, any insight would be appreciated.

I have an innovate wideband, gm aif sensor, and will be using the stock ignition coils
Attached Thumbnails
DIYPNP optional components questions-bjeku9.jpg   DIYPNP optional components questions-x5ql5c.jpg
Campbellsouup is offline   Reply With Quote
Old 04-12-2014, 02:27 PM   #2
Newb
Thread Starter

Join Date: Mar 2014
Posts: 9
Total Cats: 0
Default

Also, I'm left with jumpers and shunts for boot, BL/TH, and OPTO GND, what are these for? The only things i see referencing them are older ms builds
Campbellsouup is offline   Reply With Quote
Old 04-12-2014, 03:11 PM   #3
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

There will be plenty of parts left over. DIY gives you enough that you can mess a few up, and to add components later on.
dieselmiata is offline   Reply With Quote
Old 04-12-2014, 05:29 PM   #4
Newb
Thread Starter

Join Date: Mar 2014
Posts: 9
Total Cats: 0
Default

Okay cool, so I should be good, I went ahead and installed the jumpers but not the shunts so I can make the connections as needed.Also is the main board supposed to
Campbellsouup is offline   Reply With Quote
