Default ECU burnt out. help!

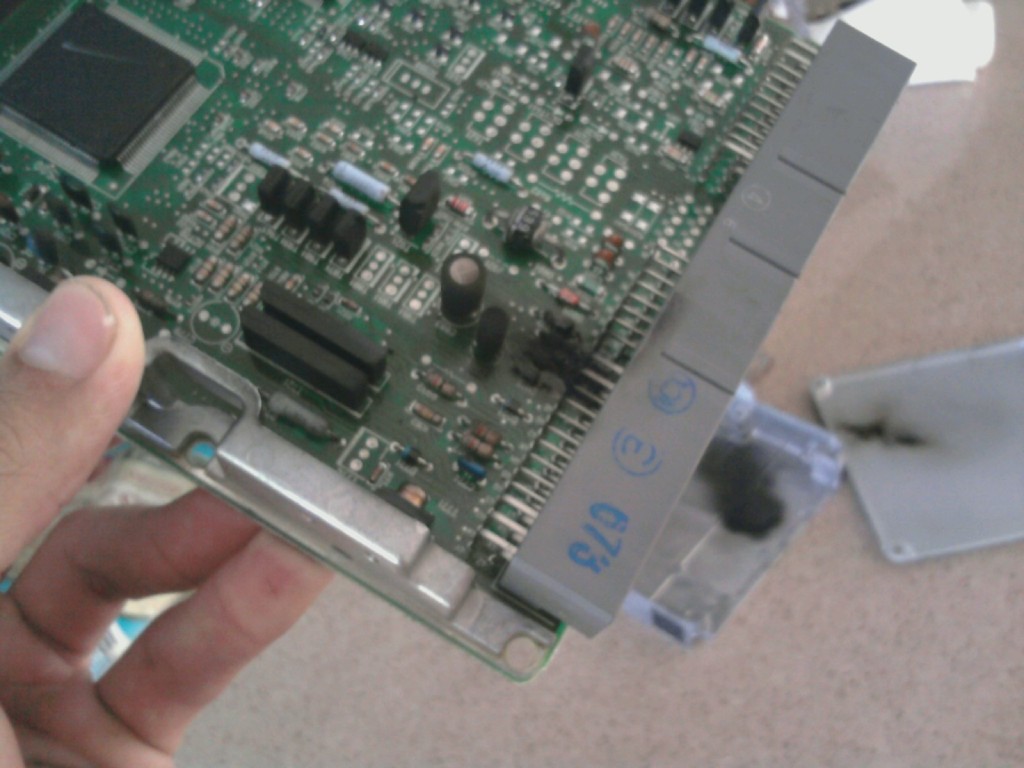

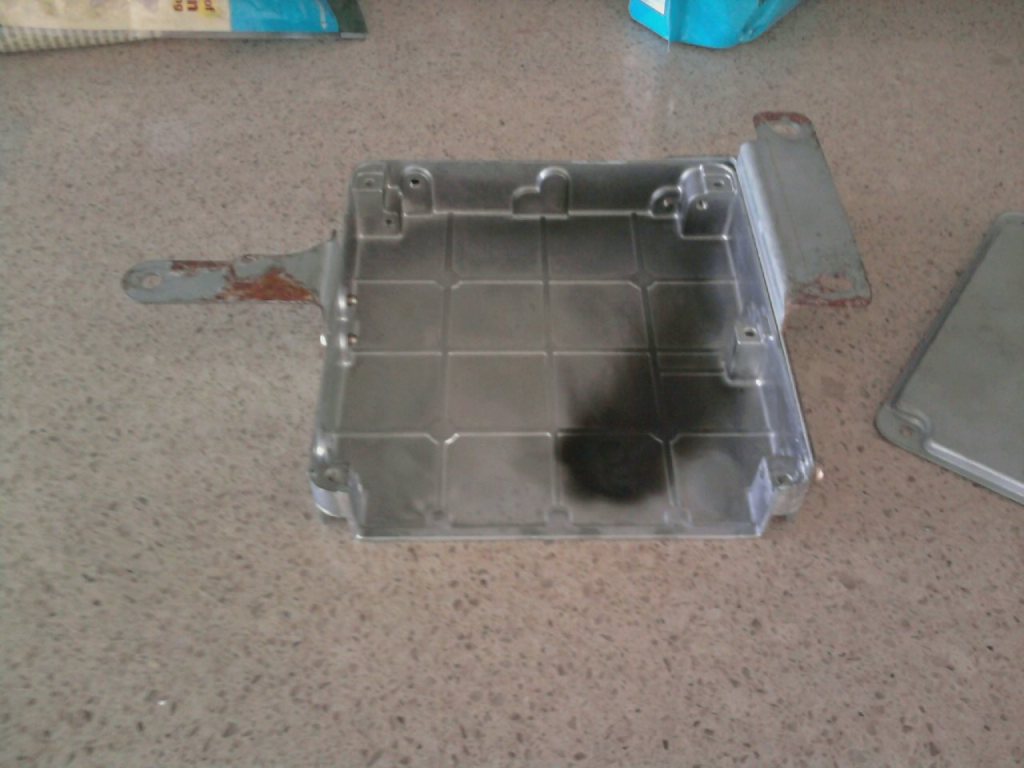

Well thank gosh my car atleast made it to the stop sign about 40 yards away before i noticed anything. It was driving fine and then at the stop sign I hit the gas and let the clutch out to pull foward. I didnt go anywhere. Thought i stalled like a noob well tried it again and i noticed smoke coming from the ecu area.GD

The actual harness wires and plugs dont seem to have any damage, just the left side of the big plug(connector) for a 96 miata. I believe the wires are both black with a light green stripe but they are at least black and on the very left side.

So my question's are exactly:
1. What are these wires for, I've looked around and can only find circuit diagrams.
2. Will maybe a wrong wired o2 sensor cause this? I had to splice a post cat o2 in to a pre-cat connector, so i didnt actually splice the engine harness.

Yes i will be buying a new ecu i just do not want this to happen again.
Thanks.

Oh and obviously in the pictures the ecu is upside down so it would be on the left side of connecter!


Attached Thumbnails
ECU burnt out. help!-mms_picture_2-2.jpg   ECU burnt out. help!-mms_picture-2.jpg

Last edited by KsoV; 09-09-2012 at 08:15 PM.
KsoV is offline   Reply With Quote
Old 09-09-2012, 07:51 PM   #2
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

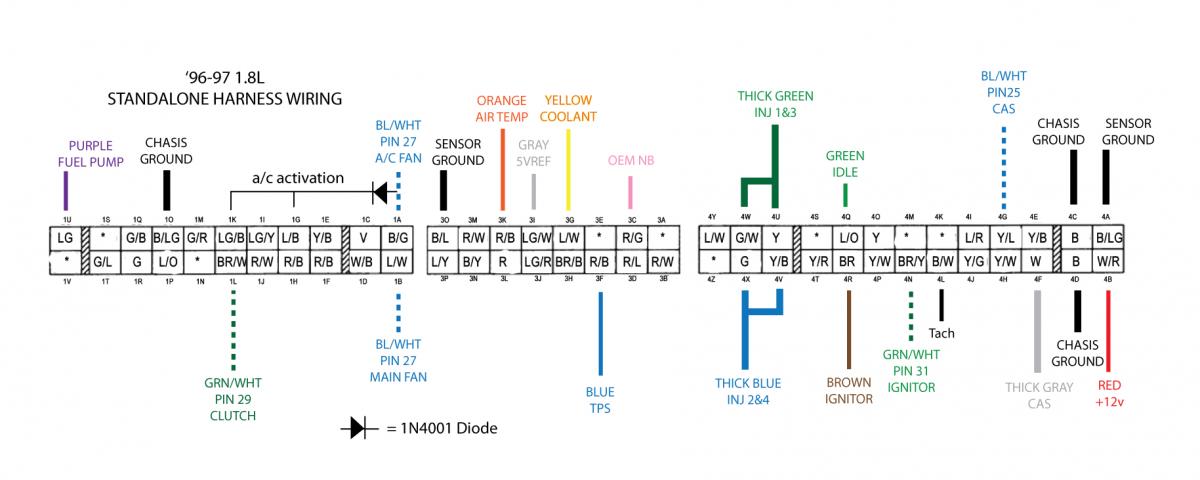

For ref...

black/light green is sensor ground
Attached Thumbnails
ECU burnt out. help!-9697_standalone_harness.jpg
240_to_miata is offline   Reply With Quote
Old 09-09-2012, 08:14 PM   #3
Junior Member
Thread Starter

Join Date: Dec 2010
Posts: 54
Total Cats: 0
Default

Ahhh thank you so much, I must be horrible at googling because that excactly what i was looking for.

And for more newbness exactly what does it mean by sensor ground? All sensors?
KsoV is offline   Reply With Quote
Old 09-09-2012, 08:44 PM   #4
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

I believe so.

FYI I found that info in this thread:
https://www.miataturbo.net/useful-sa...asquirt-13676/
240_to_miata is offline   Reply With Quote
Old 09-10-2012, 09:51 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

the wire that burnt was your 12v wire on 4B, not the grounds. Something is shorting your 12v to ground, probably in cabin. When that happened, the wire got super hot (think hair dryer heating coil) and the weakest link is the PCB and copper traces, which started melting/burning first.


You probably want to go back and wire the o2 correctly. Why not post up here EXACTLY (to the freaking T) how you wired it, and we can tell you how to fix it.

It's highly possible the ECU is still perfectly fine.
Braineack is offline   Reply With Quote
Old 09-10-2012, 10:35 AM   #6
Junior Member
Thread Starter

Join Date: Dec 2010
Posts: 54
Total Cats: 0
Default

Well its the post cat o2 sensor from Rspeed(ordered the wrong damn one) So instead of me cutting the actual main harness I took the old o2 and snipped off the clip and wired those together since they were the same color wiring. So i honestly have no clue maybe a wire somehow touched another one but i wired them really tight with alot of tape.
KsoV is offline   Reply With Quote
Old 09-10-2012, 10:40 AM   #7
Junior Member
Thread Starter

Join Date: Dec 2010
Posts: 54
Total Cats: 0
Default

Hmmm also i did the nrg short hub mod where you have to cut the airbag wires, could that short it with out a resistor or something since you said cabin?
KsoV is offline   Reply With Quote
Old 09-10-2012, 10:47 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by KsoV View Post
Well its the post cat o2 sensor from Rspeed(ordered the wrong damn one) So instead of me cutting the actual main harness I took the old o2 and snipped off the clip and wired those together since they were the same color wiring. So i honestly have no clue maybe a wire somehow touched another one but i wired them really tight with alot of tape.
This is probably an issue. but youre saying the 4 sensor wires were exactly the same colors?
Braineack is offline   Reply With Quote
Old 09-10-2012, 12:06 PM   #9
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

My guess is you had a power filter capacitor in the ECU fail, turn into a dead short, and cook the board. That happened on a Honda I used to have (probably the third worst lemon I've ever owned, behind a junk Capri I only bought for the body shell and a Triumph Spitfire with burn marks all over the wiring harness).
Matt Cramer is offline   Reply With Quote
Old 09-10-2012, 02:46 PM   #10
Junior Member
Thread Starter

Join Date: Dec 2010
Posts: 54
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
This is probably an issue. but youre saying the 4 sensor wires were exactly the same colors?
yes, exactly the same but the connecters were different so that was the only reason I had to splice.
KsoV is offline   Reply With Quote
Old 09-10-2012, 02:52 PM   #11
Junior Member
Thread Starter

Join Date: Dec 2010
Posts: 54
Total Cats: 0
Default

Also i picked up a bp3a ecu from the junkyard just in case, just need a o2 sensor now.
KsoV is offline   Reply With Quote
Old 09-10-2012, 08:33 PM   #12
Junior Member
Thread Starter

Join Date: Dec 2010
Posts: 54
Total Cats: 0
Default

Hmm put in the ecu and o2 sensor, it cranks and fires but then wont idle and nothing when I press the gas pedal.
KsoV is offline   Reply With Quote
Old 09-10-2012, 08:43 PM   #13
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by Matt Cramer View Post
a Triumph Spitfire with burn marks all over the wiring harness).
Those were OEM burn marks if your Spitfire is wired anything like my TR6. The "fuse block" in that car has positions for 4 fuses, but the factory only populated 3 of them...

KsoV: So, you are not using any part of your homebrew O2 sensor harness now?
EO2K is offline   Reply With Quote
Old 09-10-2012, 08:47 PM   #14
Junior Member
Thread Starter

Join Date: Dec 2010
Posts: 54
Total Cats: 0
Default

Quote:
Originally Posted by EO2K View Post
Those were OEM burn marks if your Spitfire is wired anything like my TR6. The "fuse block" in that car has positions for 4 fuses, but the factory only populated 3 of them...

KsoV: So, you are not using any part of your homebrew O2 sensor harness now?
Nope, no homebrew now. Trying to do some research but every thing i find states they are interchangeable. I did get it from a junk yard but looks to be in great shape so who knows, maybe its a dud from sitting so long in FL weather..
KsoV is offline   Reply With Quote
Old 09-10-2012, 08:50 PM   #15
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

The car is a 96? Is that OBDII? I can never remember. I'm wondering if its throwing a code at this point with the new ECU?
EO2K is offline   Reply With Quote
Old 09-10-2012, 09:34 PM   #16
Junior Member
Thread Starter

Join Date: Dec 2010
Posts: 54
Total Cats: 0
Default

Quote:
Originally Posted by EO2K View Post
The car is a 96? Is that OBDII? I can never remember. I'm wondering if its throwing a code at this point with the new ECU?
Yes to both of those questions. Well my research says that it will run and drive identical but the check engine light will always be on, so before i go and buy the used correct ecu for the 96 i will have a buddy come by with a scanner.

thanks for all the help buds

p.s The old ecu is completely shot as i plugged it back in and in return got nothing.
KsoV is offline   Reply With Quote
Old 09-11-2012, 10:24 AM   #17
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Quote:
Originally Posted by EO2K View Post
Those were OEM burn marks if your Spitfire is wired anything like my TR6. The "fuse block" in that car has positions for 4 fuses, but the factory only populated 3 of them...
Yes, my Spitfire had only three fuses and no circuit breakers. Not a single one of them was on the headlight circuit. And the headlight wires rub against the edge of the hood when you open it...
Matt Cramer is offline   Reply With Quote
Old 09-11-2012, 03:45 PM   #18
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Hey Matt, ever see anyone get cam and crank signals off a 2.5l Triumph 6cyl? I'm open to ideas as I'd love to have an MS built to run sequential injection/wasted spark on this beast, you guys do much custom work?

Sorry KsoV, I'll try not to be too much of a distraction here
EO2K is offline   Reply With Quote
Old 09-11-2012, 04:24 PM   #19
Junior Member
Thread Starter

Join Date: Dec 2010
Posts: 54
Total Cats: 0
Default

Ha no problem guys,trying to get a scanner by tomorrow night
KsoV is offline   Reply With Quote
Old 09-11-2012, 05:52 PM   #20
Junior Member
Thread Starter

Join Date: Dec 2010
Posts: 54
Total Cats: 0
Default

Hmmm I didnt get a scanner yet but i remembered that one day it seemed like my MAF went out then i recent my old ecu. Then it worked until the old ecu did its thing. So possibly a bad MAF that cause it?
KsoV is offline   Reply With Quote
