Old 10-07-2011, 04:17 PM   #61
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

By any chance do you have a MapDaddy sensor installed and it is setup for a normal one or vise-versa?
shuiend is offline   Reply With Quote
Old 10-07-2011, 04:23 PM   #62
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: Cary, NC
Posts: 494
Total Cats: 6
Default

im not sure what sensor is installed, i ordered the MS1 v2.2 kit from DIYAutotune then sent it to brain to be assembled.

i cant find any settings for the map sensor except under properties, then its just asking me to select from the drop down menu. how would i check if my volts>map is set up properly?
rigidbigelsworth is offline   Reply With Quote
Old 10-07-2011, 04:25 PM   #63
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

well the reading off you rMS seems to match your gauge... that's just incredibly low vacuum at idle. you should be pulling closer to 18-20~hg (29-33kPa)
Braineack is offline   Reply With Quote
Old 10-07-2011, 04:29 PM   #64
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: Cary, NC
Posts: 494
Total Cats: 6
Default

could i be idling at a higher atmospheric pressure because my turbo is so small, its actually raising my manifold pressure slightly? the compressor blades are spinning during idle.
rigidbigelsworth is offline   Reply With Quote
Old 10-07-2011, 04:34 PM   #65
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

no.
Braineack is offline   Reply With Quote
Old 10-07-2011, 04:37 PM   #66
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: Cary, NC
Posts: 494
Total Cats: 6
Default

so if it is just a fixed error, can i have the dyno shop just tune it for what it thinks the map reading is? as long as its always reading the same wrong map pressure it should be fine if he tunes it for that right?
rigidbigelsworth is offline   Reply With Quote
Old 10-07-2011, 04:41 PM   #67
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

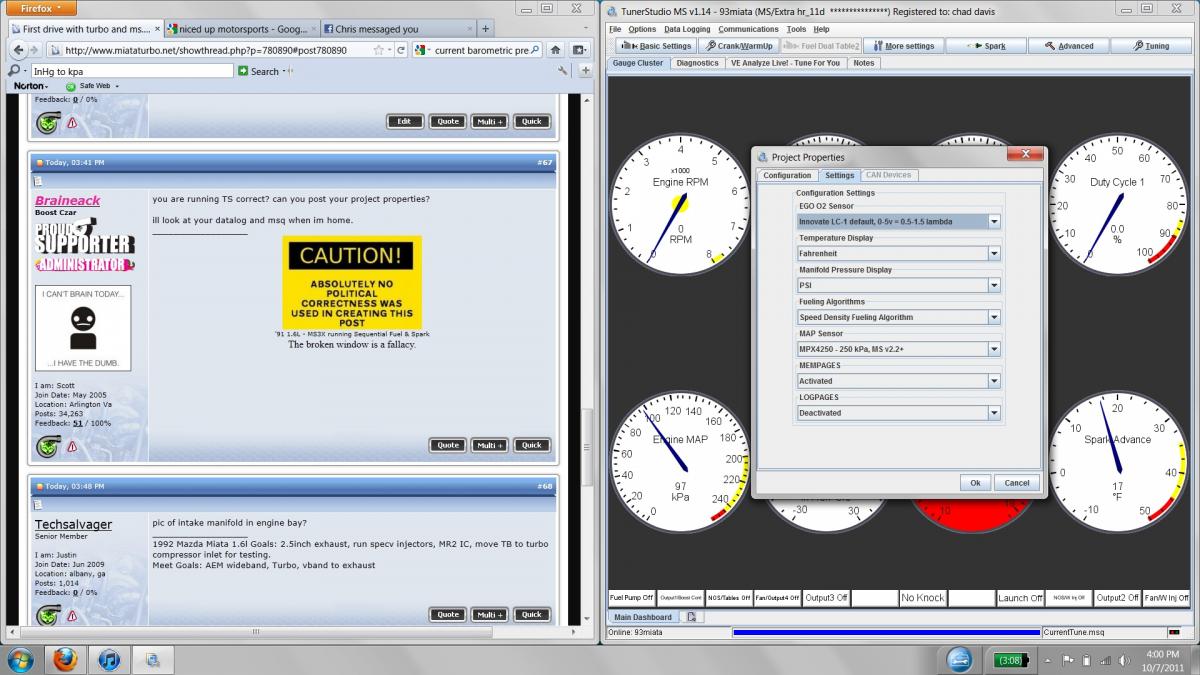

you are running TS correct? can you post your project properties?

ill look at your datalog and msq when im home.
Braineack is offline   Reply With Quote
Old 10-07-2011, 04:48 PM   #68
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

pic of intake manifold in engine bay?
Techsalvager is offline   Reply With Quote
Old 10-07-2011, 05:06 PM   #69
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: Cary, NC
Posts: 494
Total Cats: 6
Default

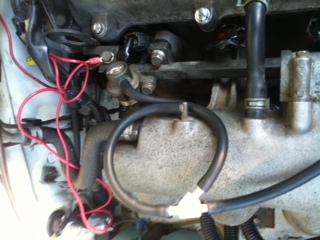

pics below

also, if it means anything, with car off, barometer and map are both reading 97. not sure where it gets a barometer reading from tho..
Attached Thumbnails
First drive with turbo and ms. Sputters and backfires at 4k-photo.jpg   First drive with turbo and ms. Sputters and backfires at 4k-photo-2-.jpg   First drive with turbo and ms. Sputters and backfires at 4k-photo-1-.jpg   First drive with turbo and ms. Sputters and backfires at 4k-project-properties.jpg
rigidbigelsworth is offline   Reply With Quote
Old 10-07-2011, 05:08 PM   #70
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

I would try removing the PCV on the manifold, plugging the barb on the intake manifold and see if it changes where it idles at
Techsalvager is offline   Reply With Quote
Old 10-07-2011, 05:12 PM   #71
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: Cary, NC
Posts: 494
Total Cats: 6
Default

what did you have in mind tech?
rigidbigelsworth is offline   Reply With Quote
Old 10-07-2011, 05:16 PM   #72
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by rigidbigelsworth View Post
what did you have in mind tech?
reread post above, also barometer is read from pressure sensor.
Techsalvager is offline   Reply With Quote
Old 10-07-2011, 05:23 PM   #73
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: Cary, NC
Posts: 494
Total Cats: 6
Default

you originally said "nevermind". want me to give it a try or no?
rigidbigelsworth is offline   Reply With Quote
Old 10-07-2011, 05:25 PM   #74
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

remove the PCV on the manifold, plugging the barb on the intake manifold and see if it changes where it idles at.
Techsalvager is offline   Reply With Quote
Old 10-07-2011, 05:33 PM   #75
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: Cary, NC
Posts: 494
Total Cats: 6
Default

it was idling like ****, i think because it cooled off since i played with the idle fuel cells but it was around 70 kpa
rigidbigelsworth is offline   Reply With Quote
Old 10-07-2011, 05:34 PM   #76
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

did you make sure to plug the barb on the intake manifold after removing the hose going to the valve cover?
Techsalvager is offline   Reply With Quote
Old 10-07-2011, 05:36 PM   #77
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: Cary, NC
Posts: 494
Total Cats: 6
Default

yup. i had my brother hold his thumb over it

this shouldnt have anything to do with my IACV pulling from atmosphere, rather than a tube tied into the intercooler piping would it?
rigidbigelsworth is offline   Reply With Quote
Old 10-07-2011, 05:40 PM   #78
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

ok

Try pulling the IACV connector off while the car is off, turn the car on and see if still idles at 60kpa~

2nd thing, have you ever messed with the idle screw?
Techsalvager is offline   Reply With Quote
Old 10-07-2011, 05:44 PM   #79
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: Cary, NC
Posts: 494
Total Cats: 6
Default

i have not messed with the idle screw. i assumed it was MS controlled so i didnt wanna tamper with any physical components.

so remove iacv and hose, run manifold plugged and valve cover with open hole? ill give it a try after i get it to idle smoother by adjusting idle screw.
rigidbigelsworth is offline   Reply With Quote
Old 10-07-2011, 05:51 PM   #80
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: Cary, NC
Posts: 494
Total Cats: 6
Default

tried combinations of removing iacv hose, pcv valve, and regardless its idling at about 80kpa now idling at 800 rpm. rough as ****
rigidbigelsworth is offline   Reply With Quote
