Default Gauge display on radio with OBD2 and MS3

Been wanting to do this for some time and finished it up this am.

I'm running a MSlabs (Reverent) MS3 which typically means your OBD2 port is just a piece of plastic that does nothing (well, it still is). But Rev came up with a pretty clever add-on for the MS3- and add on that gives you a operational OBD2 port.

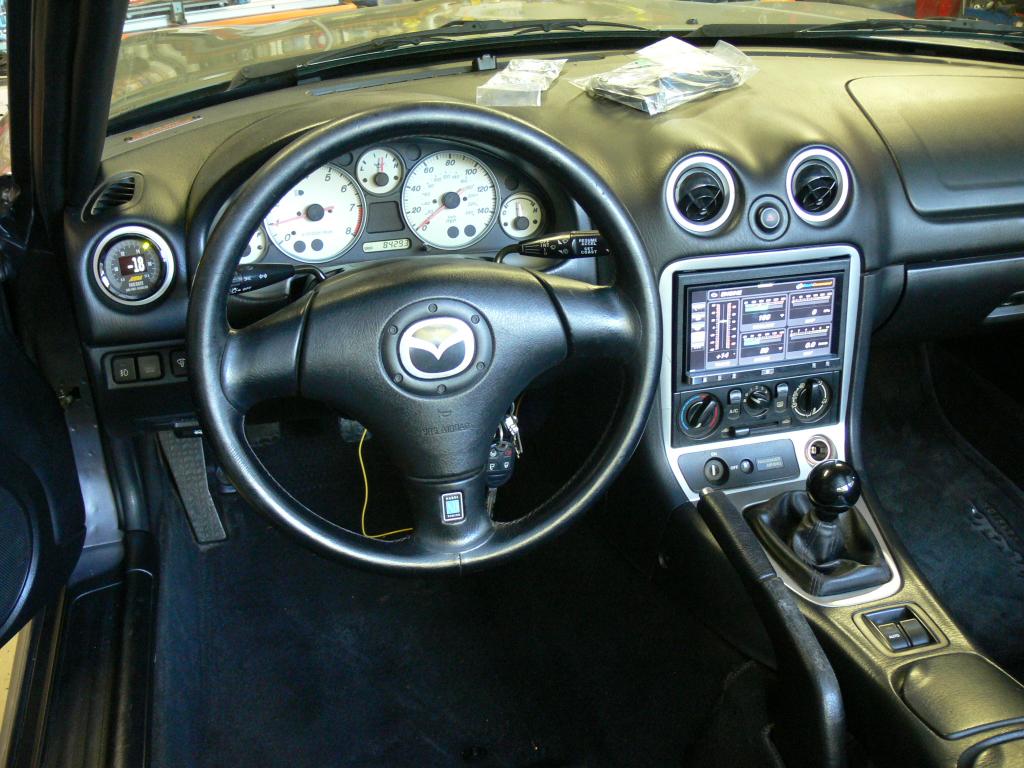

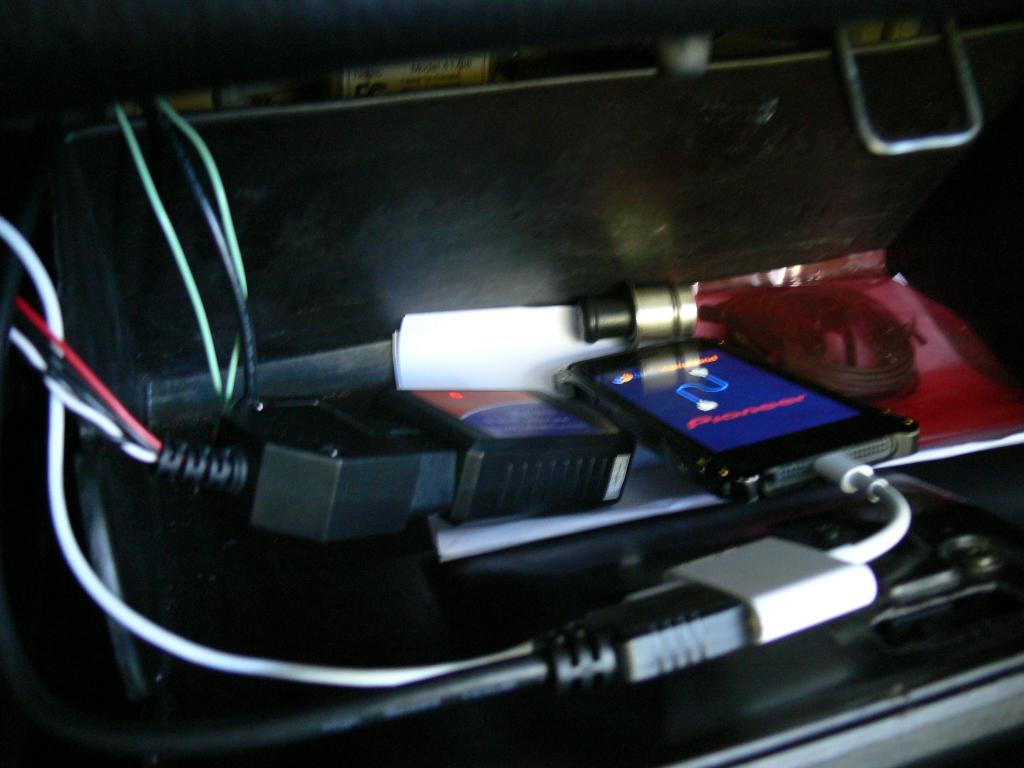

I installed the module and ran the obd2 port over to the glove box. Next, I attached a WIFI dongle (ELM 327) which sends the OBD2 info to my i5. The i5 is connected to a Pioneer App Radio 3. You have to use an HDMI cord, a usb to lightning cable and a digital to lightning adapter. Then using app radio and DashCommand you get a whole display right on your dash with current engine data. It's awesome.

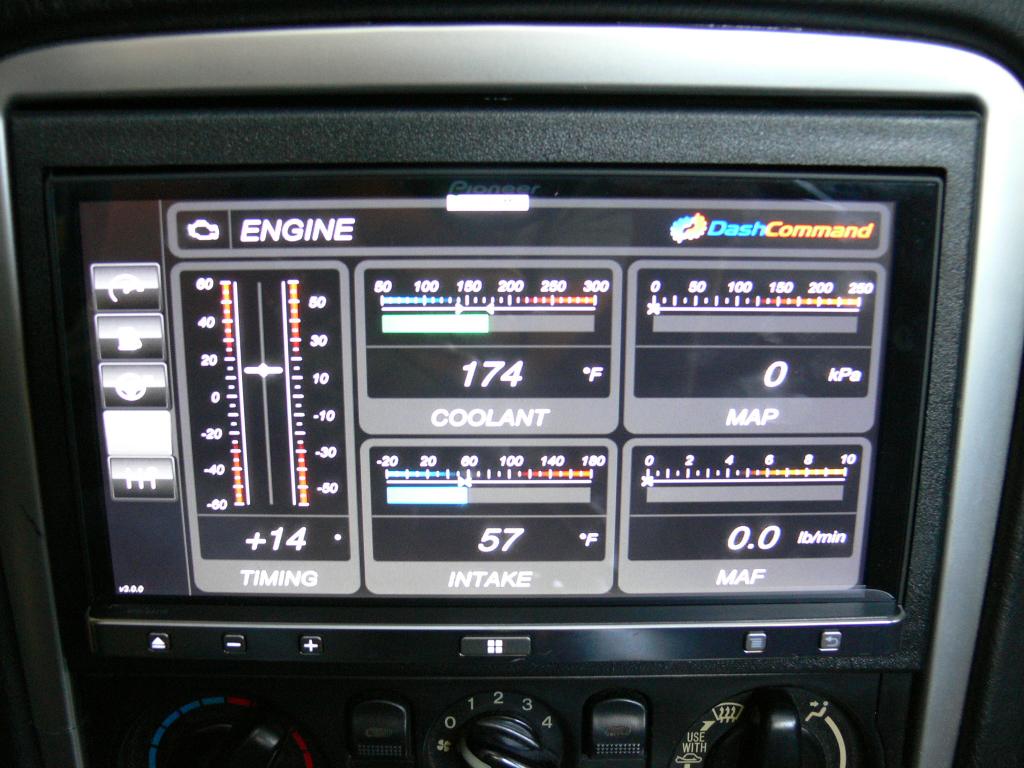

I will most likely end up using the engine dashboard the most but you can view more traditional gauges, performance data, fuel economy data, even log things like time/ miles in each gear. It does a ton of stuff.

This started because I wanted a decent coolant gauge but don't like a lot of gauges all over the car. This is much more sano, and when off-track it's a radio/ gps.







Attached Thumbnails
Gauge display on radio with OBD2 and MS3-p1130568_zps6576d51c.jpg   Gauge display on radio with OBD2 and MS3-p1130570_zps84980411.jpg   Gauge display on radio with OBD2 and MS3-p1130566_zpsb3173b9a.jpg   Gauge display on radio with OBD2 and MS3-p1130569_zps42792dbb.jpg
carnut169 is offline   Reply With Quote
Old 10-02-2014, 10:54 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,166
Total Cats: 2,573
Default

very cool indeed.

definitely love how clean it ended up on the front end.

set up the wb to display on there too and you have no need for any gauges at all.
18psi is offline   Reply With Quote
Old 10-02-2014, 10:58 AM   #3
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,842
Total Cats: 271
Default

Looks good! +1 on MS integration.

Would you happen to have the model# to that pioneer?

I hope to do this 'one day', possibly with an intel nuc.

Post vids if you got em
Girz0r is offline   Reply With Quote
Old 10-02-2014, 12:01 PM   #4
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Atlanta, Ga
Posts: 265
Total Cats: 36
Default

Quote:
Originally Posted by 18psi View Post
very cool indeed.

definitely love how clean it ended up on the front end.

set up the wb to display on there too and you have no need for any gauges at all.

One of the faults in this system is that you cannot (or I have not figured out how to yet) listen to the radio while using dash command. I'd really only use it at the track or testing anyway. The wb and boost I'd like to see while driving and listening to some tunes or I'd do just that. It does display both now.
carnut169 is offline   Reply With Quote
Old 10-02-2014, 12:04 PM   #5
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,696
Total Cats: 267
Default

Things like this really tempt me to expand the Miata hobby beyond my agreement with my wife.

I... WILL... NOT... SECUMB.

But, Really, Really cool.
DNMakinson is online now   Reply With Quote
Old 10-02-2014, 12:26 PM   #6
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

that looks great good job!
buffon01 is offline   Reply With Quote
Old 10-06-2014, 12:54 AM   #7
Junior Member
iTrader: (4)

Join Date: Jun 2013
Location: Dallas TX
Posts: 148
Total Cats: -3
Default

That looks so good
Baker99miata is offline   Reply With Quote
Old 10-10-2014, 09:30 PM   #8
Junior Member

Join Date: Jan 2014
Location: Port Saint Lucie,FL
Posts: 418
Total Cats: 3
Default

Quote:
Originally Posted by carnut169 View Post
One of the faults in this system is that you cannot (or I have not figured out how to yet) listen to the radio while using dash command. I'd really only use it at the track or testing anyway. The wb and boost I'd like to see while driving and listening to some tunes or I'd do just that. It does display both now.
I have a different Pioneer double din that I hooked up my phone to like that, under settings on the radio there was an option for "mixing". I think it may have been "app mixing" of something of that nature. It is set to "off" by default, find that and turn it on and you will be able to play whatever audio you want with the dash command up.
Mech5700 is offline   Reply With Quote
Old 10-10-2014, 10:39 PM   #9
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Is it reasonably visible with the top down in full sunlight? I know that's asking a lot but if it was reasonable I would switch very soon...
Chiburbian is offline   Reply With Quote
Old 07-09-2017, 09:40 AM   #10
Junior Member

Join Date: Jan 2007
Posts: 218
Total Cats: 15
Default

I noticed your using the standard DashCommand dashboard. Did you ever have any luck setting up a DashCommand gauge to view AFR via the wideband oxygen sensor?
freedomgli is offline   Reply With Quote
