Default Getting MSPNP to talk to Laptop with RadioShack Cable

So my old Lenovo's RAM died at the beginning of this year and I bought an Asus with Win8, but no optical drive. I'm trying to get my LC-1 and MSPNP 9697 to talk to my new pc so I can tune. My problem right now is just getting any signal from the car. I have this DB9 to USB cable from Radio Shack. I downloaded (I think) the driver from Radio Shack's site here. I clicked on the "GigawareŽ 6-ft. USB-A to Serial Cable" link and hit Run>View Downloads>Unzip to "X" folder. Is this all I have to do to have the working driver? I tried plugging up to the car and opening TS but I couldn't get any connection. Help a plz.
mx5autoxer is offline   Reply With Quote
Old 10-09-2013, 04:52 PM   #2
Senior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

No one has any experience with a radio shack cable?
mx5autoxer is offline   Reply With Quote
Old 10-09-2013, 06:54 PM   #3
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

As easy as the MS is to work with, what I've heard is that they're sensitive to what cables you use. Most of us have DIYautotune's cable through their site.
curly is offline   Reply With Quote
Old 10-09-2013, 06:57 PM   #4
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Whenever I have issues with an RS-232 cable, I add a NULL Modem adapter to swap 2 & 3. It's kind of 50/50. Might be your issue. They are cheap at the shack and if it doesn't fix the problem just return it.
hornetball is offline   Reply With Quote
Old 10-09-2013, 08:23 PM   #5
Senior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

I'll try that. I know the cable works under the right conditions because the car was origionally dyno tuned with it using mega tune.
mx5autoxer is offline   Reply With Quote
Old 10-13-2013, 03:37 PM   #6
Junior Member

Join Date: Dec 2012
Posts: 105
Total Cats: 8
Default

While I do not own this converter, I just looked at that driver, you did not fully install it. You run, click UNZIP, but before you do that, pay attention to the folder you UNZIP it to. All that does is dump a bunch of files in a folder, basically a fancy .zip file with its own unzipper. You then need to navigate to that directory that you specified, default being C:\2600949 and then execute autorun.exe and follow the installation instructions from there on.
kero is offline   Reply With Quote
Old 10-13-2013, 04:06 PM   #7
Senior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

Ah, thanks. I haven't had a chance to mess with it because its been raining for 5 days straight, but I have a hunch that its user error and not hardware. I'll try that, then run out and hook it up for a sec.
mx5autoxer is offline   Reply With Quote
Old 10-13-2013, 04:17 PM   #8
Junior Member

Join Date: Dec 2012
Posts: 105
Total Cats: 8
Default

Yea if you've had it working before, I don't see why it wouldn't work again, def. seems like a driver issue
kero is offline   Reply With Quote
Old 10-13-2013, 04:27 PM   #9
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

These cables are so buggy that just using the wrong usb port and they wont work. I have the same problem with adaptronic. From what i've found out theres actual ports that you can select from the converter it self however even then switching the cable to a different usb port on the laptop may not work even on the correct port on the converter. The only thing i'm glad is that adaptronic has an automatic port scan feature so you plug into a different port and it cant find it you do the automatic sweep and it finds it.
triple88a is offline   Reply With Quote
Old 10-14-2013, 11:51 PM   #10
Senior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

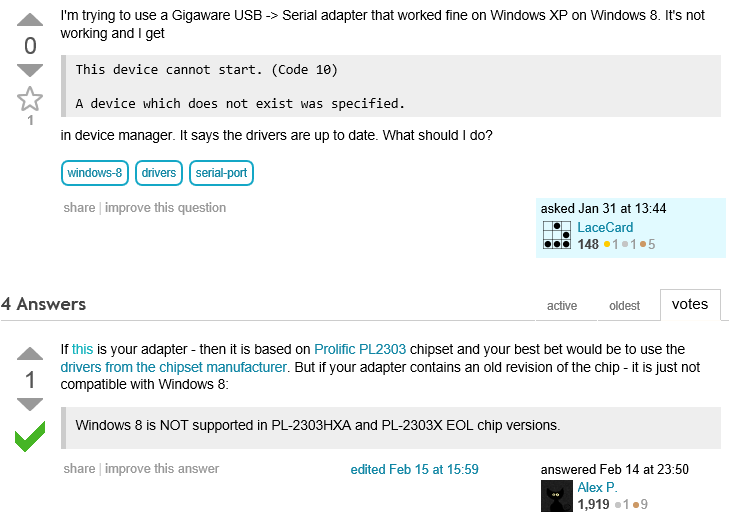

Problem Found:



Cable is completely incompatible with Win8.

I'm buying a cable from diyautotune...like I should have from the start.
Attached Thumbnails
Getting MSPNP to talk to Laptop with RadioShack Cable-cable_zps91de99b1.png
mx5autoxer is offline   Reply With Quote
Old 10-15-2013, 12:22 AM   #11
Senior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

While I was looking around efianalytics.com to buy a cable, I looked at the Bluetooth adapter to use an Android phone to tune. The Bluetooth hardware is $55, the Shadow Dash is $10, and Shadow logger is free. I need to buy Tuner Studio ($60) and Megalog Viewer ($30) for my new computer. If I went Bluetooth would that save me money? Its too good to be true, right?

EDIT: Basically I can't figure out if you can do any actual tuning. Ben had a thread back when it first came out that used the word "tune", but the conversation was unclear about how limited the tuning was.

Last edited by mx5autoxer; 10-15-2013 at 12:35 AM.
mx5autoxer is offline   Reply With Quote
Old 10-15-2013, 01:06 AM   #12
Junior Member

Join Date: Dec 2012
Posts: 105
Total Cats: 8
Default

Quote:
Originally Posted by mx5autoxer View Post
While I was looking around efianalytics.com to buy a cable, I looked at the Bluetooth adapter to use an Android phone to tune. The Bluetooth hardware is $55, the Shadow Dash is $10, and Shadow logger is free. I need to buy Tuner Studio ($60) and Megalog Viewer ($30) for my new computer. If I went Bluetooth would that save me money? Its too good to be true, right?

EDIT: Basically I can't figure out if you can do any actual tuning. Ben had a thread back when it first came out that used the word "tune", but the conversation was unclear about how limited the tuning was.
Not sure on your mobile question, but I doubt you would want to tune on that. Anyway, do you NEED to buy Tunerstudio? I just bought megalogviewer and use the free tunerstudio, isn't the only difference VE Analyze Live? Which is basically same as VE Analyze just on the fly right? Correct me if I'm wrong here

Btw, you said you just switched to a new computer, as in you already bought Tunerstudio?

If so, their license allows for the software to be on 3 computers
kero is offline   Reply With Quote
Old 10-15-2013, 02:36 AM   #13
Senior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

I got a new computer at the beginning of this year with Win8. Before I was using a Lenovo with XP or whatever was standard in 2008 with Megatune and Mega log from 08 as well. I have no clue where those discs are and my new laptop doesn't even have an optical drive so I don't really care anyway. I downloaded Tuner Studio Lite so far, but that's it. I really have no clue what I'm doing. I turned every nut on the car when I installed the turbo stuff, but when it came to tuning I paid a local guy to dyno tune it for me. I have a good understanding of how to keep an engine running, but I get really lost when I have to learn new programs, or- even worse- troubleshoot.
mx5autoxer is offline   Reply With Quote
Old 10-15-2013, 09:15 AM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

you need a cable with drivers compatible with win666.
Braineack is offline   Reply With Quote
Old 10-15-2013, 10:44 AM   #15
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Quote:
Originally Posted by mx5autoxer View Post
I got a new computer at the beginning of this year with Win8. Before I was using a Lenovo with XP or whatever was standard in 2008 with Megatune and Mega log from 08 as well. I have no clue where those discs are and my new laptop doesn't even have an optical drive so I don't really care anyway. I downloaded Tuner Studio Lite so far, but that's it. I really have no clue what I'm doing. I turned every nut on the car when I installed the turbo stuff, but when it came to tuning I paid a local guy to dyno tune it for me. I have a good understanding of how to keep an engine running, but I get really lost when I have to learn new programs, or- even worse- troubleshoot.
If I were you I would get to reading. I fried my last MS cause I "thought" I new what I was doing. For now focus on the basics. ie getting communication, getting the base map loaded from DIY and setting the fixed timing and idle. Then as you go through all the other settings in TS search on here using Google to find out what each section does. You could also use Help in TS. Also I highly recommend purchasing TS cause VE analyze live is SEX and will save you a ton of time and keeps your car relatively "safe".
ScottyP3821 is offline   Reply With Quote
Old 10-15-2013, 01:29 PM   #16
Senior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

I've read a book on ecu tuning with a section about MS, but I haven't actually got around to tuning. Right now I have working maps, but I have a little bit of tip in stumble at certain RPMs and throttle positions. Its only a problem during daily driving (so I guess low in the RPMs). I also need to work on idle a little. But the real reason I need to get tuning is to clean up my AFRs so I can pass emissions. I moved from SW VA to Northern VA and just recently found out I have to get emissions testing to renew my registration.
mx5autoxer is offline   Reply With Quote
Old 10-15-2013, 01:42 PM   #17
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Quote:
Originally Posted by mx5autoxer View Post
I've read a book on ecu tuning with a section about MS, but I haven't actually got around to tuning. Right now I have working maps, but I have a little bit of tip in stumble at certain RPMs and throttle positions. Its only a problem during daily driving (so I guess low in the RPMs). I also need to work on idle a little. But the real reason I need to get tuning is to clean up my AFRs so I can pass emissions. I moved from SW VA to Northern VA and just recently found out I have to get emissions testing to renew my registration.
I forgot to mention you also need to calibrate your tps with the engine off and the key in the on position. Sounds like you should find someone in the area that can get you a good street tune. You dont need to get on a dyno to fix running rich for emissions. When they run the sniffer they only take it up the 25mph. Street tunes down here in texas go for about 50 bucks through BEGi and Track Dog. There has to be someone in VA that can get you tuned up. Maybe even a member on here.
ScottyP3821 is offline   Reply With Quote
Old 10-15-2013, 02:01 PM   #18
Senior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

I'm not trying to get it dyno tuned or even do anything major to the tune. It just needs some polishing. It has a good tune on it but that was done 4 years ago and in the mountains. I think time and altitude have made it a little rough.
mx5autoxer is offline   Reply With Quote
Old 10-15-2013, 02:18 PM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

You do know I'm home before you leave for the day...and you work 5min away from my house...and i know how to tune...and i have a tuning cable that works with win8...
Braineack is offline   Reply With Quote
Old 10-15-2013, 02:48 PM   #20
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by Braineack View Post
and i know how to tune
LOL!

Understatement of the year.
