Help me diagnose my low dyno numbers


Old 02-15-2018, 03:08 PM
  #1
Junior Member
Thread Starter

Join Date: Aug 2016
Location: Montreal
Posts: 99
Total Cats: 1
Default Help me diagnose my low dyno numbers

1993 1.6L running MS2PNP, gt2560 @16psi, 420cc injectors. BEGI manifold, FM downpipe and 2.5" straight pipe exhaust
Made 180whp/wtq on a Dynapack

As far as I can tell, the engine is happy. Doesn't cough oil and runs smooth (although I haven't gotten around to doing a compression test). AFRs are on point. Why are my numbers so low, when similar setups have been pushing 225+ with less boost?

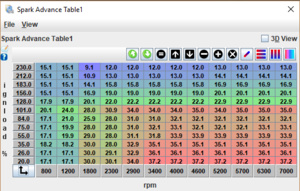

I've attached my tune as well as a picture of my timing table.
Attached Thumbnails Help me diagnose my low dyno numbers-timing.png
Attached Files
File Type: msq
CurrentTune.msq (117.1 KB, 118 views)
fpscolin is offline
Old 02-15-2018, 03:13 PM
  #2
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,141
Total Cats: 3,145
Default

what's "on point" mean? post a log
18psi is offline
Old 02-15-2018, 03:19 PM
  #3
Junior Member
Thread Starter

Join Date: Aug 2016
Location: Montreal
Posts: 99
Total Cats: 1
Default

On point, meaning they tend to be exactly what the AFR table is set to.


Adding the log I have saved from before storing the car, hope it's indicative of something
fpscolin is offline
Old 02-15-2018, 03:21 PM
  #4
Junior Member
Thread Starter

Join Date: Aug 2016
Location: Montreal
Posts: 99
Total Cats: 1
Default

fpscolin is offline
Old 02-15-2018, 03:23 PM
  #5
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,141
Total Cats: 3,145
Default

gotcha. well you're certainly running plenty of spark advance
18psi is offline
Old 02-15-2018, 03:32 PM
  #6
Junior Member
Thread Starter

Join Date: Aug 2016
Location: Montreal
Posts: 99
Total Cats: 1
Default

Which (if I understand correctly) makes it even more puzzling - a relatively aggressive timing table should bump up power figures, right?
fpscolin is offline
Old 02-15-2018, 03:34 PM
  #7
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 10,265
Total Cats: 1,607
Default

What is that in Mustang Dyno numbers?
concealer404 is offline
Old 02-15-2018, 03:37 PM
  #8
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 3,159
Total Cats: 382
Default

compression and leakdown numbers.. need those. those numbers definitely suck IMO.

Altitude of test station?
ryansmoneypit is offline
Old 02-15-2018, 03:40 PM
  #9
Junior Member
Thread Starter

Join Date: Aug 2016
Location: Montreal
Posts: 99
Total Cats: 1
Default

Pretty much sea level, humidity was ~80%, temperature ~80*F on dyno day
fpscolin is offline
Old 02-15-2018, 03:57 PM
  #10
Elite Member
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,525
Total Cats: 869
Default

  • Is your clutch slipping?
  • What is your exhaust diameter at its narrowest section?
  • Do you have a catalytic converter?
  • What gear was the car in on the dyno, and what gear did the operator enter in the computer?
  • Is your timing belt installed correctly, with no teeth skipped?
  • Do you have stock diff ratio, and was it entered correctly?
  • Do you have odd sized tires/rims?
  • Have you checked your intake tract (including TB) for obstructions?
  • Have you absolutely made sure you have calibrated your timing using a timing gun?
Godless Commie is offline
Old 02-15-2018, 03:58 PM
  #11
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,141
Total Cats: 3,145
Default

Dyno plot is not loading for me............

Originally Posted by concealer404 View Post
What is that in Mustang Dyno numbers?
3.50

heartbreaker bro. heartbreaker
18psi is offline
Old 02-15-2018, 04:05 PM
  #12
Junior Member
Thread Starter

Join Date: Aug 2016
Location: Montreal
Posts: 99
Total Cats: 1
Default

  • Is your clutch slipping? No.
  • What is your exhaust diameter at its narrowest section? At least 2"
  • Do you have a catalytic converter? No.
  • What gear was the car in on the dyno, and what gear did the operator enter in the computer? 4th.
  • Is your timing belt installed correctly, with no teeth skipped? Bought the car with the timing belt redone ~20k miles ago
  • Do you have stock diff ratio, and was it entered correctly? Not sure what he entered, but stock open diff.
  • Do you have odd sized tires/rims? Dynapack's bolt directly to the hubs.
  • Have you checked your intake tract (including TB) for obstructions? Cleaned the throttle body butterfly when installing my VTPS.
  • Have you absolutely made sure you have calibrated your timing using a timing gun? Yes.
fpscolin is offline
Old 02-15-2018, 04:06 PM
  #13
Junior Member
Thread Starter

Join Date: Aug 2016
Location: Montreal
Posts: 99
Total Cats: 1
Default

Dyno plot
Sorry, not sure what this is? I have the log open in Megalog Viewer but don't know where to look for it.

BTW the log is NOT from the dyno session, but a drive I went on a month or so after it was tuned.
fpscolin is offline
Old 02-15-2018, 04:07 PM
  #14
Elite Member
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,525
Total Cats: 869
Default

Originally Posted by fpscolin View Post
  • Is your clutch slipping? No.
  • What is your exhaust diameter at its narrowest section? At least 2"
  • Do you have a catalytic converter? No.
  • What gear was the car in on the dyno, and what gear did the operator enter in the computer? 4th.
  • Is your timing belt installed correctly, with no teeth skipped? Bought the car with the timing belt redone ~20k miles ago
  • Do you have stock diff ratio, and was it entered correctly? Not sure what he entered, but stock open diff.
  • Do you have odd sized tires/rims? Dynapack's bolt directly to the hubs.
  • Have you checked your intake tract (including TB) for obstructions? Cleaned the throttle body butterfly when installing my VTPS.
  • Have you absolutely made sure you have calibrated your timing using a timing gun? Yes.
Well, you can always lie and say it made 280.
Godless Commie is offline
Old 02-15-2018, 04:10 PM
  #15
Junior Member
Thread Starter

Join Date: Aug 2016
Location: Montreal
Posts: 99
Total Cats: 1
Default

Sadly I already do and say it made an even 200. Cause... it definitely feels like it does. I've got no problem keeping up with my friend's F20 swapped NA; we're almost perfectly matched for power, I can pull on him past 75MPH...
fpscolin is offline
Old 02-15-2018, 04:24 PM
  #16
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,141
Total Cats: 3,145
Default

the dyno plot is the sheet or screen print they give you at the dyno session

2" is a very restrictive exhaust
18psi is offline
Old 02-15-2018, 04:30 PM
  #17
Junior Member
Thread Starter

Join Date: Aug 2016
Location: Montreal
Posts: 99
Total Cats: 1
Default

Originally Posted by 18psi View Post
the dyno plot is the sheet or screen print they give you at the dyno session

2" is a very restrictive exhaust
The exhaust is 2.5", but since the Flyin Miata turbine elbow doesn't list its diameter I'd guess it to be close to 2". Maybe I'll try disconnecting everything at the DP and see if she rips

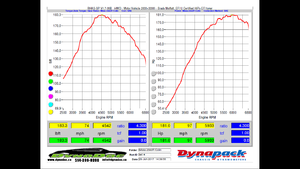

Here's the dyno graph
Attached Thumbnails Help me diagnose my low dyno numbers-dyno.png
fpscolin is offline
Old 02-15-2018, 04:56 PM
  #18
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 4,472
Total Cats: 532
Default

Originally Posted by fpscolin View Post
The exhaust is 2.5", but since the Flyin Miata turbine elbow doesn't list its diameter I'd guess it to be close to 2". Maybe I'll try disconnecting everything at the DP and see if she rips

Here's the dyno graph
The FM turbine elbow is the same diameter as a GT2560 turbo at the inlet (which is around 2", but it's not a circle) and is 2.5" at the outlet.

Do you have a real Garrett turbo, or an ebay/china "2560" ?

--Ian
codrus is offline
Old 02-15-2018, 05:01 PM
  #19
Junior Member
Thread Starter

Join Date: Aug 2016
Location: Montreal
Posts: 99
Total Cats: 1
Default

Originally Posted by codrus View Post
The FM turbine elbow is the same diameter as a GT2560 turbo at the inlet (which is around 2", but it's not a circle) and is 2.5" at the outlet.

Do you have a real Garrett turbo, or an ebay/china "2560" ?

--Ian
Bought it off of the Zilvia forums, so it's the Nissan variety.
fpscolin is offline
Old 02-15-2018, 05:27 PM
  #20
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 4,472
Total Cats: 532
Default

So it's a Nissan OEM part?

Have you checked it for shaft play and wheel damage?

--Ian
​​​​​​​
codrus is offline
