Old 02-18-2014, 11:40 AM   #21
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

Do not let VEAL tune your idle cells. Do that by hand and set the minimum rpm for VEAL to tune at ~1600.
sixshooter is offline   Reply With Quote
Old 02-18-2014, 11:44 AM   #22
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

yes definitely that too
18psi is offline   Reply With Quote
Old 02-19-2014, 01:41 PM   #23
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Nov 2013
Location: GA
Posts: 171
Total Cats: -154
Default

Quote:
Originally Posted by 18psi View Post
yes definitely that too
All of your guys recent comments were taken in and i re-tuned all of the tables accordingly.

Something came to my concern today, as i was saying, it seems like every time i tune in car and get a steady idle going it lasts about 20 minutes and changes completely

Just out of curiosity i began to do more research on MAP sensor configurations, and why my pressure varies so much than normal ambient pressure. yada yada

always had the issue of my barometer reading lower than it should.

My point is that i have two map sensors im guessing previous owner rigged up one on x7 for constant barometric correction rather than a sample at start and at interval.

My barometric correction settings were odd, compared to what the actual manual says to set them at.

The minimum bar cor. was set at like 22map kpa
and the maximum was set at 34 map kpa

I hit F1 and the help/tutorial thing says that normally 80mkpa- 100mapkpa is usually "fine"

I changed them and the idle dropped drastically lean

should i use the recommended settings or were the previous values right?
zacktrotter_uncc is offline   Reply With Quote
Old 02-20-2014, 09:15 AM   #24
Senior Member
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

It was my understanding that it is recommended to turn barometric correction OFF. This is slightly beyond my knowledge base at this point, however. Please don't do that without talking to someone who knows WTF first.
mlev is offline   Reply With Quote
Old 02-20-2014, 01:21 PM   #25
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Nov 2013
Location: GA
Posts: 171
Total Cats: -154
Default

Quote:
Originally Posted by sixshooter View Post
Do not let VEAL tune your idle cells. Do that by hand and set the minimum rpm for VEAL to tune at ~1600.
did you see my post about barometric correction?

Also i applied the changes as i stated. i changed the minimum map to 80 and max to 100.

The car would barley run!
it was maxed out to 19:1 afr running dangerously lean.
should i try to re-do everything much more rich and turn barro correct off? or keep it from 80-100?
maybe this is why i ave had so much trouble. also in my area we are at pretty normal readings on ambient pressure.
zacktrotter_uncc is offline   Reply With Quote
Old 02-20-2014, 01:52 PM   #26
Senior Member
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

I imagine when you upped the bar cor by that much, you're adding a ton of air. You should either set it back to where it was when you tuned your VE table, or re-tune your VE table ASAP. You do NOT want to be running at 19 afr. I'm no tuning expert, but you don't have to be to know that.

Figure out what the bar cor should *actually* be, then tune your VE tables with it set to that. Whether that's 80-100, or what you had it originally, or off completely.
mlev is offline   Reply With Quote
Old 02-20-2014, 03:15 PM   #27
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Nov 2013
Location: GA
Posts: 171
Total Cats: -154
Default

Quote:
Originally Posted by mlev View Post
I imagine when you upped the bar cor by that much, you're adding a ton of air. You should either set it back to where it was when you tuned your VE table, or re-tune your VE table ASAP. You do NOT want to be running at 19 afr. I'm no tuning expert, but you don't have to be to know that.

Figure out what the bar cor should *actually* be, then tune your VE tables with it set to that. Whether that's 80-100, or what you had it originally, or off completely.
So what if i just increased the entire VE table by like 15 simultaneously and tryed a run with the suggested 80-100kpa bar cor
also doesn't that mean its only "correcting" the barometer above 80kpa

maybe this is why im still running kind of high at idle advance on the spark table? when another guy suggested like 12-14 degrees im at like 16-18
zacktrotter_uncc is offline   Reply With Quote
Old 02-20-2014, 08:01 PM   #28
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

It's been 101.6 to 102kpa outside at Charlotte, NC today.
sixshooter is offline   Reply With Quote
Old 02-20-2014, 11:36 PM   #29
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Nov 2013
Location: GA
Posts: 171
Total Cats: -154
Default

Quote:
Originally Posted by sixshooter View Post
It's been 101.6 to 102kpa outside at Charlotte, NC today.
So im kind of confused

is it correcting the map reading when my manifold pressure is at and above 80kpa map?

or is it correcting the barometer when the ambient pressure is in the range of 80-100

so basically i turned barro correct "on"

because if it was only correcting 20-30kpa it was if i was on a really high mountain or somthing
zacktrotter_uncc is offline   Reply With Quote
Old 02-21-2014, 12:23 AM   #30
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Think of it as.. it's correcting everything.
All fueling.
At sealevel an internal combustion engine makes more power then it well on a mountain. Especially naturally aspirated one's.

Edit:
You don't really need barometric correction unless you travel. Otherwise you'll be tuned fur your local areas barometric pressure.
Impuls is offline   Reply With Quote
Old 02-21-2014, 05:00 PM   #31
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Nov 2013
Location: GA
Posts: 171
Total Cats: -154
Default Gentlemen...behold

Quote:
Originally Posted by triple88a View Post
added 4 degrees to the first 3 500 rpm cells? What are u running now 20 degrees at 500 rpm?
Okay guys....countless hours of tweaking and failing

So i decided to do some more research on fixing the idle control settings for a closed loop idle.

I switched back over to closed loop and found that it quit sporadically changing my idle. also i noticed that i had my cranking DC way low as compared to instructions here. be sure to throw this link at a noob trying to get his idle fixed it really helped me setup my closed loop idle properly.
JACKS DIY MSPNP

And i might add instead of idling at 14.0-14.7 it wants stay steady at 13.3afr

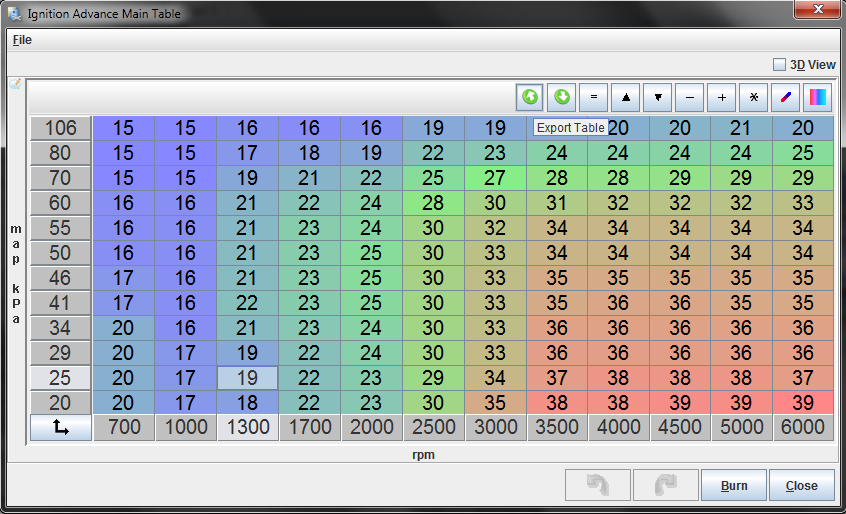

i know the spark isnt exactly as requested but this worked the best. when i set the first three axis on spark the same value it took a lot of time to settle so i did like i said and had the valley

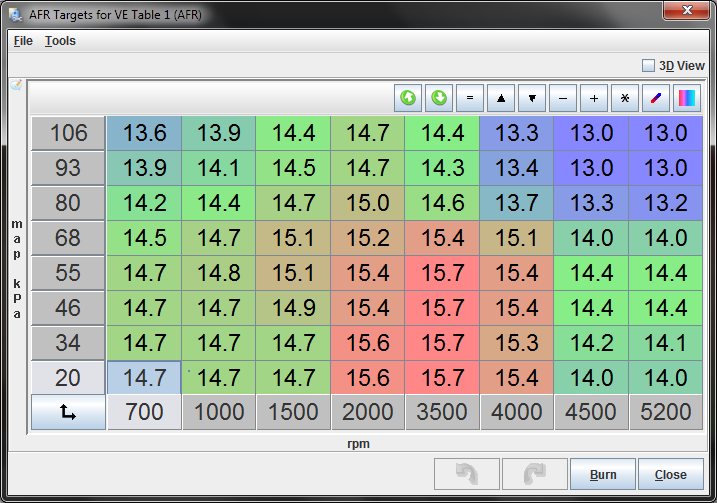

Also added an rpm "axis" (1500rpm) to my AFR table! i may have screwed up the "cruising" AFRs here can anybody figure that?

But this is a steady idle. And for the love of god it wont stay settled at anything but 13.3 AFR. it will literally set there. without twitching.

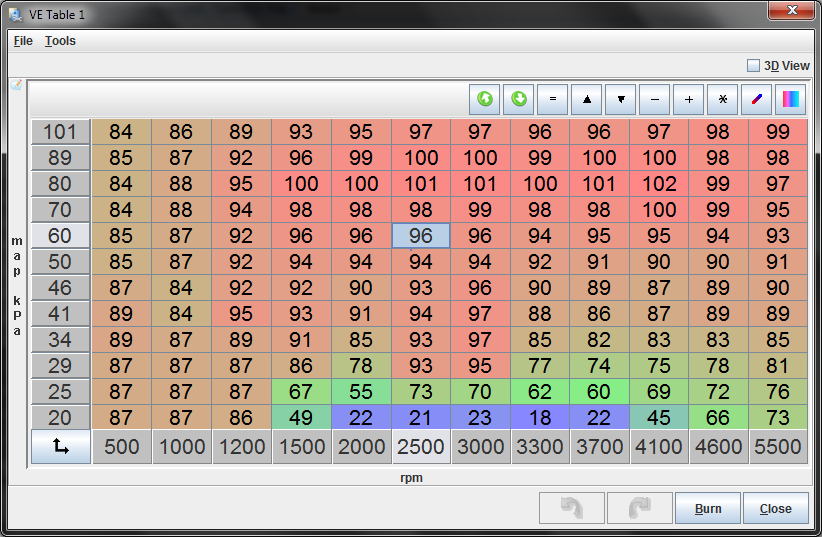

How do my tables look? and some other ametuer tuner probs-zackve2-21.pngHow do my tables look? and some other ametuer tuner probs-zakafr2-21.pngHow do my tables look? and some other ametuer tuner probs-zackspark2_21.png
zacktrotter_uncc is offline   Reply With Quote
Old 02-21-2014, 05:18 PM   #32
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

How is this car not pissing fuel out the tailpipe at idle (or danger lean at WOT) with only a ~10pt. spread between low rpm/kpa and WOT?


Also, read these. Thrice. It helped me tremendously.

Tuning Idle Valve - Ms2 - Guides: Forced induction - MX5Nutz Forum

How Do I Tune My Idle With A Standalone? - Guides: Forced induction - MX5Nutz Forum
Oscar is offline   Reply With Quote
Old 02-21-2014, 06:00 PM   #33
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Inded something isnt right. Your VE table is weird. You should be at 60 ve at idle
triple88a is offline   Reply With Quote
Old 02-22-2014, 12:10 AM   #34
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Nov 2013
Location: GA
Posts: 171
Total Cats: -154
Default

that ve table is screwed up.
i changed the barro correct to the recommended ranges and it made that VE table after a drive.

that was not right i knew it wasnt but the idle was good.

runnning rich as hell. changed ve table back to base tune and...
the miata idles like ****, and i have the updated spark and AFR table

ifuckinghatethiscar wtf
zacktrotter_uncc is offline   Reply With Quote
Old 02-22-2014, 12:13 AM   #35
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Nov 2013
Location: GA
Posts: 171
Total Cats: -154
Default

Quote:
Originally Posted by Oscar View Post
How is this car not pissing fuel out the tailpipe at idle (or danger lean at WOT) with only a ~10pt. spread between low rpm/kpa and WOT?


Also, read these. Thrice. It helped me tremendously.

Tuning Idle Valve - Ms2 - Guides: Forced induction - MX5Nutz Forum

How Do I Tune My Idle With A Standalone? - Guides: Forced induction - MX5Nutz Forum

I have none of those options i have a MS PNP gen 1

my version of TS looks nothing like yours
zacktrotter_uncc is offline   Reply With Quote
Old 02-22-2014, 12:59 AM   #36
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

that ve table is bananas. do not run the car like that
18psi is offline   Reply With Quote
Old 02-22-2014, 01:42 AM   #37
Senior Member
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

I know you don't want to hear this, but start at the start. Double check ALL your settings, load your startup map, and start from there.
mlev is offline   Reply With Quote
Old 02-22-2014, 07:13 AM   #38
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by zacktrotter_uncc View Post
that ve table is screwed up.
i changed the barro correct to the recommended ranges and it made that VE table after a drive.

that was not right i knew it wasnt but the idle was good.

runnning rich as hell. changed ve table back to base tune and...
the miata idles like ****, and i have the updated spark and AFR table

ifuckinghatethiscar wtf
You'll foul up every sensor and every thing else in the engine running so rich.
triple88a is offline   Reply With Quote
Old 02-22-2014, 09:35 AM   #39
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

FWIW, my car idles most smoothly in the 13's. That's actually where mine is set.

I'm running an MS1. What injectors are you using again?

I would open a "new project" and download an unmolested base tune and start over. Some incorrect switch was flipped somewhere and it almost isn't worth trying to find.
sixshooter is offline   Reply With Quote
Old 02-22-2014, 10:18 AM   #40
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Nov 2013
Location: GA
Posts: 171
Total Cats: -154
Default

Quote:
Originally Posted by sixshooter View Post
FWIW, my car idles most smoothly in the 13's. That's actually where mine is set.

I'm running an MS1. What injectors are you using again?

I would open a "new project" and download an unmolested base tune and start over. Some incorrect switch was flipped somewhere and it almost isn't worth trying to find.
Running the 260cc red tops (1999-..)
What idle air control valve do i have if i have a head like that(99-2000)
also maybe i should replace the map sensors and tps sensors.


I will try and just reload a new base map

Can anybody point me to the right direction of the 9495 base map
i found one on ms pnp .com but when i click on it i just get a bigass page of code
zacktrotter_uncc is offline   Reply With Quote
