Default Installing Ms3x soon... Questions

**edit** meant to put this in the MS section... Please move if possible

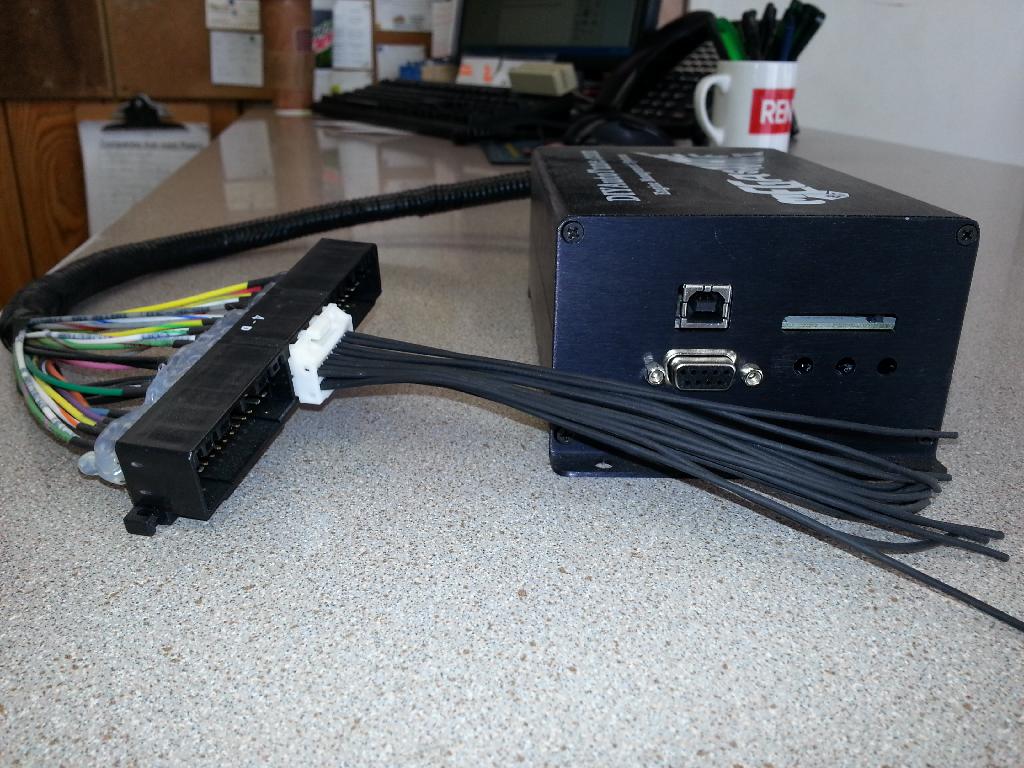

iirc... Brain shipped my MS with this white connector into the large bagck one. I haven't looked at the factory ecu connector(s) but how is this going to get plugged in, and what do I use the white connector for? What does that get wired to?
I


My other question is regarding my wideband. Where do I wire (the brown wire on my innovative lc-2) into the MS?

Thanks for any help you guys can offer!
Attached Thumbnails
Installing Ms3x soon... Questions-20140126_094142_zps7zxwrgox.jpg

Last edited by BTMiata; 03-19-2014 at 08:37 PM.
BTMiata is offline   Reply With Quote
Old 03-23-2014, 10:21 AM   #2
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Nevermind... I haz teh dumb...

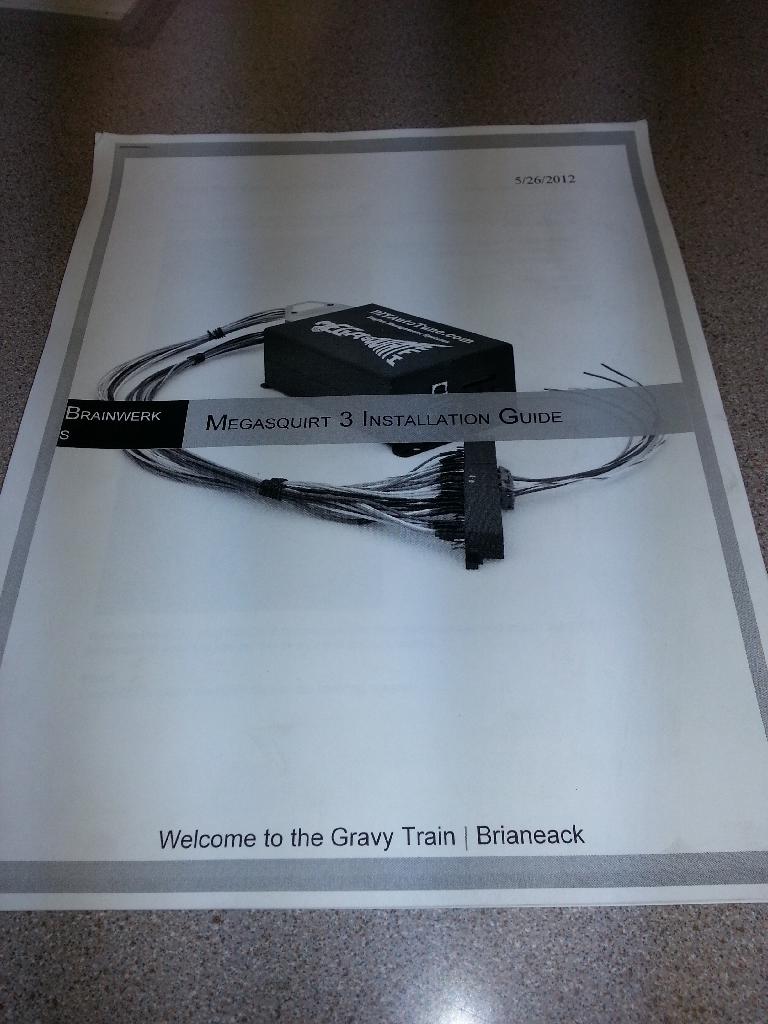

Found all the info I need in Brain's bible... Forgot I had this printed out but glad I did because his e-mail is buried in my account and will probably never be seen again

Attached Thumbnails
Installing Ms3x soon... Questions-20140323_091840_zpsx642yzq6.jpg
BTMiata is offline   Reply With Quote
Old 03-23-2014, 10:32 AM   #3
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Lol..."Welcome to the Gravy Train/ Brianeack"
Everytime I read somebody's post about ms3...I want one.
I'm also thinkin about ditching my lc1 for the lc2.
thirdgen is offline   Reply With Quote
Old 03-23-2014, 10:37 AM   #4
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by thirdgen View Post
Lol..."Welcome to the Gravy Train/ Brianeack"
Everytime I read somebody's post about ms3...I want one.
I'm also thinkin about ditching my lc1 for the lc2.
I honestly don't even know what benefit the lc-2 has over the lc-1... I only ended up with the lc-2 because I bought it just as the lc-1 was being phased out lol

Well after reading through the gravy train manual... I realized I dont have a boost control solenoid yet so I'm going to order this now---> EBC Electronic Boost Control Solenoid Kit DIYAutoTune.com Not that I will have boost until July anyway but still... better to be prepared lol
BTMiata is offline   Reply With Quote
Old 03-23-2014, 10:41 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

the colored wires going into the center connector are labeled.

but it's:

Spark C
Spark D
Fuel C
Fuel D
Blank
EBC Out
Blank
Wbo2 IN
Braineack is offline   Reply With Quote
Old 03-23-2014, 11:07 AM   #6
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Braineack View Post
the colored wires going into the center connector are labeled.

but it's:

Spark C
Spark D
Fuel C
Fuel D
Blank
EBC Out
Blank
Wbo2 IN
Perfect thanks!

Just added that to my print out for future reference
BTMiata is offline   Reply With Quote
Old 03-23-2014, 11:09 AM   #7
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Spark and fuel c&d...are those for running sequential?
thirdgen is offline   Reply With Quote
Old 03-23-2014, 11:15 AM   #8
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Quote:
Originally Posted by BTMiata View Post
I realized I dont have a boost control solenoid yet so I'm going to order this now
EBC isn't for everyone. I had it on my car and I thought it was a bitch to tune. What I like about it though is that you can put it on a switch. I did, and when I'd drive around I'd be on 7psi wastegate, but with a flip of the switch I'd be on 15psi. There are a lot more benefits than that, but it wasn't for me.
thirdgen is offline   Reply With Quote
Old 03-23-2014, 11:18 AM   #9
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by thirdgen View Post
EBC isn't for everyone. I had it on my car and I thought it was a bitch to tune. What I like about it though is that you can put it on a switch. I did, and when I'd drive around I'd be on 7psi wastegate, but with a flip of the switch I'd be on 15psi. There are a lot more benefits than that, but it wasn't for me.
Hmm good point.. I have a hallman mbc so maybe I should just stick to that
BTMiata is offline   Reply With Quote
Old 03-23-2014, 11:31 AM   #10
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

I see in your signature that you have a tial EWG. In my opinion, it's so much easier to change the springs than it is to tune EBC.
thirdgen is offline   Reply With Quote
Old 03-23-2014, 11:32 AM   #11
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by thirdgen View Post
I see in your signature that you have a tial EWG. In my opinion, it's so much easier to change the springs than it is to tune EBC.
Awesome... So that saves me $55 lol thanks!
BTMiata is offline   Reply With Quote
Old 03-23-2014, 12:33 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Quote:
Originally Posted by thirdgen View Post
Spark and fuel c&d...are those for running sequential?
Correct.

Quote:
Originally Posted by thirdgen View Post
EBC isn't for everyone. I had it on my car and I thought it was a bitch to tune. What I like about it though is that you can put it on a switch. I did, and when I'd drive around I'd be on 7psi wastegate, but with a flip of the switch I'd be on 15psi. There are a lot more benefits than that, but it wasn't for me.
Quote:
Originally Posted by thirdgen View Post
I see in your signature that you have a tial EWG. In my opinion, it's so much easier to change the springs than it is to tune EBC.
Boost control on the MS3x is so easy to tune it's not even funny. Plus the code is worlds improved from whatever MS2 system you were trying in the past.

Even when using EWG.
Braineack is offline   Reply With Quote
Old 03-23-2014, 12:43 PM   #13
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Braineack View Post
Correct.
Nice glad to know I can go that route if I decide to... Didn't even know it was set up for it because I dont think I really asked lol



Quote:
Originally Posted by Braineack View Post
Boost control on the MS3x is so easy to tune it's not even funny. Plus the code is worlds improved from whatever MS2 system you were trying in the past.

Even when using EWG.
Welp it's only $55 shipped for the damn thing... Maybe I will just go with that after all. Thanks Brain
BTMiata is offline   Reply With Quote
Old 03-23-2014, 01:50 PM   #14
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Quote:
Originally Posted by Braineack View Post
Boost control on the MS3x is so easy to tune it's not even funny. Plus the code is worlds improved from whatever MS2 system you were trying in the past.

Even when using EWG.
I think it's time I drop the hammer on an ms3.
thirdgen is offline   Reply With Quote
Old 03-23-2014, 01:53 PM   #15
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,695
Total Cats: 266
Default

Seems to me that it costs less for a EBC than a MBC (Home Depot versions not included), and, then you can control it. I am trusting that it will indeed be easy to set up with the MS3.
DNMakinson is online now   Reply With Quote
