Just bought a 12-channel oscilloscope - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



ECUs and Tuning Discuss Engine Management, Tuning, & Programming

Reply



LinkBack Thread Tools Search this Thread
Old 02-20-2012, 05:21 PM   #1
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default Just bought a 12-channel oscilloscope

And you know what I just HAD to do, right?

Attached Thumbnails

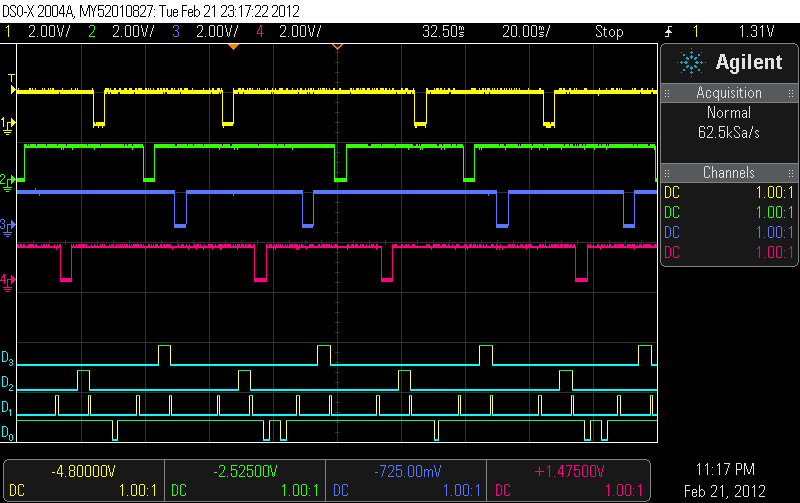

Just bought a 12-channel oscilloscope-scope_1.png
Reverant is offline   Reply With Quote
Old 02-20-2012, 06:09 PM   #2
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

i recognize the bottom two traces.

the ones above that appear to be evenly spaced like batch ignition.

the top looks like more "crank" triggers.

edit: you did it in the future!
y8s is offline   Reply With Quote
Old 02-20-2012, 06:16 PM   #3
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Top plots are inj events on cyls 1 through 4. Stock ECU.
Reverant is offline   Reply With Quote
Old 02-20-2012, 07:52 PM   #4
Newb

Join Date: Feb 2012
Posts: 4
Total Cats: 0
Default

What model is it?
boost junkie is offline   Reply With Quote
Old 02-20-2012, 09:13 PM   #5
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Looks like, top to bottom...
inj 1-4, spark a, spark b, ckp, cmp

Pretty cool to be able to see so much at one time.
Ben is offline   Reply With Quote
Old 02-20-2012, 10:34 PM   #6
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

and he's still got 4 more channels to play with.

I don't get the injection cycle. why aren't the squirts evenly spaced?
y8s is offline   Reply With Quote
Old 02-21-2012, 12:22 AM   #7
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,920
Default

Crikey!

We have a pair of Agilent mixed-signal scopes at work (4A, 16D) and those are about US$8,000 each. That's a hell of a nice piece of gear you have there.


And I'm wondering the same thing as Y8s. I've never scoped the INJ channels on an NB before, but I find it rather interesting that they are pulsing each injector twice per cycle at what I observe to be slightly above idle (looks like ~1200 RPM.)

Also, just out of curiosity, was that taken from an actual running engine? Those injector pulses look abnormally clean, and the duty cycle seems way too high for idle (6.85% based on 11 pixels/squirt x2 squirts across a 321 pixel cycle.)
Joe Perez is offline   Reply With Quote
Old 02-21-2012, 01:04 AM   #8
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Sweet!
JasonC SBB is offline   Reply With Quote
Old 02-21-2012, 02:11 AM   #9
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Holy frack

Insert 'whycan'tIholdallofthesechannels?.jpg'
Bryce is offline   Reply With Quote
Old 02-21-2012, 02:36 AM   #10
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by y8s View Post
and he's still got 4 more channels to play with.

I don't get the injection cycle. why aren't the squirts evenly spaced?
Have a look at this video, it is on my custom stim:

Reverant is offline   Reply With Quote
Old 02-21-2012, 02:41 AM   #11
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by Joe Perez View Post
Crikey!

We have a pair of Agilent mixed-signal scopes at work (4A, 16D) and those are about US$8,000 each. That's a hell of a nice piece of gear you have there.
InfiniiVision DSO-X 2004A (4-channel, 70MHz) with the DSOX2MSO upgrade for the added 8 channels. $3500 after taxes.

Quote:
Originally Posted by Joe Perez View Post
And I'm wondering the same thing as Y8s. I've never scoped the INJ channels on an NB before, but I find it rather interesting that they are pulsing each injector twice per cycle at what I observe to be slightly above idle (looks like ~1200 RPM.)

Also, just out of curiosity, was that taken from an actual running engine? Those injector pulses look abnormally clean, and the duty cycle seems way too high for idle (6.85% based on 11 pixels/squirt x2 squirts across a 321 pixel cycle.)
See my previous post. 2002 stock ECU on my custom stim. The lack of flyback on the inj channels should be obvious.
Reverant is offline   Reply With Quote
Old 02-21-2012, 09:00 AM   #12
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by y8s View Post
I don't get the injection cycle. why aren't the squirts evenly spaced?
As said, that's what the 01+ ECU does. I've been thinking about why.

Let's suppose that Mazda "tacked on" the VVT algorithm to a non-VVT ECU in such a way that the injection algorithm was blind to intake valve timing, so they were unable to properly time injection events to actual intake valve opening. So perhaps they break up the fuel pulse into 2 half-pulses, 1 timed to where the earliest the valve could be open, and the second timed to the latest the valve could be open.

This is the only thing I can think of.
Ben is offline   Reply With Quote
Old 02-21-2012, 12:02 PM   #13
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

maybe it's an emissions strategy...?
y8s is offline   Reply With Quote
Old 02-21-2012, 01:00 PM   #14
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Emissions might be the most likley reason.
JasonC SBB is offline   Reply With Quote
Old 02-21-2012, 01:00 PM   #15
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,920
Default

Quote:
Originally Posted by y8s View Post
maybe it's an emissions strategy...?
I can't see how. Two separate squirts means twice the dead-time. Seems like it'd partially negate the purpose of going from batch injection to full sequential.

Reverant, I'd be very curious to see how the injector pulses change as you increase both RPM and MAF to get the ECU into a higher-load condition. Specifically, at what point do the two pulses merge into one?
Joe Perez is offline   Reply With Quote
Old 02-21-2012, 01:05 PM   #16
Newb

Join Date: Feb 2012
Posts: 4
Total Cats: 0
Default

I can't tell you why but it must be common for modern EFI systems to use multiple squirts per cycle. Here is the ECU timing diagram for an SRT-4 and you can clearly see that it squirts 3 times per cylinder every 720 degrees.

boost junkie is offline   Reply With Quote
Old 02-24-2012, 05:44 PM   #17
Junior Member
iTrader: (2)

Join Date: Oct 2007
Location: Lisle, IL
Posts: 296
Total Cats: 0
Default

Oh no, I have a bad case of scope envy now....my little one channel MAC seems too small! Did you get a pressure transducer too?? BTW, Pico's website has some great diagnostic examples for digital scopes.
sn95 is offline   Reply With Quote
Old 02-24-2012, 10:17 PM   #18
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

3 of the 1 Megasample memory depth, 4-channel 250 MHz scopes our lab was selling off, got sold at $250 each...
JasonC SBB is offline   Reply With Quote
Old 02-25-2012, 04:49 AM   #19
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Well, I really wanted more than 4 channels, a large display (8.5" is awesome) the ability to control the scope from the PC using Linux.
Reverant is offline   Reply With Quote
