Old 08-11-2010, 07:54 PM   #1
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default Mah tunez, look at them.

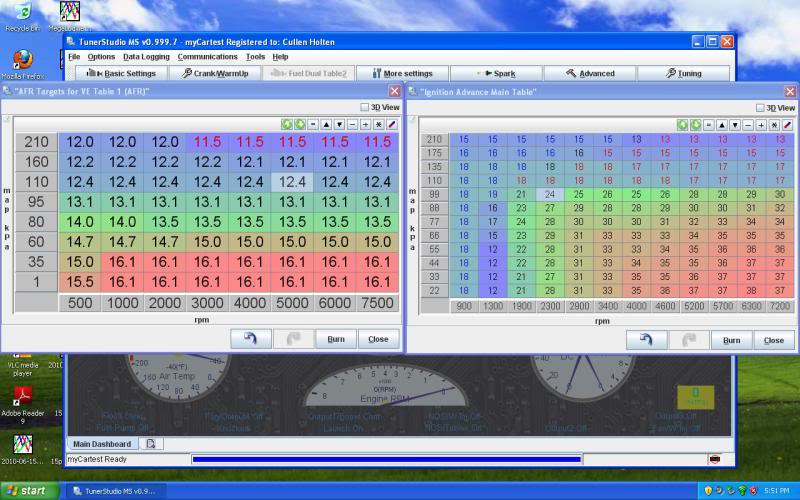

Name:  210kpamap.jpg
Views: 0
Size:  80.6 KB

Tell me if it's ****, this is my first attempt at completely tuning something myself.
rider384 is offline   Reply With Quote
Old 08-11-2010, 08:35 PM   #2
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

reason for going from 18 advance at idle to 10 aroudn 1300 up to 22 at 1900 rpms?
not suggesting messign with it, just want to know reasoning on why you did that.
Techsalvager is offline   Reply With Quote
Old 08-11-2010, 08:41 PM   #3
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Overrun/idle. I idle at ~1,300 dropping to 1,000
rider384 is offline   Reply With Quote
Old 08-12-2010, 01:36 AM   #4
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Needs more spark tuning on the dyno.
hustler is offline   Reply With Quote
Old 08-12-2010, 08:29 PM   #5
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

yeah your ign maps if you considered them a graphical view shouldnt be mountainous (with the exception of around idle cells (lowwww load and low rpm)

you have at 90kpa 25degrees of timing to fall off to 17 degrees.

if you tuned on dyno your boosted cells you would gain an assload of power.

I did something similar to make sure my WG and such was working pre dyno and you could feel it fall on its face at the positive pressure transition.

Your safe at 100-120kpa to blend the numbers but stay on the lower side obviously to stay safe.

for reference this is my spark map which was dyno tuned on a hub style loading dyno (same setup as below with 2860R) the timing is conservative in my books and its what i wanted so my engine wasnt supposed to blow:
shlammed is offline   Reply With Quote
