Default Mah tunez, look at thems.

So before I begin, let me say I have no experience tuning a car, let alone a turbocharged car, and I have no experience with MS.

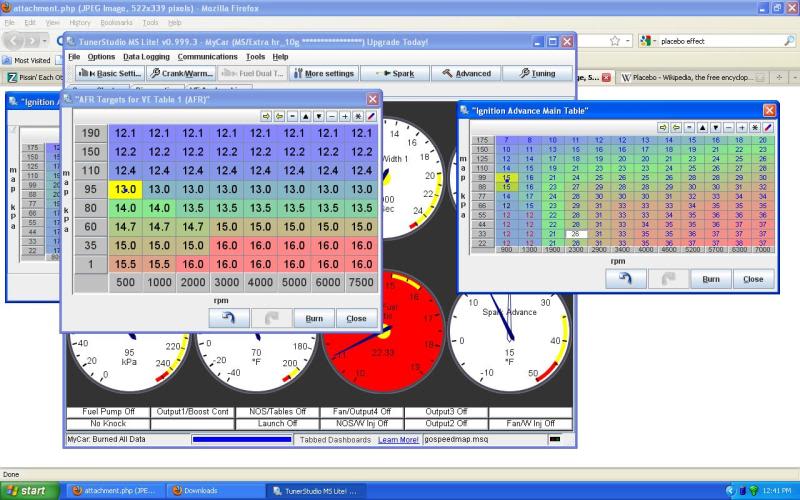

I compiled this tune through some other people's maps, I want to make sure it looks ok:

Name:  map.jpg
Views: 1
Size:  80.1 KB

Any help is appreciated

EDIT: Hmm, picture link isn't working
http://s134.photobucket.com/albums/q...urrent=map.jpg
rider384 is offline   Reply With Quote
Old 06-06-2010, 02:53 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

why do you go so rich so early? I still target 14.0:1 at 105kPa. You do like to cruise and enjoy better MPG right?
Braineack is offline   Reply With Quote
Old 06-06-2010, 03:42 PM   #3
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Quote:
Originally Posted by Braineack View Post
why do you go so rich so early? I still target 14.0:1 at 105kPa. You do like to cruise and enjoy better MPG right?
105kPa is ~ 15psi, so right around ambient pressure, so I doubt anyone would be cruising at 105kPa, since that would be WOT with no vac and no boost yet.
rider384 is offline   Reply With Quote
Old 06-06-2010, 04:15 PM   #4
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

depends how big your turbo is.

if you have a tiny tim turbo that spools at 2 grand, you could cruise at 0psi (i did with my nissan 240 with KA-t on a t25)

and if you have a larger turbo, you can pull quite a bit of vaccum at cruise still.
shlammed is offline   Reply With Quote
Old 06-06-2010, 05:50 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by rider384 View Post
105kPa is ~ 15psi, so right around ambient pressure, so I doubt anyone would be cruising at 105kPa, since that would be WOT with no vac and no boost yet.
15psia yes. Watch your boost gauge while you cruise on the highway, you'll easily pull a pound or two going uphill or passing traffic, but there's no reason whatsoever to start dumping in so much fuel between 80-100kPa; that's the range I typically hit on the highway.
Braineack is offline   Reply With Quote
Old 06-06-2010, 06:21 PM   #6
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Quote:
Originally Posted by Braineack View Post
15psia yes. Watch your boost gauge while you cruise on the highway, you'll easily pull a pound or two going uphill or passing traffic, but there's no reason whatsoever to start dumping in so much fuel between 80-100kPa; that's the range I typically hit on the highway.
Like I said, no experience with turbo cars

Thanks.
rider384 is offline   Reply With Quote
Old 06-15-2010, 09:47 AM   #7
Oni
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Tasmania, AUS
Posts: 164
Total Cats: 3
Default

I understand riders AFR, better safe than sorry. I compiled a database of all teh tables on here i could find from people that have alot of posts ( hopfully to get decent numbers ) and i found that the transition stages etc were so different tis hard to know what to do. Would up a long hill at 100kpa @ 14.0/1 be a scary bad thing? would be great if something like this could be added to the faq. just a table of a recomended started a/f ratio. Even looking at different EMS basemaps there all over the show.
Oni is offline   Reply With Quote
