Old 12-10-2009, 03:05 PM   #21
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

How big will the holes for the thermocouples need to be, and will they 4 holes compromise the strength of the manifold?
JasonC SBB is offline   Reply With Quote
Old 12-10-2009, 05:07 PM   #22
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by JasonC SBB View Post
How big will the holes for the thermocouples need to be, and will they 4 holes compromise the strength of the manifold?
I don't know in general but mine are about 1/4". I have about 30k on my cast mani and it's fine so far.
Faeflora is offline   Reply With Quote
Old 12-10-2009, 11:43 PM   #23
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,479
Total Cats: 248
Default

Quote:
Originally Posted by JasonC SBB View Post
How big will the holes for the thermocouples need to be, and will they 4 holes compromise the strength of the manifold?
His mani comes with a lifetime warrantee from cracks. Or at least until I disappear from the internet or sell my welder.

EDIT: my ktype EGT probe uses a 1/8NPT adapter. It shouldn't adversely affect it...hmmmm.
TurboTim is offline   Reply With Quote
Old 12-11-2009, 02:44 PM   #24
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

I would think you could wire a safety thing like that into, say, a knock signal. So, you'll get a light, and it'll pull timing (on low oil pressure)...
AbeFM is offline   Reply With Quote
Old 12-25-2009, 04:03 PM   #25
Newb

Join Date: Mar 2007
Posts: 31
Total Cats: 0
Default

I have the 4 channel aircraft EGT unit mentioned in this thread mounted in the left center vent position. The price is really very reasonable for what you get and the digital output with color-coded bar graph blows the Westach away.

M.
MeOughtta is offline   Reply With Quote
Old 12-25-2009, 07:19 PM   #26
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by MeOughtta View Post
I have the 4 channel aircraft EGT unit mentioned in this thread mounted in the left center vent position. The price is really very reasonable for what you get and the digital output with color-coded bar graph blows the Westach away.

M.
M: A few questions---

What manifold do you have?

Got a coolant reroute?

Duel feed fuel rail?

Turbod and if so, what injectors?


And lastly-- the biggie: What temperature variance have you seen between your cylinders? What's the max you've ever seen?

All the previous questions make the answer to the last question useful

thanks
Faeflora is offline   Reply With Quote
Old 12-26-2009, 01:12 AM   #27
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

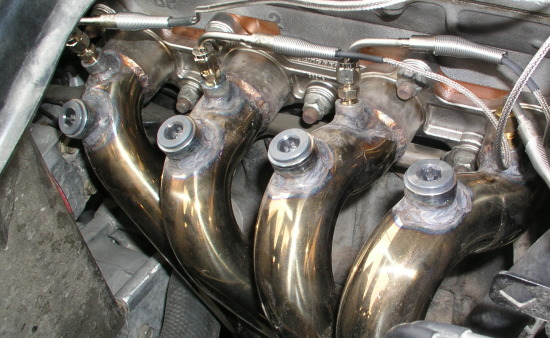

Incredible how I missed this thread, since I have quad EGTs and quad LC-1s. My advice, don't try unless you know you need them. Costly, and for most builds, unnecessary.

Jim
Attached Thumbnails
Per cylinder EGT monitoring-dsc_0033_1.jpg   Per cylinder EGT monitoring-p1010295_1.jpg
Reverant is offline   Reply With Quote
Old 12-26-2009, 06:46 AM   #28
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

Quote:
Originally Posted by Reverant View Post
Incredible how I missed this thread, since I have quad EGTs and quad LC-1s. My advice, don't try unless you know you need them. Costly, and for most builds, unnecessary.

Jim
Looking at your signature... wow. If you could make a build thread... that would be awesome. Pics/details/how/why/whatfor/uses/data... anything would rock.
Nagase is offline   Reply With Quote
Old 12-27-2009, 01:54 AM   #29
Newb

Join Date: Mar 2007
Posts: 31
Total Cats: 0
Default

Quote:
Originally Posted by faeflora View Post
M: A few questions---

What manifold do you have?

Got a coolant reroute?

Duel feed fuel rail?

Turbod and if so, what injectors?


And lastly-- the biggie: What temperature variance have you seen between your cylinders? What's the max you've ever seen?

All the previous questions make the answer to the last question useful

thanks
Built 99 engine, 0.5 over.

Manifold: The semi-new cast manfold. gihttp://www.bellengineering.net/product_info.php?products_id=36

Coolant re-route: Yes.

Duel fuel-rail: I never duel with a fuel rail - they spray fuel in my eyes and I always lose. But I do have a dual-feed rail that I never duel with. <grin>

T28 turbo, oversize valves headwork, 550 injectors.

#2 and #3 consistently about 100 F (about 50C) higher than #1 and #4. I don't have a cam sensor so I no sequential injection, i.e.. can't tune it out with fuel.

You wee asking such specific questions -- do you have specific experience with this?
MeOughtta is offline   Reply With Quote
Old 12-28-2009, 08:12 PM   #30
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by Nagase View Post
Looking at your signature... wow. If you could make a build thread... that would be awesome. Pics/details/how/why/whatfor/uses/data... anything would rock.
A picture depicting:

- a drop of blood
- a bowl of tears
- a shirt full of summer sweat
- and some fresh bile

will have to do for now.

Jim
Reverant is offline   Reply With Quote
Old 12-28-2009, 08:17 PM   #31
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Reverant View Post
A picture depicting:

- a drop of blood
- a bowl of tears
- a shirt full of summer sweat
- and some fresh bile

will have to do for now.

Jim

Any turboe?
Faeflora is offline   Reply With Quote
Old 12-29-2009, 02:32 PM   #32
Newb

Join Date: Mar 2007
Posts: 31
Total Cats: 0
Default

Quote:
Originally Posted by Reverant View Post
... I have ... quad LC-1s.
Any trouble getting the LC-1s to work right at the exhaust ports? I thought that was supposed to be impossible even NA.

M.
MeOughtta is offline   Reply With Quote
Old 12-30-2009, 07:48 PM   #33
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by MeOughtta View Post
Any trouble getting the LC-1s to work right at the exhaust ports? I thought that was supposed to be impossible even NA.

M.

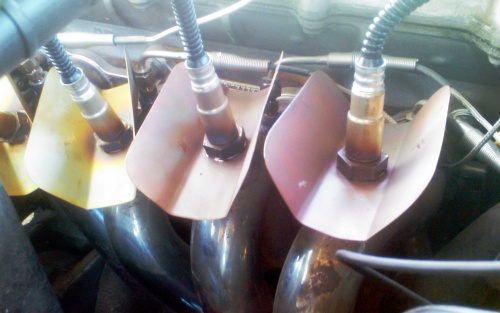

The copper heat sinks did the trick nicely. I *was* expecting trouble, but everything went ok.

Jim
Reverant is offline   Reply With Quote
Old 12-30-2009, 07:58 PM   #34
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by faeflora View Post
Any turboe?
Yes, in my previous car but not on this one, sorry.

Jim
Reverant is offline   Reply With Quote
Old 01-22-2010, 02:34 AM   #35
Junior Member
iTrader: (2)

Join Date: Oct 2007
Location: Lisle, IL
Posts: 296
Total Cats: 0
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Its a pretty common thing on aircraft, Im sure you could pick up used systems for pretty decent prices. Although the new ones arnt really that bad either
Multi cylinder EGT/CHT engine analyzers are fairly common in high performance piston aircraft BUT they are anything but cheap. A multi channel (6 EGT/6 CHT/2 TIT/RPM/MAP) JPI EDM 800 analyzer lists for about $3,700. Single cylinder/multi cylinder aircraft EGT gauges are relatively cheap (a cheap Westech single cylinder EGT can be found for under $100) but the multi-cylinder analog gauges are very hard to monitor/interpret in a busy cockpit (aircraft or "race car").

It is important to note that many of the older EGT probes (aircraft and automotive) are slow reacting to EGT changes. JPI was one of the first to use modern fast reacting EGT probes. I've flown EGT equipped aircraft with both the old Westech style probes and the new JPI style fast reacting probes and there is NO comparison.

I think one may be able to find a fairly robust EGT analyzer (e.g., fast reacting probes with data logging) by looking at the niche manufacturers for the experimental aircraft market. This equipment does not need to meet FAA specs/require FAA certification. Accordingly, "experimental" engine instrumentation/analyzers are cheaper and often have more features than the certified versions.
sn95 is offline   Reply With Quote
