Default RPM ringing "boioioing" on low RPM tip in

The thread on CKP trigger wheels got me thinking about how much error it might get when the crank is accelerating or decelerating quickly.

Out of curiousity I examined the characteristics of driveline windup and ringing in my datalogs. Wondering how much acceleration it had. See below. I floored the throttle at ~2000 RPM to have a look.

The RPM trace shows the characteristic ringing which sounds and feels like a sort of "boioioing".

Here's what I found. The ringing is at 6 Hz, and the effect on RPM is around 240 Hz peak-to peak. IOW if you start at 2000 RPM and floor it, for the first few cycles it will peak at 2120 RPM, dip to 1880, repeat, until it dies out. The peak rate of change appears to be close to 1000 RPM/sec, on top of the 300 or so from accelerating the car (3rd gear, ~100 kPa).

I ran some math assuming sinusoidal frequency modulation of the RPM trace.
If you modulate RPM at 6 Hz, and the driveline lash is 3 is either direction, I get very close to 240 RPM peak to peak, and 700 RPM/sec peak acceleration.

FWIW decelerating in neutral with my 11 lb flywheel is around 1500 RPM/sec.

So the engine appears to rock 3 in each direction.
More later on the resulting error in crank angle...

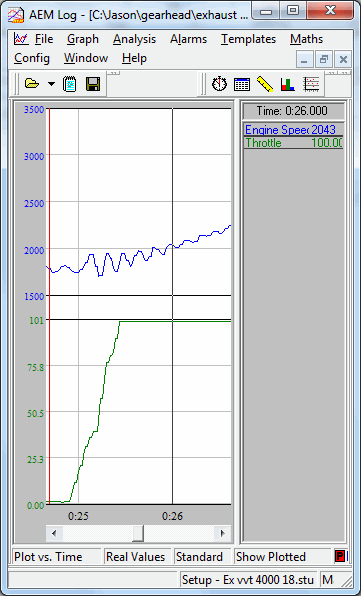

Upper trace is RPM, lower is TPS.
Horizontal scale is 1 sec per division, I rolled the throttle in in about 0.5 sec.
Attached Thumbnails
RPM ringing "boioioing" on low RPM tip in-rpm-boioing.gif
JasonC SBB is offline   Reply With Quote
Old 01-13-2012, 01:28 PM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

It's cool to know that while I'm at home, alone, in the cold, pretending the cat understands me while I drink beer and play a video game with a steering-wheel clamped to a coffee table, there is a team of engineers on Miataturbo working around the clock to make my car faster, more reliable, and writing it at a 3rd grade level so I can interpret it. It would have been nice if you guys could have done all this four years ago so I don't have to waste my precious time doing things twice.
hustler is offline   Reply With Quote
Old 01-13-2012, 01:40 PM   #3
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

I told you you shoulda bought the Mazdaspeed motor mounts!

--Ian
codrus is offline   Reply With Quote
Old 01-13-2012, 01:52 PM   #4
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Good fuing lord that sucks


anyways

How do you like the AEM? Obviously your logging resolution is MUCH higher than my hydra.
Faeflora is offline   Reply With Quote
Old 01-13-2012, 01:55 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,846
Total Cats: 1,787
Default

Quote:
Originally Posted by codrus View Post
I told you you shoulda bought the Mazdaspeed motor mounts!

--Ian

My DD has failed mounts, it's halarious on low rpms with the amount of rumble.
Braineack is offline   Reply With Quote
Old 01-13-2012, 02:44 PM   #6
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

that wiggliness is partly related to throttle enrichments. when they are really bad, I get visibly larger (and larger feeling) wigglies.
y8s is offline   Reply With Quote
Old 01-13-2012, 03:20 PM   #7
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Nah those wigglies are driveline windup. I don't have any tip in misfire there.

[email protected] hustler's post.
JasonC SBB is offline   Reply With Quote
Old 01-13-2012, 03:23 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,846
Total Cats: 1,787
Default

Quote:
Originally Posted by hustler View Post
It's cool to know that while I'm at home, alone, in the cold, pretending the cat understands me while I drink beer and play a video game with a steering-wheel clamped to a coffee table, there is a team of engineers on Miataturbo working around the clock to make my car faster, more reliable, and writing it at a 3rd grade level so I can interpret it. It would have been nice if you guys could have done all this four years ago so I don't have to waste my precious time doing things twice.
Best post of 2012.

Braineack is offline   Reply With Quote
Old 01-13-2012, 03:25 PM   #9
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by Faeflora View Post
Good fuing lord that sucks


anyways

How do you like the AEM? Obviously your logging resolution is MUCH higher than my hydra.
Sampling period is 50 ms (20 Hz) if you use the laptop to log.
It's 200 Hz for the internal logger. Great for doing torque/power extraction runs, troubleshooting CKP and CMP sync'ing, and tip-in enrichment.
JasonC SBB is offline   Reply With Quote
Old 01-13-2012, 03:25 PM   #10
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by hustler View Post
It's cool to know that while I'm at home, alone, in the cold, pretending the cat understands me while I drink beer and play a video game with a steering-wheel clamped to a coffee table, there is a team of engineers on Miataturbo working around the clock to make my car faster, more reliable, and writing it at a 3rd grade level so I can interpret it. It would have been nice if you guys could have done all this four years ago so I don't have to waste my precious time doing things twice.
What makes this especially hilarious is that, as I am home sick today, I have been experimenting all morning with different circuit topologies for trigger input decoders. Picked up a handful of CD40106es earlier in the week, and I'm doing variants on the JasonC schmitt-trigger circuit at this very moment.

(I am finding, for some reason, that the hysteresis of the circuit is not meeting published specs. Not quite sure what's up with that yet...)
Joe Perez is offline   Reply With Quote
Old 01-13-2012, 03:40 PM   #11
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Jason, what's the effect with, say, a 4000RPM tip-in? I know that I avoid lugging like the plague. However, the engine rock would still be there at about the same frequency at high RPM -- and because that's a higher torque area, I'd expect the rock to have higher amplitude. To lazy to do the math myself.

Plus, I'm still using a CAS, so now I have to factor in the timing belt. Darn it, you're going to keep me up nights!
hornetball is offline   Reply With Quote
Old 01-13-2012, 03:41 PM   #12
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

CD40106's and their ilk have loosey goosey input hysteresis specs. But they do work well.
JasonC SBB is offline   Reply With Quote
Old 01-13-2012, 03:44 PM   #13
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

Quote:
Originally Posted by Joe Perez View Post
I have been experimenting all morning with different circuit topologies for trigger input decoders. Picked up a handful of CD40106es earlier in the week, and I'm doing variants on the JasonC schmitt-trigger circuit at this very moment.

(I am finding, for some reason, that the hysteresis of the circuit is not meeting published specs. Not quite sure what's up with that yet...)
What do you mean by trigger input decoders? Are you trying to design a hardware solution to decode different trigger wheel designs. i.e. 12-1, 12+1 ...

I am going to use JasonC's schmitt-trigger circuit to feed my MS3 running my vvt engine.

-Raj
redrider706 is offline   Reply With Quote
Old 01-13-2012, 03:58 PM   #14
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by hustler View Post
It's cool to know that while I'm at home, alone, in the cold, pretending the cat understands me while I drink beer and play a video game with a steering-wheel clamped to a coffee table, there is a team of engineers on Miataturbo working around the clock to make my car faster, more reliable, and writing it at a 3rd grade level so I can interpret it.
You know, this has always been my test as to whether someone is legit or a poser. Every profession has it's lingo, and oftentimes you encounter people that use nothing but "lingo." Having worked in multiple professions, I've found that nearly every human concept is capable of clear expression at a 3rd grade level. However, only those that REALLY UNDERSTAND the concept can reduce it to that level.

For some reason, we have a lot of these people on MT.net. It's why I'm addicted to it.

Of course, there is also newb buggery.
hornetball is offline   Reply With Quote
Old 01-13-2012, 04:49 PM   #15
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by codrus View Post
I told you you shoulda bought the Mazdaspeed motor mounts!

--Ian
It'd be interesting to see how much engine mounts and diff mounts increase the windup resonant frequency!
JasonC SBB is offline   Reply With Quote
Old 01-13-2012, 05:01 PM   #16
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by hornetball View Post
Jason, what's the effect with, say, a 4000RPM tip-in? I know that I avoid lugging like the plague. However, the engine rock would still be there at about the same frequency at high RPM -- and because that's a higher torque area, I'd expect the rock to have higher amplitude.
I've thought about this and my conclusion is, according the "principle of superposition", that the ringing frequency, 6 Hz, and the delta RPM, (240 RPM peak to peak), will be the same. Yes torque at 4000 RPM is greater, but the torque rate of rise would have to be faster than 1/12 sec in order to excite the 6 Hz resonant frequency - 1/2 of a period of 6 Hz is 1/12 second). It is much easier to do that at low RPM, because the motor will develop close to full torque at something like 5% throttle. Whereas, at higher RPM, it might take 50% throttle. As your foot rolls in the throttle, it will reach 5% throttle 10x quicker than 50%. So at low RPM you can hit full torque in less than 1/12 second. This is why the boioioing driveline windup is much more noticeable if you tip in at low RPM than at hi RPM.

As for timing errors, it will always be proportionally worse at low RPM. E.g. say you have 2 error doing this at 1000 RPM, it will be 0.5 at 4000 RPM. This is also why if you do the throttle-blip-in-neutral timing test where you set the ECU to do constant timing, you will see the most error initially at low RPM, and it diminishes as RPMs rise.
JasonC SBB is offline   Reply With Quote
Old 01-13-2012, 05:02 PM   #17
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by redrider706 View Post
I am going to use JasonC's schmitt-trigger circuit to feed my MS3 running my vvt engine.

-Raj
The 74C14 (same functionality) appears to have better specs for our purposes.
JasonC SBB is offline   Reply With Quote
Old 01-13-2012, 05:33 PM   #18
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

In fairness, I have a handful of the 40106s sitting here and I've only tested one gate of one chip so far. I'm going to go through the rest of them and see what kind of spread I find.
Joe Perez is offline   Reply With Quote
Old 01-13-2012, 07:35 PM   #19
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

FYI:
Attached Thumbnails
RPM ringing "boioioing" on low RPM tip in-uterus.jpg
hustler is offline   Reply With Quote
Old 01-13-2012, 10:51 PM   #20
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Is the external OS the thing you bang into?
JasonC SBB is offline   Reply With Quote
