Old 03-02-2009, 11:54 PM   #41
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Good luck getting it buttoned up Sav, hope you finish in time for [email protected]!
kotomile is offline   Reply With Quote
Old 03-02-2009, 11:55 PM   #42
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

If you haven't already, install a clutch bypass switch so you're not pushing the clutch in when you start the car. Will preserve thrust bearing life apparently.
RotorNutFD3S is offline   Reply With Quote
Old 03-03-2009, 12:08 AM   #43
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

**** man, another. Sorry to hear it Sav. As far as 99 into 94 its basically a direct swap. I think people mentioned all the necessary changes you'll have to do.

Both CLT sensors from your 94 need to go into the 99 head, the small one on the driver side is for your cluster gauge. The sensor on the back of the 99 head is 3 wire because it's 2 sensors in one, it combines the sensor for the ecu and the one for the gauge. Put your 2 wire sensor from 94 in there

Source a real oil pressure gauge for the 99 block or make sue your existing one didnt get fuxored.

The longer oil feed since you lose the driver side port.

Alternator your got.

Use 94 throttle body and your will have to do something fancy with the throttle cable as it will be too long. either make a custom bracket or you have to wrap the cable around to the next hole.

VICs - i didnt bother and I am not gonna bother when I do my 99 swap on my daily any day now.

Use CAS from 94.

**** EGR.
paul is offline   Reply With Quote
Old 03-03-2009, 12:23 AM   #44
Senior Member
iTrader: (1)

Join Date: Dec 2005
Location: irvine, ca
Posts: 729
Total Cats: 0
Default

earlier block with the later head.
kung fu jesus is offline   Reply With Quote
Old 03-03-2009, 12:25 AM   #45
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

just wire a megasquirt output to trip the VICS at 5200 rpm. slightly better than doing nothing eh?
y8s is offline   Reply With Quote
Old 03-03-2009, 12:25 AM   #46
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

do the reroute now, and call begi for a new intake pipe. Your IAC settings will be different but you can copy mine, gut the vics **** and plug the holes with jb-weld, kill the EGR, and cut the valve cover so you can check timing on the fly.

What about the throttle cable mount?

I'm interested to see what happens to power, torque, and your spark table with the 9.5:1 compression.
hustler is offline   Reply With Quote
Old 03-03-2009, 12:48 AM   #47
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

Sorry to hear Sav, but gl on getting it back on the track in time!
TonyV is offline   Reply With Quote
Old 03-03-2009, 12:59 AM   #48
Senior Member
iTrader: (3)

Join Date: Jun 2008
Location: Port Orchard, WA
Posts: 620
Total Cats: 4
Default

Only thing that occurs to me offhand Andrew, is make sure there's a pilot bearing in the crank. I don't know about Miatas speficially but a lot of auto engines don't come with them, and I've seen a few get installed without.
Rennkafer is offline   Reply With Quote
Old 03-03-2009, 01:26 AM   #49
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

damn save sorry to see her go get the **** back together agian man and do it the right way
magnamx-5 is offline   Reply With Quote
Old 03-03-2009, 03:00 AM   #50
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Quote:
Originally Posted by Rennkafer View Post
Only thing that occurs to me offhand Andrew, is make sure there's a pilot bearing in the crank. I don't know about Miatas speficially but a lot of auto engines don't come with them, and I've seen a few get installed without.
Seeing as an auto doesnt have a flywheel (therefor no pilot bearing) or a clutch, he shouldnt have a problem. Some card do have pilot bearings in the crank, but the Miata is not one of them. I think Sav knows this anyway though, Id hope anyway lol.

You dont mess around dude, already out. I guess I could be fast if I had a decent place to work on them. Id be willing to bet that auto engine has seen less stress than a manuel may have. Good luck on the build. Seeing your old engines history makes me feel a bit better. Mine isnt nearly as high of mileage (1200 miles ) and probably wont see more than a few HPDE's in its lifetime, so Im not too worried.
NA6C-Guy is offline   Reply With Quote
Old 03-03-2009, 03:09 AM   #51
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Indianapolis, IN
Posts: 758
Total Cats: 5
Default

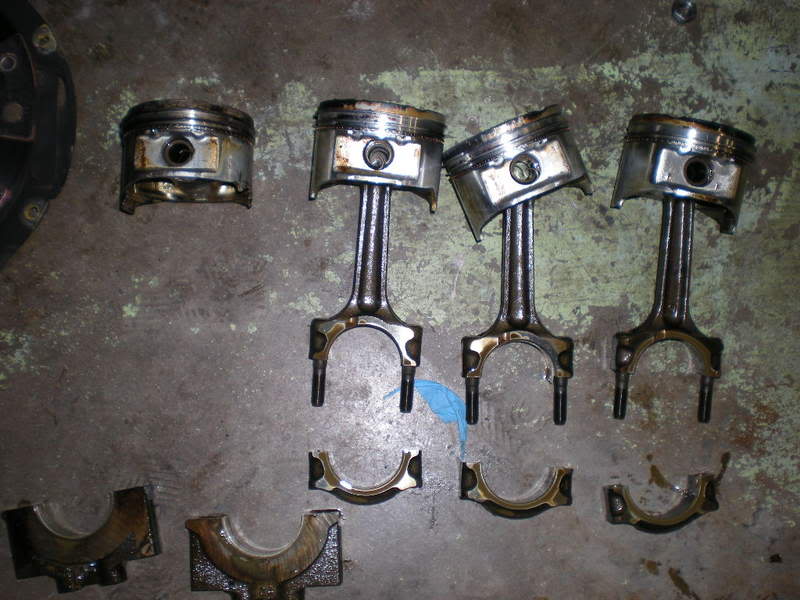

Name:  DSCN1292.jpg
Views: 7
Size:  70.8 KB

#1 (on the right) looks off to me, but it may just be glare up near the piston.

Good luck getting it put back together.
boileralum is offline   Reply With Quote
Old 03-03-2009, 04:04 AM   #52
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

The more I think about it, the more I never want to deal with this again.

Can anyone give me a reason not to do the following:

-Get the new 99 motor, pull the head and pan, remove pistons and rods
-Have a bung welded into the pan for the oil drain (if I have the motor out, may as well)
-Replace ONLY THE RODS with Belfab/ETD rods
-Put pistons/new rods back into the motor with no ring/hone work at all (96k on them right now)
-Install my billet OPGs (I have them, may as well throw them in)
-Size new main bearings, install
-ARP hardware, fresh head gasket, spacerless coolant reroute, new timing belt/water pump

Realistically, I have no 300whp aspirations. I'll eventually do a basic water injection setup and max the 2554R out completely, but I like the spool of this turbo and the largest I'll ever go is a 2560 if I do change. I don't think I need pistons; rods are the only thing I NEED to change, and OPGs are a paid-for safety item.

I have neither the time nor the money to do a full build right now. The rods are $400ish, everything else should bring the total to around $700 including the water pump and timing belt. Reusing the pistons and rings lets me save 99% of the machining costs, and they don't really need to be changed anyway.
Savington is offline   Reply With Quote
Old 03-03-2009, 04:12 AM   #53
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by Savington View Post
I'm sure I stressed a rod at some point this weekend, and it let go on the highway. I was cruising, hadn't been in boost for probably an hour or so, and it let go.
Fatigue failure. You will probably find the small end broken off with the classic signature of such. You may also find a few banana'ed rods.

If you swap the rods, some people advocate a quick diy hone job and fresh factory rings. Just make sure the gap in the rings are big enuf for turbo work.
With a very careful diy hone you don't need to hot tank the block.
IIRC the better diy hone tool is the one with the bottle brush look (as opposed to the 3 long stones).

ARP hardware isn't a must IMO - how many have seen fastener failures in a miata with <300 hp and <7500 RPM?
JasonC SBB is offline   Reply With Quote
Old 03-03-2009, 04:18 AM   #54
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Quote:
Originally Posted by Savington View Post
The more I think about it, the more I never want to deal with this again.

Can anyone give me a reason not to do the following:

-Get the new 99 motor, pull the head and pan, remove pistons and rods
-Have a bung welded into the pan for the oil drain (if I have the motor out, may as well)
-Replace ONLY THE RODS with Belfab/ETD rods
-Put pistons/new rods back into the motor with no ring/hone work at all (96k on them right now)
-Install my billet OPGs (I have them, may as well throw them in)
-Size new main bearings, install
-ARP hardware, fresh head gasket, spacerless coolant reroute, new timing belt/water pump

Realistically, I have no 300whp aspirations. I'll eventually do a basic water injection setup and max the 2554R out completely, but I like the spool of this turbo and the largest I'll ever go is a 2560 if I do change. I don't think I need pistons; rods are the only thing I NEED to change, and OPGs are a paid-for safety item.

I have neither the time nor the money to do a full build right now. The rods are $400ish, everything else should bring the total to around $700 including the water pump and timing belt. Reusing the pistons and rings lets me save 99% of the machining costs, and they don't really need to be changed anyway.
Sounds good, all except the reusing the rings part. it may be ok for some, but I couldnt bring myself to do that. Why not just go buy a hone, and hone the block, use new rings ($100 maybe) and know it will seat well. I had no block machine work done to the cylinders and I honed them myself and used new Mahle rings and expect I have great compression (still havent checked yet).

^n/m. For sure try and find a bottle hone. I used one of the standard stone hones and found it to be a pain in the ***. I used to have a bottle hone (the ones that look like a round wire brush with ***** on the ends of the wires) but lost it apparently. I couldnt make the hone I used go all the way to the bottom of the bore, and I kept chipping stones by going too deep and hitting the castings in the crankcase under the cylinders. Plus with a stone type of hone you cant go all the way out of the cylinder and back in while keeping it spinning like you can a bottle hone, which leads to the crosshatch having curves from where you stopped and restarted up and down the bore.

And why not just hone and spray it off with a cleaner and a high pressure hose. Of course you would have to remove the oil pressure sending unit and the other little stuff attached to the block first, but thats not a huge task.
NA6C-Guy is offline   Reply With Quote
Old 03-03-2009, 07:01 AM   #55
Senior Member
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default

Are you running a dual feed fuel rail? Could that be the reason for failure in number 4?
ArtieParty is offline   Reply With Quote
Old 03-03-2009, 08:33 AM   #56
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

Quote:
Originally Posted by ArtieParty View Post
Are you running a dual feed fuel rail? Could that be the reason for failure in number 4?
He is running a DIY dual feed modified stock rail.
crashnscar is offline   Reply With Quote
Old 03-03-2009, 10:01 AM   #57
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by ArtieParty View Post
Are you running a dual feed fuel rail? Could that be the reason for failure in number 4?
I don't see lean-ness or detonation there. I'm no expert (literally, I'm a dumbass non-engineer) but all signs point to fatigue from the pics.
hustler is offline   Reply With Quote
Old 03-03-2009, 10:38 AM   #58
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Like Jason said, I'm liking the idea of a quick hone and new stock rings. While the rings are off, it'll give you a chance to better inspect the pistons, clean up the oil holes and ring lands, etc. I can't imagine that a shop would charge you more than $72.50 to run a hone down the bores. Since the block itself is completely torn-down at that point, go ahead and hot-tank it, clean out the oil galleys, etc. No point in not doing it, etc?


VICS, as has been mentioned, is a no-brainer. Set up a relay output on your MS and use that to drive the VICS. It's a simple RPM based on/off system even in stock form. Looks like it should be on between 3,500 and 5,600 RPM: https://www.miataturbo.net/forum/t20742/
Joe Perez is offline   Reply With Quote
Old 03-03-2009, 11:16 AM   #59
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Honestly I would just drop in the stock motor and run it.

Once you start ******* around with replacing this and doing that you end up sinking in more time and money than you wanted too.

When is the track day? How much time do you really have?
dc2696 is offline   Reply With Quote
Old 03-03-2009, 11:19 AM   #60
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

If it is a fatigue failure you will see markings on the broken ends of the rods like this



Look for the initiation site, then the 'beach marks' or striations leading out from there, then the catastrophic failure area which is rough looking. I could not look for this on my rod because the broken ends were so beat to **** it would have not been visible.


Personally I think pulling motors is a PIA so I would take the time and beef up the bottom end with Belfab rods, with new rings and bearings while you are in there. Then the billet oil pump gears like you mentioned. It is more money, and more time, and maybe you will miss your track day, but it will be done and should last a lot longer if you turn up the power. I think it is pretty well established at this point that the rods are the weak link

Last edited by ZX-Tex; 03-03-2009 at 11:33 AM.
ZX-Tex is offline   Reply With Quote
