Old 01-20-2013, 12:22 AM   #81
Junior Member
Thread Starter

Join Date: Sep 2011
Posts: 134
Total Cats: -19
Default

Quote:
Originally Posted by hustler View Post
That looks like ****.
Thanks for the constructive criticism. perhaps you could tell me why or make a useful suggestion or something. Seems a bit more helpful than a wholely negative statement don't you think?

Last edited by ReplaceDisplace; 01-20-2013 at 04:03 AM.
ReplaceDisplace is offline   Reply With Quote
Old 01-20-2013, 02:54 AM   #82
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Is that a bolt in the EGR hole? Isn't the EGR pipe a pipe type fitting? Wouldn't think a normal bolt would seal for long or not mangle the manifold.
TorqueZombie is offline   Reply With Quote
Old 01-20-2013, 04:00 AM   #83
Junior Member
Thread Starter

Join Date: Sep 2011
Posts: 134
Total Cats: -19
Default

Quote:
Originally Posted by TorqueZombie View Post
Is that a bolt in the EGR hole? Isn't the EGR pipe a pipe type fitting? Wouldn't think a normal bolt would seal for long or not mangle the manifold.
Is not a bolt. It's the egr plug from flying miata/racing beat. What's the word on the ol turbo car? If you couldn't tell by the pictures this is Patrick
ReplaceDisplace is offline   Reply With Quote
Old 01-20-2013, 04:32 AM   #84
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

I know you and FYI your furniture looks great from the bushes. I ask because the plug I got doesn't stick out like a bolt. Pretty sure it is just a plug. My mani is burried at the moment. I'll try and get a pic when I can.

The car is on hold while waiting for parts.
TorqueZombie is offline   Reply With Quote
Old 01-25-2013, 02:18 PM   #85
Junior Member
Thread Starter

Join Date: Sep 2011
Posts: 134
Total Cats: -19
Default

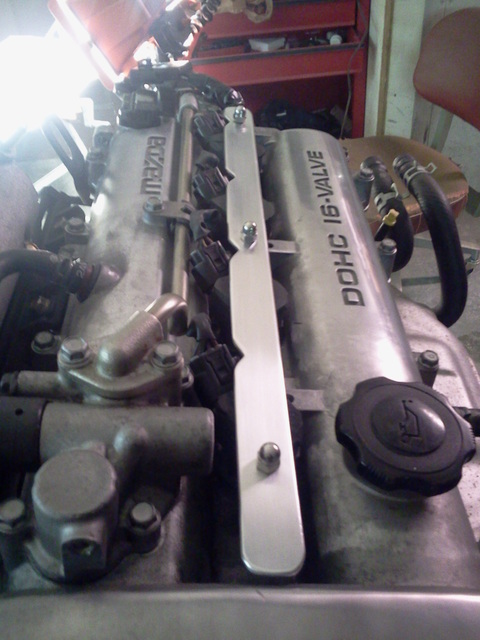

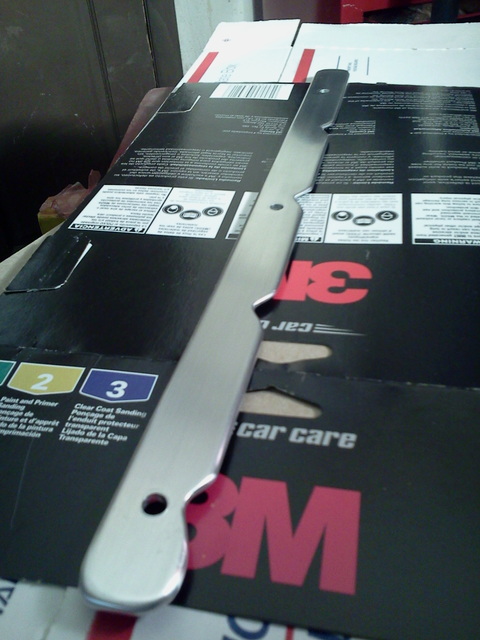

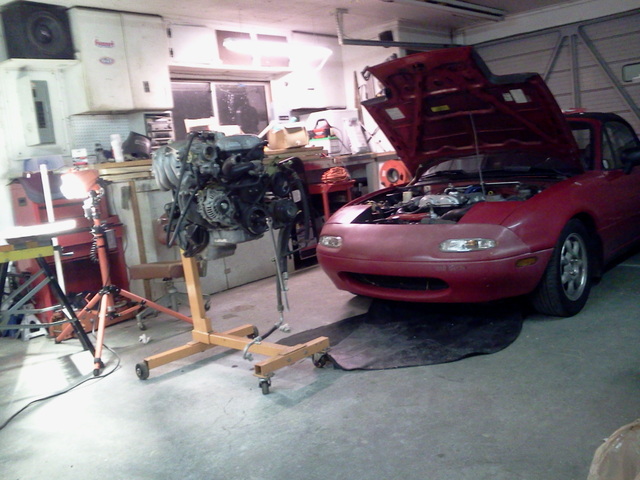

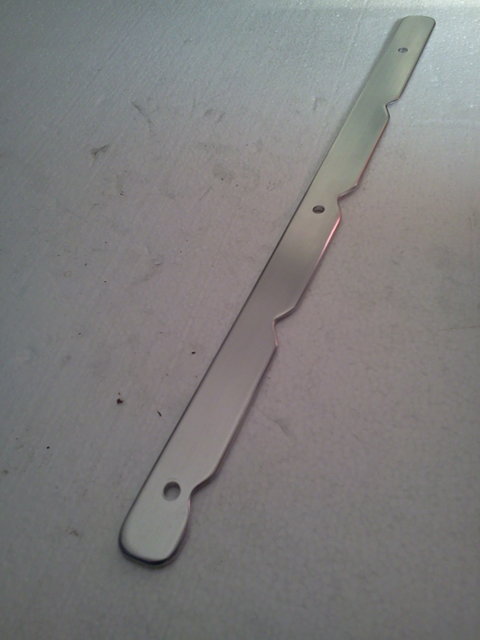

Update: The swap is going to start this weekend it seems. I have my Ignition coil bracket Mark II completed and all that's left to do is check some wiring. Hopefully no big issues arise.





Attached Thumbnails
1.8 VVT motor into 1.6 car Advice welcome.-20130125005218.jpg   1.8 VVT motor into 1.6 car Advice welcome.-20130125005447.jpg   1.8 VVT motor into 1.6 car Advice welcome.-20130125010211.jpg   1.8 VVT motor into 1.6 car Advice welcome.-20130125010459.jpg   1.8 VVT motor into 1.6 car Advice welcome.-20130125023014.jpg

ReplaceDisplace is offline   Reply With Quote
Old 01-25-2013, 03:23 PM   #86
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by ReplaceDisplace View Post
Thanks for the constructive criticism. perhaps you could tell me why or make a useful suggestion or something. Seems a bit more helpful than a wholely negative statement don't you think?
Suggestion:

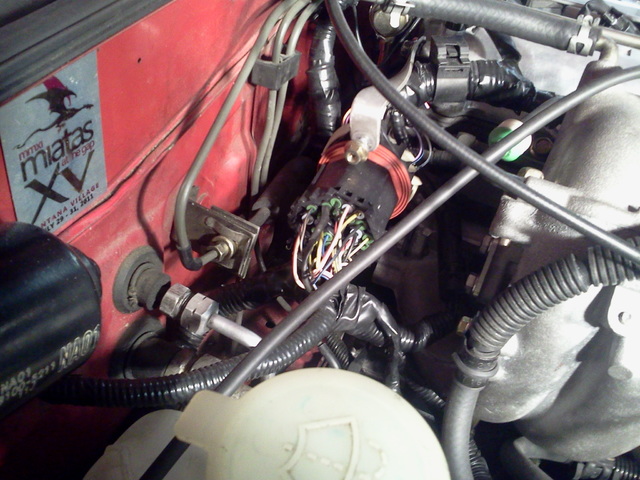

Do a better job on that bird-nest of bullshit on the back of the engine with the ghetto-*** Homo Depot aluminum strap thing. That connector you used is great if used inside the cabin. It will hold water and corrode. I replaced the engine harness in my car for this reason.
hustler is offline   Reply With Quote
Old 01-25-2013, 03:26 PM   #87
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Stop what you're doing, order a VVT engine harness, run two wires for fuel through the trans-tunnel firewall, use the charcoal can wiring at the right shock for the VVT solenoid (yellow/red wire on connector 2 pin X I think), and run your coil connections at the OEM connector on the right side of the car.
hustler is offline   Reply With Quote
Old 01-25-2013, 05:00 PM   #88
Junior Member
Thread Starter

Join Date: Sep 2011
Posts: 134
Total Cats: -19
Default

Quote:
Originally Posted by hustler View Post
Suggestion:
Do a better job on that bird-nest of bullshit on the back of the engine with the ghetto-*** Homo Depot aluminum strap thing. That connector you used is great if used inside the cabin. It will hold water and corrode. I replaced the engine harness in my car for this reason.
Again with the negativity. And the vulgarity. I hardly think any of that is necessary or very becoming of a moderator of anything. I find your language and demeanor unnecessarily rude and your posts on this thread entirely useless. So please. Go away.
ReplaceDisplace is offline   Reply With Quote
Old 01-29-2013, 04:36 AM   #89
Junior Member
Thread Starter

Join Date: Sep 2011
Posts: 134
Total Cats: -19
Default

Quick update. Engine in. Vast majority of the wiring done. Made new P/s Hose to maintain use of the newer p/s pump. Startup tomorrow. Pictures to come. Everything has gone smoothly thus far.
ReplaceDisplace is offline   Reply With Quote
Old 01-29-2013, 10:26 AM   #90
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by ReplaceDisplace View Post
Again with the negativity. And the vulgarity. I hardly think any of that is necessary or very becoming of a moderator of anything. I find your language and demeanor unnecessarily rude and your posts on this thread entirely useless. So please. Go away.
This bro is hyper-sensitive, ya'll.
hustler is offline   Reply With Quote
Old 01-31-2013, 02:10 AM   #91
Junior Member
Thread Starter

Join Date: Sep 2011
Posts: 134
Total Cats: -19
Default

It's alive! Running good so far. Welding up the exhaust and stuff tonight and a tiny bit of tuning.
ReplaceDisplace is offline   Reply With Quote
Old 01-31-2013, 10:48 PM   #92
Junior Member
Thread Starter

Join Date: Sep 2011
Posts: 134
Total Cats: -19
Default

Exhaust is done. Engine is timed. Putting things back together now. Everything went smoothly. No real issues to report.
ReplaceDisplace is offline   Reply With Quote
Old 02-02-2013, 02:13 AM   #93
Junior Member
Thread Starter

Join Date: Sep 2011
Posts: 134
Total Cats: -19
Default All done

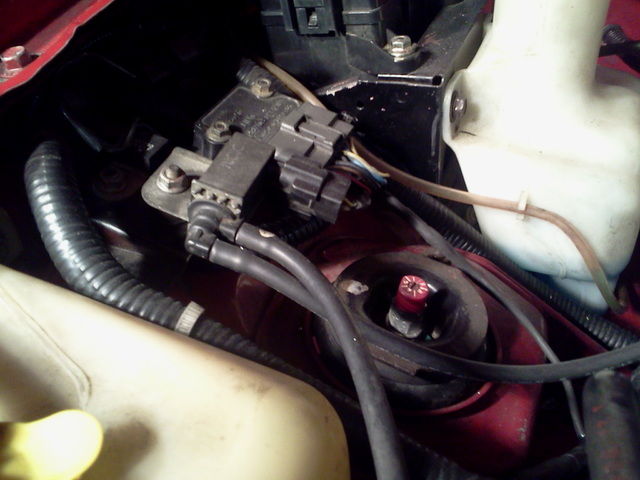

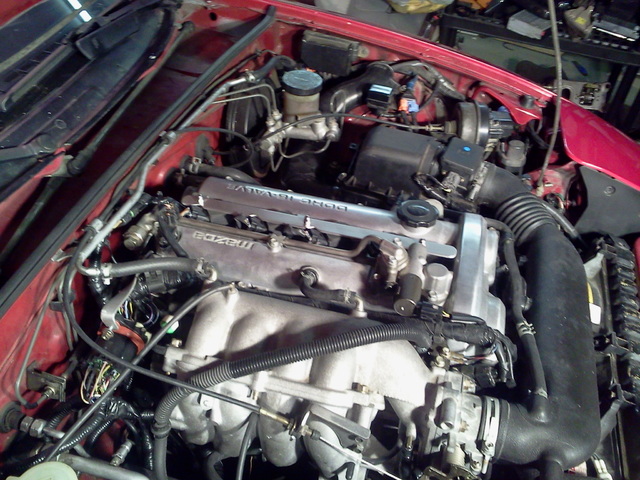

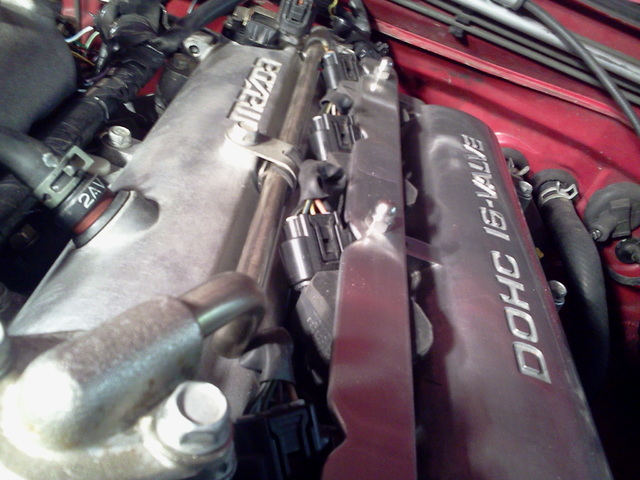

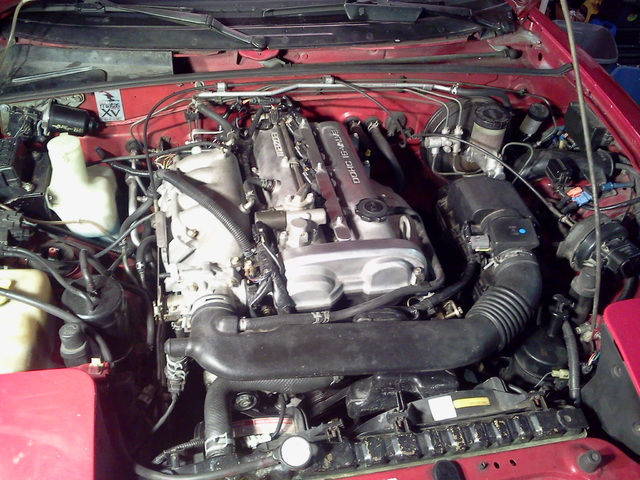

Well all is well. Drove for the first time today. Engine is quite noisy.... lots of ticking and valvetrain type noise. Nothing alarming....just odd. Perhaps its the 5w30 mobil 1 Never used synthetic before. Anyways car drives great got the idle sorted out and I did a little auto tuning. Very pleased so far. No issues at all. No leaks or anything like that. Ended up using the factory exhaust manifold and downpipe. Welded an extension section and a flange to bolt to the factory cat. I also welded my bung for my wideband in this section. I'm including pictures of the finished product including on of my many diagrams/keys and a picture of the big ugly connector. Enjoy.





Attached Thumbnails
1.8 VVT motor into 1.6 car Advice welcome.-2013_02_01_23_58_49.jpg   1.8 VVT motor into 1.6 car Advice welcome.-2013_02_01_23_59_42.jpg   1.8 VVT motor into 1.6 car Advice welcome.-2013_02_01_23_59_55.jpg   1.8 VVT motor into 1.6 car Advice welcome.-2013_02_02_00_00_07.jpg   1.8 VVT motor into 1.6 car Advice welcome.-2013_02_02_00_00_41.jpg

1.8 VVT motor into 1.6 car Advice welcome.-2013_02_02_00_01_48.jpg
ReplaceDisplace is offline   Reply With Quote
Old 02-02-2013, 10:23 AM   #94
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

It's not the oil, there is nothing fundementally different about that engine oil which will cause a noise.

Are you talking about a metal on metal sound, or funky sounding intake noises, like the old-school two step VTEC cams? The cam on my VVT daily makes some pretty cool noises.
hustler is offline   Reply With Quote
Old 02-04-2013, 01:05 AM   #95
Junior Member
Thread Starter

Join Date: Sep 2011
Posts: 134
Total Cats: -19
Default

Quote:
Originally Posted by hustler View Post
It's not the oil, there is nothing fundementally different about that engine oil which will cause a noise.

Are you talking about a metal on metal sound, or funky sounding intake noises, like the old-school two step VTEC cams? The cam on my VVT daily makes some pretty cool noises.
Uhm mostly just ticking tappety type noises. Maybe I'm just not used to hearing this particular motor lol.
ReplaceDisplace is offline   Reply With Quote
Old 02-04-2013, 01:08 AM   #96
Junior Member
Thread Starter

Join Date: Sep 2011
Posts: 134
Total Cats: -19
Default

Got the VVTuner working today. Very very pleased with the car's newfound performance. The VVT makes a huge difference. Just got to tighten up the screws as it were and tune/drive it. What a project it's been.
ReplaceDisplace is offline   Reply With Quote
Old 02-14-2013, 04:46 PM   #97
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by ReplaceDisplace View Post
Got the VVTuner working today. Very very pleased with the car's newfound performance. The VVT makes a huge difference. Just got to tighten up the screws as it were and tune/drive it. What a project it's been.
It makes the car awesome. Email me if you want some tuning assistance with VVTuner. I spent a lot of time on the dyno and ended up with 35mpg at 80mph. I expect to go higher with EAE working properly.
hustler is offline   Reply With Quote
Old 02-14-2013, 04:48 PM   #98
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by ReplaceDisplace View Post
Uhm mostly just ticking tappety type noises. Maybe I'm just not used to hearing this particular motor lol.
Probably the VVT mechanism slopping around...but I'm not sure if the solenoid is open or closed when unplugged. Does it still make the noise now that VVT solenoid is working?
hustler is offline   Reply With Quote
Old 01-23-2014, 06:17 PM   #99
Junior Member
Thread Starter

Join Date: Sep 2011
Posts: 134
Total Cats: -19
Default

Just an update. No issues at all since the swap. Put 10k miles on it without a single hiccup. No corrosion on the harness as some were concerned about. Adding an MP62 and an intercooler to the setup right now.
ReplaceDisplace is offline   Reply With Quote
Old 01-26-2014, 12:41 AM   #100
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

You could always put some heat shrink wrap over the harness if they make some large enough.
wannafbody is offline   Reply With Quote
