Default 2.0...ish build

Since my car doesn't even have 200whp, I decided to build an engine swap out with my current stock motor once it is built, and keep the same cooling and turbo setup. KEEP IN MIND...I was raised under power lines on a strict diet of paint chips so if it ever gets retarded you will know why.

I'm sure the question to the effect of "why don't you swap it with 50 gajillion times better motor if you are going to spend that kind of money," the answer is simple, I still want the motor to look like a stock miata engine.

95 bp block bored out to 84mm
Supertech 84mm 8.6:1 pistons
Wiseco 84mm rings (I read on a forum once the Wiseco Rings work better)
Manley connecting rods
OE Crankshaft
Boundary Engineering oil pump
ACL bearings
ATI Dampner

The Head

Stock 94-97 head, polished and ported,
Cams are still very debatable, I was just going to put some OE cams and let megasquirt offset the timing but if anybody has any recommendations that a tried and tested not browsed and googled I'd be willing.
+1mm supertech valves
supertech valve springs
polished and ported OE intake manifold
Skunk2 throttle.


Pretending2koolz is offline   Reply With Quote
Old 05-17-2016, 06:32 AM   #2
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,109
Total Cats: 48
Default

Dump that Head and get a 99-00 or VVT Head. If you are going to dump money into cams and headwork then start with the better casting, otherwise your just wasting your money.
ctdrftna is offline   Reply With Quote
Old 05-17-2016, 09:10 AM   #3
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,107
Default

Yeah every penny you spend on the 94-97 head is a complete waste, compared to the the benefits you could get from starting with a 99/00 or 01-05VVT head.
shuiend is offline   Reply With Quote
Old 05-17-2016, 11:36 AM   #4
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,392
Total Cats: 58
Default

Quote:
Originally Posted by shuiend View Post
Yeah every penny you spend on the 94-97 head is a complete waste, compared to the the benefits you could get from starting with a 99/00 or 01-05VVT head.
Maybe not completely accurate but hearsay (voices in my head) mention that a well flowing ported BP head only flows as good as a stock BP4W/BP6D.
NiklasFalk is offline   Reply With Quote
Old 05-17-2016, 11:54 AM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

the bp4w looks very similar to the bp05, and in addition to the flow you can convert to a better trigger setup. win/win
18psi is offline   Reply With Quote
Old 05-17-2016, 01:39 PM   #6
Junior Member
iTrader: (1)

Join Date: May 2015
Location: Salem, OR
Posts: 363
Total Cats: 40
Default

+1 on BP4W as a starting point.

I happen to know a guy selling one. *wink, nudge*
dleavitt is offline   Reply With Quote
Old 05-17-2016, 09:53 PM   #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2016
Location: Utah
Posts: 109
Total Cats: -30
Default

So is the 99-00 motor better overall, less the fact it doesn't have a pre-drilled oil port, Or am I mixing facts?

Last edited by Pretending2koolz; 05-17-2016 at 10:04 PM. Reason: typo
Pretending2koolz is offline   Reply With Quote
Old 05-17-2016, 10:14 PM   #8
Junior Member
iTrader: (1)

Join Date: May 2015
Location: Salem, OR
Posts: 363
Total Cats: 40
Default

Quote:
Originally Posted by Pretending2koolz View Post
So is the 99-00 motor better overall, less the fact it doesn't have a pre-drilled oil port, Or am I mixing facts?
The improvements are in the cylinder head. Block is the same but the 99-00 had higher compression pistons, which you are replacing anyway.
dleavitt is offline   Reply With Quote
Old 05-17-2016, 10:28 PM   #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2016
Location: Utah
Posts: 109
Total Cats: -30
Default

So...here is a question...one of the types that will pull my intelligence into question...How hard is it to set triggering/wire the triggering to work with my ms2pnp? Is this even an option or would I have to get a new engine management system (ms3 or the 99-00ms)?
Pretending2koolz is offline   Reply With Quote
Old 05-18-2016, 10:58 AM   #10
Junior Member
iTrader: (1)

Join Date: May 2015
Location: Salem, OR
Posts: 363
Total Cats: 40
Default

Shouldn't need a new EMS. I don't have any experience with the MS2PNP myself, but it should be pretty straightforward to wire the new sensors in.

Another option is to just use your NA CAS on the NB1 head. No wiring required, but you theoretically lose some accuracy with regards to timing.
dleavitt is offline   Reply With Quote
Old 05-18-2016, 11:29 AM   #11
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 201
Default

It's all in the mega thread.
ryansmoneypit is offline   Reply With Quote
Old 05-18-2016, 11:34 AM   #12
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

Quote:
Originally Posted by Pretending2koolz View Post
So...here is a question...one of the types that will pull my intelligence into question...How hard is it to set triggering/wire the triggering to work with my ms2pnp? Is this even an option or would I have to get a new engine management system (ms3 or the 99-00ms)?
this one doesn't pull your intelligence into question
Quote:
Originally Posted by Pretending2koolz View Post
So is the 99-00 motor better overall, less the fact it doesn't have a pre-drilled oil port, Or am I mixing facts?
this one definitely does
18psi is offline   Reply With Quote
Old 05-18-2016, 12:52 PM   #13
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Switching to the ckp+cmp (that the 99-05 uses) is trivial on an MSpnp2. Using VVT (01-05) is not possible using just an MSpnp2.
aidandj is offline   Reply With Quote
Old 05-18-2016, 01:31 PM   #14
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 201
Default

I has vvt tuner collecting dust.
ryansmoneypit is offline   Reply With Quote
Old 05-25-2016, 02:00 PM   #15
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2016
Location: Utah
Posts: 109
Total Cats: -30
Default

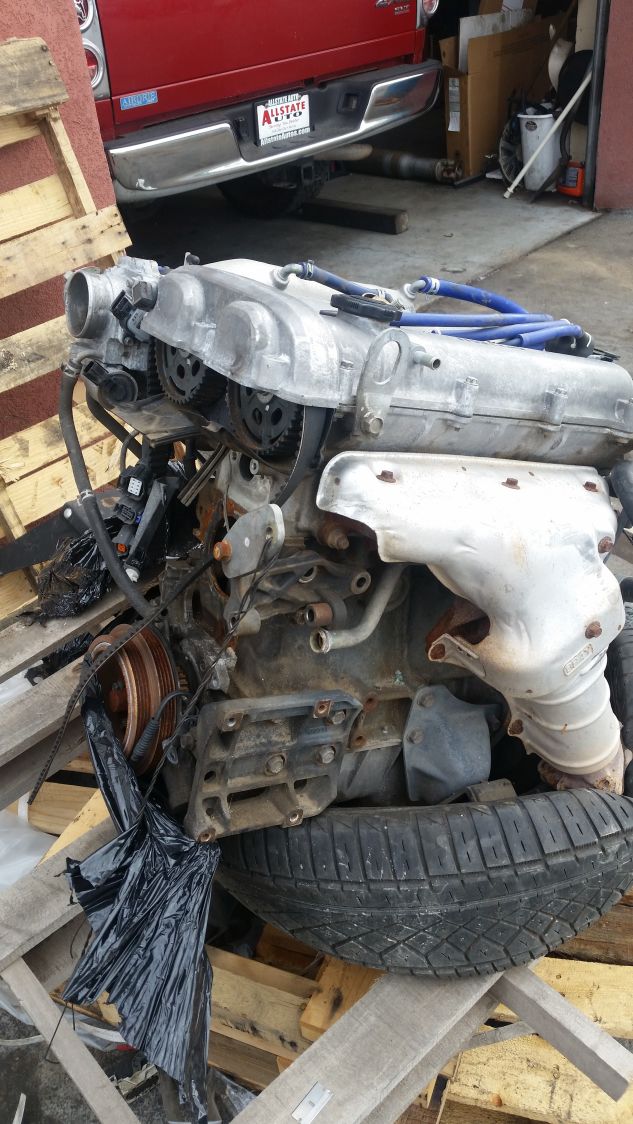

Picked ip this non runner for $250. I figure if the head is good its worth the money
Attached Thumbnails
2.0...ish build-80-20160524_093758_18485b9e90a942843c3692ffaae8152108bcd105.jpg
