China 64mm TB knock-off


Old 09-27-2017, 09:49 AM
  #41
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 10,364
Total Cats: 1,648
Default

So my real question is: Do you feel that the cheap one is still "stronger" than the oem one in terms of the shaft breaking or not breaking?
concealer404 is offline
Old 09-27-2017, 10:44 AM
  #42
Elite Member
iTrader: (8)

bahurd's Avatar

Join Date: Apr 2013
Posts: 2,621
Total Cats: 259
Default

Originally Posted by concealer404 View Post
So my real question is: Do you feel that the cheap one is still "stronger" than the oem one in terms of the shaft breaking or not breaking?
Good question. Don't know the OEM material [or the china or Skunk for that matter] so making an assumption they're all basically the same steel it comes down to shaft cross-section right?

I'll try and dig out an OEM one to compare later today.
bahurd is offline
Old 09-27-2017, 01:45 PM
  #43
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 3,210
Total Cats: 398
Default

I just measured my stock 99-05 throttle body shaft. I am getting about .345 or 8.76 mm. So it looks like the cheapo and the skunk turd are all slightly larger in diameter. Again, no idea about the OEM material, or the others for that matter.
ryansmoneypit is online now
Old 09-28-2017, 10:48 AM
  #44
Junior Member

Join Date: May 2011
Location: Signal Hill, CA
Posts: 256
Total Cats: 12
Default

I have to admit the shipping from China was pretty quick. I got mine yesterday, and I can tell you it looks like crap. As stated above, the finish is terrible, machine marks everywhere but the most annoying part is all the chips inside the threaded holes.

I'll be taking it apart and posting up my findings in a bit.

Here are some pictures.
https://imgur.com/a/WNuxC

I couldn't fully disassemble the throttle body, there's a gasket that's stuck inside the bore where the throttle plate shaft goes through, and the stupid spring is stuck.

From a super quick inspection, the throttle plate ranges from ō64.47MM to ō64.54MM, the shaft is steel, I just don't know if it's hardened (I have some hardness files around here somewhere.)

This appears to be the bearing: https://www.fastenal.com/products/details/4126357 from the part number

https://www.mcmaster.com/#standard-b...rings/=19lhx65

Last edited by .one lane; 09-29-2017 at 02:11 PM.
.one lane is offline
Old 09-29-2017, 07:09 PM
  #45
Junior Member

Join Date: May 2011
Location: Signal Hill, CA
Posts: 256
Total Cats: 12
Default

Originally Posted by bahurd View Post

3. Pulleys
The SKUNK2 pulley is a fully machined piece of aluminum whereby the China TB is a plastic pulley. I havenít disassembled the China TB to look at the internals where the pulley connects to the shaft but I expect the aluminum machined version is a lot stronger. Also, spring pressure seems the same although I havenít checked with a guage.




4. Butterfly shaft
Hereís where the 2 products differ significantly.

Cross shaft ō:
SKUNK2 10.88
China TB 9.71

Across shaft flats:
SKUNK2 6.8
China TB 6.8

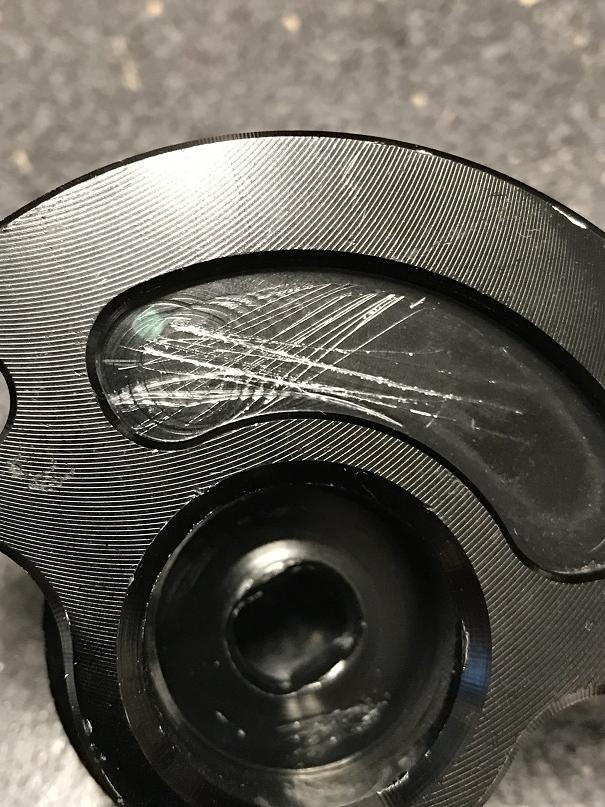

My Junk2 throttle cable cam thingy is made out of aluminum, which can be seen here.

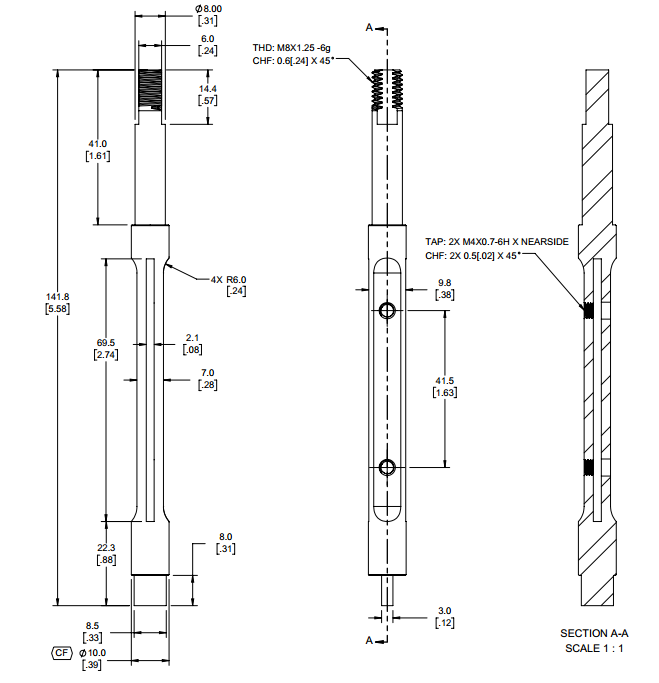

Here are the dimensions I got from my shaft.

.one lane is offline
Old 09-29-2017, 07:16 PM
  #46
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 3,210
Total Cats: 398
Default

I question how strong the pulley really needs to be. Nylon will probably outlast my car.
ryansmoneypit is online now
Old 09-29-2017, 11:01 PM
  #47
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,310
Total Cats: 2,019
Default

Proof enough that it's a cheap copy, not the real thing at less cost. Hard pass.
__________________

High-Performance Turbo Specialists - Sunnyvale, CA - Email us!

Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is offline
Old 10-21-2017, 12:58 PM
  #48
Senior Member

Join Date: Sep 2011
Location: Prescott, AZ
Posts: 609
Total Cats: 62
Default

Originally Posted by Savington View Post
Proof enough that it's a cheap copy, not the real thing at less cost. Hard pass.
QFT

And a heads up: some really good prices on the genuine Junk2 99-05 TB on Amazon right now.
Roda is offline
Old 11-15-2017, 06:39 PM
  #49
Junior Member

ShaZam508's Avatar

Join Date: Sep 2010
Location: Fall River, MA
Posts: 58
Total Cats: 3
Default

Ordered one of these E-Gay throttle bodies and it came in black!?

ShaZam508 is offline
Old 11-15-2017, 06:43 PM
  #50
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 10,364
Total Cats: 1,648
Default

Well i want that.
concealer404 is offline
Old 11-15-2017, 06:51 PM
  #51
Junior Member

ShaZam508's Avatar

Join Date: Sep 2010
Location: Fall River, MA
Posts: 58
Total Cats: 3
Default

Originally Posted by concealer404 View Post
Well i want that.
It never gave me a color option so watch out, You might get a pink one!
ShaZam508 is offline
Old 11-15-2017, 08:09 PM
  #52
Elite Member
iTrader: (2)

Join Date: Aug 2016
Location: New Fucking Jersey
Posts: 3,957
Total Cats: 109
Default

Linky?
ridethecliche is offline
Old 11-15-2017, 08:19 PM
  #53
Junior Member

ShaZam508's Avatar

Join Date: Sep 2010
Location: Fall River, MA
Posts: 58
Total Cats: 3
Default

Originally Posted by ridethecliche View Post
Linky?
This is the link to the listing I bought it from.

https://www.ebay.com/itm/322629216054
ShaZam508 is offline
Old 11-15-2017, 09:38 PM
  #54
Junior Member

ShaZam508's Avatar

Join Date: Sep 2010
Location: Fall River, MA
Posts: 58
Total Cats: 3
Default

So they forgot to send me this bolt... 👎

ShaZam508 is offline
Old 11-16-2017, 07:58 AM
  #55
Ich verstehe nur Bahnhof
iTrader: (4)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 4,512
Total Cats: 493
Default

M6x1.0 button socket head. Probably shallow thread length.
psyber_0ptix is offline
Old 11-16-2017, 08:02 AM
  #56
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 3,210
Total Cats: 398
Default

I got mine the other day- took 7 weeks and at one time was thought to be lost. Anyhoo, it looks pretty good. A little different than the others, machine marks were acceptable and the throttle cam is aluminum not plastic. The throttle shaft also measures about 10.5 mm in dia. Raw aluminum it looks like. I did not see any color options at the time either. Trade me for that black one?
ryansmoneypit is online now
Old 11-16-2017, 02:25 PM
  #57
Junior Member

ShaZam508's Avatar

Join Date: Sep 2010
Location: Fall River, MA
Posts: 58
Total Cats: 3
Default

Originally Posted by ryansmoneypit View Post
I got mine the other day- took 7 weeks and at one time was thought to be lost. Anyhoo, it looks pretty good. A little different than the others, machine marks were acceptable and the throttle cam is aluminum not plastic. The throttle shaft also measures about 10.5 mm in dia. Raw aluminum it looks like. I did not see any color options at the time either. Trade me for that black one?
Thanks for the offer but I dont mind the black.

Word of advise to anyone who hasn't installed theirs yet. Bring your idle control valve with you when you go get the button head screws. They only supply one screw and the other will need a slightly longer one than whats on the factory TB. Also the supplied TB to manifold gasket is cut wrong.
ShaZam508 is offline
Old 11-16-2017, 02:47 PM
  #58
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 3,210
Total Cats: 398
Default

Originally Posted by ShaZam508 View Post
Thanks for the offer but I dont mind the black.

Word of advise to anyone who hasn't installed theirs yet. Bring your idle control valve with you when you go get the button head screws. They only supply one screw and the other will need a slightly longer one than whats on the factory TB. Also the supplied TB to manifold gasket is cut wrong.
is your throttle cam plastic or aluminum?
ryansmoneypit is online now
Old 11-16-2017, 08:50 PM
  #59
Junior Member

ShaZam508's Avatar

Join Date: Sep 2010
Location: Fall River, MA
Posts: 58
Total Cats: 3
Default

Originally Posted by ryansmoneypit View Post
is your throttle cam plastic or aluminum?
It's aluminum.
ShaZam508 is offline
Old 12-05-2017, 04:01 PM
  #60
Junior Member

Join Date: Jan 2014
Posts: 132
Total Cats: 3
Default

I am thinking about ording one of these and was curious about the one that came in black. Idk if this was around when you ordered yours but they officially offer them in black now

https://www.ebay.com/itm/New-64mm-Th...paGP3N&vxp=mtr
mr.skywalker is offline
