Old 06-19-2014, 02:21 PM   #81
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

That happened as part of an accident with another car.

This happened because I suck
Attached Thumbnails
AN converted coolant reroute brought to you by a 1.6L powered FC-1534955_697481946950245_1687468027_o.jpg
theshdwconspracy is offline   Reply With Quote
Old 06-19-2014, 03:10 PM   #82
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

I honestly dont know why anyone paints, or puts body panels on (especially fiberglass ones), drift cars.

Last edited by Braineack; 06-20-2014 at 09:27 AM.
Braineack is offline   Reply With Quote
Old 06-19-2014, 03:14 PM   #83
Senior Member
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

Super late to the party here, but the earliest comment about diameter of the coolant lines is actually wrong. You're dealing with a pi ratio there. 2 pi r or 1 pi d so if you cut diameter in half you're getting pi-x less coolant assuming equal flow velocity (which probably isn't true, it more than likely sped up velocity just like a smaller exhaust). So roughly 30% efficiency.
mlev is offline   Reply With Quote
Old 06-19-2014, 03:15 PM   #84
Senior Member
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

Also, props for fighting through this tough crowd, and looks like a decent build.

Not going to lie, I love hooning. It's an absolute blast. I just can't stand 95% of the people who are involved with it, and they give the sport a bad name by doing stupid **** on public roads.
mlev is offline   Reply With Quote
Old 06-20-2014, 08:44 AM   #85
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Braineack View Post
I honestly dont know when anyone paints, or puts body panels on (especially fiberglass ones), drift cars.
I would +1 this post if you wrote it in english.
Leafy is offline   Reply With Quote
Old 06-20-2014, 09:27 AM   #86
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by Leafy View Post
I would +1 this post if you wrote it in english.
It is literally written in English, but I did mess up when I edited it. thanks for pointing out my flaws.
Braineack is offline   Reply With Quote
Old 06-20-2014, 09:30 AM   #87
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Much better.
Leafy is offline   Reply With Quote
Old 06-20-2014, 09:35 AM   #88
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,242
Total Cats: 290
Default

nice build- you have skillz
m2cupcar is offline   Reply With Quote
Old 06-20-2014, 01:23 PM   #89
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

How did I ever miss this! Good to see another Bx in a RX-7 chassis!
bcrx7 is offline   Reply With Quote
Old 12-23-2014, 02:33 AM   #90
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

I guess I meant to post this in this thread instead of my older one.

Still Ill save the long boring story for all of you.

Most important part, is I'm finally taking it to a dyno on January 9th. Really just want to see what it makes and finally know/have proof (or be disappointed).

Anyway, my two current problems are:

Leaks water out the headgasket, but doesn't seem like any is getting into the cylinder. Did this on the last motor and still does it on the new one. Too much pressure in the cooling system? (30psi rad cap) Too much boost on stock HG?

The other problem I'm having is a lot of blow by. I don't really know how to fix the problem. My crank case is vented from just behind the alternator (factory nipple) and then both sides of the head vent to the catch can.


I did discover that the CAS will royally **** everything up if it doesn't have its own dedicated chassis ground. When it was only grounding through the harness it caused a lot of voltage drop everywhere and we tuned around that problem for like a year. Now that it's fixed it runs awesome.

I just spent 20 minutes writing an elaborate post explaining my life. It told me to sign in when I hit post and I lost the whole post.

I blew my motor up. It over heated (really bad). No water pump belt. whoops

I put a new used motor in.

I'm going to the dyno January 9th

I have problems with coolant leaking out the motor at the headgasket. IDK why

CAS needs a dedicated ground (found out the hard way)

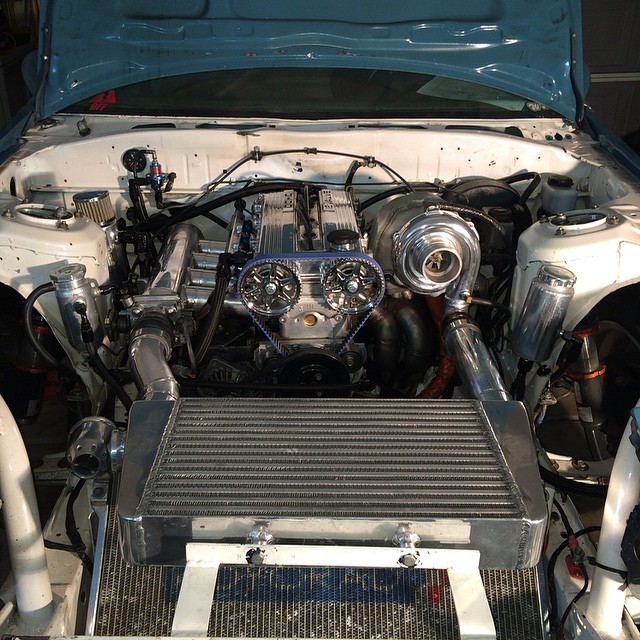

Here's my motor and some specs

93 1.6L (100k miles?)
Bone stock internals
Rotella T 15w40
E-85 fuel
1000cc ID injectors
walbro 255lph
flying miata fuel rail

EBAY! TO4E 50trim .64AR turbo
1.5-1.6bar
Custom long tube exhaust manifold
Tial 38mm wastegate
3" exhaust from turbo (no muffler/restriction)

Vmount intercooler
BEGI intake manifold
Stock TB

Greddy profec B EBC
AEM EMS 4
LS2 Coils (Sequential)
AEM CAS disc

37mm Koyo
Taurus fan
An coolant reroute

140A (rebuilt) FC alternator
MR2 Electric PS pump




Here's me putting the best oil ever in my motor.




Here's my car, because I know you like drift cars.

theshdwconspracy is offline   Reply With Quote
Old 12-23-2014, 05:53 AM   #91
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 783
Total Cats: 23
Default

From one fellow 1600 to another sweet car!

Not a fan of drifting either but a big fan of functional projects and how you are out there doing what you love. (not to mention a very thick skin from this tough crowd :lol: )

Very interested in your dyno.....with a ported head, supertech pistons (8.5 CR?) and 16 psi t28 turbo with .46 hot side we made 265 HP at the wheels...fairly tame timing and on the rich side, fuelling.....cant remember the torque ..maybe 175 - 180..? cant honestly remember, that figure could be way wrong.
mx5-kiwi is offline   Reply With Quote
Old 12-23-2014, 02:19 PM   #92
I'm Miserable!

Join Date: Aug 2014
Posts: 130
Total Cats: -162
Default

Quote:
Originally Posted by mlev View Post
Super late to the party here, but the earliest comment about diameter of the coolant lines is actually wrong. You're dealing with a pi ratio there. 2 pi r or 1 pi d so if you cut diameter in half you're getting pi-x less coolant assuming equal flow velocity (which probably isn't true, it more than likely sped up velocity just like a smaller exhaust). So roughly 30% efficiency.
-16an line size argument is irrelevant since he runs a long hose from the back of the cylinder head to the front radiator.
StealthNB is offline   Reply With Quote
