Default Double oil cooler sandwich?

So right now I have two stock oil coolers in my possession. There is a lot of room between the outside end of the oil filter and the frame. So I was wondering... What about stacking two of the oil coolers for some extra oil cooling?

The plumbing for the the coolant can be fed in parallel. I think I can make it work mechanically with the filter fitting tubes, so I am wondering more about the thermodynamic behavior. I have an oversized radiator so shifting the heat load to that should not be an issue.

Anyone tried it?
ZX-Tex is offline   Reply With Quote
Old 03-13-2009, 06:36 PM   #2
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

never seen it but it sounds interesting.
ARTech is offline   Reply With Quote
Old 03-13-2009, 07:34 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

good luck sourcing the stud.
Braineack is offline   Reply With Quote
Old 03-14-2009, 04:07 PM   #4
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

Yeah, stud length would be an issue. My Mocal uses a special nut that threads onto the end of that stud, and then the filter threads onto that.

I'm not even using my stock oil cooler on the new motor.
Savington is offline   Reply With Quote
Old 03-14-2009, 04:28 PM   #5
Senior Member

Join Date: Dec 2007
Posts: 671
Total Cats: 2
Default

Quote:
Originally Posted by Savington View Post
Yeah, stud length would be an issue. My Mocal uses a special nut that threads onto the end of that stud, and then the filter threads onto that.

I'm not even using my stock oil cooler on the new motor.
Doesn't each oil cooler have a stud like that? If so, one can install as many of those as he wants just like he can install multiple Mocal plates ...
j_man is offline   Reply With Quote
Old 03-14-2009, 04:31 PM   #6
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

He's talking about the stock cooler, which uses the long stud coming off the side of the engine. There's no Mocal spacer-style nut; it just slides onto the stud behind the filter.
Savington is offline   Reply With Quote
Old 03-15-2009, 12:08 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Quote:
Originally Posted by Savington View Post
He's talking about the stock cooler, which uses the long stud coming off the side of the engine. There's no Mocal spacer-style nut; it just slides onto the stud behind the filter.

interesting....I was going to install a stock 1.8L oil/water cooler last weekend but couldn't find a second nut to fit on it to try to remove the stud. Sounds like this would work to install the cooler, as I got annoyed and said **** it.


btw, cop bracket is butterz, thanks.
Braineack is offline   Reply With Quote
Old 03-15-2009, 01:46 AM   #8
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Yeah Sav is right that is how it goes on.

I thought there might be enough clearance to use an intermediate joiner nut between two stock tubes, not sure about that yet. I have not searched for a hollow 'all-thread' yet, though if I could get a solid threaded rod of the right size and pitch (McMaster?) I know a machinist who would center drill it for me.
ZX-Tex is offline   Reply With Quote
Old 03-15-2009, 07:43 PM   #9
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

I suspect that the stockers (even 2 of em) aren't that effective in transferring heat. As a warmer, it'd work better, because during warmup there may be 70*F temp difference between coolant and oil. When the oil is hot, it may only be 40*F hotter than the coolant.

Has anyone dissected one?
JasonC SBB is offline   Reply With Quote
Old 03-16-2009, 09:15 PM   #10
Senior Member
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

I think its a bad idea. Those are very restrictive to oil flow. The oil has to go through soooo many small passages. it has to pass thru each small sandwich thats in there. It doesnt go straight through at all. I took mine off.I wouldnt do 2. Unless you dont ever see high RPMS..
TURNS101 is offline   Reply With Quote
Old 03-17-2009, 01:22 AM   #11
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

But he did say he'd connect them in parallel.
JasonC SBB is offline   Reply With Quote
Old 03-17-2009, 02:28 AM   #12
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Well the coolers would be in parallel for the coolant flow, reducing restriction. But they would be in series for the oil flow. I'll have to take a look at that again.
ZX-Tex is offline   Reply With Quote
Old 03-17-2009, 03:51 AM   #13
Senior Member

Join Date: Dec 2007
Posts: 671
Total Cats: 2
Default

Quote:
Originally Posted by Savington View Post
He's talking about the stock cooler, which uses the long stud coming off the side of the engine. There's no Mocal spacer-style nut; it just slides onto the stud behind the filter.
Yeah, I know he is talking about the stock one. I just never ubolted mine so I was not sure whether they just added an extra spacer nut over the same stud as in the oil coolerless B6 engine or just replaced the original stud with a longer one.

Last edited by j_man; 03-17-2009 at 05:08 AM.
j_man is offline   Reply With Quote
Old 03-17-2009, 03:58 AM   #14
Senior Member

Join Date: Dec 2007
Posts: 671
Total Cats: 2
Default

Btw, has someone dissected a OEM Miata oil cooler? Bigger ones might exist in the Mazda part bins.

In the past I remember reading at various web sites about Mazda 323 GT-R talking about bigger OEM oil cooler. I just googled some to fresh up memories and found this:

"The new five-stage water-cooled oil cooler has a greater capacity over the GTX's old two-stage unit."

it is from this site with lots of original info about the 323 GT-R:

Untitled Document
(click at the labels at the scheme at the bottom to get to the rest of the sections. the oil cooler mentioning is in the Turbo & Intercooler one)

In this forum thread a 3 stage is mentioned about 1.8L US engines (I guess Miata & Proteges):

"1.8l's in U.S> stock form has a 3 stage stock oil cooler....the GTR block has a 5 stage....."

http://www.mazda3club.com/showthread.php?t=26549



So .... does anyone know if the Miata oil cooler is the 2 stage one, 3 stage one or the 5 stage one?



Also I remember reading somewhere online about the Mazdaspeed Miata having 30% bigger oil cooler. Not sure if it is true or a myth - maybe we should check the part numbers for the MSM and compare to the previous ones.




Last edited by j_man; 03-17-2009 at 05:09 AM.
j_man is offline   Reply With Quote
Old 03-17-2009, 04:27 AM   #15
Senior Member

Join Date: Dec 2007
Posts: 671
Total Cats: 2
Default

Supposedly this is what the OEM GT-R oil cooler looks like. Pipes/hoses are noticeably bigger:




Last edited by j_man; 03-17-2009 at 05:35 AM.
j_man is offline   Reply With Quote
Old 03-17-2009, 04:57 AM   #16
Senior Member

Join Date: Dec 2007
Posts: 671
Total Cats: 2
Default

I just checked the 2005 Miata diagrams at Mazda Motorsports and the oil cooler for Mazdaspeed Miata has a different part number!

2005 Miata:
14-700
BPE8-14-700
COOLER,OIL
$157.33
Start DateEnd Date Notes: W/O TURBO


14-700
BP5C-14-700A
COOLER,OIL
$115.12
Start DateEnd Date Notes: W/TURBO
Then I opened the part diagrams for 1994 Miata:
14-700
BPE8-14-700
COOLER,OIL
$157.33

So, looks like it is true All BP Miatas have the same OEM oil cooler except the MSM. And I guess the MSM one is bigger. How much bigger (maybe the 5 stage unit?) - someone buy one and post pictures

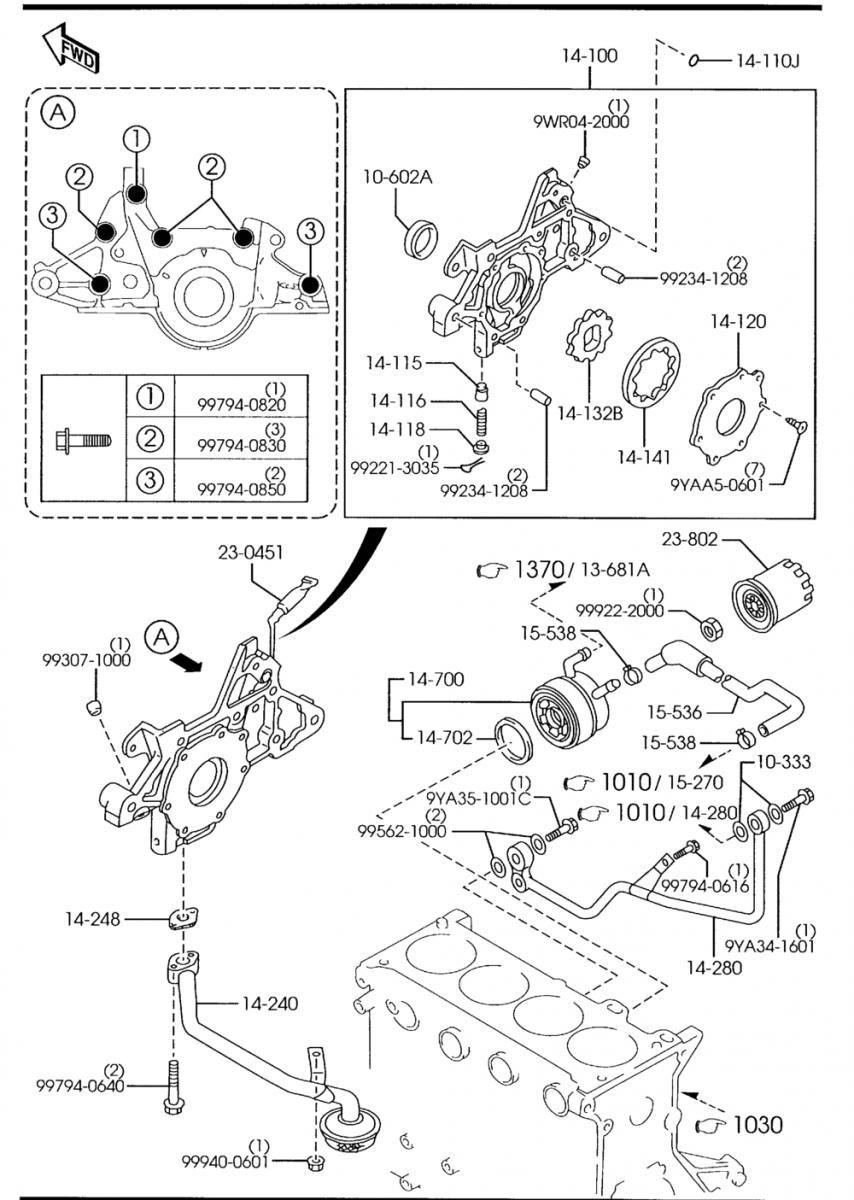

Here is the 2005 parts diagram:
Attached Thumbnails
Double oil cooler sandwich?-2005_miata_oil_system.jpg

Last edited by j_man; 03-17-2009 at 05:35 AM.
j_man is offline   Reply With Quote
Old 03-17-2009, 05:49 AM   #17
Senior Member

Join Date: Dec 2007
Posts: 671
Total Cats: 2
Default

I just found a picture of the MSM oil cooler at mazdaspeedy.com:

j_man is offline   Reply With Quote
Old 03-18-2009, 12:16 AM   #18
Senior Member
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

I have what I believe is the GTR cooler. My block was a gtr.
In fact, I will have a 01 a 1.8 na cooler and the gtr to compare. I think they are all at my machinist's shop..

I will take pics.
TURNS101 is offline   Reply With Quote
Old 03-18-2009, 02:34 AM   #19
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

^^ Excellent, thanks.
ZX-Tex is offline   Reply With Quote
Old 03-18-2009, 10:28 AM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

it's all the damn same, water flows around the oil, the end.
Braineack is offline   Reply With Quote
