Old 05-08-2013, 11:12 AM   #21
Junior Member

Join Date: Mar 2011
Location: Tallahassee, FL
Posts: 279
Total Cats: 3
Default

Man, this thread finally reminded me to search about that stupid A/C braket bolt that holds the oil pump on.

M8x1.25x45mm, it can have a shoulder because only the bottom of the hole (the pump) is threaded
spitefulcheerio is offline   Reply With Quote
Old 05-08-2013, 06:31 PM   #22
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Quote:
Originally Posted by Braineack View Post
everything you touch.


how about this:

clean your motor.
observe where leak is.
fix.
True. Engine is cleaned and assembled. Waiting on the flashlight to get home
buffon01 is offline   Reply With Quote
Old 05-10-2013, 11:47 AM   #23
Newb

Join Date: Apr 2012
Posts: 12
Total Cats: 0
Default

I guess you'll need to stay under the car as the engine cranks. Wear eye protection and ear protection while you're at it.
Soravia is offline   Reply With Quote
Old 05-11-2013, 05:55 PM   #24
Senior Member
iTrader: (1)

Join Date: Jan 2013
Location: Jacksonville FL
Posts: 649
Total Cats: 211
Default

Quote:
Originally Posted by spitefulcheerio View Post
Man, this thread finally reminded me to search about that stupid A/C braket bolt that holds the oil pump on.

M8x1.25x45mm, it can have a shoulder because only the bottom of the hole (the pump) is threaded
Ummm, no. The oil pump housing isn't threaded, the block is. And the hole measures 52mm deep without the AC bracket in place; a 50mm bolt is the correct one to use when doing an AC delete.

Last edited by Pinky; 05-11-2013 at 06:22 PM.
Pinky is offline   Reply With Quote
Old 05-13-2013, 10:24 PM   #25
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

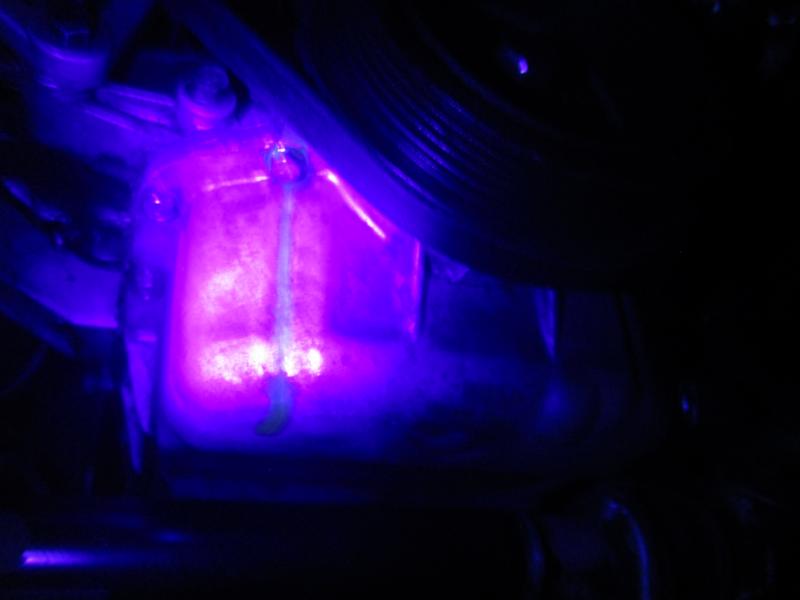

Well here it is. It's a bolt from the pan. The leak comes from the head of the bolt. Verdict? pull the engine?

Attached Thumbnails
Help me make my car reliable.  End my misery.-img_1468_zps147a529a.jpg
buffon01 is offline   Reply With Quote
Old 05-13-2013, 11:53 PM   #26
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

Reseal pan, homie.
viperormiata is offline   Reply With Quote
Old 05-14-2013, 10:02 AM   #27
Junior Member
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Pull the engine, or drop the front subframe. Reseal oil pan, check oil pump while you are at it.
lsc224 is offline   Reply With Quote
Old 05-14-2013, 10:11 AM   #28
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

did you even look from the top...cause last time i checked, gravity makes things fall form top to bottom.

I feel like I could remove that bolt from my engine and it wouldn't leak.
Braineack is offline   Reply With Quote
Old 05-14-2013, 10:13 AM   #29
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

Screw that - if the gunk is coming from just that bolt (maybe 3-5% chance), remove the bolt, squirt a little dab of RTV in there, put the bolt back in.

If it still leaks, *then* go through all the trouble/work to pull the engine.
fooger03 is offline   Reply With Quote
Old 05-14-2013, 10:33 AM   #30
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Quote:
Originally Posted by viperormiata View Post
Reseal pan, homie.
Quote:
Originally Posted by lsc224 View Post
Pull the engine, or drop the front subframe. Reseal oil pan, check oil pump while you are at it.
I was afraid of that In this case are the felpro gaskets from vatozone okay? APR studs or regular studs? what kind of RTV?

Quote:
Originally Posted by Braineack View Post
did you even look from the top...cause last time i checked, gravity makes things fall form top to bottom.

I feel like I could remove that bolt from my engine and it wouldn't leak.
Yes the top is clean as a whistle. There's absolutely nothing coming from the top. I had the car running for a good amount of time too, about 5 minutes or more. The oil is coming right out of the head of the bolt from the bottom of the matting lip of the pan and not from the matting surface of the pan. It's very odd but in the video you can see there's nothing on top and where the leak comes from.

Quote:
Originally Posted by fooger03 View Post
Screw that - if the gunk is coming from just that bolt (maybe 3-5% chance), remove the bolt, squirt a little dab of RTV in there, put the bolt back in.

If it still leaks, *then* go through all the trouble/work to pull the engine.
^The lazy me thought of that lol

buffon01 is offline   Reply With Quote
Old 05-14-2013, 10:45 AM   #31
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

you realize there's no pressure in the pan right?
Braineack is offline   Reply With Quote
Old 05-14-2013, 10:47 AM   #32
Junior Member
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Quote:
Originally Posted by buffon01 View Post
I was afraid of that In this case are the felpro gaskets from vatozone okay? APR studs or regular studs? what kind of RTV?
Yeah Felpro oil pan gasket is okay, Use this RTV Buy Permatex The Right Stuff Gasket Maker (5 oz) 29208 at Advance Auto Parts Good stuff. Check the o-ring on you oil pump and buy OEM o-ring if it's missing.
lsc224 is offline   Reply With Quote
Old 05-14-2013, 10:49 AM   #33
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Quote:
Originally Posted by Braineack View Post
you realize there's no pressure in the pan right?
I do. Did you see the video? there nothing anywhere else.

Quote:
Originally Posted by lsc224 View Post
Yeah Felpro oil pan gasket is okay, Use this RTV Buy Permatex The Right Stuff Gasket Maker (5 oz) 29208 at Advance Auto Parts Good stuff. Check the o-ring on you oil pump and buy OEM o-ring if it's missing.
Thanks
buffon01 is offline   Reply With Quote
Old 05-14-2013, 10:52 AM   #34
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Good LUCK.
Braineack is offline   Reply With Quote
Old 05-14-2013, 10:59 AM   #35
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Could blow by cause pressure built-up enough to push oil out of that region. I did rev the car when at first saw nothing coming out at all minutes later the leak on video appeared.


Quote:
Originally Posted by Braineack View Post
Good LUCK.
thanks
buffon01 is offline   Reply With Quote
Old 05-14-2013, 11:10 AM   #36
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

Quote:
Originally Posted by buffon01 View Post
^The lazy me thought of that lol
I'm obviously missing something...why wouldn't this work? Or did you try it already and it didn't work?
fooger03 is offline   Reply With Quote
Old 05-14-2013, 11:11 AM   #37
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Quote:
Originally Posted by fooger03 View Post
I'm obviously missing something...why wouldn't this work? Or did you try it already and it didn't work?
I haven't touch the car. I wanted feedback before I did. I have some black RTV laying around
buffon01 is offline   Reply With Quote
Old 05-14-2013, 01:56 PM   #38
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Update

I just went to check the bolt where the oil was coming from and was completely loose. I used only my fingers to take it off. How the hell? Well I put some black RTV and torqued it to spec then spay the bottom with engine cleaner and I'm letting it dry now. I'll inspect the area later when it gets dark and it's easier to see the dye
buffon01 is offline   Reply With Quote
Old 05-14-2013, 02:09 PM   #39
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Are you using the two half moon gaskets for the front/rear of the pan?
flounder is offline   Reply With Quote
Old 05-14-2013, 02:15 PM   #40
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Quote:
Originally Posted by flounder View Post
Are you using the two half moon gaskets for the front/rear of the pan?
They must be in there still. The engine remains in the car. I'm going to try tighten it with RTV first and if that doesn't fix it then the engine is coming off. I just wanted to comment that that bolt was loose.
