Old 04-07-2013, 10:00 AM   #41
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

gut ignitor, pass wires straight through to coils, swap the connectors for the 99 coil plugs ?
Braineack is offline   Reply With Quote
Old 04-07-2013, 10:50 AM   #42
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Quote:
Originally Posted by Braineack View Post
gut ignitor, pass wires straight through to coils, swap the connectors for the 99 coil plugs ?
99? But it's a 01+ ...
Zaphod is offline   Reply With Quote
Old 04-07-2013, 11:06 AM   #43
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

same difference.
Braineack is offline   Reply With Quote
Old 04-07-2013, 11:32 AM   #44
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

O.K. ;-)
Zaphod is offline   Reply With Quote
Old 04-08-2013, 11:37 AM   #45
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

It was very hard to find the pinout pin out wiring of the 01 VVT 01+ ingestion spark coils (I added all those words so hopefully this post will come up on google when some other poor sucker is trying to figure it out) From top to bottom it is trigger, ground, power. However, if you dont get spark after pinning the connectors, de-pin the connector and crush the pins down a bit then put it back together. I noticed that the pins on the coil pack side are undersized and sometimes wont make contact with the pins in the harness side connector if you use pins form either bmotorsports or eastern beaver that are recommended for the connector. It is possible that a slightly different pin might need to be spec'ed to work with these coils in this connector.
Leafy is offline   Reply With Quote
Old 04-08-2013, 11:47 AM   #46
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Leafy View Post
It was very hard to find the pinout pin out wiring of the 01 VVT 01+ ingestion spark coils (I added all those words so hopefully this post will come up on google when some other poor sucker is trying to figure it out) From top to bottom it is trigger, ground, power. However, if you dont get spark after pinning the connectors, de-pin the connector and crush the pins down a bit then put it back together. I noticed that the pins on the coil pack side are undersized and sometimes wont make contact with the pins in the harness side connector if you use pins form either bmotorsports or eastern beaver that are recommended for the connector. It is possible that a slightly different pin might need to be spec'ed to work with these coils in this connector.
Not only that, the Madracki diagram from Mazda is wrong on the wire colors. I've wires VVT coils into two cars, both times I had to flip the plugs.
hustler is offline   Reply With Quote
Old 04-08-2013, 11:50 AM   #47
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

That weird, mazdamaki doesnt even have the 01+ wiring that I cant find. I know that if you do an 94-95 with VVT coils you need brown on the front coil (2/3) top and brown/yellow (1/4) on the rear coil top, black in the middle for both, and light blue on the bottom for both.
Leafy is offline   Reply With Quote
Old 04-08-2013, 12:15 PM   #48
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

So use the Mazda FSM instead:




You guys are silly.
Attached Thumbnails
How to wire VVT engine on an NA-02_miata_coil_wiring.jpg
Braineack is offline   Reply With Quote
Old 04-08-2013, 12:19 PM   #49
I'm Miserable!
iTrader: (1)

Join Date: Jan 2008
Posts: 203
Total Cats: 8
Default

Yeah seriously, it's not too hard.

Here's how I problem solved it going from 1994 wiring: look at the 2001 coil wiring, note which leads are tied to ground and note which colors change. Bam, you've just found the GND, +12V and trigger wires.
GAMO is offline   Reply With Quote
Old 04-08-2013, 12:44 PM   #50
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

That's the same thing, idiots.
hustler is offline   Reply With Quote
Old 04-08-2013, 12:47 PM   #51
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

are you saying the one I posted is not correct?
Braineack is offline   Reply With Quote
Old 04-08-2013, 12:52 PM   #52
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post
are you saying the one I posted is not correct?
If coil #1 goes to cylinder 1 and 4, then "yes," ************.
hustler is offline   Reply With Quote
Old 04-08-2013, 12:55 PM   #53
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

oh, those are never in the diagrams. I'd have to look at my notes...


looked at notes: 3I, coil 2 = 2&3 3F, coil 1 = 1&4
Braineack is offline   Reply With Quote
Old 04-08-2013, 01:02 PM   #54
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

And the other problem is not knowing which way the connector is orientated in the fsm.
Leafy is offline   Reply With Quote
Old 04-08-2013, 01:18 PM   #55
I'm Miserable!
iTrader: (1)

Join Date: Jan 2008
Posts: 203
Total Cats: 8
Default

Who cares, match wires to wires.
GAMO is offline   Reply With Quote
Old 04-08-2013, 01:18 PM   #56
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

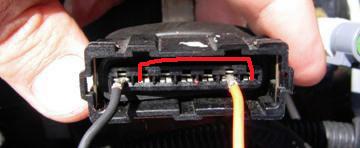

connector pictures with a double outline are the male, and a single outline are female. and are almost always from the harness side (notice the main relay in the above mentions it's the terminal side).

So it should be looked at, like you unplug the connector, then look into it like this:



i could be wrong. I always just double check.
Attached Thumbnails
How to wire VVT engine on an NA-fuel-pump-jump.jpg

Last edited by Braineack; 04-08-2013 at 01:37 PM.
Braineack is offline   Reply With Quote
Old 04-08-2013, 01:20 PM   #57
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

Quote:
Originally Posted by Braineack View Post
IIRC, they are almost always the plug side, so it would be like removing the connect from the coilpack, then looking down into the male connector itself, not the coil.
That is correct, now that I've had a connector in my hand and gotten lucky guessing on a bunch of them (except for the tps, I literally had to try every configuration and got it correct on the last one )
Leafy is offline   Reply With Quote
Old 04-08-2013, 02:20 PM   #58
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

Cliff notes please!

C
chriscar is offline   Reply With Quote
Old 04-08-2013, 02:41 PM   #59
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Very nice information here - thanks guys.
Zaphod is offline   Reply With Quote
Old 04-08-2013, 02:54 PM   #60
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by hustler View Post
If coil #1 goes to cylinder 1 and 4, then "yes," ************.
Quote:
Originally Posted by Braineack View Post
looked at notes:
3I, coil 2 = 2&3
3F, coil 1 = 1&4
I've wired a few 01+ MSes the way I noted with sucess, so unsure what you're doing...
Braineack is offline   Reply With Quote
