Old 01-09-2015, 02:41 PM   #801
Junior Member

Join Date: Sep 2014
Location: Canton, GA
Posts: 153
Total Cats: -84
Default

Question related to the heater core pipes when using the OEM K24A2 intake manifold:

1) Would it be possible to retain the heater core functionality? I.E. Re-routing the inlet/outlet pipes on the engine bay side, only?
2) Is that the OEM K24A2 throttle body as well?
3) Is it possible to use the B Series TPS on that throttle body?

Love that you are trying all these manifold combinations while you are in this stage. I am planning a "keep allthethings OEM" build with a K24 and this info would help greatly.

Thanks.
NBoost is offline   Reply With Quote
Old 01-09-2015, 03:28 PM   #802
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,109
Total Cats: 48
Default

Stock heater core is retained and functional

I think any cable operated k series throttle body will work, depending on manifold flange.

K-tuned offers a b series tps adapter
ctdrftna is offline   Reply With Quote
Old 01-09-2015, 03:44 PM   #803
Junior Member

Join Date: Sep 2014
Location: Canton, GA
Posts: 153
Total Cats: -84
Default

Quote:
Originally Posted by AndyHollis View Post

But if you are willing to forgo a heater core, the stock TSX intake ("RBB") fits in there nicely.


Mentions if you are able to "forgo" the heater core.. Assuming he means you won't have a functioning heater?

Quote:
Originally Posted by ctdrftna View Post
Stock heater core is retained and functional

I think any cable operated k series throttle body will work, depending on manifold flange.

K-tuned offers a b series tps adapter
Thanks for the answers on 2) and 3) however.
NBoost is offline   Reply With Quote
Old 01-09-2015, 04:49 PM   #804
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,927
Total Cats: 526
Default

Hard to have a functioning heater without a heater core, which is what forego means.

The right way to do it is with the S2k mani if I understand correctly. But the TSX mani will do in a pinch if you don't need a heater.
turbofan is offline   Reply With Quote
Old 01-09-2015, 07:57 PM   #805
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,109
Total Cats: 48
Default

I didn't understand where you were going with that one. I guess no heater core for that manifold. Maybe you could rig something up.

The only way i plan to have my inlet facing the firewall is if there is a roots charger strapped to my engine.
ctdrftna is offline   Reply With Quote
Old 01-09-2015, 07:58 PM   #806
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Weld a tight 130ish degree bend to the TB and you're good to go even with the heater core.
triple88a is offline   Reply With Quote
Old 01-09-2015, 08:56 PM   #807
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

Hyper would use a reversed laminova heat exchanger there. Heater core functionality retained with bonus a/w anti-intercooling.
Mobius is offline   Reply With Quote
Old 01-09-2015, 10:49 PM   #808
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by Mobius View Post
Hyper would use a reversed laminova heat exchanger there. Heater core functionality retained with bonus a/w anti-intercooling.

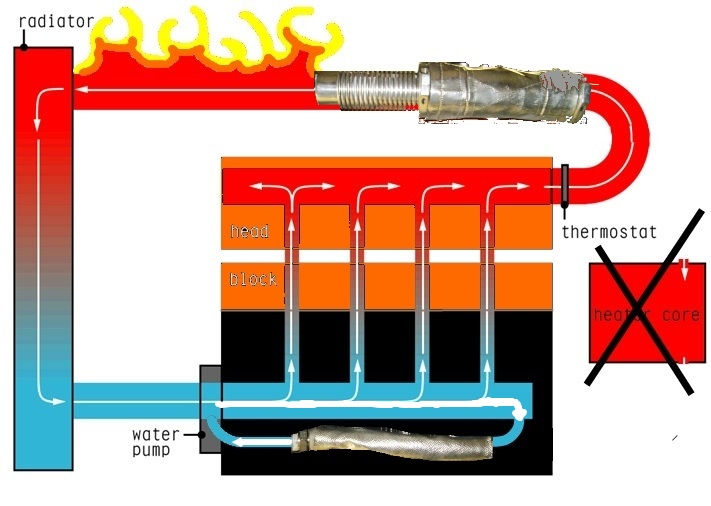

hyper dont need a heat exchanger at all. As you can see according ot my image here all the water bypasses the block anyways.

Attached Thumbnails
K series Miata swap-hyperreroute_zps1b1ce914.jpg
triple88a is offline   Reply With Quote
Old 01-12-2015, 10:27 AM   #809
Junior Member

Join Date: Sep 2014
Location: Canton, GA
Posts: 153
Total Cats: -84
Default

Quote:
Originally Posted by triple88a View Post
Weld a tight 130ish degree bend to the TB and you're good to go even with the heater core.
I was thinking the same thing, but rather a degree bend on the heater pipes to clear the manifold, not using a different manifold to clear the heater core pipes.

Quote:
Originally Posted by turbofan View Post
Hard to have a functioning heater without a heater core, which is what forego means.

The right way to do it is with the S2k mani if I understand correctly. But the TSX mani will do in a pinch if you don't need a heater.
All of that I understand. I saw the few hundred dollars in an intake manifold and an adapter plate and would personally rather fab an intake and re-route the heater core inlets/outlets to accommodate an intake manifold that might come on the long block when purchased. Because cheaper and I like to build things.
NBoost is offline   Reply With Quote
Old 01-14-2015, 12:15 AM   #810
Junior Member

Join Date: Nov 2006
Posts: 284
Total Cats: 149
Default

Big news from today...the motor is now running!


Punch list for test drive is down to:

1) Add two "tight" hangars to exhaust to resist sideloading

2) Wire up dash temp gauge (sensor already installed in water plate)

3) re-install dash sans heater core

4) Finish Intake tube/filter

Plan is to take the car to Daytona next week to display at the GRM tent during the Rolex 24. Stage 1 of the build will see print shortly (article already submitted). Picking up a lightweight hardtop from Treasure Coast while I am there. Cage build starts when I get back.


Quote:
Originally Posted by hornetball View Post
Looks fantastic Andy. Going to ceramic the headers?
For now, I'm leaving the Lovefab header as it came. Not sure if it will be the final thing on the car. I'll be testing some alternatives.
AndyHollis is offline   Reply With Quote
Old 01-14-2015, 07:21 AM   #811
Junior Member

Join Date: Nov 2006
Posts: 284
Total Cats: 149
Default

Quote:
Originally Posted by NBoost View Post
All of that I understand. I saw the few hundred dollars in an intake manifold and an adapter plate and would personally rather fab an intake and re-route the heater core inlets/outlets to accommodate an intake manifold that might come on the long block when purchased. Because cheaper and I like to build things.
If you like fabbing things, and you can weld aluminum, a cleaner approach would be to cut the throttle body flange on the manifold and add a 45-degree wedge of tube to rotate it to a vertical position. Then it will clear anything and you have a cleaner run to the CAI. Throttle cable will be easier, too (mine is kinda wonky right now).
AndyHollis is offline   Reply With Quote
Old 01-15-2015, 12:06 PM   #812
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Honda VTEC Turbo four-cylinder engine confirmed for the U.S. | Digital Trends

Does anyone know if the ~280Hp 2.0L turbo charged civic type R motor is a K-series engine? Or is it a brand new architecture?

If it's K-series this might provide a source for turbo manifolds to boost k-miatas. Also possibly interchangeable high performance parts to play legos with.
If not, k-miata company might have their next engine swap kit project for more miata/honda awesomeness.
cyotani is offline   Reply With Quote
Old 01-15-2015, 12:26 PM   #813
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Quote:
Originally Posted by cyotani View Post
Honda VTEC Turbo four-cylinder engine confirmed for the U.S. | Digital Trends

Does anyone know if the ~280Hp 2.0L turbo charged civic type R motor is a K-series engine? Or is it a brand new architecture?

If it's K-series this might provide a source for turbo manifolds to boost k-miatas. Also possibly interchangeable high performance parts to play legos with.
If not, k-miata company might have their next engine swap kit project for more miata/honda awesomeness.
Nobody is sure of the engine code yet as far as I know, but it is a very different engine by the looks of it. Im pretty sure it is going to be a new series. Most likely part of the new "Earth Dreams" engines, like the L15 replacement.

Also, It is rumored that the manifold is cast into the head.
Full_Tilt_Boogie is offline   Reply With Quote
Old 01-15-2015, 12:42 PM   #814
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Seeing how no one mentioned k-series on any article I found on it it's most likely a new engine.

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Also, It is rumored that the manifold is cast into the head.
I wouldn't be surprised with this either. Many companies are switching to this method. Makes life easier and more reliable but less options for upgrading and moding it.
cyotani is offline   Reply With Quote
Old 01-15-2015, 12:45 PM   #815
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

I was under the impression that the k series was already dead as a new production engine.
Leafy is offline   Reply With Quote
Old 01-15-2015, 12:52 PM   #816
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Plus they are back to putting the exhaust on the front side of the engine like the old engines. So the head has to be pretty different right there.
I guess there is always the possibility the rotating assembly is similar, but probably not.
Full_Tilt_Boogie is offline   Reply With Quote
Old 01-15-2015, 12:58 PM   #817
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Plus they are back to putting the exhaust on the front side of the engine like the old engines. So the head has to be pretty different right there.
I guess there is always the possibility the rotating assembly is similar, but probably not.
Hey, if it bolts to the same trannys and uses the same flywheels we're mostly in business anyways just mount and oilpan away.
Leafy is offline   Reply With Quote
Old 01-15-2015, 01:37 PM   #818
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by AndyHollis View Post
Big news from today...the motor is now running!
You work fast!! Been following your FB. Can't wait to see this thing in person.
hornetball is offline   Reply With Quote
Old 01-15-2015, 03:25 PM   #819
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,052
Total Cats: 8
Default

This is old news...

Honda goes turbo with new engine family | Autoweek

Interpret "new family of engines" however you like...
Efini~FC3S is offline   Reply With Quote
Old 01-16-2015, 11:44 AM   #820
Junior Member

Join Date: Nov 2006
Posts: 284
Total Cats: 149
Default

Ummm...you guys do know that there has been a factory turbo K-series for a long time now.. 07-12 RDX has the K23A1 rated at 240/260.
AndyHollis is offline   Reply With Quote
