Default Long-rod BP build underway



Long connecting rod 1.9-ish-liter built VVT BP is being done on Edmunds' green hoopty '97 whine and cheese edition. It'll be a little while before all the bits are in place but it's coming together...

http://blogs.insideline.com/roadtest...d-nerdery.html
Attached Thumbnails

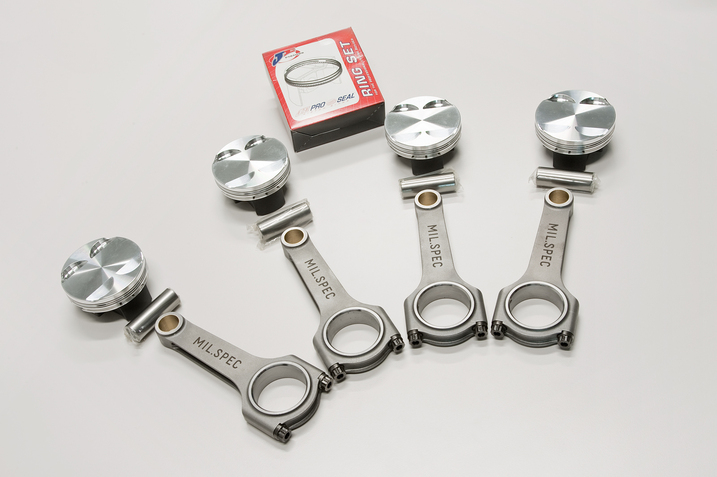

Long-rod BP build underway-project_miata_long_rod_mil_spec_je_pistons_fsr_all-thumb-717x477-114848.jpg
JKav is offline   Reply With Quote
Old 02-23-2012, 05:24 PM   #2
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

You appear to have the best job evar.

Keeping the Rotrex?
EO2K is offline   Reply With Quote
Old 02-23-2012, 05:54 PM   #3
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

compression ratio?
y8s is offline   Reply With Quote
Old 02-23-2012, 06:03 PM   #4
Senior Member
iTrader: (2)

Join Date: Mar 2006
Location: MA
Posts: 885
Total Cats: 2
Default

Quote:
Getting the longest rod to stroke ratio is a design mantra
well, it certainly is in my mind. :-)





seriously, though, very cool read. love ---- like this, as it feeds my inner nerd with the stuff that i love understanding but will likely never implement.
devin mac is offline   Reply With Quote
Old 02-23-2012, 06:17 PM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

in for cool new stuff
18psi is offline   Reply With Quote
Old 02-23-2012, 07:53 PM   #6
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

OO ooo OOOOHHHH. I. LIKE.
Faeflora is offline   Reply With Quote
Old 02-23-2012, 08:01 PM   #7
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Tasty.


One day. One day I will have a bit of time and money to mildly build a short block.
Doppelgänger is offline   Reply With Quote
Old 02-24-2012, 08:17 PM   #8
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Posts: 373
Total Cats: 36
Default

EO2K- am ginning up a turbah
y8s- 9:1
JKav is offline   Reply With Quote
Old 02-24-2012, 08:51 PM   #9
Newb

RyanY's Avatar

Join Date: Jul 2011
Location: North Phoenix, AZ
Posts: 28
Total Cats: 3
Default

Quote:
Originally Posted by JKav View Post
I didn't think pornographic pics were allowed...
RyanY is offline   Reply With Quote
Old 02-24-2012, 10:45 PM   #10
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

Nice job Jason. Ben trying to research this myself. Talked to J&E, they seemed very willing to work with the customer. So, did Mil-spec end up being a custom rod? What kind of pricing did it work out? What bore did you go out to?
2manyhobyz is offline   Reply With Quote
Old 02-24-2012, 11:32 PM   #11
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

How do you get to 1.9 from 1.8 without changing the crank and without lowering the compression ratio?
triple88a is offline   Reply With Quote
Old 02-24-2012, 11:34 PM   #12
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by JKav View Post
EO2K- am ginning up a turbah
y8s- 9:1
inside line wont know what walloped them upside the assbone.

what order of magnitude for such precious internals kit? Most of us are thinking "supertech and those chinese guys can supply rods and pistons for like 700 for all of it"
y8s is offline   Reply With Quote
Old 02-25-2012, 03:47 AM   #13
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

Quote:
Originally Posted by triple88a View Post
How do you get to 1.9 from 1.8 without changing the crank and without lowering the compression ratio?
Compression ratio is in the piston design. As for displacement, the 1.8 is actually 1839 cc so it only takes a smidgen of overbore to get a number that rounds up to 1.9L. Going 0.5 mm over is 1860, +1 mm is 1883, +1.5 mm is 1906 cc, assuming my math isn't fuzzy right now.
ScottFW is offline   Reply With Quote
Old 02-25-2012, 04:04 AM   #14
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

http://www.motoiq.com/magazine_artic...th-matter.aspx

What does a rod like that cost? I have a buddy who just popped an engine, it might be cool to get some of these if the price is right.
hustler is offline   Reply With Quote
Old 02-25-2012, 04:05 AM   #15
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

What are Honda rod ratios compares to our BP "slugger"? Is the higher rod ratio of the F20 the reason the S2k feels a bit sluggish below 5000rpm?
hustler is offline   Reply With Quote
Old 02-25-2012, 06:30 AM   #16
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Quote:
Originally Posted by hustler View Post
What are Honda rod ratios compares to our BP "slugger"? Is the higher rod ratio of the F20 the reason the S2k feels a bit sluggish below 5000rpm?
According to Google...

BP: 1.56:1
S2000: 1.82:1
Chevy 350: 1.64:1
Ford 4.6L: 1.67:1
Nissan SR20: 1.58:1
Bryce is offline   Reply With Quote
Old 02-25-2012, 11:17 AM   #17
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,323
Total Cats: 1,344
Default

Quote:
Originally Posted by hustler View Post
What are Honda rod ratios compares to our BP "slugger"? Is the higher rod ratio of the F20 the reason the S2k feels a bit sluggish below 5000rpm?
The F20C is actually pretty strong below 5000. it is just that when Vtec kicks in (yo) its bipolar welterweight cage fighter side makes the other side feel like a libertarian vegan.
emilio700 is offline   Reply With Quote
Old 02-25-2012, 11:34 AM   #18
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Bryce View Post
According to Google...

BP: 1.56:1
S2000: 1.82:1
Chevy 350: 1.64:1
Ford 4.6L: 1.67:1
Nissan SR20: 1.58:1
Thanks. It again appears that we have the worst engine on Earth. Is there an engine from the same era that does worse in than the BP in terms of vibration, rod ratio, head flow, fuel economy, and output?
hustler is offline   Reply With Quote
Old 02-25-2012, 12:23 PM   #19
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Quote:
Originally Posted by hustler View Post
Thanks. It again appears that we have the worst engine on Earth. Is there an engine from the same era that does worse in than the BP in terms of vibration, rod ratio, head flow, fuel economy, and output?
BUT, it does seem to withstand a lot of abuse.

Forgive my ignorance, but are we talking about "stroking" the BP? If so, then why not see if there is another crank that will work in this engine?

In the mopar world for instance, you can drop a 440 crank into a 383 and net a 400CI engine. With a new crank and rods you can get 500+ ci from a 440 (this takes grinding inside the block though) Custom cranks are probably expensive, but if Emelio is approaching 200HP on an NA, then I assume "there is no replacement for displacement" holds true.
miatauser884 is offline   Reply With Quote
Old 02-25-2012, 12:37 PM   #20
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by djp0623 View Post
Forgive my ignorance, but are we talking about "stroking" the BP?
No, same crank, longer rod, similar piston with a higher wrist pin. Read the MotoIQ link I posted.
