Old 06-10-2010, 08:06 PM   #61
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by wayne_curr View Post
No idea. Probably many years in the back of bob's garage. I hope your crazy idea has something to do with getting rings unstuck from the piston after sitting a long time. I tried soaking the piston in ATF overnight but that hasn't helped :(
Bingo. I doubt that running ATF in the motor would help just because you obviously have some compression, which tells me that at least one of the rings (probably the top compression ring) is sealing. If I were you, I would pull the motor and just pull that piston/rod out to inspect. Un-crust the rings and plop it back in. I started cleaning off my b6t pistons the other night and I was ******* ASTOUNDED at how bad the second ring and the oil control rings were. No amount of ATF soaking would fix that had I just thrown them into a motor. I had to pry them out with a dental pick.
Jeff_Ciesielski is offline   Reply With Quote
Old 06-10-2010, 08:13 PM   #62
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by Jeff_Ciesielski View Post
Bingo. I doubt that running ATF in the motor would help just because you obviously have some compression, which tells me that at least one of the rings (probably the top compression ring) is sealing. If I were you, I would pull the motor and just pull that piston/rod out to inspect. Un-crust the rings and plop it back in. I started cleaning off my b6t pistons the other night and I was ******* ASTOUNDED at how bad the second ring and the oil control rings were. No amount of ATF soaking would fix that had I just thrown them into a motor. I had to pry them out with a dental pick.
Well at this point there is no way i'm going to put this thing back together with the rings that are in it. I'm just hoping it isn't ringlands and hoping I wont need a hone or anything once I have it all apart again.
wayne_curr is offline   Reply With Quote
Old 06-15-2010, 08:40 PM   #63
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

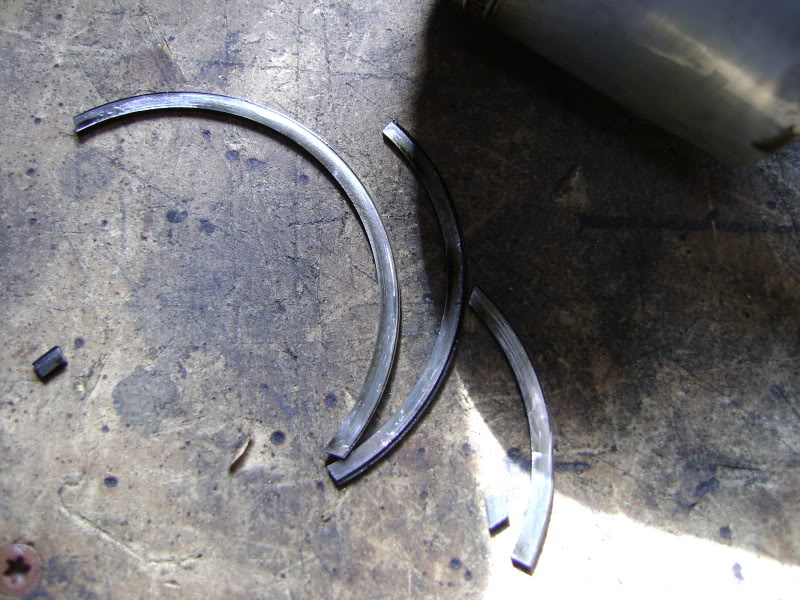

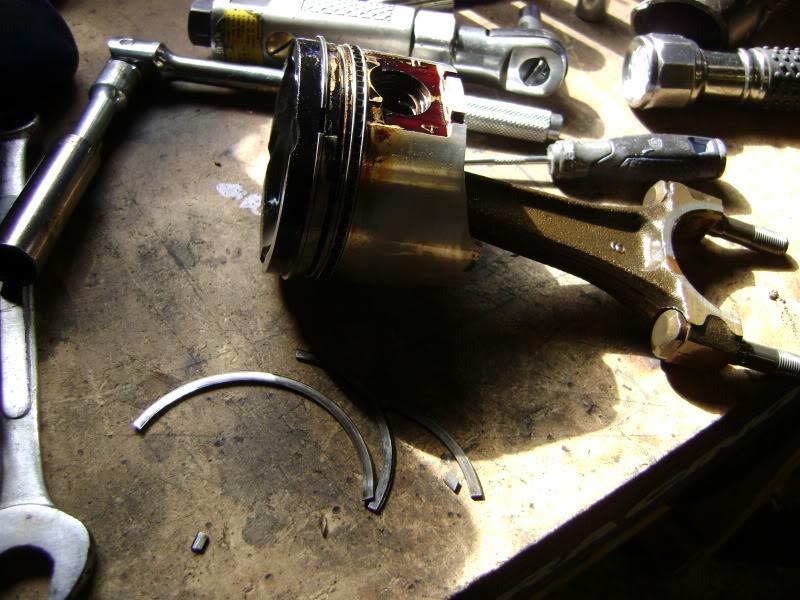

Not exactly what I suspected, but pretty close. Piston rings from #3.

Name:  DSC02266.jpg
Views: 2
Size:  127.4 KB
Name:  DSC02267.jpg
Views: 2
Size:  137.7 KB
wayne_curr is offline   Reply With Quote
Old 06-15-2010, 08:50 PM   #64
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

So wait... It was broken to begin with, or I was right and it was super stuck?
Jeff_Ciesielski is offline   Reply With Quote
Old 06-15-2010, 08:50 PM   #65
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by Jeff_Ciesielski View Post
So wait... It was broken to begin with, or I was right and it was super stuck?
It was broken to begin with. Came out in those pieces. Looks like that is the only thing that went wrong though.
wayne_curr is offline   Reply With Quote
Old 06-15-2010, 08:51 PM   #66
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Sort of strange to have a shattered ring....
Jeff_Ciesielski is offline   Reply With Quote
Old 06-15-2010, 09:00 PM   #67
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by Jeff_Ciesielski View Post
Sort of strange to have a shattered ring....
Definitely the first time i've seen it.
wayne_curr is offline   Reply With Quote
Old 06-20-2010, 11:58 PM   #68
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

So... new rings?

= profit?
falcon is offline   Reply With Quote
Old 06-21-2010, 06:10 PM   #69
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by falcon View Post
So... new rings?

= profit?
Well thats what I thought.

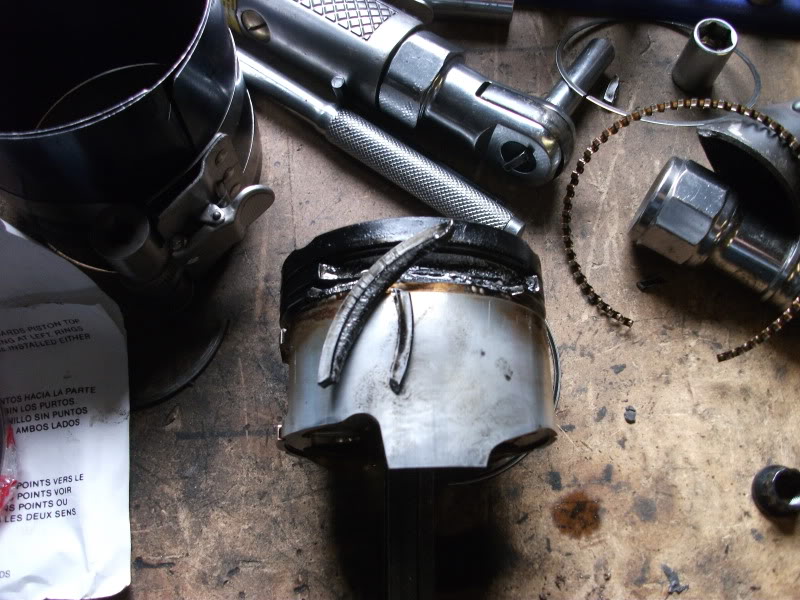

Just got in from the garage after trying to put the new rings on. Look what came off the piston. Can I just run it without this piece in there?

/sarcasm

Name:  DSCF0498.jpg
Views: 2
Size:  124.5 KB
wayne_curr is offline   Reply With Quote
Old 06-21-2010, 06:13 PM   #70
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

I have 3 good stock pistons from a B6 motor.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 06-21-2010, 06:30 PM   #71
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

Holy crap that thing must of ran HOT. Replace all four if you can. Used stickers should be cheap.
curly is online now   Reply With Quote
Old 06-21-2010, 06:34 PM   #72
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

I should also mention that there is a groove in the cylinder wall of number 3 that I didn't notice before. I can catch a fingernail on it so i'm just throwing in the towel on this block which sucks because I spent hours cleaning and painting it :(

bbundy who sold me this might have a long block I can pick up from him. If not there is a long block 2 hours away that i'm considering, just tough for me to drive down and get it. I'm starting to get really frustrated with all of my car problems.

Another thing to note that bob pointed out is that 323 GTX intake manifolds seem to feed air a lot better to cylinder 3 than the rest. He has a GTX with a dead cylinder number 3 right now as well. Seems to be a common problem.
wayne_curr is offline   Reply With Quote
Old 06-23-2010, 12:13 AM   #73
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

If you can wait until my build is done in about a month you can have my current block for free.

I also know where you can get some BRAND new std size pistons and new rods for $300. Pulled out of a crate engine and never used.
falcon is offline   Reply With Quote
Old 06-23-2010, 02:51 AM   #74
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by falcon View Post
If you can wait until my build is done in about a month you can have my current block for free.

I also know where you can get some BRAND new std size pistons and new rods for $300. Pulled out of a crate engine and never used.
I just cant wait that long. This is my daily driver (or its suppose to be) so i've got to get this back on the road asap. Especially since there is an autox in 2 weeks.
wayne_curr is offline   Reply With Quote
Old 06-23-2010, 03:17 AM   #75
Junior Member
iTrader: (1)

Join Date: Sep 2009
Location: Shoreline, WA
Posts: 143
Total Cats: 0
Default

here's a plan for your project funding

Andifer is offline   Reply With Quote
Old 06-23-2010, 01:27 PM   #76
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

I wish you luck!

My engine is being bored out next week. Still up for doing assembly for me?
falcon is offline   Reply With Quote
Old 06-23-2010, 02:57 PM   #77
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by falcon View Post
I wish you luck!

My engine is being bored out next week. Still up for doing assembly for me?
Absolutely. Hopefully I can get my car reassembled and out of the garage in time to work on your stuff =P
wayne_curr is offline   Reply With Quote
Old 06-23-2010, 03:05 PM   #78
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

Quote:
Originally Posted by wayne_curr View Post
Absolutely. Hopefully I can get my car reassembled and out of the garage in time to work on your stuff =P
When do you want to come pick up some parts? I will be at Packwood this weekend.

Bob
bbundy is offline   Reply With Quote
Old 06-23-2010, 03:06 PM   #79
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by bbundy View Post
When do you want to come pick up some parts? I will be at Packwood this weekend.

Bob
Tomorrow would be great. Today and tomorrow are my days off.
wayne_curr is offline   Reply With Quote
Old 06-23-2010, 11:07 PM   #80
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Quote:
Originally Posted by bbundy View Post
When do you want to come pick up some parts? I will be at Packwood this weekend.

Bob
you lucky bugger. I may go down to the ntl tour this year.. been down the last 3... but I don't know if i can take more days off from work.
falcon is offline   Reply With Quote
