Old 11-02-2012, 11:44 PM   #81
Junior Member
iTrader: (3)

Join Date: Apr 2012
Location: Ridgecrest CA
Posts: 448
Total Cats: 44
Default

Quote:
Originally Posted by shuiend View Post
I believe the AEM can use the stock 4 point trigger wheel. Savington went with a 12 point just for better resolution and it is the max that AEM will read.

AEM is PNP I believe for an 01, while an MS3X would need an adapter harness for it. Both will work for you and it just comes down to personal preference for which to use.
Quote:
Originally Posted by Joe Perez View Post
I'm obviously biased, but one of the MS3 variants would be my first choice. It'll run off all the stock sensors, and the VVT system seems to be pretty well sorted on it from what I understand.

You'll have to supply your own wiring harness, as (to the best of my knowledge) nobody has PnP harnii available for the '01-'05 Miatas (they have a really odd ECU connector which differs greatly from the '90-'00 cars) however you can greatly simplify the task by starting with a Boomslang extension harness (the car side) and adapting it to the MS's connectors on the ECU side. For all I know, Boomslang might even be able to build you the whole harness- the list PnP harnesses for a number of other applications.
Thanks for the input! In an effort to not clutter this thread with my personal issues, I started a new one here: https://www.miataturbo.net/general-m...63/#post946061

Back on topic - I want one of these!
czubaka is offline   Reply With Quote
Old 11-09-2012, 11:10 PM   #82
Senior Member
iTrader: (12)

Join Date: May 2008
Location: Roselle, Illinois
Posts: 846
Total Cats: -35
Default

Quote:
Originally Posted by emilio700 View Post
The removal tool is proprietary. The damper has threaded bosses in its face. The installer is a cylindrical block with port for a breaker bar. The installer will be available to buy or rent from our site and possible TSE as well.

To install, thread small bolts through the installer into damper. Insert breaker bar through port to keep damper from rotating. Torque main bolt.

To remove use claw type puller.
Ok so i got my damper today, unfortunately i dont have the cash at the moment to get the installer. But from reading the statement above it sounds like the installer just holds the pulley still while you torque down the crank bolt? My engine is out, So cant i just use my flywheel holder tool to hold the flywheel while i torque the bolt? the crank bolt is pressing the pulley on correct? Also is there any where online i can order the crank bolt and key? part numbers would be appreciated!
Hot_Wheels is offline   Reply With Quote
Old 11-10-2012, 01:36 AM   #83
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,323
Total Cats: 1,344
Default

Quote:
Originally Posted by Hot_Wheels View Post
Ok so i got my damper today, unfortunately i dont have the cash at the moment to get the installer. But from reading the statement above it sounds like the installer just holds the pulley still while you torque down the crank bolt? My engine is out, So cant i just use my flywheel holder tool to hold the flywheel while i torque the bolt? the crank bolt is pressing the pulley on correct? Also is there any where online i can order the crank bolt and key? part numbers would be appreciated!
Yup, just hold the flywheel for install.

MAZDASPEED MOTORSPORTS DEVELOPMENT - Miata Parts Catalogs and Collision Guides 1990-2002
emilio700 is offline   Reply With Quote
Old 11-11-2012, 12:30 AM   #84
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by Hot_Wheels View Post
Also is there any where online i can order the crank bolt and key? part numbers would be appreciated!

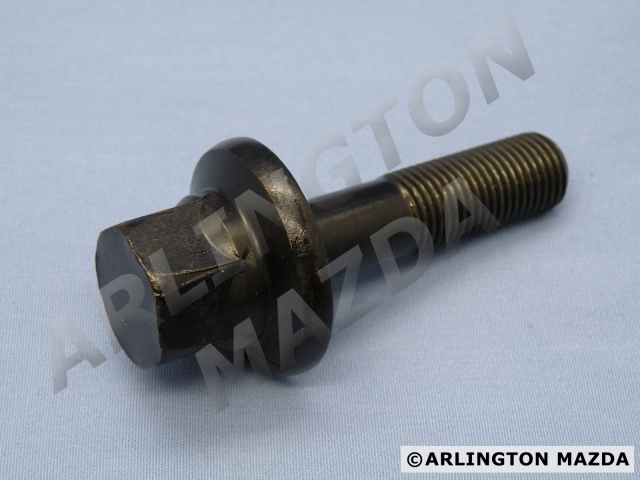

BOLT,LCK C-SHAFT (B3C7-11-406)

BOLT,LCK C-SHAFT (B3C7-11-406) - $10.98 - B3C711406

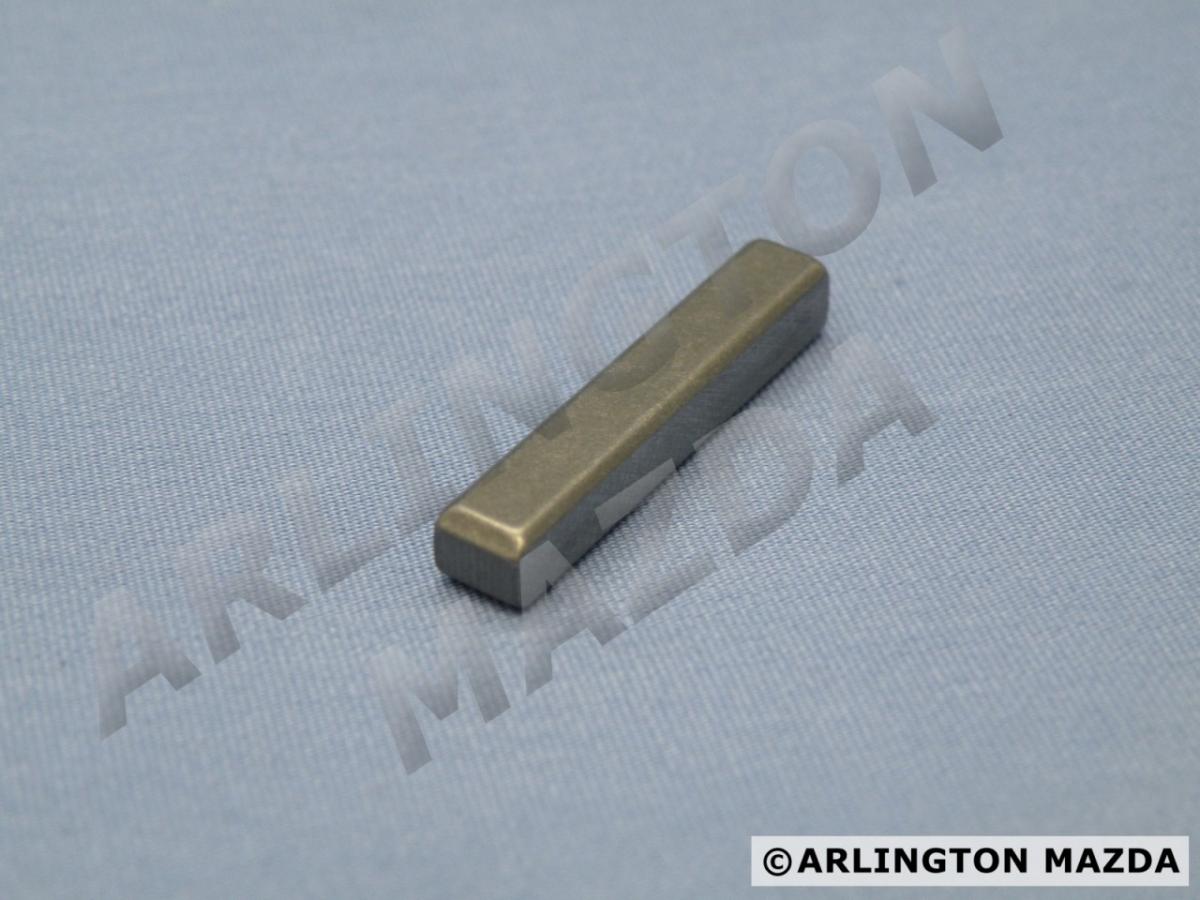

KEY, WOODRUFF (B3C7-11-317)

KEY, WOODRUFF (B3C7-11-317) - $4.33 - B3C711317

Check me on this though, I've been drinking tonight
Attached Thumbnails
New Harmonic Balancer from SuperMiata-2d295df1dd1bf88247c73d2b920f901d__87707_zoom.jpg   New Harmonic Balancer from SuperMiata-0d0c5f2d31d405baa7f0877113201627__12511_zoom.jpg
EO2K is offline   Reply With Quote
Old 11-11-2012, 03:08 PM   #85
Senior Member
iTrader: (12)

Join Date: May 2008
Location: Roselle, Illinois
Posts: 846
Total Cats: -35
Default

i found them on ebay so i bought them. Im hoping there oem mazda. if not ill use those part numbers.
Hot_Wheels is offline   Reply With Quote
Old 11-11-2012, 04:05 PM   #86
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Let me get this straight... you just bought a $440 harmonic damper and you are going to attach it to what I assume is $2000-$3000 worth of built engine with hardware... from eBay?!

Come on man. I'm cheap as hell, but even I'm not that bad. Its $15.31 for OEM parts from a Mazda dealer. Is saving $5 at this point really that important to you?
EO2K is offline   Reply With Quote
Old 11-11-2012, 07:21 PM   #87
Senior Member
iTrader: (12)

Join Date: May 2008
Location: Roselle, Illinois
Posts: 846
Total Cats: -35
Default

it said they where mazda parts, ebay dont lie, all the time
Hot_Wheels is offline   Reply With Quote
Old 11-15-2012, 02:54 AM   #88
Senior Member
iTrader: (12)

Join Date: May 2008
Location: Roselle, Illinois
Posts: 846
Total Cats: -35
Default

Quote:
Originally Posted by EO2K View Post
BOLT,LCK C-SHAFT (B3C7-11-406)

BOLT,LCK C-SHAFT (B3C7-11-406) - $10.98 - B3C711406

KEY, WOODRUFF (B3C7-11-317)

KEY, WOODRUFF (B3C7-11-317) - $4.33 - B3C711317

Check me on this though, I've been drinking tonight
i took you advise and ordered right from mazda, thats a great site! i also ordered the oil pump o ring due to i have a feeling my machine shop may not have realized it needed a o ring. I gave them the short block un assembled. ps did you start building that manifold yet??
Hot_Wheels is offline   Reply With Quote
Old 11-15-2012, 09:38 PM   #89
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by Hot_Wheels View Post
i took you advise and ordered right from mazda, thats a great site! i also ordered the oil pump o ring due to i have a feeling my machine shop may not have realized it needed a o ring. I gave them the short block un assembled.
Arlington runs a pretty good site, I've never had a problem with those guys. Even with shipping they are a hell of a lot cheaper than the local dealership.

Quote:
Originally Posted by Hot_Wheels View Post
ps did you start building that manifold yet??
Funny you should mention this, something showed up today actually. Ill update that thread rather than crap up this one any more
EO2K is offline   Reply With Quote
Old 12-12-2012, 07:33 PM   #90
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,323
Total Cats: 1,344
Default Installing the SPM damper

One can use the OEM crank bolt to press the damper onto the nose of the crankshaft. The preferred method however, is to use a damper installer that allows far more precise torque to be applied. You can use any standard damper installer that has a 14x1.5mm bolt option or you can rent ours for $30.

If installing on an engine that's not in a car, you can hold the crank from the flywheel end to torque the crank pulley bolt. If installing the damper while the engine is in the car, you will need a method to hold the crank stationary. Standard Miata crank holders will not work so you'll need to rent or buy our SPM damper crank holder tool.
emilio700 is offline   Reply With Quote
Old 12-12-2012, 11:58 PM   #91
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by emilio700 View Post
If installing the damper while the engine is in the car, you will need a method to hold the crank stationary. Standard Miata crank holders will not work so you'll need to rent or buy our SPM damper crank holder tool.
Place transmission in 5th gear and apply parking brake?

This is how I've torqued down OEM pulleys in the past. There's some slack in the drivetrain to take up, but it's doable.
Joe Perez is online now   Reply With Quote
Old 12-13-2012, 12:07 AM   #92
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,323
Total Cats: 1,344
Default

Quote:
Originally Posted by Joe Perez View Post
Place transmission in 5th gear and apply parking brake?

This is how I've torqued down OEM pulleys in the past. There's some slack in the drivetrain to take up, but it's doable.
That works.
emilio700 is offline   Reply With Quote
Old 12-14-2012, 01:33 PM   #93
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,323
Total Cats: 1,344
Default

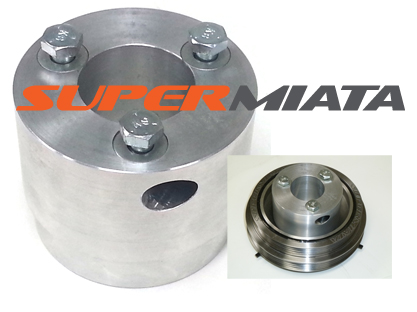

Crank Holder Tool for SPM damper

Attached Thumbnails
New Harmonic Balancer from SuperMiata-spm_crank_holder_tool.jpg
emilio700 is offline   Reply With Quote
Old 12-14-2012, 02:31 PM   #94
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by Joe Perez View Post
Place transmission in 5th gear and apply parking brake?

This is how I've torqued down OEM pulleys in the past. There's some slack in the drivetrain to take up, but it's doable.
I have never had that actually work to tighten or loosen the crank bolt to the correct torque spec. It always seems to give out well before 100ft/lbs.
shuiend is offline   Reply With Quote
Old 12-14-2012, 02:45 PM   #95
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Quote:
Originally Posted by shuiend View Post
I have never had that actually work to tighten or loosen the crank bolt to the correct torque spec. It always seems to give out well before 100ft/lbs.
Your e-brake is le suck. Before I had an impact manly enough to remove front crank bolts, I would always remove them that way before pulling the engine out of the car.
Savington is offline   Reply With Quote
Old 12-14-2012, 04:12 PM   #96
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

So seriously... no one uses the "rope trick" anymore when doing this? Was I raised by wolves or something?
EO2K is offline   Reply With Quote
Old 12-14-2012, 04:18 PM   #97
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by Savington View Post
Your e-brake is le suck. Before I had an impact manly enough to remove front crank bolts, I would always remove them that way before pulling the engine out of the car.
Do you generally have the rear wheels down on the ground? I have tried it on multiple different miatas, but the rear wheels have always been in the air. So that might possibly have something to do with it. Also my e-brake could just be the suxor. I have my FM tool now and have never had a problem since then.
shuiend is offline   Reply With Quote
Old 12-14-2012, 04:45 PM   #98
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

...and page 5 features a bunch of women posting who can't press their own body weight.
hustler is offline   Reply With Quote
Old 12-14-2012, 04:46 PM   #99
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by hustler View Post
...and page 5 features a bunch of women posting who can't press their own body weight.
Bro, I don't even lift.
shuiend is offline   Reply With Quote
Old 01-20-2013, 12:07 PM   #100
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Has anyone ever taken one of these off? Do you use the 3 holes in the center (only half threaded) or does the puller grab the outside of the pully?
hustler is offline   Reply With Quote
