Old 08-04-2011, 02:55 AM   #41
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

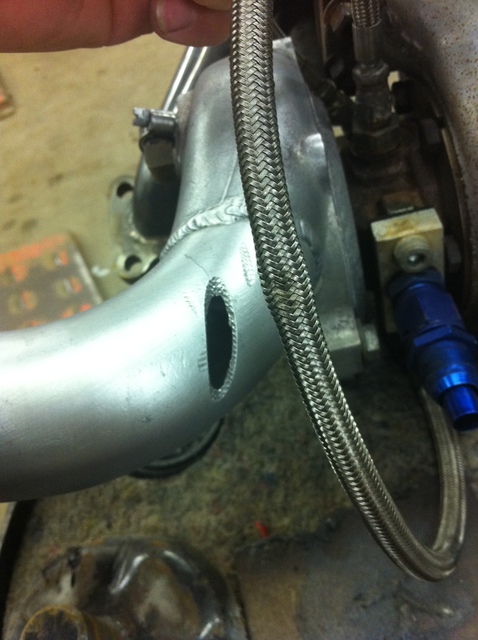

Coolant line was rubbing the bottom of the compressor housing. This quickly explains the lack of ability to build boost quickly.

Attached Thumbnails
So I feel like I'm spooling slow - GT2860RS-img2089h.jpg

Last edited by miatauser123; 08-04-2011 at 11:30 AM.
miatauser123 is offline   Reply With Quote
Old 08-04-2011, 01:10 PM   #42
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Holy ****... I think you found your problem.
Zaphod is offline   Reply With Quote
Old 08-04-2011, 01:13 PM   #43
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

SS is awesome. In Mother Russia, hoses cut you!
Braineack is offline   Reply With Quote
Old 08-04-2011, 01:47 PM   #44
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

I ran low 13's with this hole a week back, and high 12's before I broke my trans 3 weeks ago.. **** my life I'm excited to plug it.
miatauser123 is offline   Reply With Quote
Old 08-04-2011, 01:52 PM   #45
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

small boost leak.
Bond is offline   Reply With Quote
Old 08-04-2011, 02:00 PM   #46
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

easy fix!
shlammed is offline   Reply With Quote
Old 08-04-2011, 02:30 PM   #47
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Easy fix indeed. ...A little RTV and a quick street tune right?
miatauser123 is offline   Reply With Quote
Old 08-04-2011, 02:35 PM   #48
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Self-Fusing Silicone Tape
Braineack is offline   Reply With Quote
Old 08-04-2011, 03:27 PM   #49
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

Quote:
Originally Posted by Faeflora View Post

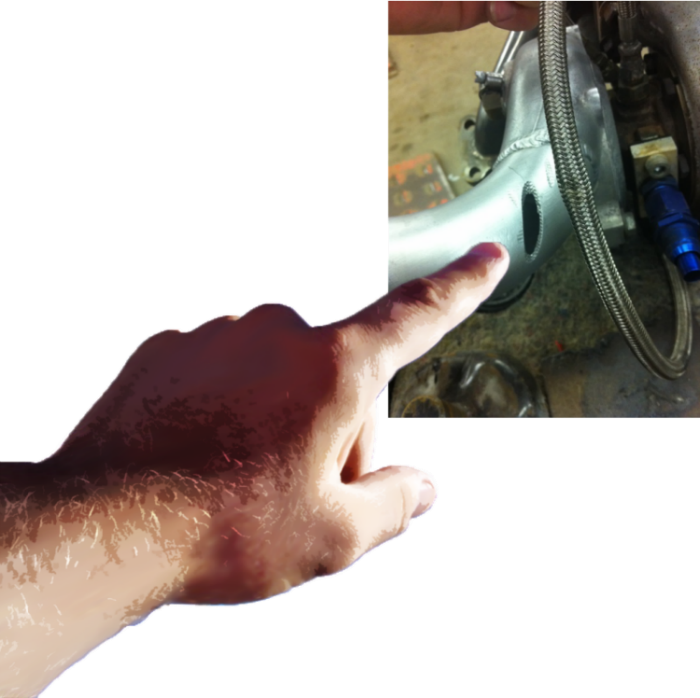

TAKE A PICTURE WITH YOUR FAT FINGER POINTING TO WHERE THE LEAK IS COMING FROM
Name:  boostleak.png
Views: 19
Size:  545.8 KB
ScottFW is offline   Reply With Quote
Old 08-04-2011, 03:33 PM   #50
Junior Member
iTrader: (1)

Join Date: Oct 2009
Posts: 208
Total Cats: 0
Default

big league bubble gum or gtfo
v01canic is offline   Reply With Quote
Old 08-04-2011, 03:46 PM   #51
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Just cut out a little piece of pvc and JBWELD it on.

Good ******* lord i didn't know holes came that big
Faeflora is offline   Reply With Quote
Old 08-04-2011, 04:08 PM   #52
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

how about you fix it properly by welding it shut and then place the coolant line to not do that again.
shlammed is offline   Reply With Quote
Old 08-04-2011, 04:09 PM   #53
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

How about you just remove the coolant lines and run only oil cooled?
Faeflora is offline   Reply With Quote
Old 08-04-2011, 04:12 PM   #54
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

or take a length of fuel hose, lets say 4".

slit it down the middle.

wrap it around said location.

zip tie it in place.

?????.
Braineack is offline   Reply With Quote
Old 08-04-2011, 04:25 PM   #55
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Braineack View Post
or take a length of fuel hose, lets say 4".

slit it down the middle.

wrap it around said location.

zip tie it in place.

?????.
Or just coat the water line in vaseline. Voila nice and slippery no friction FTW
Faeflora is offline   Reply With Quote
Old 08-04-2011, 04:30 PM   #56
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

Quote:
Originally Posted by Dem768 View Post
Coolant line was rubbing the bottom of the compressor housing. This quickly explains the lack of ability to build boost quickly.

[picture of big-*** boost leak]
Quote:
Originally Posted by Savington View Post
You have a big-*** boost leak


Replace/weld up the pipe, get that coolant line fastened to something, and enjoy.

Here's the bad news: In order to make boost with that large of a leak, you've probably been running the turbo way past its max RPM. The turbo may start passing a little oil, and it may have a little more shaft play than normal. Keep an eye out for these things.
Savington is offline   Reply With Quote
Old 08-04-2011, 04:37 PM   #57
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Awesome suggestions.... but... I'll be cutting a piece of flat aluminum, hammering it to shape using body blocks, and welding it back on. Grinding it back to shape and reinstalling
miatauser123 is offline   Reply With Quote
Old 08-04-2011, 06:47 PM   #58
Junior Member
iTrader: (1)

Join Date: Oct 2009
Posts: 208
Total Cats: 0
Default

Quote:
Originally Posted by Faeflora View Post
Just cut out a little piece of pvc and JBWELD it on.

Good ******* lord i didn't know holes came that big
thats what she said and everyone knows hondabond > jbweld
v01canic is offline   Reply With Quote
Old 08-04-2011, 08:02 PM   #59
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Dem768 View Post
Awesome suggestions.... but... I'll be cutting a piece of flat aluminum, hammering it to shape using body blocks, and welding it back on. Grinding it back to shape and reinstalling
Stupid. Best Fix would be to Just put the hole in the nice groove and jbweld it in place. That's where it wants to go so let it go there.
Faeflora is offline   Reply With Quote
Old 08-05-2011, 02:16 PM   #60
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Welded. Turbo going on tomorrow morning.
miatauser123 is offline   Reply With Quote
