The custom fabrication thread! (Post pics of stuff you have made)


Old 08-04-2018, 02:49 PM
  #1181
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit (the part with no rules or laws)
Posts: 4,847
Total Cats: 393
Default

I think the tool marks on anodized surfaces still look good. Even dye ano black which usually hides a lot. Tool marks on HC look good too.



Eh this is a bad example. The camera can't handle the fine details.
Erat is offline
Old 08-04-2018, 10:57 PM
  #1182
Junior Member

Join Date: Dec 2016
Posts: 74
Total Cats: 5
Default

One thing I've learned from Emachineshop is the finishing processes are ridiculously priced. The finish is baked into the total cost, so you don't actually know how much it costs. I've found it to be 30-50% of the total cost for anodizing or powdercoating.
I had them waterjet and cnc bend my seat mounts and it was $180 for one seat (two brackets) unfinished OR about $350 with black powdercoat. No thanks, I can drop those off locally for easily <$40. $180 is quite reasonable for custom mounts, when off the shelf stuff is easily $100.
engineered2win is offline
Old 08-05-2018, 08:11 AM
  #1183
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit (the part with no rules or laws)
Posts: 4,847
Total Cats: 393
Default

Anodizing is a huge process. So it makes sense for it to be expensive for one part. Especially If it requires custom racking .

For example our process tank time is about $600 an hour. Parts generally run for 45 - 60 minutes. Pair this with a ton of other factors that easily drive the cost up and you have your answer.

We are a high volume automated facility though. I'm unsure what our smaller devisions with hand run lines would charge. (We're doing $5k+ loads at a time)
Erat is offline
Old 08-05-2018, 12:37 PM
  #1184
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 3,080
Total Cats: 897
Default

Had to build an alternate set of downpipes and exhaust for Hyper to pass Laguna Seca's sound limits. 100% stainless nose to tail, great opportunity for a lot of practice on the TIG. Mostly made up of 304 welded with 308L, muffler is 400 series and welded with 309L filler, ran a backpurge on everything. There were just a few details that threw me some curve ***** - a couple spots welding hanger rod to the muffler case that just refused to weld right, had to experiment a ton with cleaning, filler, tungsten tip shape, etc. to struggle through there, but overall really pleased with how it all turned out. Going to experiment with some titanium soon (they say Ti is like SS but everything has to be perfect, particularly shielding gas and purge).





__________________
Ryan Passey
ThePass is offline
Old 09-17-2018, 10:59 PM
  #1185
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago. (The non-murder part.)
Posts: 28,751
Total Cats: 2,750
Default

Few things are as exciting as holding a big piece of raw metal stock just waiting to be machined.

Joe Perez is offline
Old 09-18-2018, 11:38 AM
  #1186
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,311
Total Cats: 30
Default

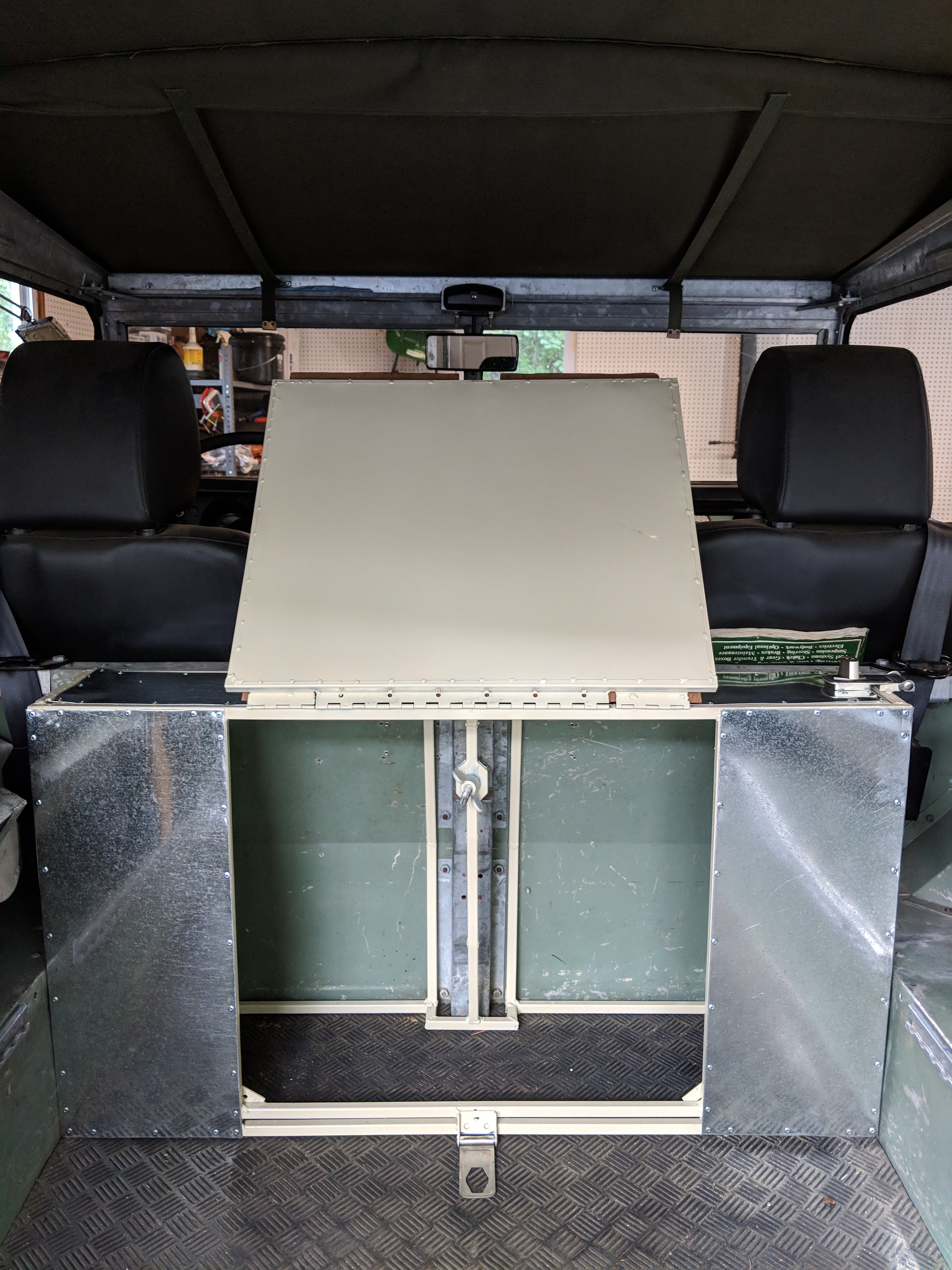

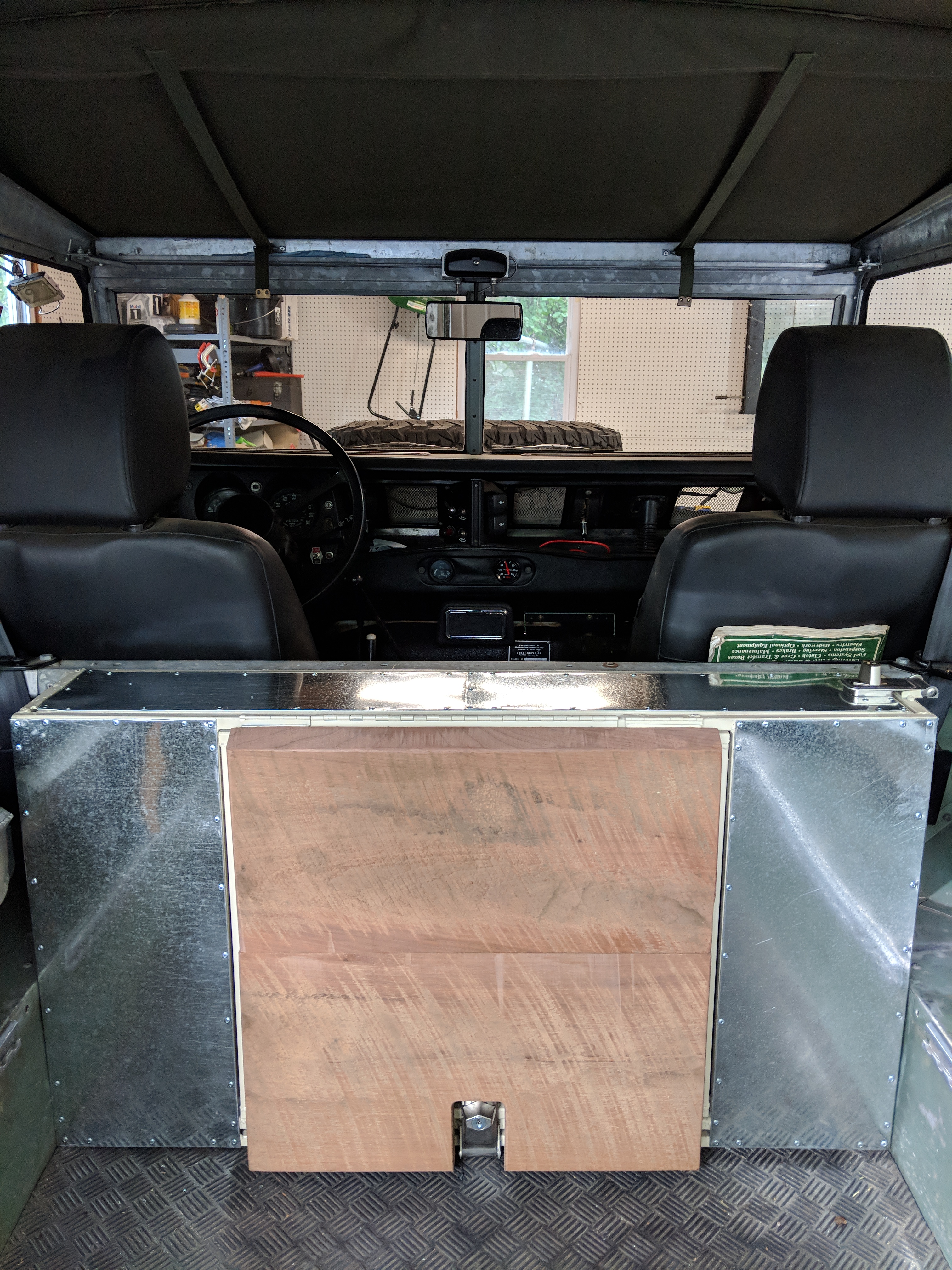

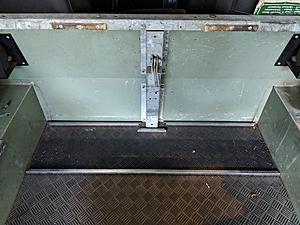

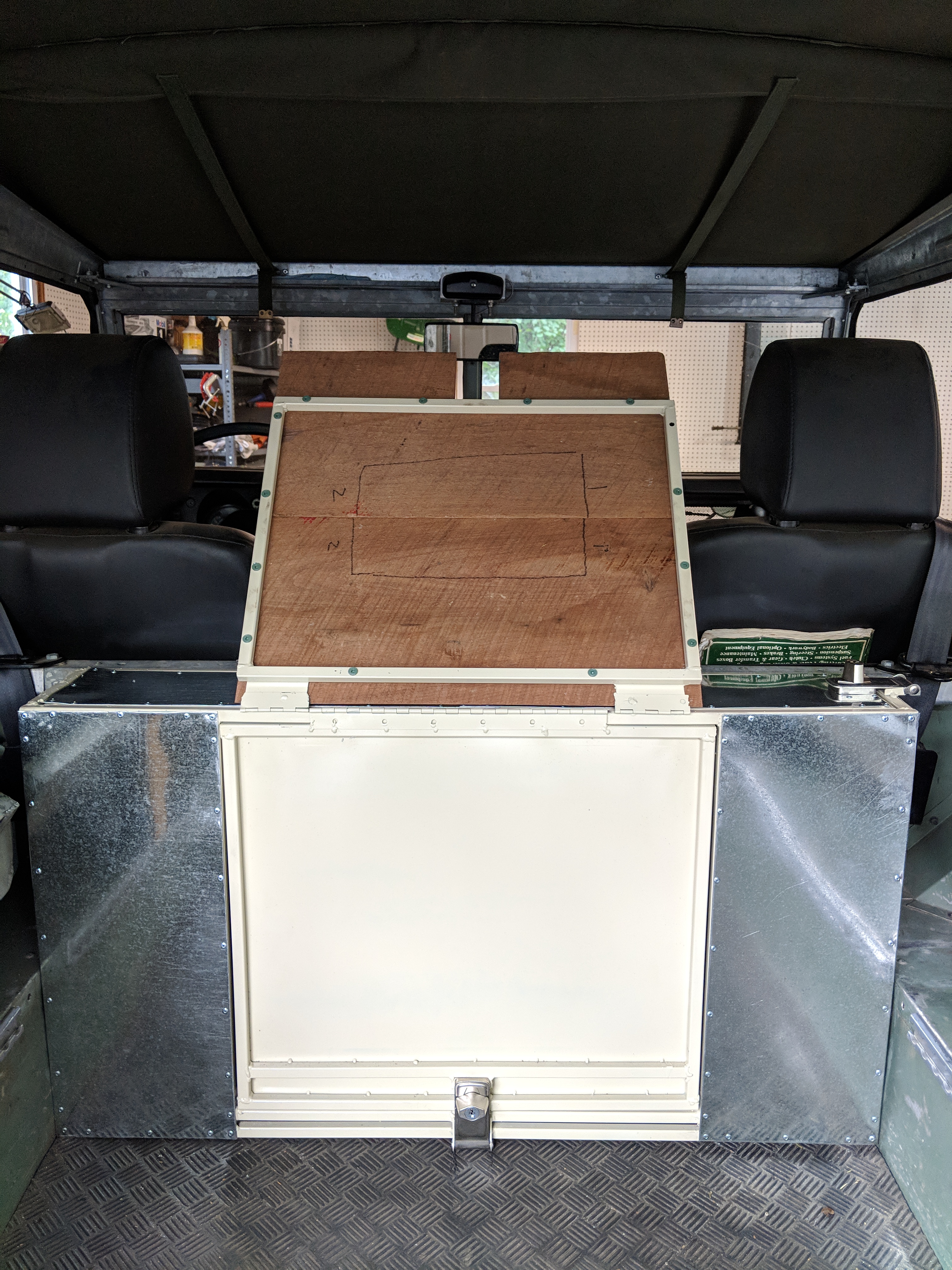

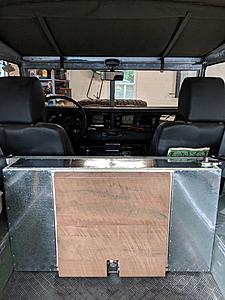

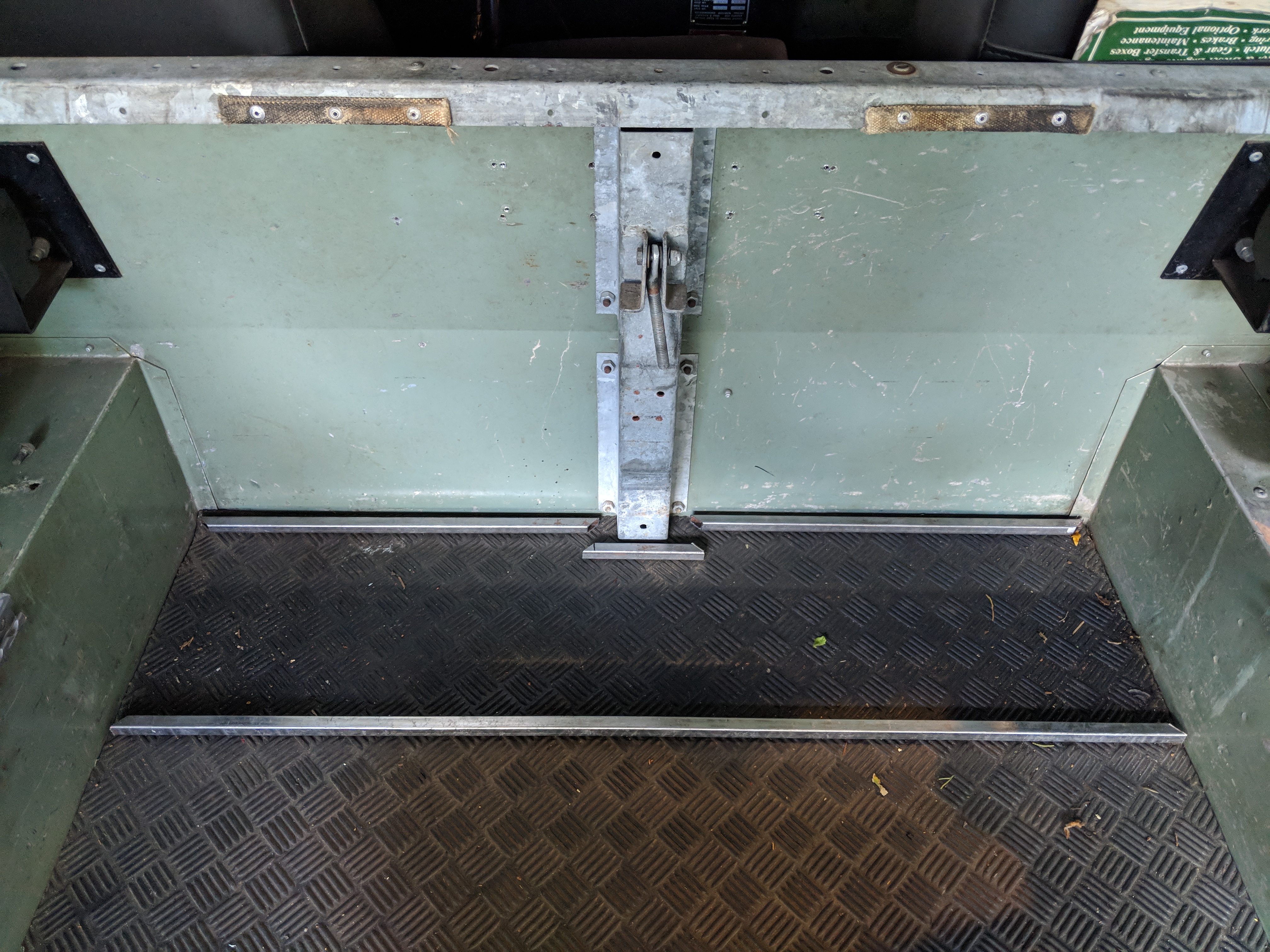

I made dis! Land Rovers wooden box that someone made for the back looked really neat, but design wise it had less than 3" of space in the middle... new one has about triple that depth wise and is stout.

Square steel tubing, galvanized trim panel (matches galvanized all over truck), mahogany wood table top that is on its own hinge to keep the front/back locked door separate and a top door for access if back bed is fully loaded.
Attached Thumbnails The custom fabrication thread! (Post pics of stuff you have made)-img_20180828_135603.jpg   The custom fabrication thread! (Post pics of stuff you have made)-img_20180908_142522.jpg   The custom fabrication thread! (Post pics of stuff you have made)-img_20180908_142541.jpg   The custom fabrication thread! (Post pics of stuff you have made)-img_20180908_142553.jpg
Splitime is offline
Old 10-06-2018, 12:10 PM
  #1187
Junior Member

Join Date: Aug 2015
Posts: 58
Total Cats: 9
Default

So I am building a manifold right now and expect to mount the turbine inlet right over cylinder two. How would the brain trust build this manifold given the option?

1.



2.

Oh4One4 is offline
Old 10-06-2018, 01:03 PM
  #1188
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,513
Total Cats: 1,057
Default

I would weld it.








really tho I'm not sure what you're asking? cut a hole in it and weld the flange on, or add a short piece of pipe if you want it to stick out. Flange right on the els is usually best. The even sell them with the backside radiused for this.
hi_im_sean is offline
Old 10-06-2018, 01:12 PM
  #1189
Junior Member

Join Date: Aug 2015
Posts: 58
Total Cats: 9
Default

Yes the t2 flange i have is radiused to the pipe. The question was weather it would be a better idea, flow wise, to use two tees or three 90's, and if the effort would be worth it.
Oh4One4 is offline
Old 10-06-2018, 02:03 PM
  #1190
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,513
Total Cats: 1,057
Default

I would do the 2 tees for simplicity alone. I cant see there even being a noticeable difference.
hi_im_sean is offline
Old 10-06-2018, 03:34 PM
  #1191
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 14,336
Total Cats: 1,313
Default

Use the 2 tees in the middle.
shuiend is offline
Old 10-06-2018, 07:12 PM
  #1192
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,344
Total Cats: 86
Default

Use the 2 tees. There wont be a difference.
Leafy is offline
Old 10-06-2018, 07:27 PM
  #1193
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit (the part with no rules or laws)
Posts: 4,847
Total Cats: 393
Default

I did a mixture of both. lol. Flow 45* and straights to make tees.
Turbo sat forward at #2 cylinder exhaust port.

Erat is offline
Old 10-06-2018, 11:25 PM
  #1194
Junior Member

Join Date: Aug 2015
Posts: 58
Total Cats: 9
Default

That'll work. Once its welded of course...


Last edited by Oh4One4; 10-06-2018 at 11:46 PM.
Oh4One4 is offline
Old 12-19-2018, 02:20 PM
  #1195
Junior Member
iTrader: (1)

Join Date: Jan 2011
Posts: 393
Total Cats: 3
Default Made a seat mount bracket




I bought an off the shelf seat mount from Planted for $140 in the expectation that it would be a bolt in affair, with all of the engineering already done .

It was not. The planted bottom mount is off center in the car by about 2.5" and sits about as high as stock.

Time to go to Home Depot racing supply .Bought some 1.125" by 3/16 steel .Bent the rails to match my kirkey and mount the seat as far back and low as possible without removing the rear mounts .

Used my $300 Amazon welder, a cheap replacement for my Everlast that failed out of warranty and they said they didn't have replacement parts or schematics for repair. Don't buy an Everlast!

No completed pictures yet as I'm waiting on bolts for the bottom of the seat .

Last edited by 3rdCarMX5; 12-19-2018 at 11:07 PM.
3rdCarMX5 is offline
Old 12-19-2018, 02:30 PM
  #1196
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 6,076
Total Cats: 814
Default




Finish on the **** is so crappy because it's Delrin, and you just can't sand it smooth.
rleete is offline
Old 12-28-2018, 12:30 PM
  #1197
Junior Member

Join Date: Mar 2011
Location: Eindhoven, The netherlands
Posts: 190
Total Cats: 18
Default

Hello there.. its been a long time since i drove my turbo mx5. I was running a TD04L 13t and ive been busy building a Twinscroll setup

So i present you.. the EFR 6758 Twinscroll header designed by me and build by someone else



Vincentmiata is offline
Old 12-28-2018, 02:11 PM
  #1198
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 3,095
Total Cats: 367
Default

What welder was ok with leaving those giant voids in a manifold?
ryansmoneypit is offline
Old 12-28-2018, 02:56 PM
  #1199
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago. (The non-murder part.)
Posts: 28,751
Total Cats: 2,750
Default

Originally Posted by ryansmoneypit View Post
What welder was ok with leaving those giant voids in a manifold?


Joe Perez is offline
Old 12-28-2018, 04:31 PM
  #1200
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 14,336
Total Cats: 1,313
Default

Originally Posted by ryansmoneypit View Post
What welder was ok with leaving those giant voids in a manifold?
Could you point out what ones you are seeing? I believe I can spot some, but it could also be lighting in the pictures in some of the spots. Looking at the pics on my phone so using a potato screen.
shuiend is offline
