Default '03 CAS???? Where TF is this supposed to go?

Urgggh, where is this supposed to go? I have no clue. This is for my 2003.
Faeflora is offline   Reply With Quote
Old 03-26-2010, 04:05 PM   #2
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

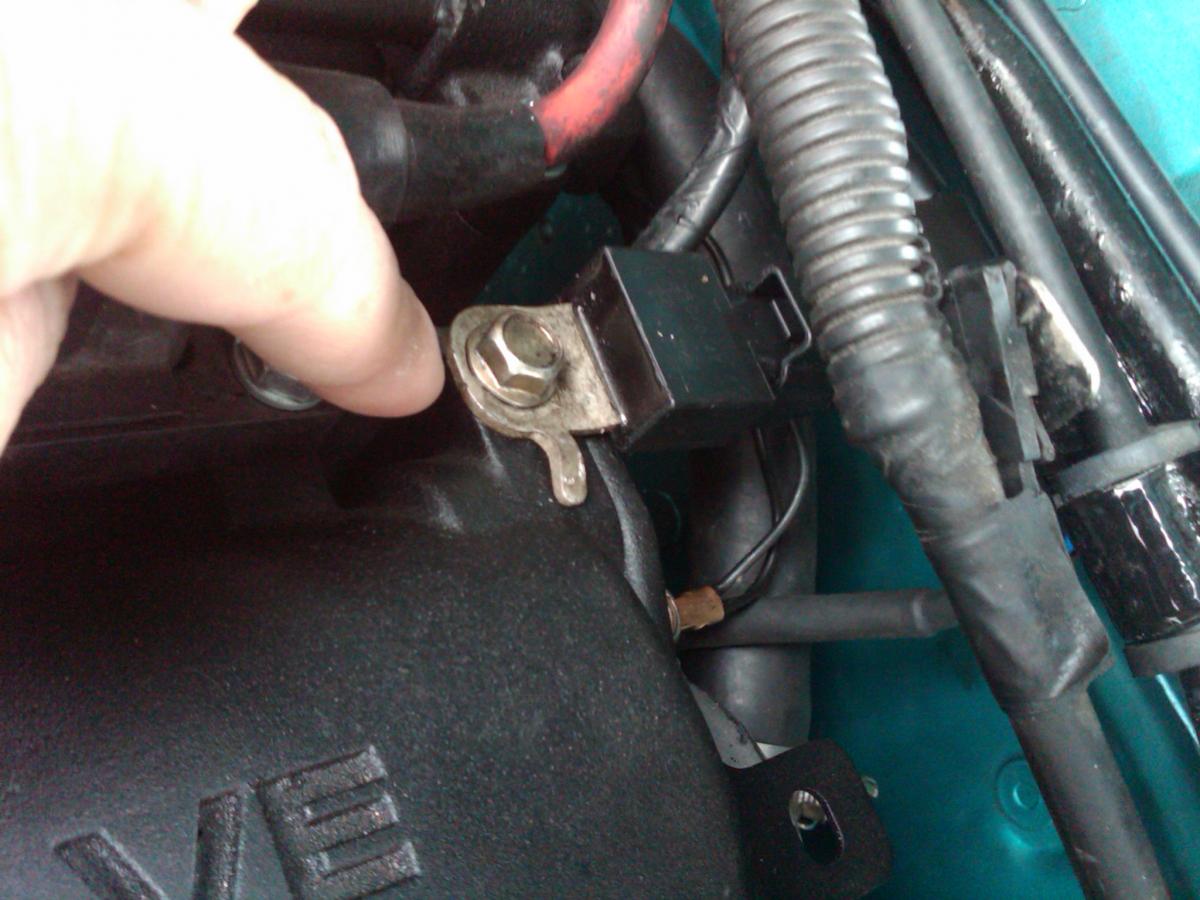

Here's a pic. Oh please help me.

Attached Thumbnails
'03 CAS???? Where TF is this supposed to go?-img00047-20100326-1500.jpg
Faeflora is offline   Reply With Quote
Old 03-26-2010, 04:05 PM   #3
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

That ******* thing i'm pointing at. IT's the CAS right?
Faeflora is offline   Reply With Quote
Old 03-26-2010, 04:18 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,193
Total Cats: 2,583
Default

99+ cars don't use a CAS
18psi is offline   Reply With Quote
Old 03-26-2010, 04:39 PM   #5
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,329
Default

I don't even know wtf that is. My 2002 motor had one, I removed it. It's definitely not the CAS. The CAS sits at the back of the intake cam on the 01+.
Savington is online now   Reply With Quote
Old 03-26-2010, 04:59 PM   #6
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

I think that is a condenser. It function I believe is to keep electrical noise from messing with radio reception. It is not really needed but beware it does have 12 v going to it.

Bob
bbundy is offline   Reply With Quote
Old 03-26-2010, 05:26 PM   #7
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,924
Default

Yep, it's the ignition condenser. (Old-school name for capacitor.) Smooths out the spikes on the +12 feed when the coil primaries turn on and off.



Your engine has two position sensors. One is on the front of the valve cover on the intake cam side, the other is down by the crank pulley, on the right side as viewed from the front.
Joe Perez is offline   Reply With Quote
Old 03-27-2010, 11:46 AM   #8
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Thank you guys. My capacitor appreciates it too.
