1.8 swap a lil twist
So I just swapped in my NB 1.8 and am using the crank and cam sensors that came on it (replaced cam position sensor) and am getting no spark while cranking and a nice red box "NOT RPM SYNCED" in tuner studio. Here's the twist, I got spark using the test mode, but none while cranking?? It's a 1990 chassis and a 1999 engine and a brain built MS3x. Anyone run into this?
Reply
0
0
Thread Starter
Junior Member
iTrader: (1)
Joined: Nov 2017
Posts: 87
Total Cats: -1
From: Kansas City, Mo
EDIT: zero crank reading, wack cam reading
Last edited by btill115; Feb 21, 2018 at 11:27 AM.
Reply
0
0
Thread Starter
Junior Member
iTrader: (1)
Joined: Nov 2017
Posts: 87
Total Cats: -1
From: Kansas City, Mo
Tested my voltage today, 5v on signal and 12v on constant power. Although, that was with a jumper pack (11.98-99v) but before connecting it was 11.6v. Would a dead battery with a jumper pack be bad?
Reply
0
0
Thread Starter
Junior Member
iTrader: (1)
Joined: Nov 2017
Posts: 87
Total Cats: -1
From: Kansas City, Mo
Been trying to communicate with Brain for several days now, he's the one who built my MS3. Haven't got any response and have been stuck without my DD. I will read a thread I saw yesterday by him about turning the pots to see if that works.
Reply
0
0
Senior Member
Joined: Apr 2011
Posts: 913
Total Cats: 217
From: Hollywood, FL
Cool, you are definitely getting somewhere.

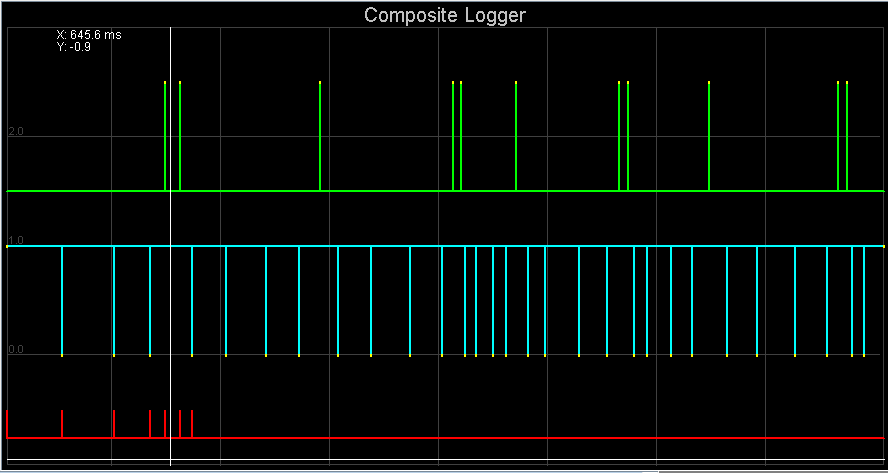

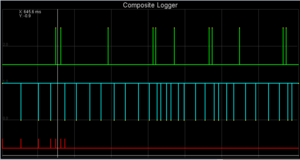

The red lines at the bottom are sync errors. You are getting signals that the ecu is not anticipating. I am not sure if after "x" amounts of errors if it quits trying to do the sync and you have to cycle the key again.
