Default 1996 wideband install question.

Hey everyone. In the process of installing a lc-2 wideband. Here is my question, I was under the impression that the stock o2 sensor has one wire at the plug that you cut and splice in the feed from your wideband gauge. My stock harness has 4 wires at the o2 sensor plug. What wire do I splice into?
Attached Thumbnails

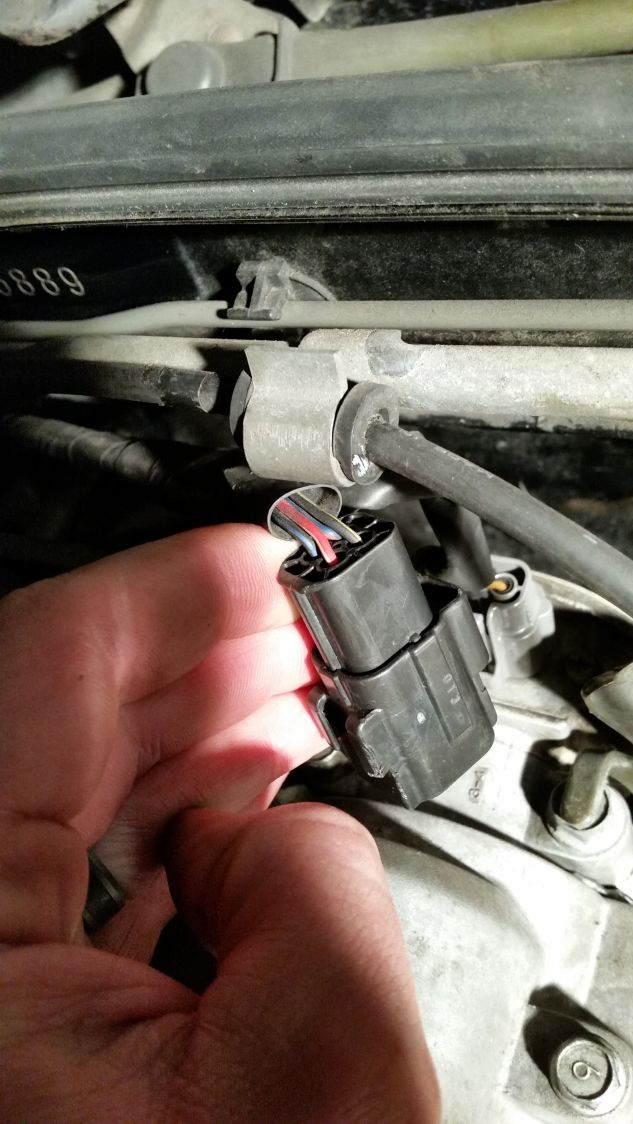

1996 wideband install question.-20160127_211221.jpg
NicDrilling is offline   Reply With Quote
Old 01-28-2016, 01:19 AM   #2
Newb
Thread Starter

Join Date: Oct 2015
Location: Port Orchard Washington
Posts: 38
Total Cats: 2
Default

Attached Thumbnails

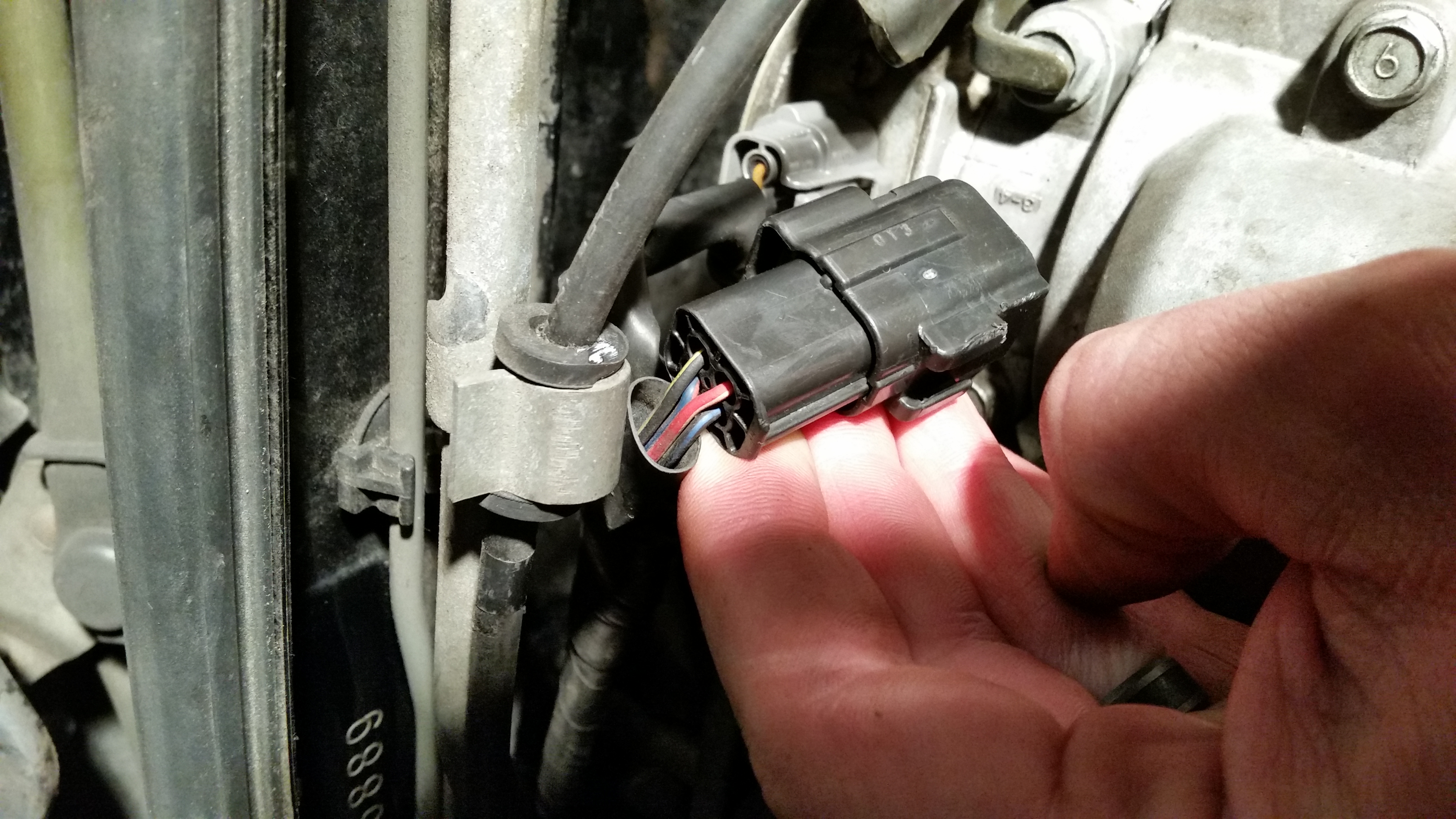

1996 wideband install question.-80-20160127_211221_5f4fab983b3e7f810dd33350f0fb1ef994fb960b.jpg
NicDrilling is offline   Reply With Quote
Old 01-28-2016, 06:22 AM   #3
Junior Member

Join Date: May 2007
Location: Atlanta
Posts: 384
Total Cats: 39
Default

The LC2 is already in the cab, why not splice it at the ECU?

https://www.miataturbo.net/attachmen...ne_harness.jpg
gooflophaze is offline   Reply With Quote
Old 01-28-2016, 09:52 AM   #4
Newb

Join Date: Aug 2015
Location: Detroit
Posts: 29
Total Cats: -11
Default

I am interested to know also.
RUSS_1995 is offline   Reply With Quote
Old 01-28-2016, 11:11 AM   #5
Newb
Thread Starter

Join Date: Oct 2015
Location: Port Orchard Washington
Posts: 38
Total Cats: 2
Default

Oh that's a better idea goo. Thank you.
NicDrilling is offline   Reply With Quote
Old 01-28-2016, 03:57 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

yeah red/green wire -- connect your yellow output wire to it (if feeding a stock ECU).

where are you installing the lc2?
Braineack is offline   Reply With Quote
Old 01-28-2016, 04:31 PM   #7
Newb
Thread Starter

Join Date: Oct 2015
Location: Port Orchard Washington
Posts: 38
Total Cats: 2
Default

Thanks brain. It will be wired into the stock ecu for about 24 hours before I install my mspnp2. Per the advice on this forum, I am installing one item at a time. I am mounting the lc2 in the right eyeball vent in the center console.
NicDrilling is offline   Reply With Quote
Old 01-28-2016, 04:37 PM   #8
Junior Member

Join Date: Jul 2015
Location: Bremerton, WA
Posts: 429
Total Cats: 30
Default

I wouldn't bother wiring it to the stock ECU if you plan on installing a 'squirt soon.

I wired mine straight up through the shifter hole and through the dash to the ECU. Innovate included wiring instructions that were easy to match up to the Megasquirt pigtail.
Itty is offline   Reply With Quote
Old 01-28-2016, 09:28 PM   #9
Newb
Thread Starter

Join Date: Oct 2015
Location: Port Orchard Washington
Posts: 38
Total Cats: 2
Default

I am going to wire it into my cars harness just before the plugs for the ecu. I will only run it for a short time to make sure everything is working. then I will switch over to the wideband signal wire and plug in my Megasquirt.
NicDrilling is offline   Reply With Quote
Old 01-31-2016, 01:06 PM   #10
Newb
Thread Starter

Join Date: Oct 2015
Location: Port Orchard Washington
Posts: 38
Total Cats: 2
Default

Got the wideband installed. Had to track down the correct wire by using pinout diagram. My wire is blue with a red stripe. The car started up immediately ran smooth and dialed into the 14.7 afr within 20 seconds. Now time for the mspnp2! Excited to start learning tuner studio.
NicDrilling is offline   Reply With Quote
