Old 01-22-2014, 02:55 PM   #61
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

Boost is not linear. There is not a proportional gain in HP related to boost pressure. It is entirely feasible that an engine making 200whp at 10psi will only make 250 at 20psi. Turbine curves play a large part in this.

There are many more factors at hand than "turn up the boost, turn up the hp!"
dieselmiata is offline   Reply With Quote
Old 01-22-2014, 02:57 PM   #62
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

Right, but there is this arbitrary limit set in mt.net legend that limits Miata rods to 250whp or ft-lbs depending on who you ask and I've never seen concrete evidence that says that is the absolute failure point of this motor.

I don't think 350 is out of the question on this car, I'd absolutely say between 3-350 with the current setup and I'll stand behind that guess

In response to the non-linear boost curve, I definitely don't think the turbo is running out of steam. It's a little oversized for this motor and I think its within its efficiency range.
theshdwconspracy is offline   Reply With Quote
Old 01-22-2014, 02:58 PM   #63
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

What turbo is this again?
Leafy is offline   Reply With Quote
Old 01-22-2014, 03:00 PM   #64
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,633
Total Cats: 1,559
Default

Quote:
Originally Posted by theshdwconspracy View Post
How do you guys manage to be so retarded on a regular basis? I'm seriously wondering how a group of indivuduals can be such **** ups.
Well, a lot of it has to do with our history.
sixshooter is offline   Reply With Quote
Old 01-22-2014, 03:06 PM   #65
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

Same as brain.

T04E 50 trim .64 a/r exhaust
theshdwconspracy is offline   Reply With Quote
Old 01-22-2014, 03:10 PM   #66
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Well, its theoretically possible to hit 350 on that turbo.
Leafy is offline   Reply With Quote
Old 01-22-2014, 03:26 PM   #67
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

Quote:
Originally Posted by theshdwconspracy View Post
Right, but there is this arbitrary limit set in mt.net legend that limits Miata rods to 250whp or ft-lbs depending on who you ask and I've never seen concrete evidence that says that is the absolute failure point of this motor.

I don't think 350 is out of the question on this car, I'd absolutely say between 3-350 with the current setup and I'll stand behind that guess

In response to the non-linear boost curve, I definitely don't think the turbo is running out of steam. It's a little oversized for this motor and I think its within its efficiency range.
Well, maybe I should clarify. Extended time beyond 250whp leads to bent rods. If you turned up the boost yesterday, then sure maybe you are making 350whp, but I doubt it will last long (say for the next year for example).

Just to be clear, the suggestions on here (and on just about any other website) don't mean instant implosion at 251whp and perfect reliability at 249whp. We are talking about pushing parts beyond their reliable limit. Take that anyway you want, but babbling about how **** didn't explode based on your gestimate (or someone else's experience) is short sighted. This is the same for 5-speed reliability. They don't explode at 225 ft-lb torque, but failures become more regular at that point (especially depending on application). I know 1-2 guys who have had a 5-speed last more than year at that power, doesn't make it a good idea. Its generally called an "exception".

What I don't have is concrete evidence on expected life of stock rods. Its your responsibility to figure that out (either by reading, or by testing).
Seefo is offline   Reply With Quote
Old 01-22-2014, 03:30 PM   #68
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

Quote:
Originally Posted by theshdwconspracy View Post
Right, but there is this arbitrary limit set in mt.net legend that limits Miata rods to 250whp or ft-lbs depending on who you ask and I've never seen concrete evidence that says that is the absolute failure point of this motor.
IOW, you haven't looked hard enough. I've seen multiple sets of bent rods posted on this site from 260-270whp cars with no detonation on the pistons. People make more, but not for very long.

e: Track said it better.
Savington is offline   Reply With Quote
Old 01-22-2014, 03:32 PM   #69
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Well said Track.

The bottom line is none of us are claiming any definite limits, but when you CLAIM to exceed what most of us normally call "the limit" by 100whp and are pulling that estimate straight from your prolapsed colon, you bet your *** we're gonna call you on it, and you better believe we're gonna get hard and tag team you when you start crying like a prison sister with your pathetic excuses and flawed logic.
18psi is offline   Reply With Quote
Old 01-22-2014, 04:22 PM   #70
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

[leafy]Rods don't bend from horsepower, they bend from torque[/leafy]

Go ahead and check every thread from members who blew up stock motors. Sure some of them had det that caused it, but there were plenty who just threw rods with no signs of det at all. Hell 99mx5 did it at like 12PSI with his EFR6258. It's not a law of the universe, nor is it a myth. It's just a (rather large) amount of significant data which shows that stock rods don't last north of ~250wtq.
thenuge26 is offline   Reply With Quote
Old 01-22-2014, 04:27 PM   #71
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,575
Total Cats: 151
Default

Just use virtual dyno and make a street pull to get a ballpark figure for where you stand. It is free software and you should be able to backup your claims tonight to some extent. The program has proven to be very reliable if used on a flat road in normal conditions.
Ryan_G is online now   Reply With Quote
Old 01-22-2014, 04:28 PM   #72
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by thenuge26 View Post
[leafy]Rods don't bend from horsepower or torque, they bend from peak cylinder pressure[/leafy]
fixed
Leafy is offline   Reply With Quote
Old 01-22-2014, 04:40 PM   #73
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Quote:
Originally Posted by theshdwconspracy View Post
Right, but there is this arbitrary limit set in mt.net legend that limits Miata rods to 250whp or ft-lbs depending on who you ask and I've never seen concrete evidence that says that is the absolute failure point of this motor.
ar·bi·trar·y
ˈärbiˌtrerē/
adjective
adjective: arbitrary

1.
based on random choice or personal whim, rather than any reason or system.
"his mealtimes were entirely arbitrary"
synonyms: capricious, whimsical, random, chance, unpredictable; More

Had to share that since you don't seem to know what the word actually means. Many members here with well-tuned cars have had their engines fail around that power level. A few have gone higher, but typically not for long. Sometimes, sure. But we like reliable, see. Repeatable. Freaks need not apply.


Quote:
In response to the non-linear boost curve, I definitely don't think the turbo is running out of steam. It's a little oversized for this motor and I think its within its efficiency range.
It's not just the turbo. What about the head? Did you end up doing massive headwork with oversized valves? No? 8k rpm? no?

I think you're full of it, sir. 18psi said it very well:

Quote:
The bottom line is none of us are claiming any definite limits, but when you CLAIM to exceed what most of us normally call "the limit" by 100whp and are pulling that estimate straight from your prolapsed colon, you bet your *** we're gonna call you on it, and you better believe we're gonna get hard and tag team you when you start crying like a prison sister with your pathetic excuses and flawed logic.
turbofan is offline   Reply With Quote
Old 01-22-2014, 05:33 PM   #74
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,633
Total Cats: 1,559
Default

BBBBBRRRRRR!!!! I'm a TRUCK!!!!! BBBBBBRRRRR!!!!

Attached Thumbnails
350WHP 1.6L build/help/suggestions-94rppbr.gif
sixshooter is offline   Reply With Quote
Old 01-22-2014, 05:39 PM   #75
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Mesmerizing.

I really need more to do at work.
turbofan is offline   Reply With Quote
Old 01-25-2014, 07:34 PM   #76
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,109
Total Cats: 127
Default

^^^ Thats the coolest thing in this thread until we see a dyno plot.
jacob300zx is offline   Reply With Quote
Old 12-22-2014, 11:49 AM   #77
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

I just spent 20 minutes writing an elaborate post explaining my life. It told me to sign in when I hit post and I lost the whole post.

I blew my motor up. It over heated (really bad). No water pump belt. whoops

I put a new used motor in.

I'm going to the dyno January 9th

I have problems with coolant leaking out the motor at the headgasket. IDK why

CAS needs a dedicated ground (found out the hard way)

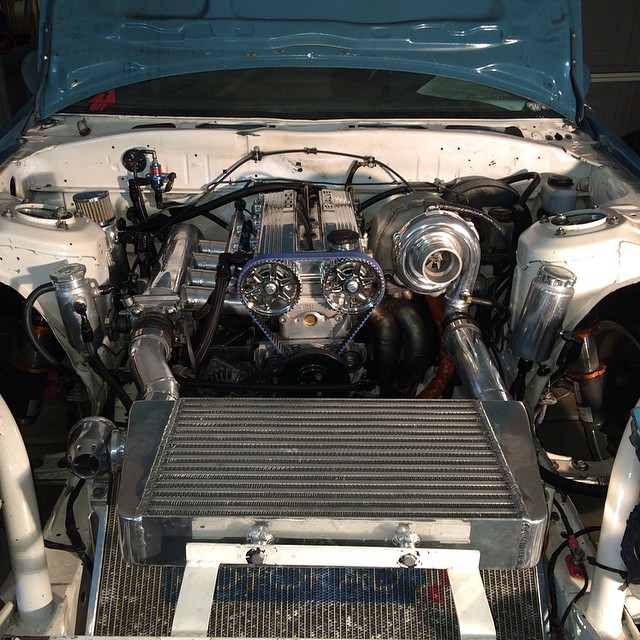

Here's my motor, it uses e-85. neat. Running 1.6bar.




Here's me putting the best oil ever in my motor.




Here's my car, because I know you like drift cars.

Attached Thumbnails
350WHP 1.6L build/help/suggestions-10808501_895174743826159_294464799_n.jpg
theshdwconspracy is offline   Reply With Quote
Old 06-02-2015, 09:44 PM   #78
Newb
iTrader: (2)

Join Date: Sep 2014
Location: Pittsburgh, pa
Posts: 32
Total Cats: -1
Default

where the heck is the dyno sheet!!????
Bmxicanjohn is offline   Reply With Quote
Old 06-02-2015, 10:57 PM   #79
Senior Member

Join Date: Jan 2013
Location: Gilbert, AZ
Posts: 782
Total Cats: 103
Default

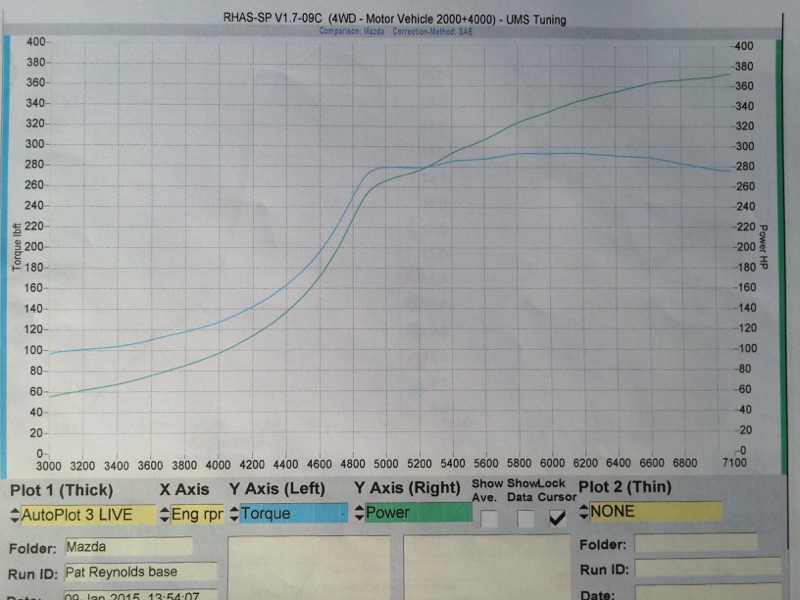

Name:  IMG_4350.jpg
Views: 77
Size:  118.3 KB

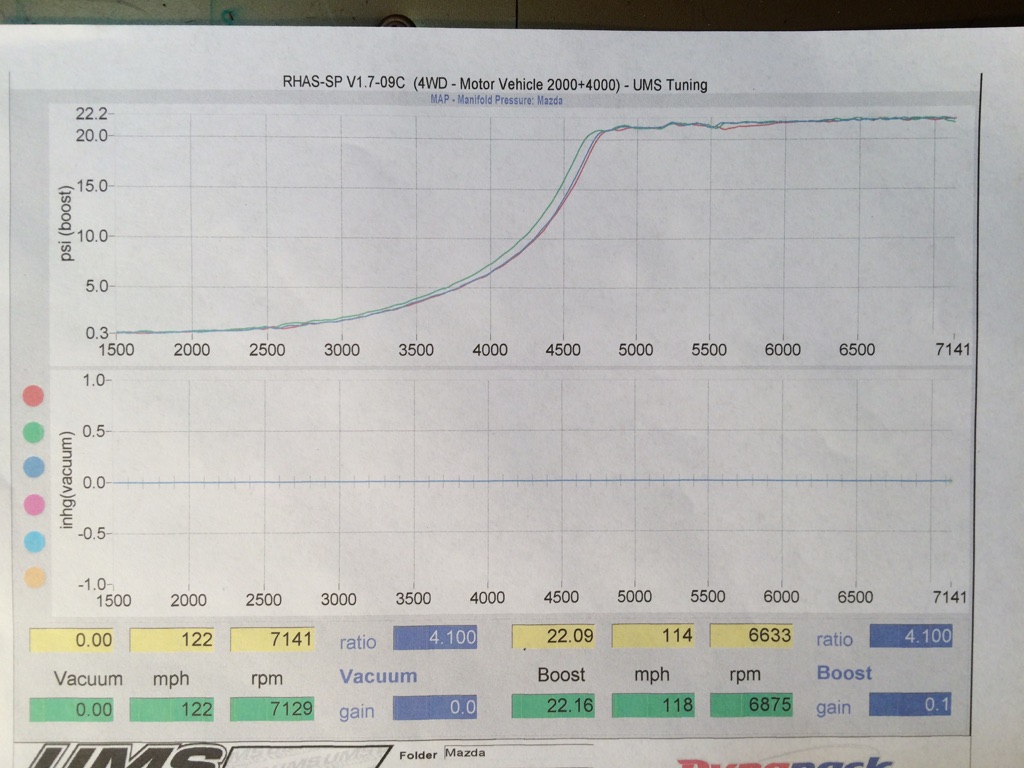

Name:  IMG_4353.jpg
Views: 76
Size:  167.2 KB
Arca_ex is offline   Reply With Quote
Old 06-02-2015, 11:38 PM   #80
Newb
iTrader: (2)

Join Date: Sep 2014
Location: Pittsburgh, pa
Posts: 32
Total Cats: -1
Default

Quote:
Originally Posted by Arca_ex View Post



That's the 1.6 stock motor? Holy ****
Attached Thumbnails
350WHP 1.6L build/help/suggestions-img_4350.jpg   350WHP 1.6L build/help/suggestions-img_4353.jpg
Bmxicanjohn is offline   Reply With Quote
