Old 09-29-2015, 03:52 PM   #41
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

I think the goodwin car made ~165whp without the header. Exhaust + dyno variation?
asmasm is offline   Reply With Quote
Old 09-29-2015, 04:15 PM   #42
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,324
Total Cats: 1,344
Default

Quote:
Originally Posted by yossi126 View Post
Looking good. Any explanation as to why your car outputs 10 hp less than Brians'?
Different dyno, Dyno Dynamics vs Dynojet.
Goodwins was STD correction I think, ours was SAE correction
Full header/exhaust vs 100% stock
91 vs E85

My original guess on whp for the ND long before it was released was 132whp. Based on 155bhp. I figured reduced drivetrain losses compared to the NA/NB. Tune seems to be worth about 15whp. E85 is usually 5%. So that guess puts us at.. 154whp, right where we ended up. I'm going to guess that Goodwin's dyno's are roughly 5% higher than what we see on a Dynojet SAE corrected.

With the header and exhaust, I'm expecting around 165whp. We have some stuff want to try on the intake which we hope will bring it to 170whp.
emilio700 is offline   Reply With Quote
Old 09-30-2015, 10:21 AM   #43
Elite Member

Join Date: Oct 2011
Location: OKC, OK
Posts: 2,659
Total Cats: 76
Default

Quote:
Originally Posted by yossi126 View Post
Didn't know an exhaust can make a 10 hp difference...
Good for you. You're obviously commenting on stuff you know nothing about.

z31maniac is offline   Reply With Quote
Old 09-30-2015, 01:01 PM   #44
Junior Member

Join Date: Sep 2013
Location: Israel
Posts: 418
Total Cats: -43
Default

Your comment adds nothing to the discussion. GTFO
yossi126 is offline   Reply With Quote
Old 09-30-2015, 01:06 PM   #45
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,855
Total Cats: 272
Default

Quote:
Originally Posted by yossi126 View Post
Your comment adds nothing to the discussion. GTFO
And yet you're doing the same?

Looking forward to what intake changes will be made on the ND
Girz0r is offline   Reply With Quote
Old 09-30-2015, 01:06 PM   #46
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,324
Total Cats: 1,344
Default

Jeebus, both of you guys
emilio700 is offline   Reply With Quote
Old 09-30-2015, 01:17 PM   #47
Junior Member

Join Date: May 2014
Location: ATX
Posts: 180
Total Cats: 14
Default

Quote:
Originally Posted by concealer404 View Post
Like my undies, depends.
Also adding nothing, but lulz

Can't wait to see the finished product. Dat orange. I'm wanting an ND something fierce and the plan was to run C-Street, but these easy gains via bolt-ons/tune looks noice.
cabowabo is offline   Reply With Quote
Old 09-30-2015, 03:11 PM   #48
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by emilio700 View Post
Thrashing to get it ready for MRLS. Guys elected to stay late tonight to put the diff and Xidas in. Exhaust tomorrow, finalize seat install and align Thursday then straight to MRLS.

Matt from Orange Virus Tuning found us some power. 154whp/148tq from a 100% bone stock engine with E85 and tune.


Sparco Evo 2 Had the seat covers embroidered with our logos.


Installing a factory LSD in our GT
Are the factory LSDs relatively easy to come by as service parts?
Joe Perez is offline   Reply With Quote
Old 09-30-2015, 03:15 PM   #49
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,324
Total Cats: 1,344
Default

Quote:
Originally Posted by Joe Perez View Post
Are the factory LSDs relatively easy to come by as service parts?
I would answer you but you quoted pics. So instead you get an eggplant, for which I do not yet know the significance. You are free to repost your question in a manner which does not upset my personal, and rather arbitrary sense of forum etiquette.

emilio700 is offline   Reply With Quote
Old 09-30-2015, 03:17 PM   #50
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

concealer404 is offline   Reply With Quote
Old 09-30-2015, 03:17 PM   #51
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by emilio700 View Post
Quote:
Originally Posted by Joe Perez View Post
Quote:
Originally Posted by emilio700 View Post
Thrashing to get it ready for MRLS. Guys elected to stay late tonight to put the diff and Xidas in. Exhaust tomorrow, finalize seat install and align Thursday then straight to MRLS.

Matt from Orange Virus Tuning found us some power. 154whp/148tq from a 100% bone stock engine with E85 and tune.


Sparco Evo 2 Had the seat covers embroidered with our logos.


Installing a factory LSD in our GT


Are the factory LSDs relatively easy to come by as service parts?
I would answer you but you quoted pics. So instead you get an eggplant, for which I do not yet know the significance. You are free to repost your question in a manner which does not upset my personal, and rather arbitrary sense of forum etiquette.


The eggplant is an old running gag we came up with years ago when one of the more retarded members of the forum (Pusha? Hyper? Can't recall) was being particularly retarded.
Joe Perez is offline   Reply With Quote
Old 09-30-2015, 03:21 PM   #52
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

No, the eggplant came about when i called the dude that was talking about "overfilling his cylinders" an eggplant.

https://www.miataturbo.net/engine-pe...urbo-bp-72064/



And Joe, you can buy the parts from the dealer. There's part numbers somewhere on here and Miata.net. Emilio might even be able to get them for you.
concealer404 is offline   Reply With Quote
Old 09-30-2015, 03:24 PM   #53
Junior Member

Join Date: May 2010
Posts: 75
Total Cats: -4
Default

Different question related to the limited slip. Since you have this out to swap in, what is the diameter of the ring and pinion on the ND and is there any potential to swap into earlier housings? Not that I want a 2.866 R&P (Bonneville, big power, and big *****), but there will be performance ratios available and potential interchangeability with earlier generations of Miata will be a question I haven't seen addressed previously.
M2Ken is offline   Reply With Quote
Old 09-30-2015, 03:28 PM   #54
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,324
Total Cats: 1,344
Default Aim candy

Sticking one of these in because it's sparkly.

Aim MXL2. Turns our Mazda loaned an ND to Aim for a while so they could write a config file for it. Some of the channels available from stock ECU (there are a lot more):

TPS - commanded
TPS - actual
Oil pressure
Coolant temp
RPM
Brake line pressure !
Steering angle !
Individual wheel speed
WBO2
All the usual engine CAN channels (inj DC, cam angle, knock, etc)

The ECU measures resistance across the plug electrodes to detect onset of knock before the knock sensor can pick it up. Car might also have oil temp sensors in trans and probably engine. Currently, they have the file for it to record with the Solo DL. By this weekend they'll have the code for the MXL2 so we can record everything at MRLS. Coolness.

Attached Thumbnails
949 Racing - SuperMiata project ND-80-foto_mxl2_290_f2bab692113c691f9635d9b24ee6ce9edc24d2e5.jpg
emilio700 is offline   Reply With Quote
Old 09-30-2015, 03:31 PM   #55
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

I'm kind of glad Joe quoted pictures -- got me to look at them again since I was on a iPhone the first time.

Looks like they integrated the muffler with the fuel tank. Haha. (Yes, I know it's just a muffler . . . but it looks funny).
hornetball is offline   Reply With Quote
Old 09-30-2015, 03:33 PM   #56
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by emilio700 View Post
The ECU measures resistance across the plug electrodes to detect onset of knock before the knock sensor can pick it up.
Seriously? That's wild.
hornetball is offline   Reply With Quote
Old 09-30-2015, 03:35 PM   #57
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,324
Total Cats: 1,344
Default

Quote:
Originally Posted by M2Ken View Post
Different question related to the limited slip. Since you have this out to swap in, what is the diameter of the ring and pinion on the ND and is there any potential to swap into earlier housings? Not that I want a 2.866 R&P (Bonneville, big power, and big *****), but there will be performance ratios available and potential interchangeability with earlier generations of Miata will be a question I haven't seen addressed previously.

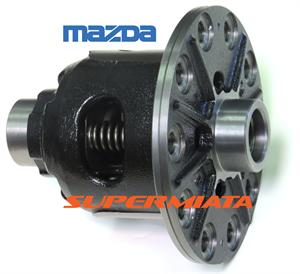

No shared with any other Miata. It's teeny, like NA6 sized but wider. Bummer that the auto R&P is so much lower. Ideal for most of us would be 3.5~3.7:1. 2.9:1 is OK but 6th is so tall it would still cruise serenely 600rpm higher. The 4.1 auto ratio would need a very high revving engine and start to not work in 1st, 2nd. It would be great on track but again, have a limited top end (~125mph).

Diff available separately for $658 but for just under twice that you can buy the entire housing with LSD installed. We chose the latter option, so we have a spare housing with open diff which will get the OS Giken when it arrives.
Attached Thumbnails
949 Racing - SuperMiata project ND-mazda_nd_lsd_ms1227200.jpg
emilio700 is offline   Reply With Quote
Old 09-30-2015, 03:39 PM   #58
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,324
Total Cats: 1,344
Default

Quote:
Originally Posted by hornetball View Post
Seriously? That's wild.
Yup. It's sorta like the piezo sensor in the plugs that Saab and BMW ran several years ago. These modern ECU's are so fast they can do real time calcs/corrections during the combustion event. The SAG already does a second small exhaust gas cooling squirt during every cycle.

It'll be cool too see these channels in the data. Moreover, we have access to all the tables now so we can get in and mess with stuff as it pops up in the data. frinstance, the ECU has different maps in different gears. More torque in 6th, a lot less top end, and much lower rev limit. I was told there are something like 3000 tables in the stock ECU. That is not a typo.
emilio700 is offline   Reply With Quote
Old 09-30-2015, 05:18 PM   #59
Junior Member
iTrader: (9)

Join Date: Dec 2011
Location: SFBay
Posts: 339
Total Cats: 39
Default

Quote:
Originally Posted by emilio700 View Post
Yup. It's sorta like the piezo sensor in the plugs that Saab and BMW ran several years ago. These modern ECU's are so fast they can do real time calcs/corrections during the combustion event.
The tl;dr is that this appeared in the market with trionic 5.2 in the saab 9000 in the early 90s, and saab made several million cars that based both knock and timing on plug resistance. t5/t7/t8 don't have knock sensors or cam position sensors.

The implementation requires no sensors, just copper resistor-type spark plugs.

Awesome to see other mfg's are finally doing this as well!
scenturion is offline   Reply With Quote
Old 09-30-2015, 11:12 PM   #60
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by emilio700 View Post
Yup. It's sorta like the piezo sensor in the plugs that Saab and BMW ran several years ago.
Is the knock detection method AKA "Ion Sensing"? I recall someone was trying that with one of the cheaper aftermarket ECUs. Was it Megasquirt?
y8s is offline   Reply With Quote
