Old 10-07-2015, 05:39 PM
  #101
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,796
Total Cats: 33
Default

Originally Posted by emilio700 View Post
After looking at PFC's compound chart now, I see we simply chose the wrong PFC. Probably fine in the back or with street tires but not in front with race tires. I think the 01 or 08 would have been better choices. I suspect the DP4 and stock rotor combo is just fine for the car. They're 11" rotors, car weighs #2200 without fuel/driver and has about 165whp. Not being a PFC dealer, we'll swap in XP12's and be fine I think.

http://www.pfcbrakes.com/Repository/...ptions_PRI.pdf

The 14's wouldn't be good match with the RC1 tire. heck if you have anything over 250hp i would step up the compound. You should have tried the 01. you wouldn't touch anything else after that.


car looks great BTW. love the seats!
__________________
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
[email protected]
Originally Posted by Mobius View Post
Hopefully so, but let's hope it's never necessary. Experiencing your safety gear in action is ... not optimal.
OGRacing is offline
Old 10-07-2015, 05:43 PM
  #102
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,994
Total Cats: 1,711
Default

Originally Posted by OGRacing View Post
The 14's wouldn't be good match with the RC1 tire. heck if you have anything over 250hp i would step up the compound. You should have tried the 01. you wouldn't touch anything else after that.


car looks great BTW. love the seats!
Thanks for the input. Not being a PFC dealer, I deferred to the vendors suggestion. Ryan initially recommended PFC01's I think. I asked if there was anything a step down. All he had in stock was the PFC14 so I chose it blindly. Ryan thought it would be OK. Turns out I should have stuck with the initial choice. In any case, the car has XP12's in front now and all is good.
__________________


www.facebook.com/SuperMiata

949RACING.COM Home of the 6UL wheel

.27 SNR

Last edited by emilio700; 10-07-2015 at 05:49 PM. Reason: speling
emilio700 is offline
Old 10-07-2015, 07:41 PM
  #103
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,994
Total Cats: 1,711
Default

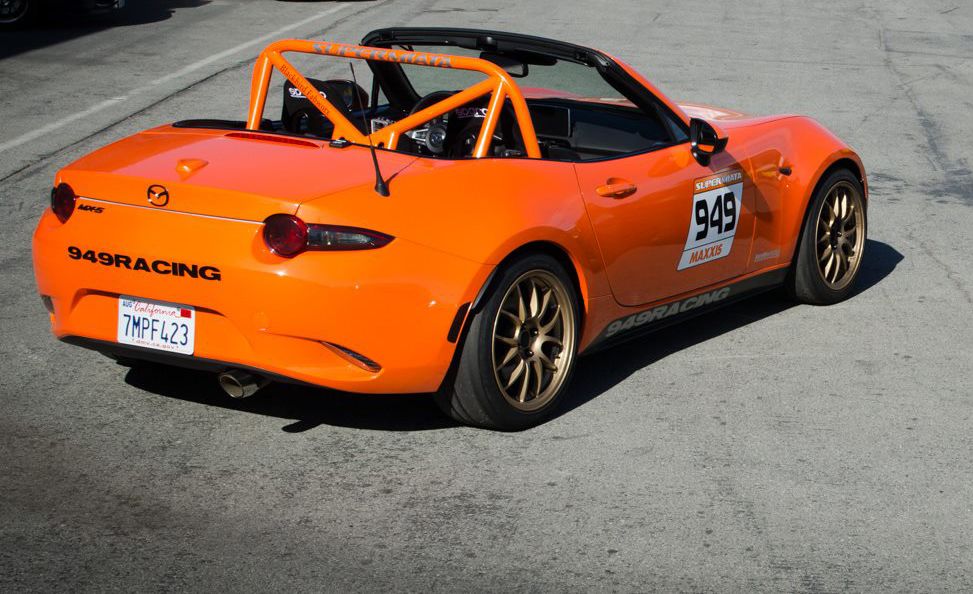

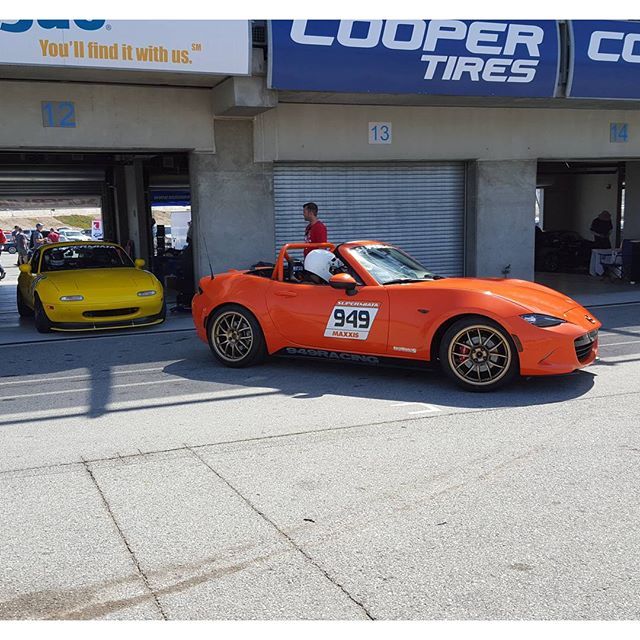

New favorite pastime is posting pics of the project ND.



Attached Thumbnails 949 Racing - SuperMiata project ND-80-nd_mrls2015_2_bf6fdb6cdf4d0759862515de76d6841c5b29b1aa.jpg   949 Racing - SuperMiata project ND-80-12071228_1475552769416753_283097852_n_c7252004310effdc31a661e65ab61aef88c75db0.jpg
__________________


www.facebook.com/SuperMiata

949RACING.COM Home of the 6UL wheel

.27 SNR
emilio700 is offline
Old 10-07-2015, 07:44 PM
  #104
Senior Member

Join Date: Oct 2011
Location: Northridge, CA
Posts: 792
Total Cats: 379
Default

I'm totally fine with your new favorite pastime activity.
Carry on.
Blackbird is offline
Old 10-07-2015, 08:09 PM
  #105
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: *** BANNED ***
Posts: 9,604
Total Cats: 973
Default

I know its just personal preference, but I liked the exhaust you guys built for the car. Very much more than the other stuff people were running at MRLS. I don't know what that ND pace car was running but I'm not a fan.

I saw Keith Tanner humping around a stock ND muffler at one point, that thing does NOT look like a lightweight.
EO2K is offline
Old 10-07-2015, 08:20 PM
  #106
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,994
Total Cats: 1,711
Default

Originally Posted by EO2K View Post
I know its just personal preference, but I liked the exhaust you guys built for the car. Very much more than the other stuff people were running at MRLS. I don't know what that ND pace car was running but I'm not a fan.

I saw Keith Tanner humping around a stock ND muffler at one point, that thing does NOT look like a lightweight.
The OEM midpipe is light but the muffler is pretty heavy and large. We ran three resonators in line. A huge one in the 2.5" midpipe and two smaller ones looped in back. Too loud for my taste so it's getting a muffler in back to replace the two small resonators. Our header has no cat and we used a short 2.5" metal core cat in the midpipe. ECU runs closed loop everywhere so we kept the factory WBO2.
__________________


www.facebook.com/SuperMiata

949RACING.COM Home of the 6UL wheel

.27 SNR
emilio700 is offline
Old 10-07-2015, 08:27 PM
  #107
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: *** BANNED ***
Posts: 9,604
Total Cats: 973
Default

It may have been loud, but it was a good loud. You guys were under 92db so it obviously works. Then again I didn't ride in it and I don't have to drive it so my opinion isn't worth much in that regard.

I'll have to poke around the 949/SpM youtube channels and facespace pages tonight and see if you guys have any in car video posted.
EO2K is offline
Old 10-08-2015, 08:49 AM
  #108
Elite Member

Join Date: Oct 2011
Location: OKC, OK
Posts: 3,258
Total Cats: 118
Default

Out of curiousity, did you do any data logging regarding oil temps/psi?
z31maniac is offline
Old 10-08-2015, 01:49 PM
  #109
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,994
Total Cats: 1,711
Default

Originally Posted by z31maniac View Post
Out of curiousity, did you do any data logging regarding oil temps/psi?
Just started to at the end of the day when we were short shifting. We'll publish data in a few weeks. For now, I can state unequivocally that track ND's must have an oil cooler.
__________________


www.facebook.com/SuperMiata

949RACING.COM Home of the 6UL wheel

.27 SNR
emilio700 is offline
Old 10-08-2015, 01:57 PM
  #110
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,796
Total Cats: 33
Default

Originally Posted by emilio700 View Post
Just started to at the end of the day when we were short shifting. We'll publish data in a few weeks. For now, I can state unequivocally that track ND's must have an oil cooler.
the only cars that need oil coolers, are cars with oil temperature gauges.
__________________
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
[email protected]
Originally Posted by Mobius View Post
Hopefully so, but let's hope it's never necessary. Experiencing your safety gear in action is ... not optimal.
OGRacing is offline
Old 10-08-2015, 02:05 PM
  #111
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,994
Total Cats: 1,711
Default

Originally Posted by OGRacing View Post
the only cars that need oil coolers, are cars with oil temperature gauges.
Or native oil temp sensors that can be logged, as we did. Matt at OVTuned logged it while riding with us on track. Aim is still fine tuning the config file for the ND so we had a bunch of other channels, but not oil temp logged. So we can log plugged into the ECU now or stored in the Aim once the config file is updated.
__________________


www.facebook.com/SuperMiata

949RACING.COM Home of the 6UL wheel

.27 SNR
emilio700 is offline
Old 10-08-2015, 02:06 PM
  #112
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,476
Total Cats: 1,628
Default

Didn't you also say that the ECU goes into some sort of dramatic limp mode.
aidandj is offline
Old 10-08-2015, 02:16 PM
  #113
Elite Member

Join Date: Oct 2011
Location: OKC, OK
Posts: 3,258
Total Cats: 118
Default

Originally Posted by emilio700 View Post
Just started to at the end of the day when we were short shifting. We'll publish data in a few weeks. For now, I can state unequivocally that track ND's must have an oil cooler.
That's what I figured. Just curious since the BRZ has also been shown to absolutely need an oil cooler for track work.

Originally Posted by aidandj View Post
Didn't you also say that the ECU goes into some sort of dramatic limp mode.
Most modern ECUs do. When you get super high oil temps, the psi drops dramatically.
z31maniac is offline
Old 10-08-2015, 02:23 PM
  #114
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,994
Total Cats: 1,711
Default

Yup, cook the oil enough and it limps. Thus the reason we were short shifting.

We also learned the DSC can not be entirely deactivated. It appears Mazda didn't allow for high grip tires and really high yaw rates. At least I think that's what we experienced. We will know more once we have a proper test day with Matt there and our Aim getting all of the CAN bus channels. We tried reorienting the yaw sensor on the rear bulkhead but only succeeded in disabling the ABS and flat spotting the RF tire. The car has a G sensor too so I think the yaw sensor is only a three axis.

In any case, sky high oil temps along with a bunch of DSC events and the ECU eventually says "party is over".

We're working on it.
__________________


www.facebook.com/SuperMiata

949RACING.COM Home of the 6UL wheel

.27 SNR
emilio700 is offline
Old 10-08-2015, 02:31 PM
  #115
Senior Member

Join Date: Sep 2013
Posts: 910
Total Cats: 63
Default

That makes me really curious what the sealed Mazdaspeed/Bosch supplied ECU is holding secret-wise.
Dunning Kruger Affect is offline
Old 10-08-2015, 02:31 PM
  #116
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,476
Total Cats: 1,628
Default

Sounds like a whole bunch of stuff turned off.
aidandj is offline
Old 10-08-2015, 02:37 PM
  #117
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: *** BANNED ***
Posts: 9,604
Total Cats: 973
Default

It sounds like the datalogging options, beyond the drive-train parameters, are going to be phenomenal.
EO2K is offline
Old 10-08-2015, 02:41 PM
  #118
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,994
Total Cats: 1,711
Default

Originally Posted by EO2K View Post
It sounds like the datalogging options, beyond the drive-train parameters, are going to be phenomenal.
Yup

Steering angle
Four wheel speed sensors
Yaw angle
Lateral G
Brake line pressure
Oil temp
Oil pressure
TPS commanded
TPS actual

..more

all native and available through the CAN bus. I haven't mentioned it here yet but we're now and Aim dealer and have the first Solo DL with ND config file in our car. The file is a WIP and should have all eleventy million channels in a few days. So yeah, plug the Solo DL into your OBD 2 port and log everything.
__________________


www.facebook.com/SuperMiata

949RACING.COM Home of the 6UL wheel

.27 SNR
emilio700 is offline
Old 10-08-2015, 02:56 PM
  #119
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,476
Total Cats: 1,628
Default

Originally Posted by emilio700 View Post
TPS commanded
TPS actual
Why would these not match up? Is there a table that turns DBW throttle position into what the ECU thinks it should be?

(I know nothing about DBW throttles, now I'm going to be stuck reading about it for the next few hours)
aidandj is offline
Old 10-08-2015, 03:22 PM
  #120
Senior Member

Join Date: Sep 2013
Posts: 910
Total Cats: 63
Default

The first thing that comes to mind that is like "yeah, duh" is the safety one (think left foot braking). In the Mazda2, if you depressed both the gas and the brake simultaneously, the ECU would only allow 25% of the throttle value, so 25% throttle becomes 6.25% throttle. Reason is like the unattended acceleration garbage that was in the news, and it's a super easy fix to make sure that the brakes can always overpower the motor.

From the poking that OVTune has done (along with Goodwin + Emilio), there are a bunch of fail-safes based on all of the sensor readings. I know that OVTune went into some detail about tip-in knock detection over on mnet a few weeks back. Thousands of interconnected maps.

Thousands.
Dunning Kruger Affect is offline
