Default 96 Coil Pack Wiring

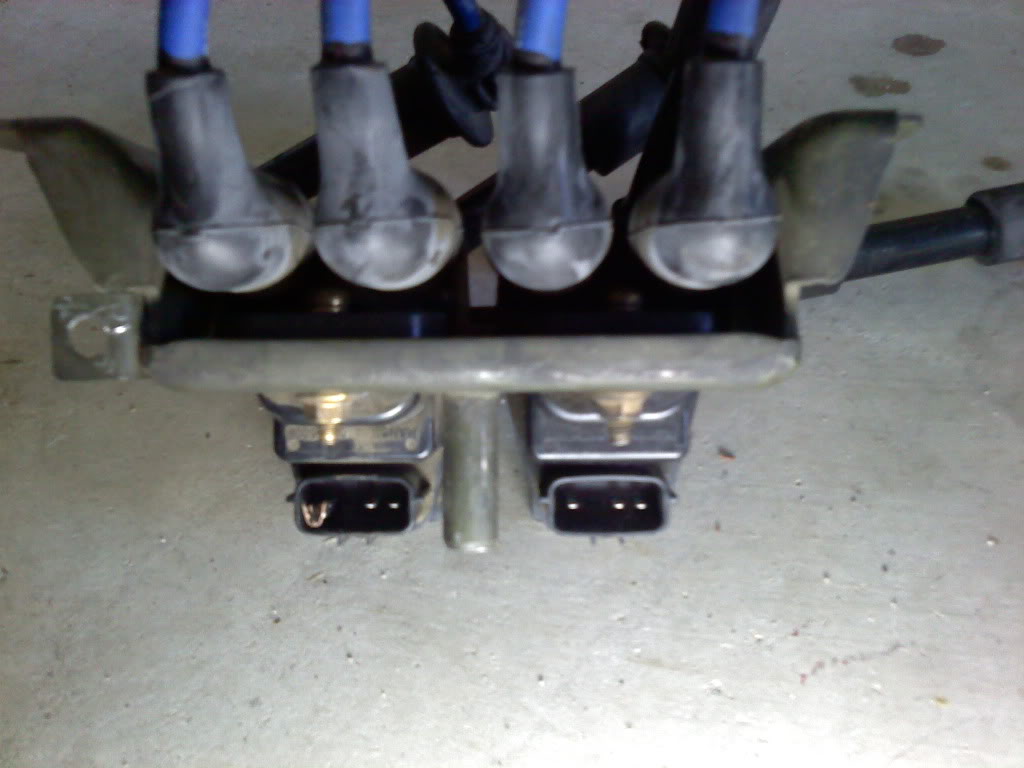

I converted my car a while ago to cops with megasquirt and now i need to go back to stock ecu and coils for california smog. My OBD fail and MS are not getting along :( . I lost the oem connectors for the stock coils but have some contacts that fit on the coils pins. I just need to know which pin is what now. Here is a pic and hopefully someone knows which pin goes to which wire.

Name:  0818001511.jpg
Views: 9
Size:  79.9 KB
cjsafski is offline   Reply With Quote
Old 08-18-2010, 07:23 PM   #2
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

I have it for you... Give me a few minutes.
240_to_miata is offline   Reply With Quote
Old 08-18-2010, 07:39 PM   #3
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

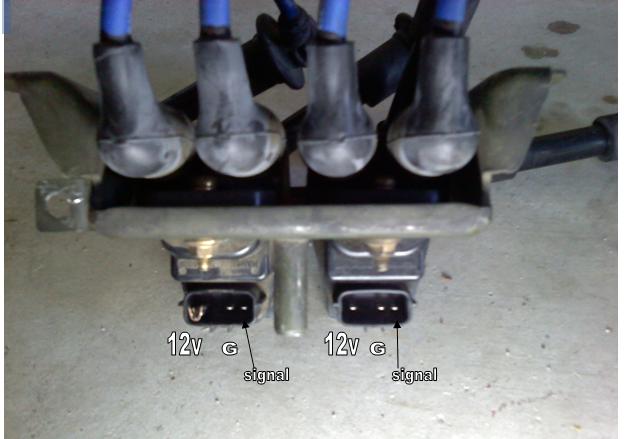

this should be right...
Attached Thumbnails
96 Coil Pack Wiring-coils.jpg
240_to_miata is offline   Reply With Quote
Old 08-18-2010, 08:20 PM   #4
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Umm.. won't the stock ECU run your COP's? I was under the impression if you wired them for wasted spark like stock it would run just fine. Or is it an emissions requirement?
baron340 is offline   Reply With Quote
Old 08-18-2010, 08:44 PM   #5
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

It will but the dwell settings are different. Technically you can run it. There is a chance of frying the coils though. Guys do run them without a dwell reducing circuit.
240_to_miata is offline   Reply With Quote
Old 08-18-2010, 09:06 PM   #6
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 23
Default

Quote:
Originally Posted by 240_to_miata View Post
It will but the dwell settings are different. Technically you can run it. There is a chance of frying the coils though. Guys do run them without a dwell reducing circuit.
+1 on the dwell. I didn't feel like risking it. Thank you for the quick reply. The car is up an running on the stock ecu and coils.
cjsafski is offline   Reply With Quote
Old 08-18-2010, 09:11 PM   #7
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

No problem. Good luck. I gave up on trying to battle passing CT emissions with a parallel setup so I went back to stock ECU as well. I kept getting a CEL because the AFR's were too far away from what the stock ecu wanted to see.

I passed in about 10 minutes after using the proper driving cycle. You dont need to drive 100+ miles or w/e you just need to clear all the readyness codes. Search my old posts and you might find a thread or 2 about what info i followed to pass.
