Default Alarm installation

We don't seem to have a dedicated board for electronics (ok we don't want to discuss audio, subs and neon lights on this forum, I understand that much), so I'm posting this here.

So the car alarm I had on my car (stealership quality) crapped out a couple of years ago. I popped it open and the batteries inside it had leaked all over the PCB...ouch. A few days later I bought a new Viper (the one with the OLED display on the remote) with all the extras. It's getting worse and worse by the year over here, so even though I have a closed garage now, I'm still worried when I park the car outside. I never had free time to actually install it like I would like...until this easter. I've been installing gauges etc on several Miatas locally, and I've been cursing every time I removed the kickpanel...nest of wires everywhere and a easily accessible car alarm module ziptied on the steering column. Do not want.

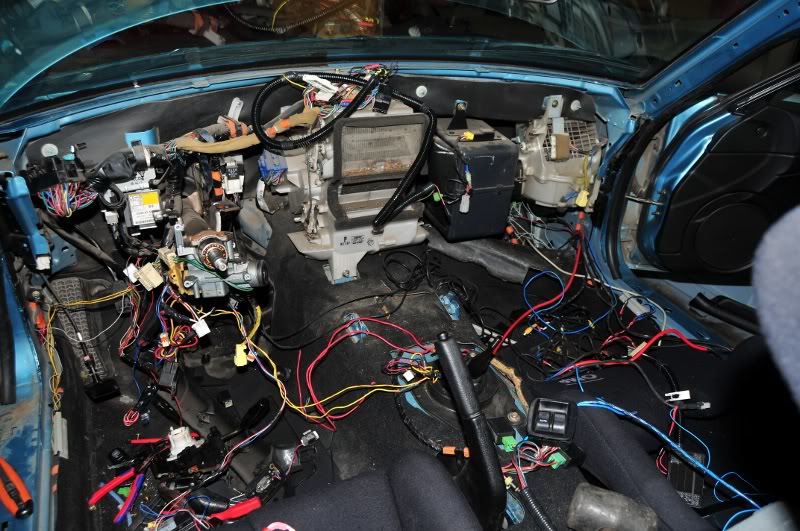

So I started stripping the entire interior of the car, as I wanted to install a rollbar anyway, I removed the dash and this made installing the unit a TON easier. I wouldn't even dream of doing it with the dash in place.

A few days ago:

Name:  DSC_4877_1.jpg
Views: 14
Size:  119.6 KB

The main unit already has a shock sensor built in. I added a dual zone proximity sensor, a tilt sensor, trunk and hood switch and auto windows roll-up on arm. I'm also connecting the 4 aux relay drivers (which you can activate through the remote) to the horn, the headlights, the dual-lock door locks (NB2 feature) and I still have one relay available - any ideas? I'm also adding the remote start feature, its nice to be able to remote start with the A/C on a hot day with the car parked outside.

Will post more pics tomorrow.
Reverant is offline   Reply With Quote
Old 04-25-2011, 04:31 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

last relay should activate the flame thrower you need to install next.
Braineack is offline   Reply With Quote
Old 04-25-2011, 04:36 PM   #3
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 199
Default

That would be cool, yes. Unfortunately, I don't have a spare LPO-50 in the attic.
Reverant is offline   Reply With Quote
Old 04-25-2011, 04:37 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

drats.
Braineack is offline   Reply With Quote
Old 04-25-2011, 05:04 PM   #5
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Trunk pop.
Ben is offline   Reply With Quote
Old 04-25-2011, 05:08 PM   #6
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 199
Default

Quote:
Originally Posted by Ben View Post
Trunk pop.
That's already in the standard outputs, along with door lock/unlock, parking lights (ie the flasher module). I was thinking remote kill for whatever reason. I'm already looking for ways to actually disable the ECU if the alarm is armed, in a non trivial way.
Reverant is offline   Reply With Quote
Old 04-25-2011, 07:31 PM   #7
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

Fuel pump disable might be easier.
triple88a is offline   Reply With Quote
Old 04-25-2011, 08:49 PM   #8
Newb

Join Date: Jan 2011
Posts: 24
Total Cats: 0
Default

Reminds me of the nightmare I had to deal with the the alarm my PO had installed. That thing was the worst wiring job I've ever seen.
AARP is offline   Reply With Quote
Old 04-26-2011, 12:15 AM   #9
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

consider a well-reviewed add-on shock sensor. they're probably easier to tune and less likely to go off when your neighbor farts.

my alpine almost never falses due to shock. only tornado-warning storms will set it off. or lightly rapping on a body panel of course.

My favorite lame feature: windows. one button rolls both down. both roll up upon arming.

you can also set up some relays to lock-out the trunk pop and windows-down but be careful not to require the relays to be energized when the alarm is armed unless you like jumpstarting the car.
y8s is offline   Reply With Quote
Old 04-26-2011, 04:05 AM   #10
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 199
Default

Quote:
Originally Posted by triple88a View Post
Fuel pump disable might be easier.
Yeah, but its the obvious thing. I was thinking something along the lines of "cut 2 out of 4 injectors". Then the car would almost catch but will never really run.
Reverant is offline   Reply With Quote
Old 04-26-2011, 07:36 PM   #11
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

Do you really care how obvious it is? Its not like whoever is stealing ur car will try to hotwire the fuel pump.
triple88a is offline   Reply With Quote
Old 04-26-2011, 07:46 PM   #12
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 199
Default

I had a customer's car the other day to MS. He had a car alarm that disabled the starter and fuel pump. I tried to start it on the MS but it wouldn't - the starter wouldn't turn and the fuel pump wouldn't prime. The remote was out of battery. I literally bypassed both in less than 5 minutes and started the car, and I'm no car thief. All the wiring was pretty much exposed and easy to bypass.
Reverant is offline   Reply With Quote
Old 04-26-2011, 09:25 PM   #13
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Reverant View Post
Yeah, but its the obvious thing. I was thinking something along the lines of "cut 2 out of 4 injectors". Then the car would almost catch but will never really run.
wire it to the crank or cam sensor?
y8s is offline   Reply With Quote
Old 04-26-2011, 09:37 PM   #14
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Wire it to engage your anti-lag system when armed. Better than a siren.
Faeflora is offline   Reply With Quote
