Default any thoughts on how to make a splitter / air dam like this?

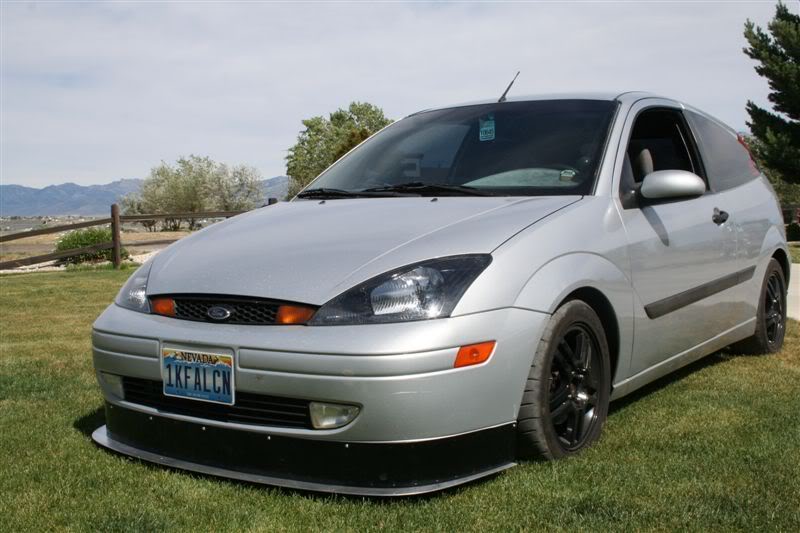

but on an NA of course:
Name:  IMG_3021.jpg
Views: 54
Size:  65.9 KB
I could cut a rectangle out for the radiator there too, and channel it, alleviating heat ailments.
hustler is offline   Reply With Quote
Old 07-19-2008, 11:27 PM   #2
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

reference: Matt Andrews car. He pretty much did that. ummmm somewhere around here there's pictures. or maybe on cr.net. or both. it's neat.
y8s is offline   Reply With Quote
Old 07-19-2008, 11:29 PM   #3
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Where can I get the little sticks it attaches too?

he did it with a racing beat bumper though
hustler is offline   Reply With Quote
Old 07-19-2008, 11:34 PM   #4
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

We can get your turnbuckles at Elliot's in Plano..... time to dust off the air tools and build your bracing structure first. I have been eyeing Matt's build for a long time......as you can see by the references to my bumper mods.
Machismo is offline   Reply With Quote
Old 07-19-2008, 11:36 PM   #5
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Machismo View Post
We can get your turnbuckles at Elliot's in Plano..... time to dust off the air tools and build your bracing structure first. I have been eyeing Matt's build for a long time......as you can see by the references to my bumper mods.
I was thinking about making the splitter/tray out of cheap metal or plastic, then taking 1" square turbing and triangulating at the rad support and subframe. I think it might be fairly straight forward, and the hottest **** you've seen in your life. I can sharpen it too and chop off people's ankles.
hustler is offline   Reply With Quote
Old 07-19-2008, 11:38 PM   #6
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I want to do a rectangular vent (where matt's says "mazdaspeed") like the c6r:
hustler is offline   Reply With Quote
Old 07-19-2008, 11:40 PM   #7
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

Gotcha......how far back are you going with the splitter tray? Screw plastic.....you want to cut peoples feet off with that thing.
Machismo is offline   Reply With Quote
Old 07-19-2008, 11:42 PM   #8
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Machismo View Post
Gotcha......how far back are you going with the splitter tray? Screw plastic.....you want to cut peoples feet off with that thing.
to the steering rack, then bend a lip down, to create even lower pressure.

I don't know how I'm going to attach it to the bumper yet, and make it look cool.
hustler is offline   Reply With Quote
Old 07-19-2008, 11:47 PM   #9
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

Easy enough.....build a lip w/ weld nuts and attach to top side of lip of bumper, bumper will be sandwiched in between this lip and your splitter. Mounting pretty much like a R-lip. Should be enough structure beyond to support this.
Machismo is offline   Reply With Quote
Old 07-19-2008, 11:49 PM   #10
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I need to borrow a TIG.
hustler is offline   Reply With Quote
Old 07-19-2008, 11:51 PM   #11
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Machismo View Post
Easy enough.....build a lip w/ weld nuts and attach to top side of lip of bumper, bumper will be sandwiched in between this lip and your splitter. Mounting pretty much like a R-lip. Should be enough structure beyond to support this.
or I could just do the splitter, cut the r-pack lip in the middle (gasp) and use the begi splitter.
hustler is offline   Reply With Quote
Old 07-19-2008, 11:51 PM   #12
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

Pay me in beer and teach me some Megasquirtin'.... and I will shear and weld the damn thing for ya! How's that?
Machismo is offline   Reply With Quote
Old 07-19-2008, 11:52 PM   #13
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

Quote:
Originally Posted by hustler View Post
or I could just do the splitter, cut the r-pack lip in the middle (gasp) and use the begi splitter.
I am really liking the Begi splitter.....and I have no quams with cutting up more **** on my Miata.
Machismo is offline   Reply With Quote
Old 07-19-2008, 11:54 PM   #14
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Machismo View Post
I am really liking the Begi splitter.....and I have no quams with cutting up more **** on my Miata.
the r-pack lip is gorgeous though. I don't want to cut it. The bell scooper is cool, but I could make the intake 5x bigger with this set up.

I'll road tune the car with you every step of the way, and maybe you can piggy back on the dyno day with me in august when I tune mine.
hustler is offline   Reply With Quote
Old 07-19-2008, 11:56 PM   #15
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

Fair enough...and yes the lip is "pretty". That's why I threw my Home Depot garbage away when I finally found a beat up donor w/ a TDR splitter included.
Machismo is offline   Reply With Quote
Old 07-20-2008, 12:08 AM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

garden trim. /thread.
Braineack is offline   Reply With Quote
Old 07-20-2008, 12:15 AM   #17
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

/\ Not anymore.....
Machismo is offline   Reply With Quote
Old 07-20-2008, 09:29 AM   #18
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

I've used the ABS sheet and an aluminum carpet threshold strip to form the lower curve. No splitter since it was illegal, but the entire assembly weighed maybe 2 lbs., installed with industrial velcro and withstood as much as 120mph race after race. Adding the splitter would obviously require additional bracing and/or stronger/permanent fasteners.
m2cupcar is offline   Reply With Quote
Old 07-20-2008, 05:12 PM   #19
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

hustler is offline   Reply With Quote
Old 07-20-2008, 07:05 PM   #20
Senior Member

Join Date: Jan 2007
Location: Maryland
Posts: 701
Total Cats: 0
Default

wonder what that damn small thing was... @[email protected]
