Default Anyone done a low pro projector setup?

I've been looking for quite some time and haven't been able to find anyone doing a low profile headlight with projectors. I see low pro retrofits or a standard projector setup with a 7" headlight. Has anyone seen one or does it seem it may be to cramped with projectors?

Reason I ask is I did about 400miles of driving last night and my stock lights suck. A friend has a 91 with a low pro retrofit and not only did it look nicer it was much brighter for not being projectors. I want to mix match the two if possible, not sure if anyone here has done it or a link to one with a parts list/guide. Figure I may buy some morimoto minis and try much luck at it. Any help is appreciated.
FowlerMotorsports is offline   Reply With Quote
Old 11-24-2012, 10:13 PM   #2
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,922
Default

mazda miata mx-5 low-profile headlights - www.duettomotors.com

Another alternative would be to replace the stock sealed-beam headlamps with Hella E-code housings and H4 bulbs: Susquehanna MotorSports - Auto Performance Product

I've been running those on my cars for 5 or 6 years now. Excellent quality, good pattern, and cheap.
Joe Perez is online now   Reply With Quote
Old 11-24-2012, 10:28 PM   #3
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

Ops I missed the general miata thread, can someone move this lol

I'm looking more for a diy Joe, any help?
FowlerMotorsports is offline   Reply With Quote
Old 11-24-2012, 10:35 PM   #4
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,686
Total Cats: 559
Default

I just did the Bosch H4 conversion, and it's a huge improvement for less than 65 bucks and half an hour time spent.

See here for links: https://www.miataturbo.net/general-m...version-69268/
rleete is offline   Reply With Quote
Old 11-24-2012, 11:50 PM   #5
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Going a slightly different direction: https://www.miataturbo.net/general-m...ght-mod-26872/
pdexta is offline   Reply With Quote
Old 11-25-2012, 05:52 PM   #6
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

I will have a write-up on my DIY as soon as the parts come in.

I ordered some 6x4 headlights and a Morimoto Mini H1 kit listed Bi-xenon Morimoto Mini Stage III Kit (H1) - Complete Retrofit Kits from The Retrofit Source Inc

The kit is on sale, plus the coupon I had helped me save over $100 on this kit
FowlerMotorsports is offline   Reply With Quote
Old 11-26-2012, 12:20 PM   #7
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

$530 + shipping? Those look like the Moss low pros. Those are $499, with 15% off until the end of the year, makes it cheaper at $425.

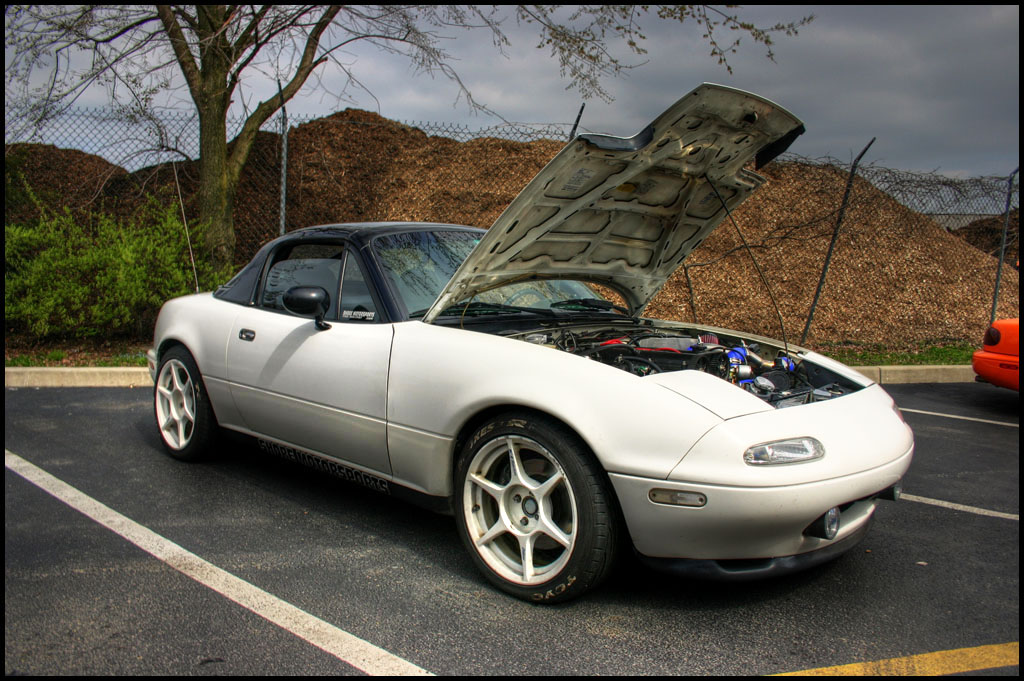

I too run the 7" hella E codes, along with some shitty 4" round H4 lenses in the mouth area (so I run 4 headlights & 4 high beams), which make a little difference on dark back roads.
Attached Thumbnails
Anyone done a low pro projector setup?-img_5222_hdr.jpg
TurboTim is offline   Reply With Quote
Old 11-26-2012, 01:09 PM   #8
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,922
Default

Are the Moss units projectors? There's no mention of it on the website.
Joe Perez is online now   Reply With Quote
Old 11-26-2012, 01:15 PM   #9
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,686
Total Cats: 559
Default

Not unless they've changed them in the past year or so.
rleete is offline   Reply With Quote
Old 11-26-2012, 02:29 PM   #10
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

The photos show projectors, but no mention of it. When they first came out, they included projectors just like the pic. A few of the local Miata guys bought them. I haven't seen a newly purchased Moss kit in many many years though.
TurboTim is offline   Reply With Quote
Old 11-26-2012, 05:51 PM   #11
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

The Moss/Duetto low-pro headlights are both the same, made by Cobalt. Two of the light assemblies are Hella halogen projectors and like TurboTim said they have been that way since they came out. I had them on my '95 and they were definitely much better than the stock units in terms of lighting. I personally preferred the look a lot more as well. However, the price tag is a deterrent to most people, I was lucky and found someone that wanted to revert to stock to sell their car and sold me the setup for $150 + stock assemblies. But for someone who wants to improve the lighting for less money, the conversions above work great too.

Quote:
Originally Posted by FowlerMotorsports View Post
I will have a write-up on my DIY as soon as the parts come in.

I ordered some 6x4 headlights and a Morimoto Mini H1 kit listed Bi-xenon Morimoto Mini Stage III Kit (H1) - Complete Retrofit Kits from The Retrofit Source Inc
You'll like that kit, it's the same one I use for 99-00 headlight retrofits. Great company with very good customer service as well.
RotorNutFD3S is offline   Reply With Quote
Old 11-26-2012, 07:19 PM   #12
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

The kit cost me $225 to my door with the better xb35 bulbs so it was a steal! I'm good with fab work so I will do all the mounting myself and give results. I just can't see myself spending $500 for projectors, that's nuts
FowlerMotorsports is offline   Reply With Quote
Old 11-26-2012, 07:45 PM   #13
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

You going to mount them so you have a low opening barndoor, or flush under lexan? Interested to see either way.
matthewdesigns is offline   Reply With Quote
Old 11-26-2012, 07:54 PM   #14
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,922
Default

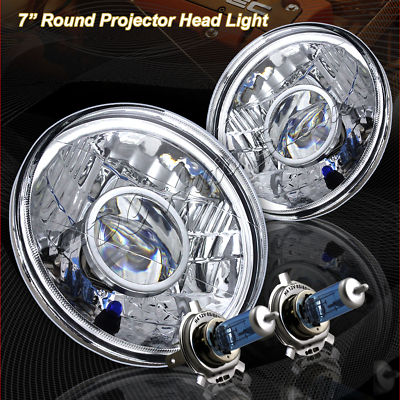

For someone looking to update to HID projectors without the trouble of also converting to a low-profile setup, I wonder if there's enough depth in the stock location to take something like this and gut it, using the housing simply as a mount for the new projectors?

Cheap way to get the benefits of improved lighting without having to modify the chassis or fabricate anything.

Attached Thumbnails
Anyone done a low pro projector setup?-%24-kgrhqj-hwe3o7lk3ftbojjmcsrtw%7E%7E0_1.jpg
Joe Perez is online now   Reply With Quote
Old 11-26-2012, 09:39 PM   #15
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

Quote:
Originally Posted by matthewdesigns View Post
You going to mount them so you have a low opening barndoor, or flush under lexan? Interested to see either way.
Low pro, a buddy of mine has a set and I fell in love. I just want to do a low pro projector setup.

Quote:
Originally Posted by Joe Perez View Post
For someone looking to update to HID projectors without the trouble of also converting to a low-profile setup, I wonder if there's enough depth in the stock location to take something like this and gut it, using the housing simply as a mount for the new projectors?

Cheap way to get the benefits of improved lighting without having to modify the chassis or fabricate anything.

Honestly I am unsure about this. I have thought about it but I would much rather try the low pro setup. I feel there wouldn't be much depth left and if any the projector may have to point upwards to keep from hitting.
FowlerMotorsports is offline   Reply With Quote
Old 11-27-2012, 04:50 PM   #16
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Someone recently did a conversion using those or a similar eBay housing and posted it on one of the other Miata forums. IIRC he had to enlarge the bulb opening so that the projector sat far enough back to allow the lens to reseal on the front.
RotorNutFD3S is offline   Reply With Quote
