Default Anyone has BBK with weird brake pad sound?

Just recently installed a set of Good Wind BBK ver 1.

when I press slightly harder on the brakes, I could hear a snapping sound from the brakes. Sound like the pads in the Wilwoods are shafting inside them.

Mimime is offline   Reply With Quote
Old 04-07-2007, 03:27 PM   #2
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

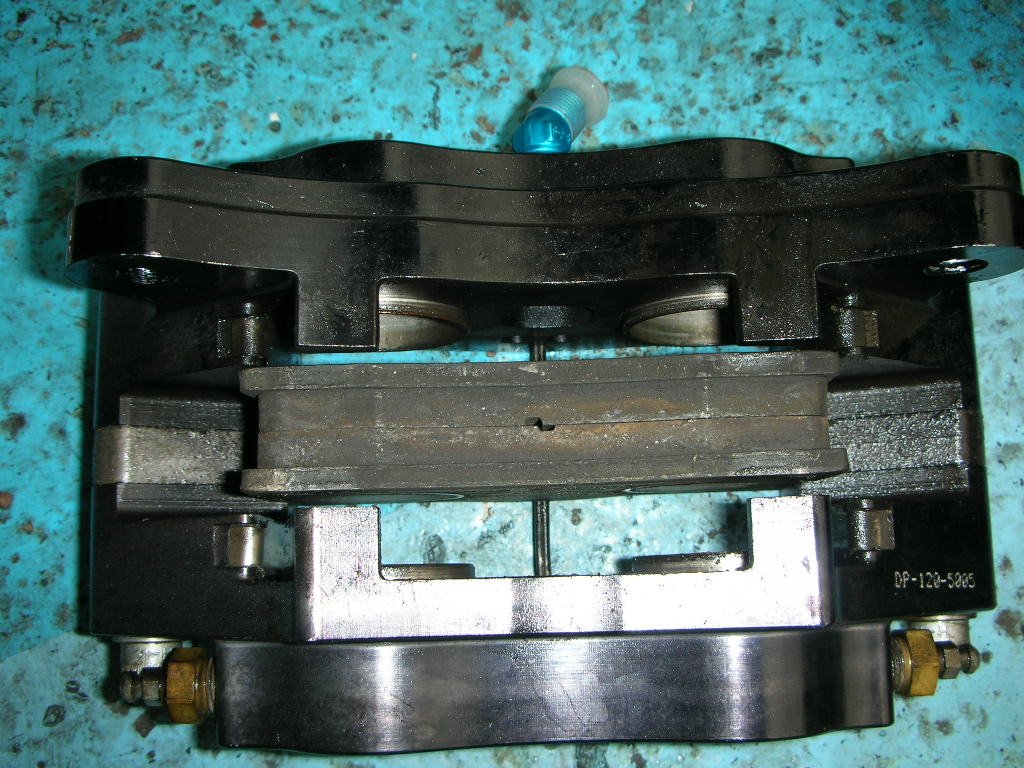

anythign missing from inside?
Attached Thumbnails
Anyone has BBK with weird brake pad sound?-dscn1475.jpg

Last edited by Mimime; 08-31-2007 at 04:48 PM.
Mimime is offline   Reply With Quote
Old 04-07-2007, 03:33 PM   #3
Elite Member

Join Date: Jan 2005
Location: vancouver canada
Posts: 1,618
Total Cats: 0
Default

Get rid of the cotter pins and order a set of bridgebolts from Wilwood.
spike is offline   Reply With Quote
Old 04-07-2007, 04:13 PM   #4
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by spike View Post
Get rid of the cotter pins and order a set of bridgebolts from Wilwood.
those'r different calipers though...


the wilwoods, after a little break-in time, will wear the pads unevenly and since they push on the rotor at an angle, there's some movement that makes a little EYYRK noise as you step on the pedal hard. I bet a thin stainless shim between the pad and piston would cure it. Someone make me some too.
y8s is offline   Reply With Quote
Old 04-07-2007, 05:01 PM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

are those rotors super expensive?
hustler is offline   Reply With Quote
Old 04-07-2007, 05:05 PM   #6
Senior Member

Join Date: Jun 2005
Location: WA
Posts: 500
Total Cats: 0
Default

/\no
RusMan is offline   Reply With Quote
Old 04-07-2007, 05:50 PM   #7
Elite Member

Join Date: Jan 2005
Location: vancouver canada
Posts: 1,618
Total Cats: 0
Default

Quote:
Originally Posted by y8s View Post
those'r different calipers though...
When I bought my BBK it came with the wilwood cotter pin style calipers.
All I did was drill a bigger hole to except the bridge bolt.

It's really easy to do,it's also a far better design than the cheesy cotter pins.
spike is offline   Reply With Quote
Old 04-08-2007, 10:50 AM   #8
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

ok this is a crazy question... why is it better?
y8s is offline   Reply With Quote
Old 04-08-2007, 01:52 PM   #9
Elite Member

Join Date: Jan 2005
Location: vancouver canada
Posts: 1,618
Total Cats: 0
Default

Quote:
Originally Posted by y8s View Post
ok this is a crazy question... why is it better?
It holds the pads in place alot better and it prevents the pads from chattering.
spike is offline   Reply With Quote
