Old 08-22-2007, 03:25 PM   #1
Senior Member
Thread Starter
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default My spacerless hotside coolant reroute.

First a caveat, I had the head out of the car so I do not think that you can drill/tap what I did without removing the head but YMMV.

PICTURE #1:
- back of the stock 1.6 head for reference
- green top plug is the coolant temp sensor for the ECU
- red arrow is the pipe for the heater core send line
- yellow arrow is lower coil pack bolt (more on this later)
- blue arrow is temp sensor for the dash
- green arrow is a unused water port aka the cursed water plug

PICTURE #2:
- front of head with thermostat housing removed and 30mm freeze plug inserted ($0.73 at Advanced Auto Parts)

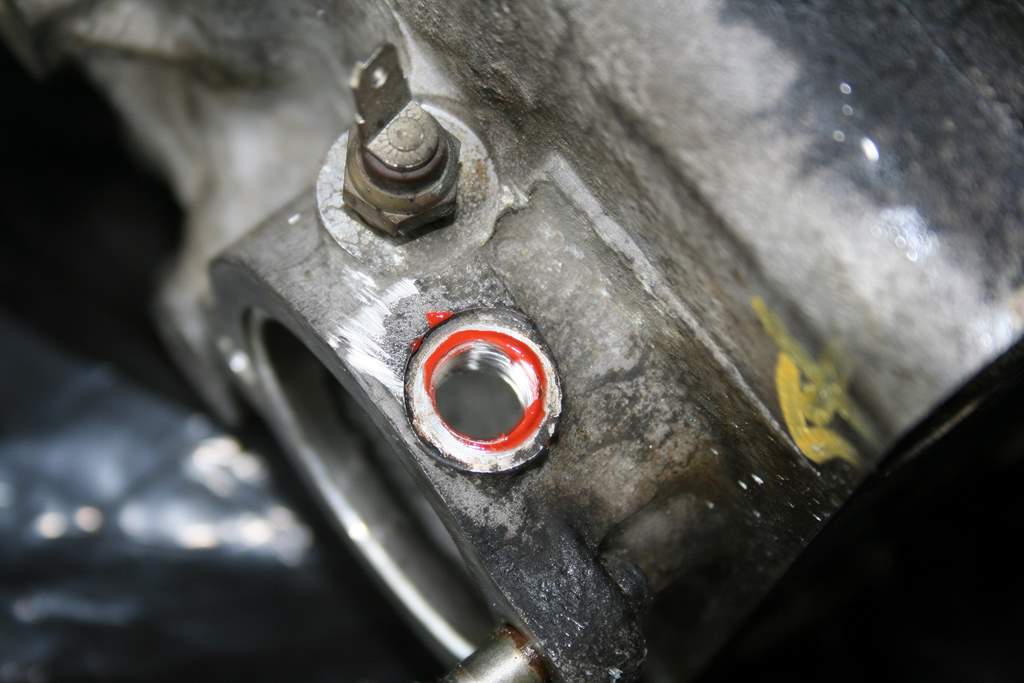

PICTURE #3:
- unused water port nipple cut off and drilled and tapped for ECU thermosensor (tap 12mm x 1.5, drill 13/32)
- no that's not blood in the pic (though I did cut myself)

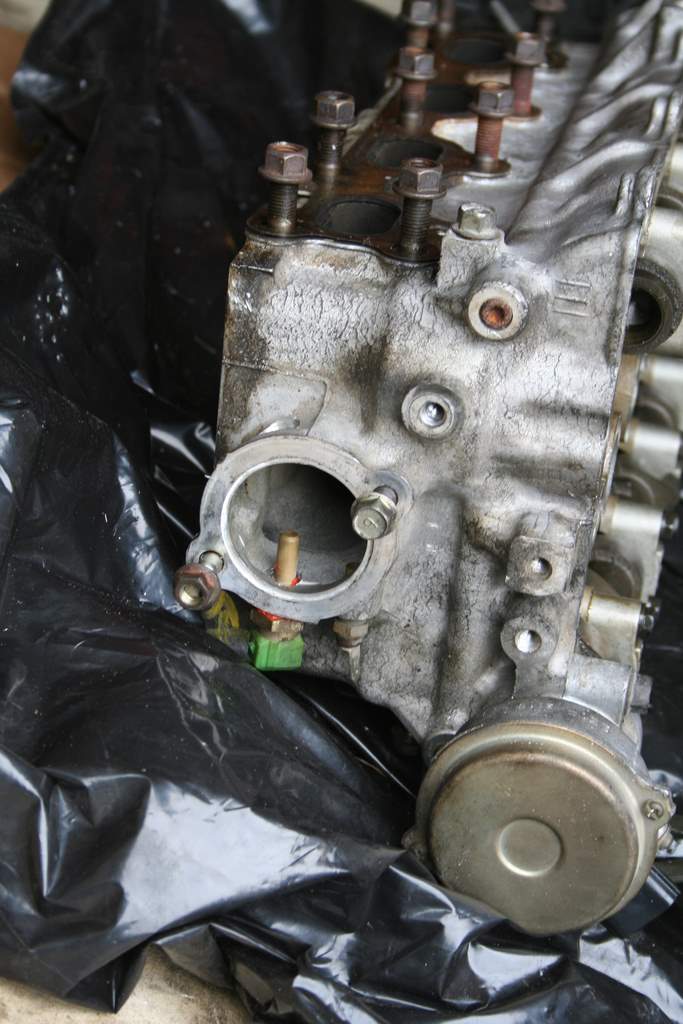

PICTURE #4:
- ECU thermosensor in place (will not interefere with thermostat if you choose to put it back here as I already checked)

More to come, I'm waiting for parts that should be coming in soon!
Attached Thumbnails
Beginning of my spacerless coolant reroute.-head.jpg   Beginning of my spacerless coolant reroute.-freeze-plug.jpg   Beginning of my spacerless coolant reroute.-sensor-tap.jpg   Beginning of my spacerless coolant reroute.-sensor-install.jpg
brgracer is offline   Reply With Quote
Old 08-22-2007, 05:01 PM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

this is massively awesome. Thanks. I'm going to end up following your example.
hustler is offline   Reply With Quote
Old 08-23-2007, 12:15 AM   #3
Junior Member

Join Date: Sep 2006
Posts: 225
Total Cats: -4
Default

I've also recently done the coolant re-route and so far have had no problems.

I tackled it a little differently though.

Swapped the front thermostat housing cover to the rear of the engine, and blocked off the sensor plug.

Used the (rubber capped) coolant outlet below the dash gauge sender for a 5/18 hose, and had a brass adapter made up to join the small hose from this outlet to a larger hose which fits the heater core inlet.

Used a suitable diameter and shaped aluminium tube section around the exhaust side of the motor to feed to the radiator top hose. See here:

Name:  DSC00199.jpg
Views: 109
Size:  90.9 KB

Made a blanking plate for the top of the front thermostat housing out of 5 mm aluminium plate and relocated the ICU temp sensor to here, along with the thermofan sensor.

So far it works, cools, and operates the thermofans and heater core perfectly, and the temp still reads perfect. Much easier than drilling and tapping the head, and can be done simply with the head still attached to the engine, and even probably with the engine still in the car. The hardest part was making the blanking plate, and extending the wires to the ICU sensor.
Uncle Arthur is offline   Reply With Quote
Old 08-24-2007, 02:56 PM   #4
Senior Member
Thread Starter
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default Update

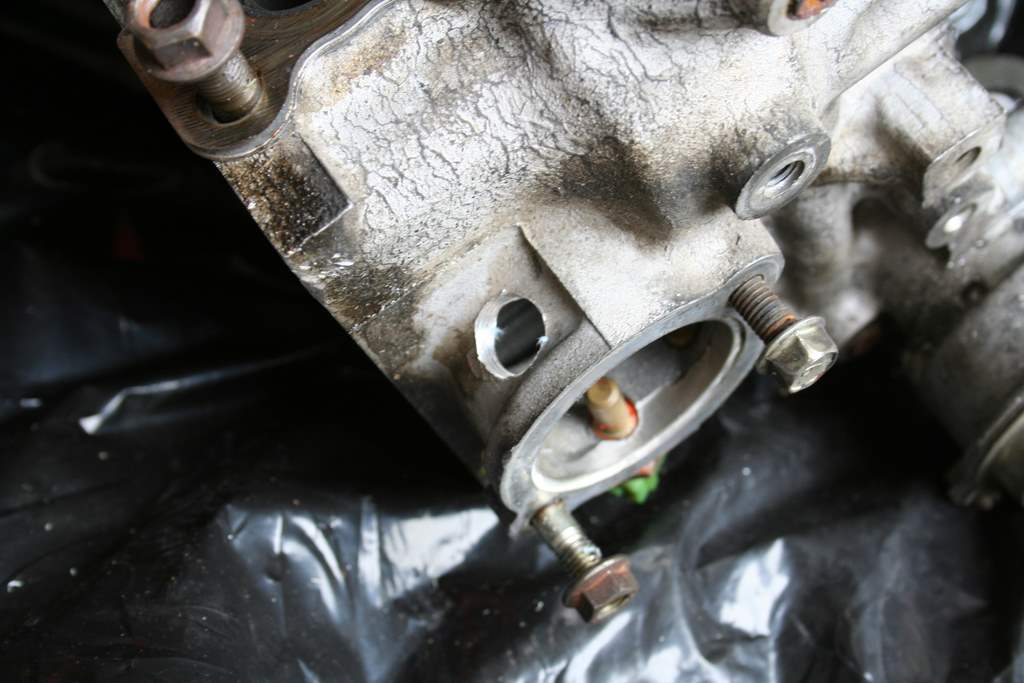

Pic #1:
- Tapped the other side of the heater outlet with a 3/8 NPT for the heater core line (before the thermostat so the heater core gets flow all the time)

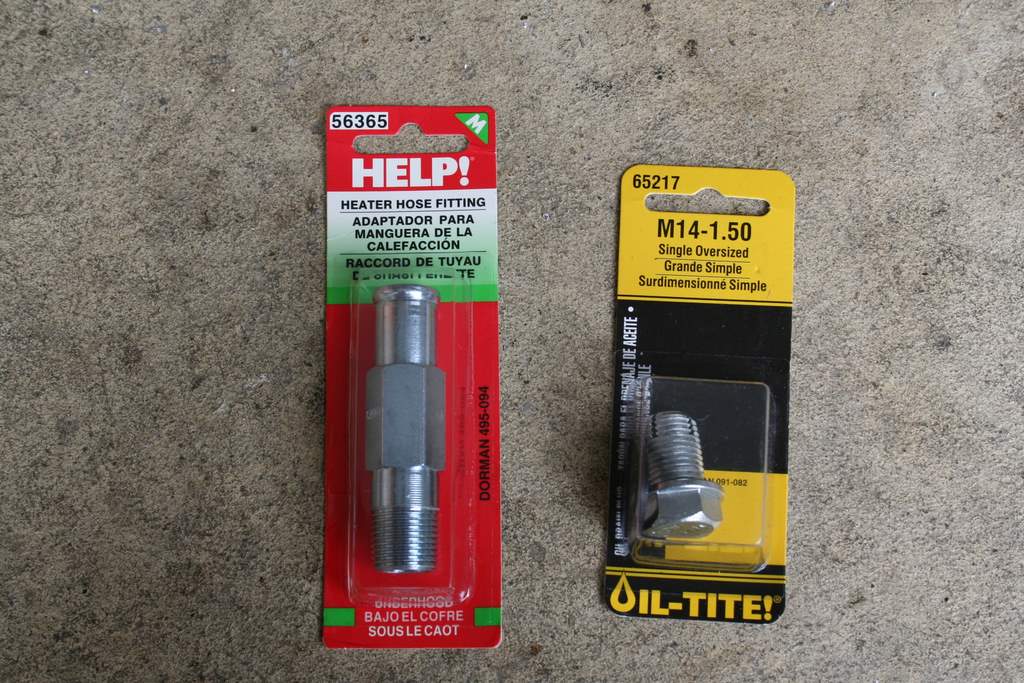

Pic #2:
- 3/8 NPT to 5/8 hose fitting for heater send (from Pepboys $2.99)
- M14 x 1.50 oil drain plug with washer for thermostat cover (from Pepboys $1.99)

Pic #3:
- heater core fitting attached to head (I used the longer fitting that came out to be about the same length as the original heater core send barb)

Pic #4:
- thermostat in place in the back of the head (note: I will later post about my coil pack mod to make removing it easier for thermostat changes)
Attached Thumbnails
Beginning of my spacerless coolant reroute.-heater-tap.jpg   Beginning of my spacerless coolant reroute.-fittings.jpg   Beginning of my spacerless coolant reroute.-plumbed.jpg   Beginning of my spacerless coolant reroute.-thermostat-.jpg
brgracer is offline   Reply With Quote
Old 08-24-2007, 02:59 PM   #5
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Way to go, Tom
olderguy is offline   Reply With Quote
Old 08-24-2007, 03:01 PM   #6
Senior Member
Thread Starter
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default More pics for the update

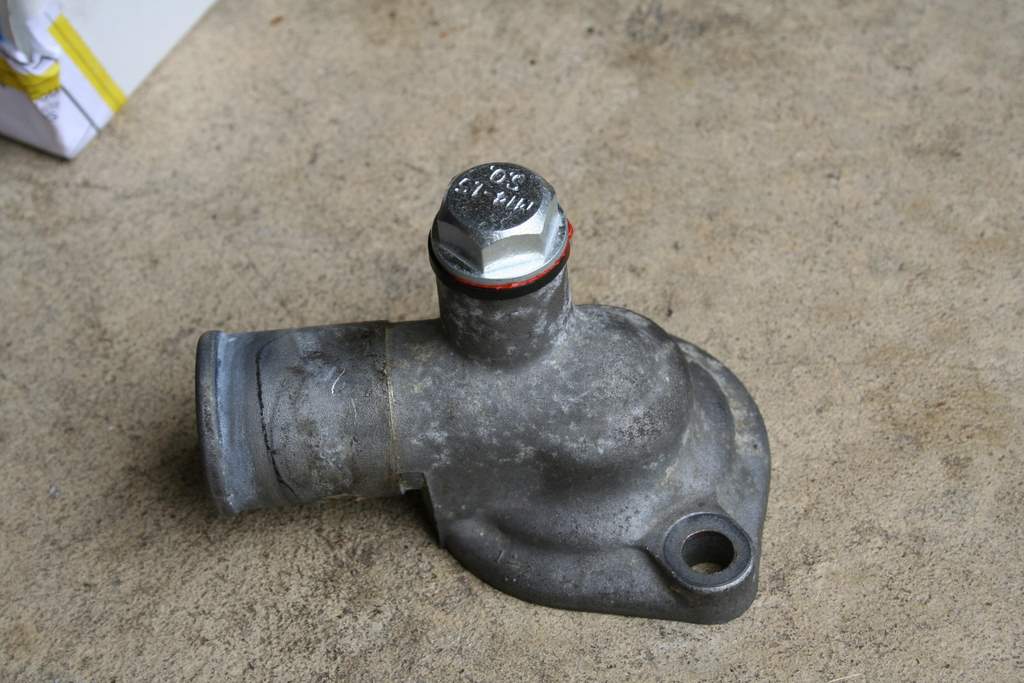

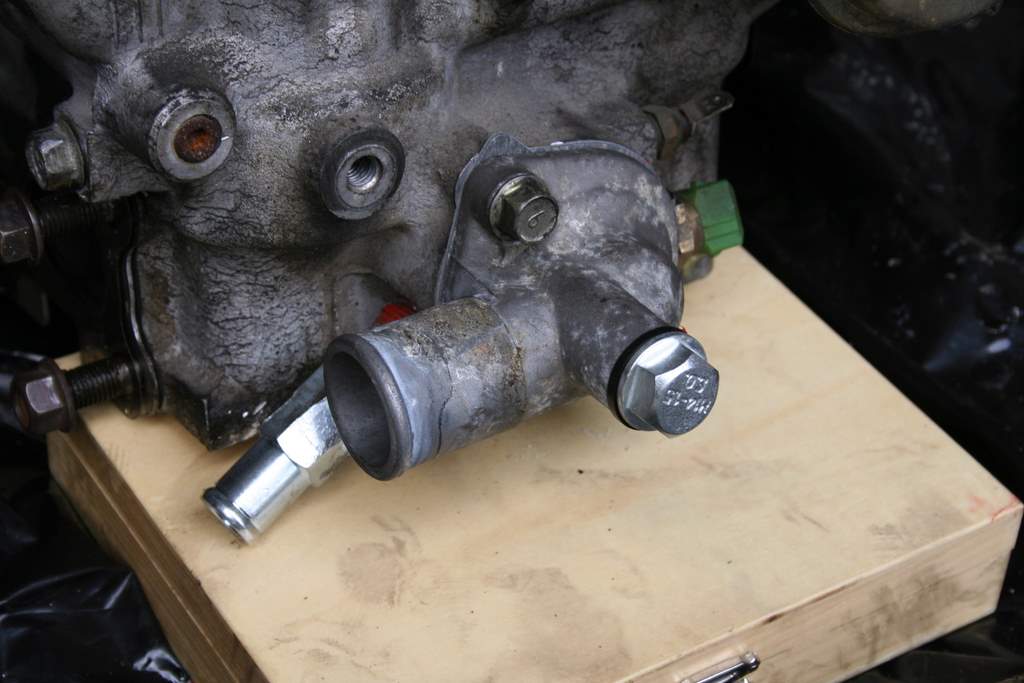

Pic #1:
- original 1.6 front thermostat cover with already mentioned oil drain plug in to block front thermosensor hole
- note: I use my Megasquirt to control the fans so I do not need the front thermoswitch, if you are using the stock ECU, you'll need to plumb a port for the front sensor somewhere as it will not fit back there by the firewall

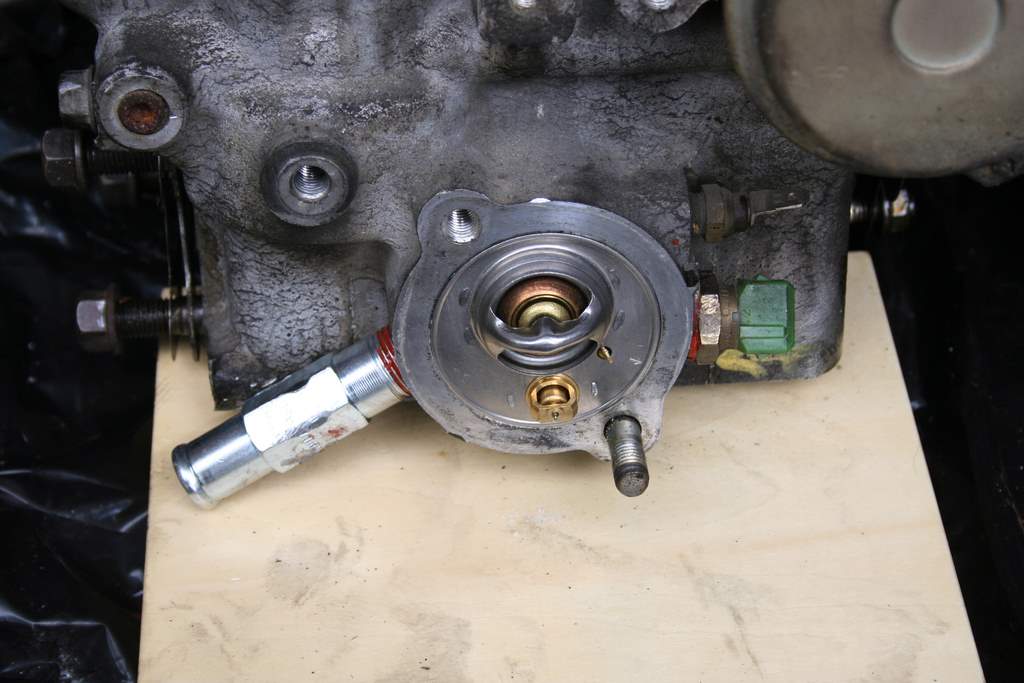

Pic #2:
- 1.6 thermostat on the back of the head
- note: you can orient it either coldside or hotside, mine is pointing hotside/driver's side...heck, I may end up going coldside, but we'll see...

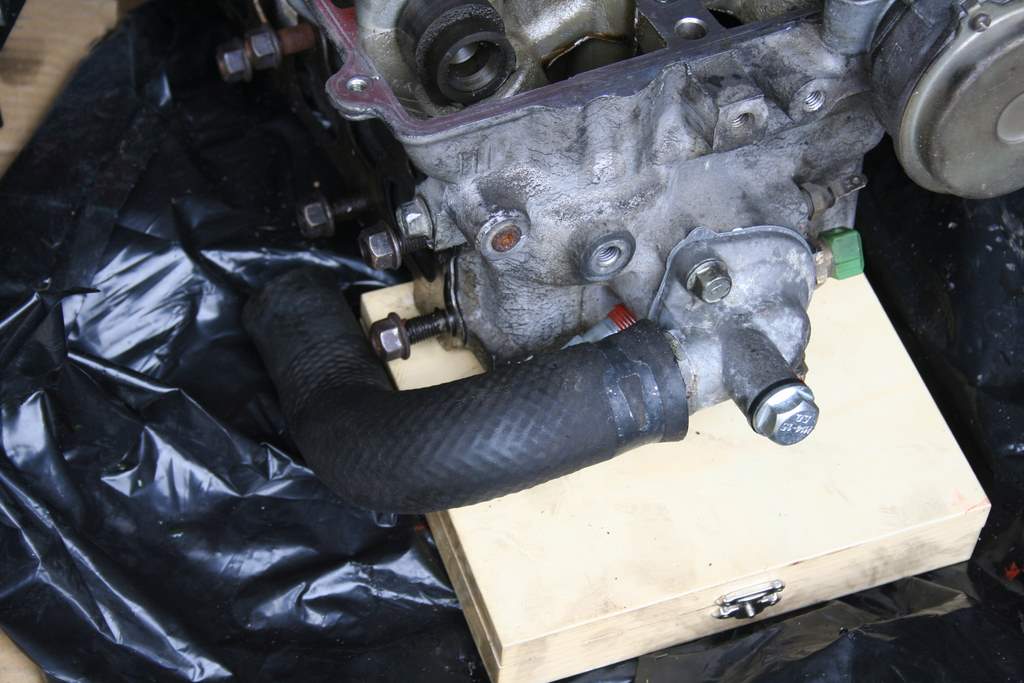

Pic #3:
- added small 90 degree hose pointing forward
- I plan on wrapping this hose as well as using a hardline for the portion under the exhaust manifold to avoid hose problems from the heat.

From here all you really need to do is run a combo of hose/hardline to the radiator and you're done.

More pics to follow as the project progresses...
Attached Thumbnails
Beginning of my spacerless coolant reroute.-thermostat-cover.jpg   Beginning of my spacerless coolant reroute.-cover-.jpg   Beginning of my spacerless coolant reroute.-hose-.jpg
brgracer is offline   Reply With Quote
Old 08-24-2007, 03:22 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

damn that's easy enough...wish you posted last week.
Braineack is offline   Reply With Quote
Old 08-24-2007, 04:34 PM   #8
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Looks great Tom! I like the idea of the thermostat in the head.

You'll get your hard line this weekend, maybe even tonight. I'll call.
TurboTim is offline   Reply With Quote
Old 08-24-2007, 04:54 PM   #9
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

I vote for the return on the intake side. Nice documentary.
m2cupcar is offline   Reply With Quote
Old 08-24-2007, 05:24 PM   #10
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Outside of the Loop-ATL
Posts: 754
Total Cats: 0
Default

Quote:
Originally Posted by m2cupcar View Post
I vote for the return on the intake side. Nice documentary.

How hard would it be to mount the housing so if pointed at the intake side and when under the intake manifold instead of the exhaust manifold???

BTW thanks for the great write up Tom, this will be very very useful in my future.

Keep up the good work.
wildfire0310 is offline   Reply With Quote
Old 08-24-2007, 05:33 PM   #11
Senior Member
Thread Starter
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

Quote:
Originally Posted by wildfire0310 View Post
How hard would it be to mount the housing so if pointed at the intake side and when under the intake manifold instead of the exhaust manifold???
You can rotate the thermostat cover 180 degrees and it will point to the intake/passenger side without any modifications. In fact, I believe that most people route it this way. It would take all of 10 seconds.
brgracer is offline   Reply With Quote
Old 08-24-2007, 10:03 PM   #12
Junior Member
iTrader: (-1)

Join Date: Aug 2006
Location: NJ
Posts: 148
Total Cats: 0
Default

Any updates...Im eager to hear how well it worked out for you!
SOL General is offline   Reply With Quote
Old 08-25-2007, 02:05 PM   #13
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Outside of the Loop-ATL
Posts: 754
Total Cats: 0
Default

Quote:
Originally Posted by brgracer View Post
You can rotate the thermostat cover 180 degrees and it will point to the intake/passenger side without any modifications. In fact, I believe that most people route it this way. It would take all of 10 seconds.

Sweet, now the question is, how come your routing yours by the exhaust manifold?
wildfire0310 is offline   Reply With Quote
Old 08-28-2007, 06:53 PM   #14
I'm Miserable!

Join Date: May 2007
Location: Sacramento, CA
Posts: 90
Total Cats: 0
Default

Why is this re-routing needed? Is this to make more room for IC pipes

Thanx
Danimal is offline   Reply With Quote
Old 08-28-2007, 07:07 PM   #15
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

It reroutes the flow so that the coolant flows through the head from one end to the other instead of just flowing around it. Supposed to increase cooling efficiency by allowing all cylinders to be cooled equally. Whereas cyl #4 is usually the hottest.
cjernigan is offline   Reply With Quote
Old 08-28-2007, 09:01 PM   #16
Senior Member
Thread Starter
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

Quote:
Originally Posted by wildfire0310 View Post
Sweet, now the question is, how come your routing yours by the exhaust manifold?
#1 To be different.
#2 Because I have a ton of space on that side from the PS/AC removal
#3 (and most important for me) I plan on doing something a little different with the heater lines for a touch more cooling...working on it with pics to follow.
brgracer is offline   Reply With Quote
Old 08-28-2007, 09:28 PM   #17
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Outside of the Loop-ATL
Posts: 754
Total Cats: 0
Default

Quote:
Originally Posted by brgracer View Post
#3 (and most important for me) I plan on doing something a little different with the heater lines for a touch more cooling...working on it with pics to follow.
now you have my attention again..

can't wait,
wildfire0310 is offline   Reply With Quote
Old 08-30-2007, 03:09 PM   #18
Senior Member
Thread Starter
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default Another update

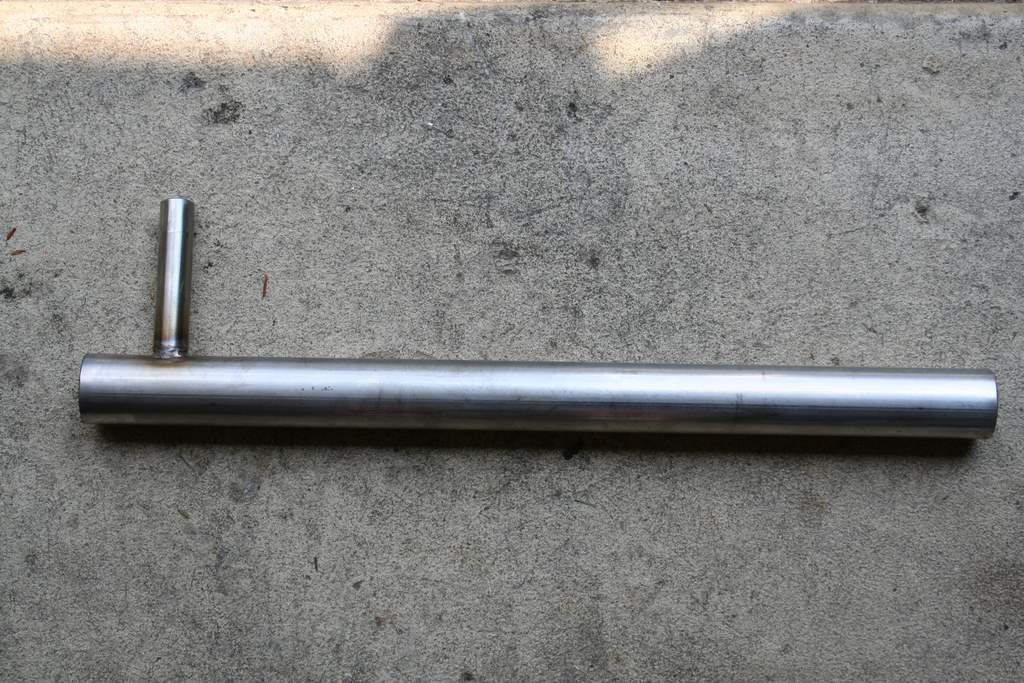

Pic #1:
- No, it's not a stainless bong :gay:
- Reroute hardline made by TurboTim
- Smaller pipe coming off is for the heater return which allows you to remove the hardline attached to the exhaust manifold that is going back toward the front of the engine (the one with the flange that bolts on top of the exhaust manifold)
- So, instead of the hot coolant from the heater return going back to the mixing manifold -> water pump -> front of the engine, it will go to the radiator and only cool coolant will enter the engine from the water pump (more pics to follow later)
-In theory, this should provide a bit more cooling since the hot heater flow is not recirulated into the water pump/engine, but it may take longer for the car to heat up in the cold

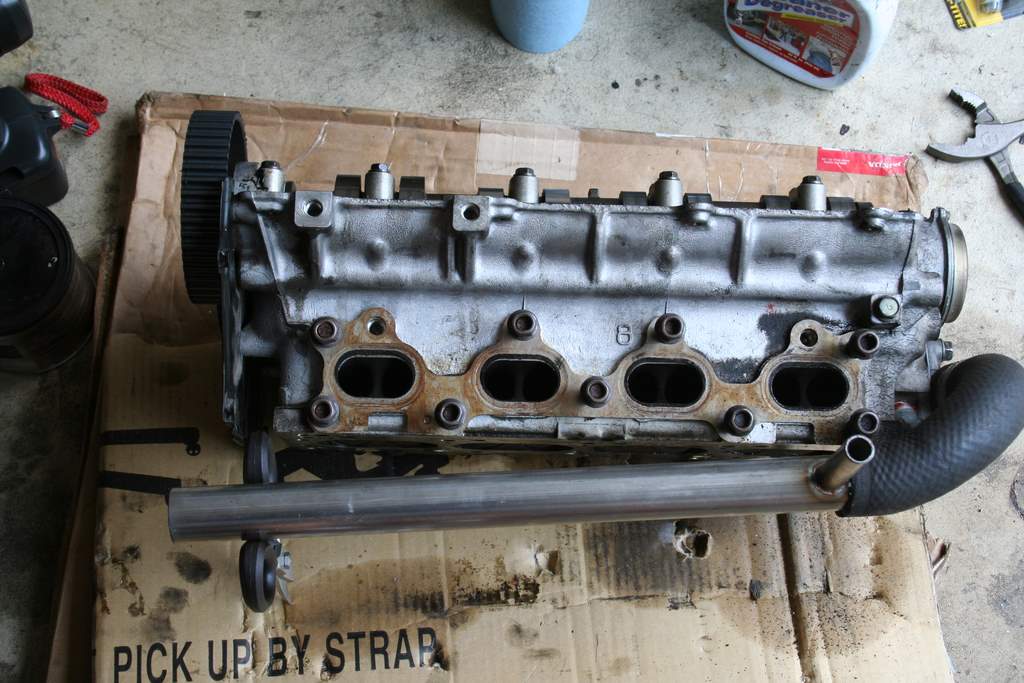

Pic #2
- Hardline in place for reference under the exhaust manifold area
- I may be able to go above the exhaust manifold instead, but will have to see for fitment after the head goes back in the car.

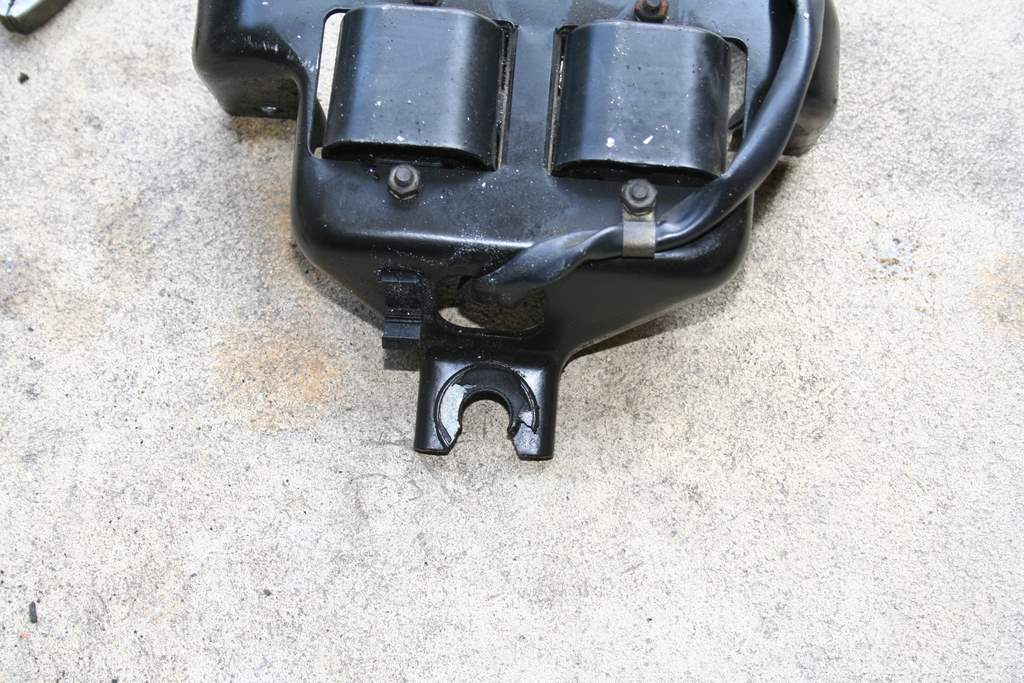

Pic #3
- Cut the bottom flange of the coil pack where the difficult coil pack bolt attaches to the head
- This way the bottom bolt is tightened to hold the coil pack in place, but when you need to remove it, instead of having to loosen the difficult to reach back bolt, you just need to remove the two top bolts and pull the coil pack up and away!
Attached Thumbnails
Beginning of my spacerless coolant reroute.-reroute-pipe.jpg   Beginning of my spacerless coolant reroute.-pipe-placement.jpg   Beginning of my spacerless coolant reroute.-coil-pack.jpg
brgracer is offline   Reply With Quote
Old 08-30-2007, 04:37 PM   #19
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by brgracer View Post
Pic #1:
So, instead of the hot coolant from the heater return going back to the mixing manifold -> water pump -> front of the engine, it will go to the radiator and only cool coolant will enter the engine from the water pump (more pics to follow later)
-In theory, this should provide a bit more cooling since the hot heater flow is not recirulated into the water pump/engine, but it may take longer for the car to heat up in the cold
I wouldn't have done this since there is a chance that your heater will get no flow after the t/stat opens along with engine warm-up taking a long time. You may find that as the t/stat opens and closes that you will get random circulation to the heater core.
olderguy is offline   Reply With Quote
Old 08-30-2007, 05:02 PM   #20
Senior Member
Thread Starter
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

Quote:
Originally Posted by olderguy View Post
I wouldn't have done this since there is a chance that your heater will get no flow after the t/stat opens along with engine warm-up taking a long time. You may find that as the t/stat opens and closes that you will get random circulation to the heater core.
I did worry about that but talked to a few peeps that did a variation of this with good results. I may stick a restrictor in the heater return line just to make sure that there is a pressure differential for flow as well as not too much flow to the radiatior, but I think I'l run it full flow first and see what happens.
