Old 08-26-2008, 10:41 AM   #61
Newb

Join Date: Aug 2008
Location: manila philippines
Posts: 19
Total Cats: 0
Default

this was a nice project...i'd really like to know how it went
roadster363 is offline   Reply With Quote
Old 08-26-2008, 01:58 PM   #62
Senior Member
Thread Starter
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

Quote:
Originally Posted by roadster363 View Post
this was a nice project...i'd really like to know how it went
Well, that engine is no longer in the car, but not because anything went wrong. Just....bigger plans.

As for the reroute, it worked too well actually and once my new engine goes in, I plan on modifying it. Having the coolant flow from the back of the head into the heater core and back to the rad instead of the mixing manifold is what I plan to change. Even with a temp sensor blocking off more than 1/2 the heater hose, the flow thru the heatercore and back to the radiator instead of the mixing manifold made it take FOREVER to get to operating temps in cooler ambient temps. Even worse, at speed with the GS rad, I couldn't get my coolant temps above ~120 on a cold day. Basically, it's like running without a thermostat b/c water bypasses the thermostat and goes rightback to the radiator.

I know that neogenesis and paul did very similar things and had similar resutls. IIRC, in the cold, paul blocked off 1/2 his rad so that he could keep his coolant temps up. I'm thinking about putting a inline valve into the heater lines so that at the track/summer, I can keep it wide open for the extra cooling and almost close it for better warmup in the cooler weather.
brgracer is offline   Reply With Quote
Old 08-27-2008, 12:55 PM   #63
Newb

Join Date: Aug 2008
Location: manila philippines
Posts: 19
Total Cats: 0
Default

may i know what you did with the bypass lines?thanks

roadster363 is offline   Reply With Quote
Old 08-27-2008, 01:31 PM   #64
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

those lines are trivial...
Braineack is offline   Reply With Quote
Old 08-28-2008, 10:52 AM   #65
Newb

Join Date: Aug 2008
Location: manila philippines
Posts: 19
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
those lines are trivial...
so i can just ignore them and perhaps just put in water plugs and simply concentrate on the coolant return line?
roadster363 is offline   Reply With Quote
Old 08-28-2008, 03:11 PM   #66
Junior Member

Join Date: Aug 2005
Location: So Cal
Posts: 125
Total Cats: 0
Default

Quote:
Originally Posted by roadster363 View Post
so i can just ignore them and perhaps just put in water plugs and simply concentrate on the coolant return line?

That might affect the IAC in its warm up idle up funtion.
RdSnake is offline   Reply With Quote
Old 09-01-2008, 03:56 AM   #67
Junior Member

Join Date: Dec 2007
Location: Wisconsin
Posts: 49
Total Cats: 0
Default

BRG ...

Initial post, Pic 4.

What thermostat are you using? I find with a std (centered) Thermostat the ECU Thermosensor probe will contact the T-stat spring.


As far as heater return lines go, how about a heater control valve?

A heater control valve ( Honda Civics ) could prevent flow all together. No coolant flow = no mixing of rad outlet and hot heater core liquid. You can keep the factory heater core return line location as well.

Last edited by iluvspd; 09-01-2008 at 05:03 AM.
iluvspd is offline   Reply With Quote
Old 09-09-2008, 12:51 PM   #68
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by brgracer View Post
Pic #1:
- original 1.6 front thermostat cover with already mentioned oil drain plug in to block front thermosensor hole
- note: I use my Megasquirt to control the fans so I do not need the front thermoswitch, if you are using the stock ECU, you'll need to plumb a port for the front sensor somewhere as it will not fit back there by the firewall

Pic #2:
- 1.6 thermostat on the back of the head
- note: you can orient it either coldside or hotside, mine is pointing hotside/driver's side...heck, I may end up going coldside, but we'll see...


Pic #3:
- added small 90 degree hose pointing forward
- I plan on wrapping this hose as well as using a hardline for the portion under the exhaust manifold to avoid hose problems from the heat.

From here all you really need to do is run a combo of hose/hardline to the radiator and you're done.

More pics to follow as the project progresses...
Does it matter if the fan switch is before or after the t-stat? I looks like theres enough space next to where you tapped for the heater hose for it. Other wise I guess I could put it in the hard pipe going to the rad?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 09-21-2008, 11:30 PM   #69
Newb

Join Date: Apr 2008
Location: Northern VA
Posts: 31
Total Cats: 0
Default

Has anyone found the actual thread size & pitch for the 1.6 thermostat housing ? M14-1.5 (oil plug) seems to work but not quite exact. I too am doing a reroute (believe it or not, a bit different than all the ones I've seen) and I need to plug up the 1.6 t-stat housing (pipe plug preferably).
wroark is offline   Reply With Quote
Old 09-22-2008, 01:55 PM   #70
Junior Member

Join Date: Dec 2007
Location: Wisconsin
Posts: 49
Total Cats: 0
Default

You can use the 1.6L housing with the original fan switch. Leaves about an 1" of clearance when modified like this....

1. Take original fan switch and cut plastic housing off that surrounds the sensor pin.
2. Carefully bend pin 90 degrees facing the passenger side. ( this is dependent on which side you route the return to radiator )
3. Take original plug, and remove plastic surrounding the female terminal.
4. Slightly compress female pin to increase tension. Then after connecting zip tie wire to T-stat housing. ( Important! You must have zero tension on pin or it will break off pin on sensor. This is accomplished with a decent sized pigtail when moving the original wiring.

Ill post a pic soon.
iluvspd is offline   Reply With Quote
Old 09-22-2008, 02:00 PM   #71
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Quote:
Originally Posted by wroark View Post
Has anyone found the actual thread size & pitch for the 1.6 thermostat housing ? M14-1.5 (oil plug) seems to work but not quite exact. I too am doing a reroute (believe it or not, a bit different than all the ones I've seen) and I need to plug up the 1.6 t-stat housing (pipe plug preferably).

Olderguy can answer that
paul is offline   Reply With Quote
Old 09-22-2008, 02:13 PM   #72
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

M14 x 1.5 is correct.
olderguy is offline   Reply With Quote
Old 09-22-2008, 02:41 PM   #73
Junior Member
iTrader: (1)

Join Date: Oct 2004
Location: Haarlem ,the Netherlands
Posts: 453
Total Cats: 0
Default

Quote:
Originally Posted by wroark View Post
Has anyone found the actual thread size & pitch for the 1.6 thermostat housing ? M14-1.5 (oil plug) seems to work but not quite exact. I too am doing a reroute (believe it or not, a bit different than all the ones I've seen) and I need to plug up the 1.6 t-stat housing (pipe plug preferably).
I have used the 3/8 npt tap (for drilling the oil pan)
And a 3/8 plug. Worked nice...
greddymx5 is offline   Reply With Quote
Old 09-22-2008, 03:16 PM   #74
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by brgracer View Post
I'm thinking about putting a inline valve into the heater lines so that at the track/summer, I can keep it wide open for the extra cooling and almost close it for better warmup in the cooler weather.
I am thinking about trying this as well. I have the basic BEGI reroute in right now that basically just circulates the coolant exiting the heater core back into the upper radiator hose (instead of the stock mixing manifold). It takes awhile for the car to heat up and will only get worse with the winter coming. I saw a link around here somewhere for a inline remote thermostat housing. Using something like that, and a hole drilled in the flange of the thermostat for constant circulation should do the trick?

Either that, or I was going to try teeing into the lower radiator hose, instead of the upper, though this is basically back to the stock arrangement. But, at least the tube running under the exhaust manifold is still removed which should help cooling a bit.
ZX-Tex is offline   Reply With Quote
Old 01-16-2009, 04:55 PM   #75
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,765
Total Cats: 18
Default

Ok this simple reroute is getting to be a PITA! I see why now there are 13489756 ways of doing this and none are 100%

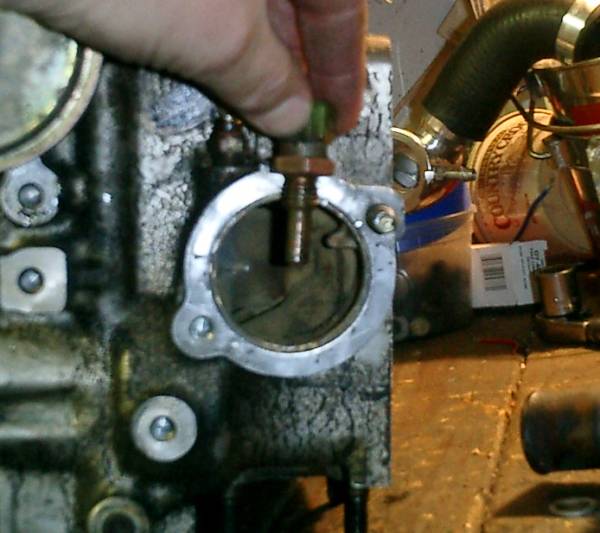

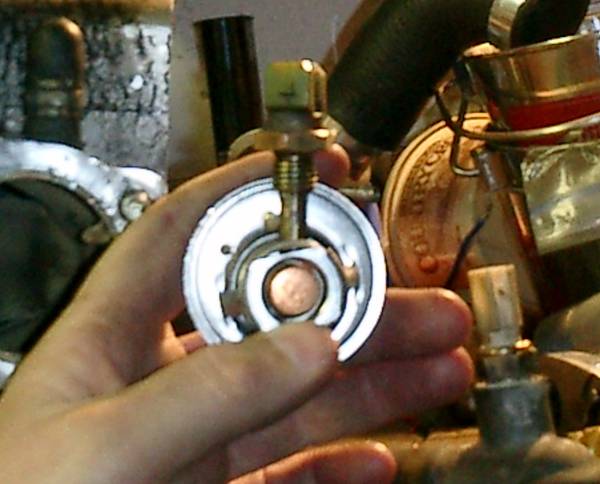

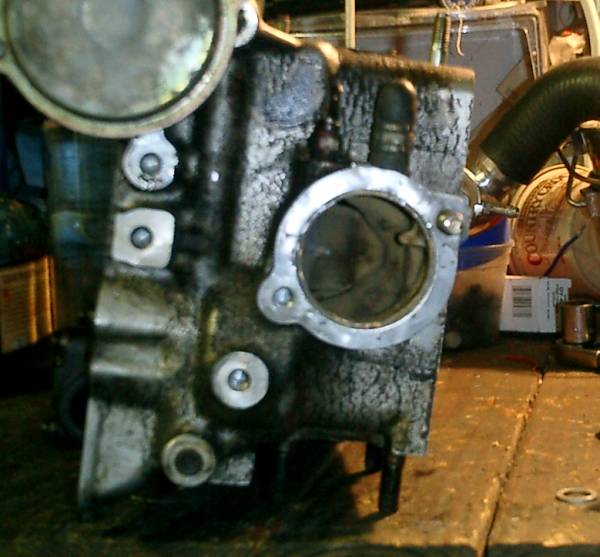

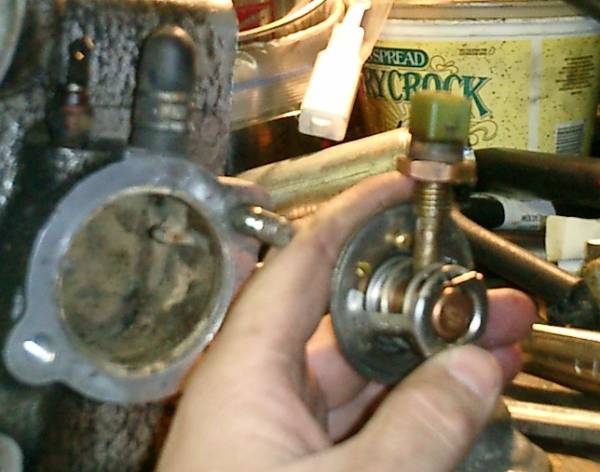

Ok here my latest issue. Drill cursed water plug and tap it for ECU sensor, ok for drill and tap and I can't for the life of me see how is will NOT hit the thermostat? I have oriented the thermostat every way and it still looks like it will hit. Check it out.

Anyone actually done this and ran the car? Did the spring bind with the sensor?
Attached Thumbnails
Beginning of my spacerless coolant reroute.-cimg0059.jpg   Beginning of my spacerless coolant reroute.-cimg0060.jpg   Beginning of my spacerless coolant reroute.-cimg0061.jpg   Beginning of my spacerless coolant reroute.-cimg0062.jpg
IcantDo55 is online now   Reply With Quote
Old 01-16-2009, 05:08 PM   #76
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

a simple Male/Female adapter could fix that..

tap head for adapter, screw in. screw thermosensor into adapter. case closed.


something like this: http://www.mcmaster.com/itm/find.ASP...string=4822T42
Braineack is offline   Reply With Quote
Old 01-16-2009, 05:08 PM   #77
Senior Member
Thread Starter
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default



It definitely fits. Brian and one or two others have done this way as well without thermostat fit issues. FWIW, I was also able to rotate the thermostat so the little bleed valve was at the top as you are supposed to have it.
brgracer is offline   Reply With Quote
Old 06-06-2010, 07:52 PM   #78
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Sorry to bump this thread, but I'm in the process and have a question. What would be the negatives of having the fan switch (green one, correct?) in a different location like inline in a hose or in the front block of plate?

Reason I ask... I am doing this with the engine in the car and can't tap the head. I also want to use the current blocked port for my heater core feed with a 90* brass fitting to point it the right direction.

I have a MS1 so no need for the thermoswitch.
falcon is offline   Reply With Quote
Old 05-31-2011, 11:46 PM   #79
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

Bumping this for two reasons, thanks brg for the write up. Just finishing up doing mine.

The other reason is I was running into the same problem as icantdo55 with the t-stat spring hitting the clt probe. I starting looking at his pictures compared to what I had, and we had the same t-stat. Then I looked at brg pics and he had one of his t-stat. And it is defiantly different from the one I was trying to use.

So I went over to the local kragens and did some searching. The part I got is a "Murray Plus+ Thermostat" its 192* and I believe it came up on the computer for the 1994 to 1997 Miata's (probably wrong with the years). But the part number for that is 41492. I also got out there parts book and it says it fits Miatas and Kias.

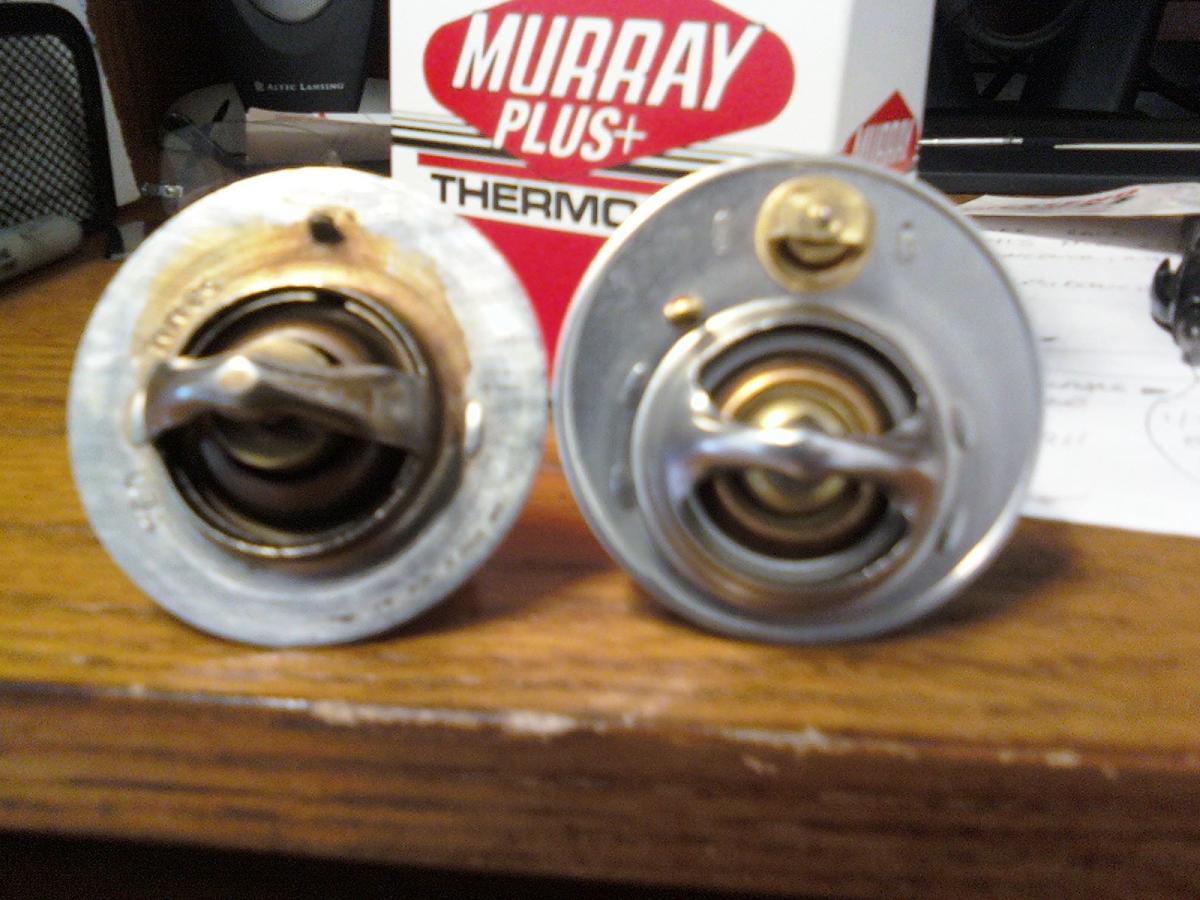

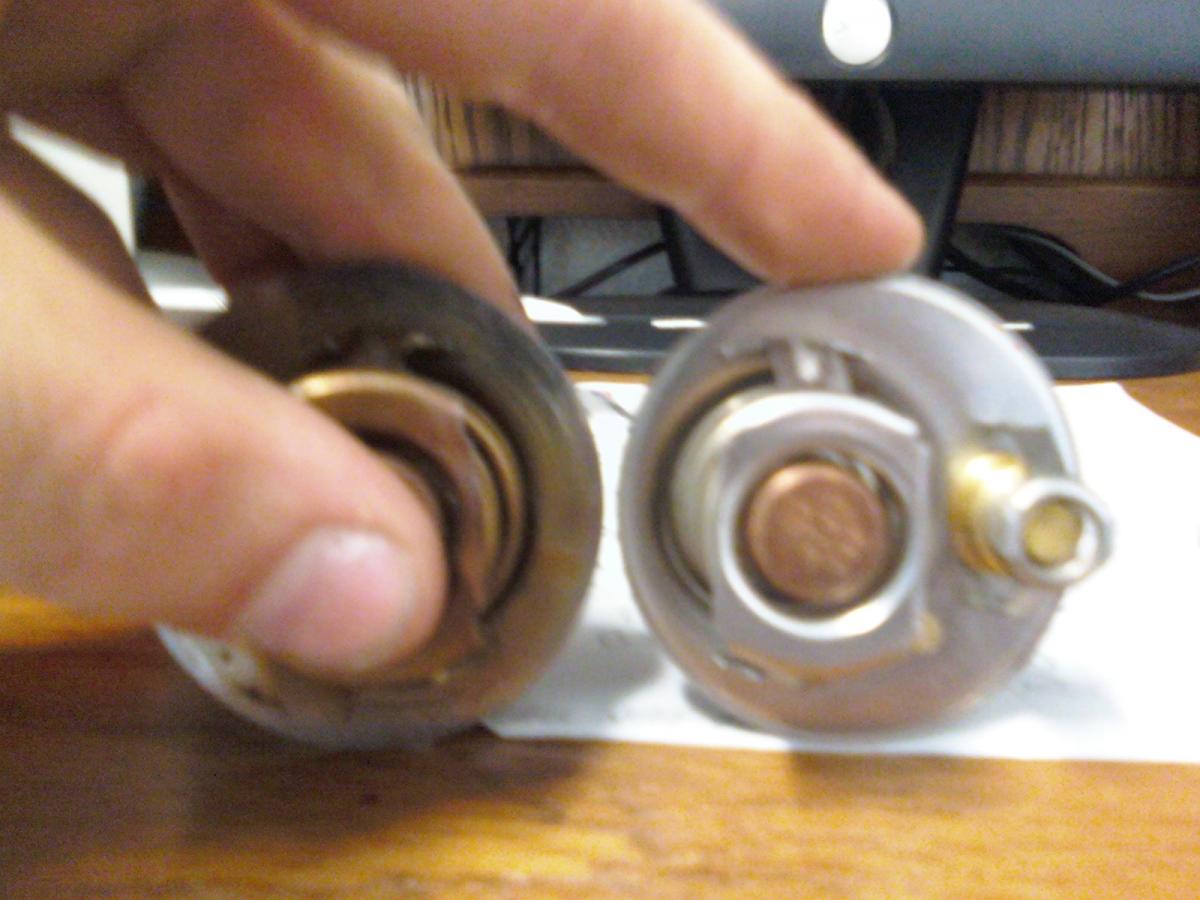

Anyways heres a couple pics to show the difference. The thing is more off centered compared to the one I was using and the little bit helped get the thing to fit in there.

Again, thanks for the write up and hopefully this helps somebody out.
Attached Thumbnails
Beginning of my spacerless coolant reroute.-0531011937.jpg   Beginning of my spacerless coolant reroute.-0531011939.jpg
