Default BOV installation...

can anyone post up pics of their blow off valve install?

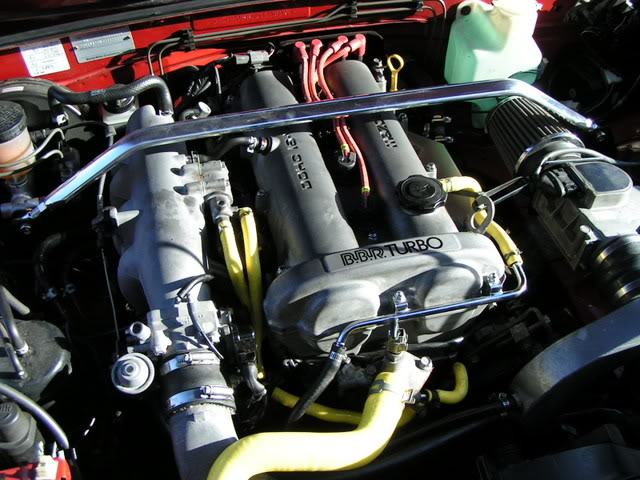

i've got a UK BBR turbo and I hope to fit a Bailey DV26 twin piston valve to save my newly refurb'd T25....thinking I can fit it between the intake manifold and intercooler pipe?


Name:  PICT0161.jpg
Views: 4
Size:  77.0 KB

thanks

Andy
L111CHT is offline   Reply With Quote
Old 06-24-2008, 05:17 PM   #2
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

BBR turbo, so cool.

You want to put it into the silicone coupler? Yea, that wont work.
Saml01 is offline   Reply With Quote
Old 06-24-2008, 05:30 PM   #3
Newb
Thread Starter

Join Date: Apr 2007
Posts: 19
Total Cats: 0
Default

not even with one of these?

L111CHT is offline   Reply With Quote
Old 06-24-2008, 06:10 PM   #4
Junior Member

Join Date: May 2007
Location: San Diego
Posts: 383
Total Cats: 0
Default

It should work, i do not see why it would not.
jobambo is offline   Reply With Quote
Old 06-24-2008, 06:17 PM   #5
Senior Member
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

I don't think that coupler will work, there doesn't look to be enough space around it for the BOV to fit. Unless you point it down maybe?

Here is mine. Greddy RS welded to the up pipe. If you cut your pipe down here and used that coupler it would work.

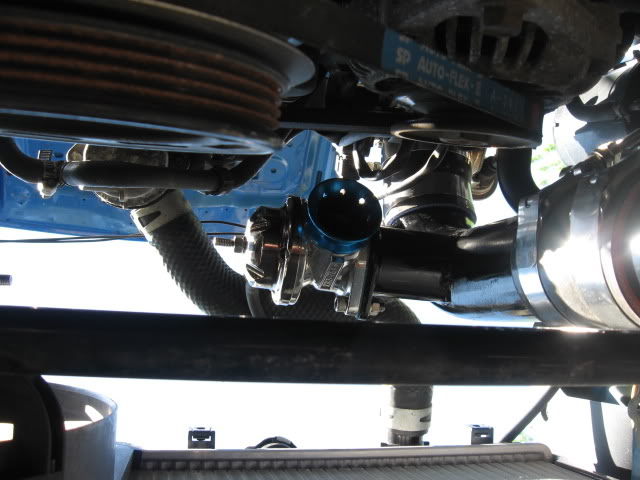

From Below
Name:  IMG_1354.jpg
Views: 4
Size:  54.0 KB

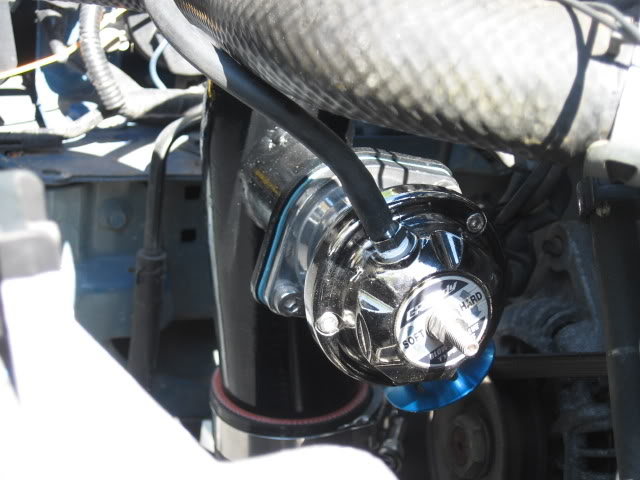

From the side
Name:  IMG_1353.jpg
Views: 2
Size:  54.7 KB
miataspeed1point6 is offline   Reply With Quote
Old 06-24-2008, 06:58 PM   #6
Newb
Thread Starter

Join Date: Apr 2007
Posts: 19
Total Cats: 0
Default

yeah i was thinking it will have to be angled downwards. I dont have a pipe to cut on the mani side as that's the intercooler itself joined to the coupling.... same with the alloy fitting on the airbox/turbo side..
L111CHT is offline   Reply With Quote
Old 06-24-2008, 07:13 PM   #7
Junior Member

Join Date: Aug 2007
Location: England
Posts: 124
Total Cats: 0
Default

yeh, I see what miataspeed1point6 is saying....

if you look at the gap between IC pipe & inlet manifold then there isn't a great deal of space to site the Bov between the two.

You could try angling the IC piping back a bit, that should give you more room, or maybe cut a couple inches off the IC piping to make more room that way?

Either that or find somewhere else you can site the coupler, or even get something welded up.

****ob
jim-NA is offline   Reply With Quote
