Default Can I bypass the PS reservoir tank?

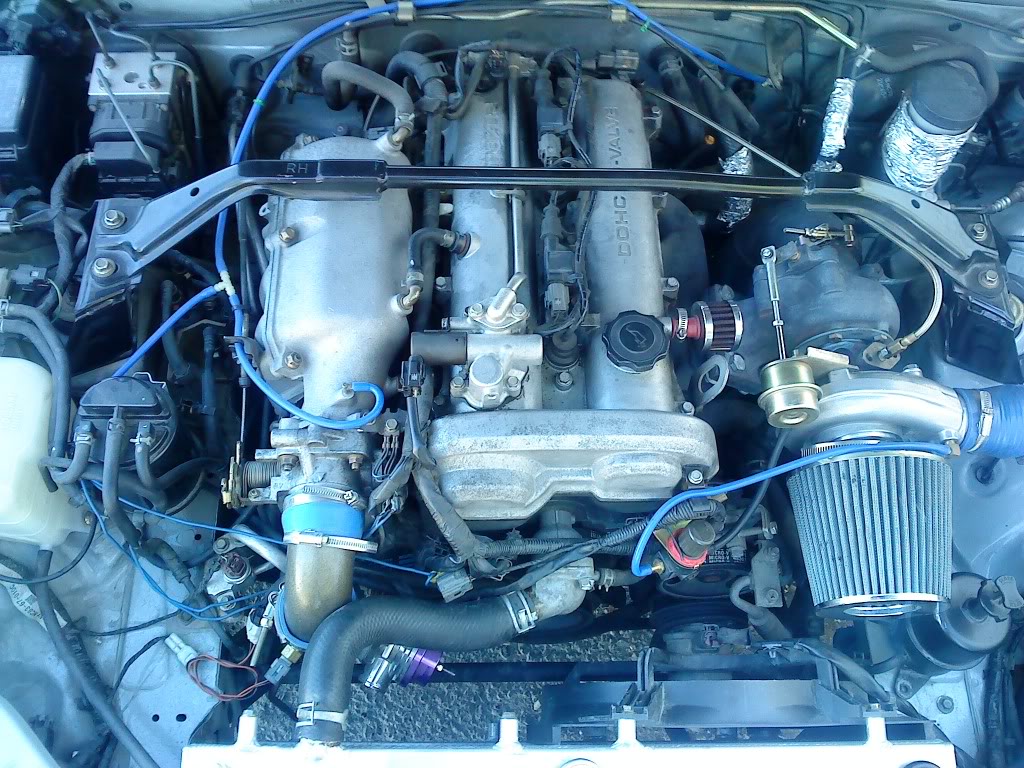

I want to move the air filter behind the headlamp but as you can see the PS reservoir is in the way.

Name:  DSC00020.jpg
Views: 0
Size:  238.7 KB

Do you guys think is going to be any problem if I remove the reservoir tank and loop the lines?
ismael_pt is offline   Reply With Quote
Old 07-18-2010, 12:49 PM   #2
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Yes there will be problems. Unless by loop the lines you mean not use P/S at all.

But I think you want to loop the lines and continue to use the pump, that will not work.
FRT_Fun is offline   Reply With Quote
Old 07-18-2010, 12:49 PM   #3
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

Only if you lose the P/S. Otherwise, you'll blow out a line when it warms up.
rleete is offline   Reply With Quote
Old 07-18-2010, 12:58 PM   #4
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

Well.... Plan B

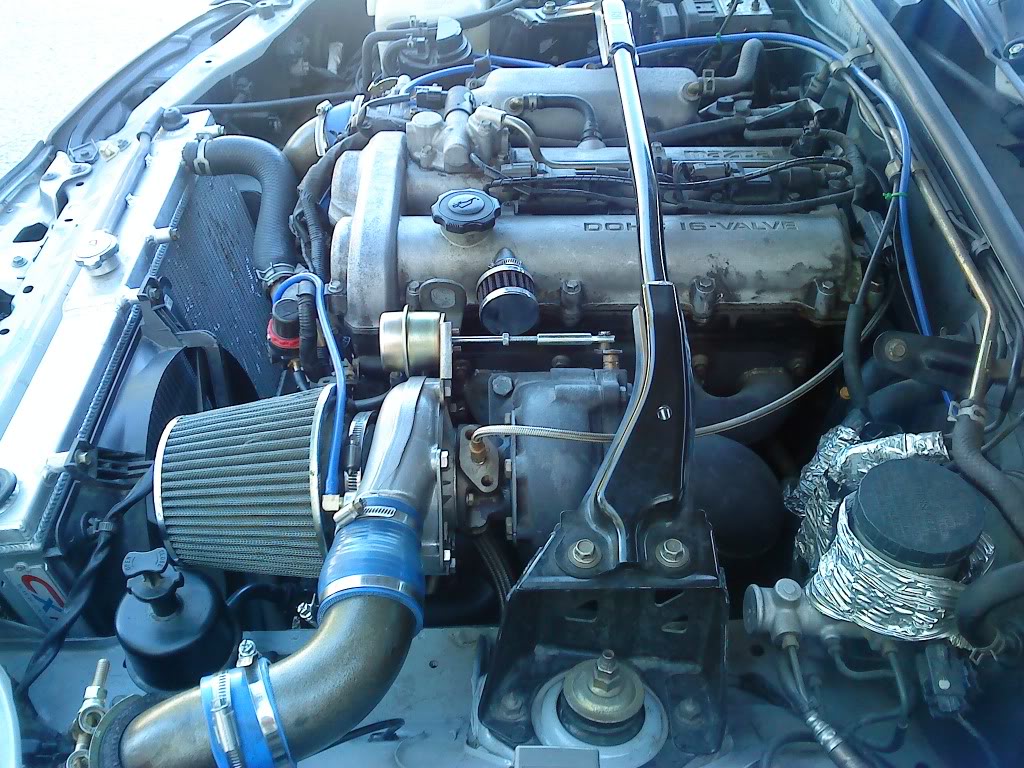

How would you route a cold air intake with this setup?

Name:  DSC00017.jpg
Views: 0
Size:  221.6 KB
ismael_pt is offline   Reply With Quote
Old 07-18-2010, 01:22 PM   #5
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Relocate the P/S reservoir? With that manifold you don't have many options.
FRT_Fun is offline   Reply With Quote
Old 07-18-2010, 01:34 PM   #6
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Ditch the power steering and build a BEGI style airbox. Or, go with a CAI setup like mine.
ZX-Tex is offline   Reply With Quote
Old 07-18-2010, 09:28 PM   #7
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Think it could loop back to the cowl area? Or ditch the PS like a man and go with your original idea.
curly is offline   Reply With Quote
Old 07-18-2010, 09:30 PM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

You could easily relocate the tank.
or just do what these guys say
18psi is offline   Reply With Quote
Old 07-18-2010, 10:40 PM   #9
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,295
Total Cats: 22
Default

Or get another manifold and downpipe.
Der_Idiot is offline   Reply With Quote
Old 07-21-2010, 02:04 PM   #10
Junior Member
iTrader: (1)

Join Date: May 2010
Posts: 103
Total Cats: 0
Default

no PS here.. installed the idler pulley and havent looked back.

i didnt bother looping the rack. just empty it well and cover the holes. be sure not to cover them air tight otherwise the rack will build up pressure/resistance when you turn
old_s13 is offline   Reply With Quote
Old 07-21-2010, 02:18 PM   #11
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

Relocate the can. It'd only take 5 minutes.
chpmnsws6 is offline   Reply With Quote
Old 07-21-2010, 02:37 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,814
Total Cats: 1,780
Default

I'd move it back towards the turbo an inch or so and then route intake between rad and reservoir.
Braineack is online now   Reply With Quote
Old 07-21-2010, 02:40 PM   #13
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Quote:
Originally Posted by Braineack View Post
I'd move it back towards the turbo an inch or so and then route intake between rad and reservoir.
I second that. Seems like the easiest solution that will have a worthwhile result.
FRT_Fun is offline   Reply With Quote
