Old 12-08-2010, 08:17 PM   #21
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

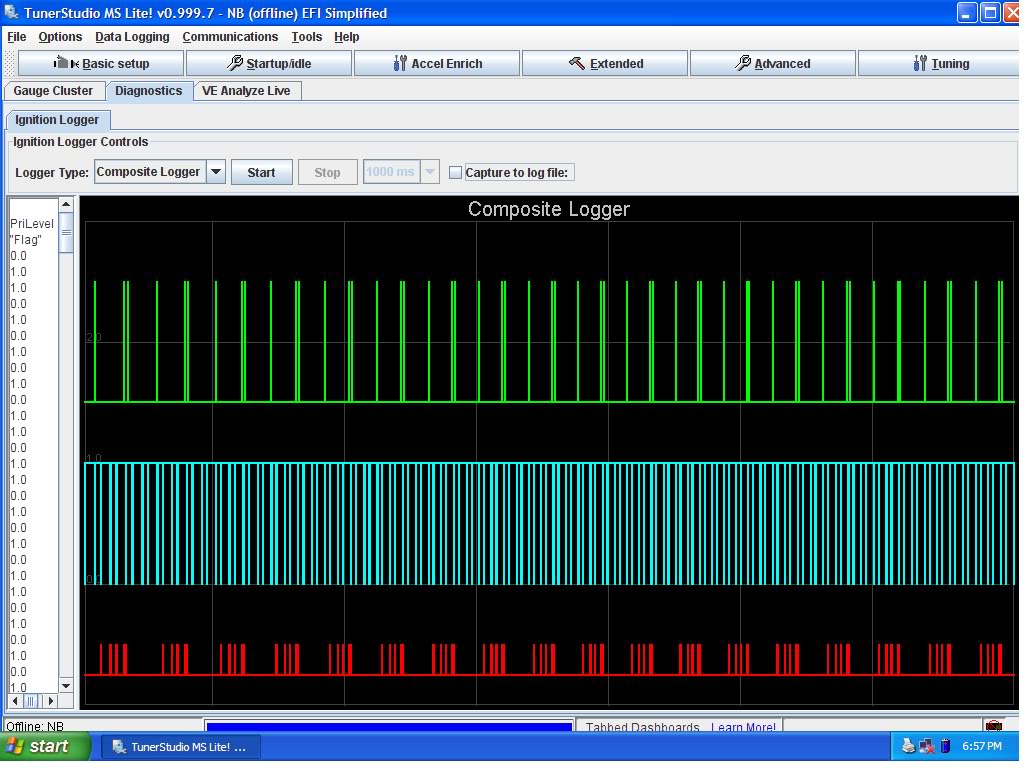

Here's the screenshot of the logger. I'm going to check over the crank/cam sensors again and see if anything looks suspicious.

Name:  logger-1.jpg
Views: 11
Size:  129.3 KB
pdexta is offline   Reply With Quote
Old 12-09-2010, 09:59 AM   #22
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

see those red spikes?

That means it's reading/not reading something that it was not expecting/expecting.
Braineack is offline   Reply With Quote
Old 12-09-2010, 08:13 PM   #23
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

I got the EFI relay today and replaced it, still having the problem. With either the cam or crank sensor removed it won't fire at all, so they seem to clearly be sending a signal since occasionally the car will run for a few seconds. Think it would do the same thing if I went back to the stock ECU? I'm thinking it may be time to just put it back to stock.
pdexta is offline   Reply With Quote
Old 12-10-2010, 08:25 AM   #24
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

Sorry the fix didn't work... very sorry....

Its something stupid, guaranteed.... I just don't know what.
Preluding is offline   Reply With Quote
Old 12-10-2010, 10:38 AM   #25
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

post your MSQ.
Braineack is offline   Reply With Quote
Old 12-10-2010, 10:10 PM   #26
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Quote:
Originally Posted by Preluding View Post
Sorry the fix didn't work... very sorry....

Its something stupid, guaranteed.... I just don't know what.
Thanks for the sympathy Apparently there is a second fuel relay under the dash and I was able to identify that it is the one that's clicking. I bought one and I'm having it overnighted from Japan... err I mean, Tampa. I'm holding out hope that it will resolve the issue.

Quote:
Originally Posted by Braineack View Post
post your MSQ.
File is attached.

Thanks again to both of you for the help, I really appreciate it.
Attached Files
File Type: msq 10.24.msq (78.8 KB, 66 views)
pdexta is offline   Reply With Quote
Old 12-11-2010, 12:28 PM   #27
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

New relay is doing the same thing, man I was actually feeling like that had a chance of resolving it.
pdexta is offline   Reply With Quote
Old 12-11-2010, 02:59 PM   #28
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

shiat.... start checking continuity in wires and grounds....

does the car work with the stock ecu plugged in?
Preluding is offline   Reply With Quote
Old 12-11-2010, 04:01 PM   #29
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

It wouldn't run with the stock ECU, but I wasn't hearing the clicking relay either. I'm not sure I'd expect it to run with 550 injectors and COPs though.
pdexta is offline   Reply With Quote
Old 12-12-2010, 06:10 PM   #30
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

mine ran with 750 and cops (stock ecu during testing)... yours would start and run (pig rich) as well
Preluding is offline   Reply With Quote
Old 12-28-2010, 06:55 PM   #31
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Thought I'd bump this with the latest update. I replaced the crank sensor (again) and the cam sensor. I am still having the same issue with the clicking relay with the MS in, sometimes it will run, albeit lean, but dies when you touch the gas other times it will not run at all, always with the fuel relay clicking a couple times a second. On the factory ECU there is no clicking but the car will not run (I don't have the stock injectors or primary O2 sensor).
pdexta is offline   Reply With Quote
Old 01-06-2011, 01:07 PM   #32
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Timing wheel was on backwards.
pdexta is offline   Reply With Quote
Old 01-06-2011, 01:16 PM   #33
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

Quote:
Originally Posted by pdexta View Post
Timing wheel was on backwards.
Something stupid for sure, Glad you got it figured out!!
Preluding is offline   Reply With Quote
Old 01-06-2011, 01:16 PM   #34
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

I did that once. lol
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 01-06-2011, 10:18 PM   #35
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Yeah, so it took me 2 months to figure out that stupid crap with the built motor I put in and after 10 miles of driving...........



Sounds an awful lot like rod knock. Niiiiice.
pdexta is offline   Reply With Quote
