Default Cleaning engine bay, how much of this can I eliminate?

As the title states, I want to clean up my engine bay. How much of this stock computer controlled / emissions related stuff can I get rid of? I am running Megasquirt II standalone, and plan on never using the stock ECU ever again, and I also don't have to pass emissions.
Cleaning engine bay, how much of this can I eliminate?-img_0384.jpg

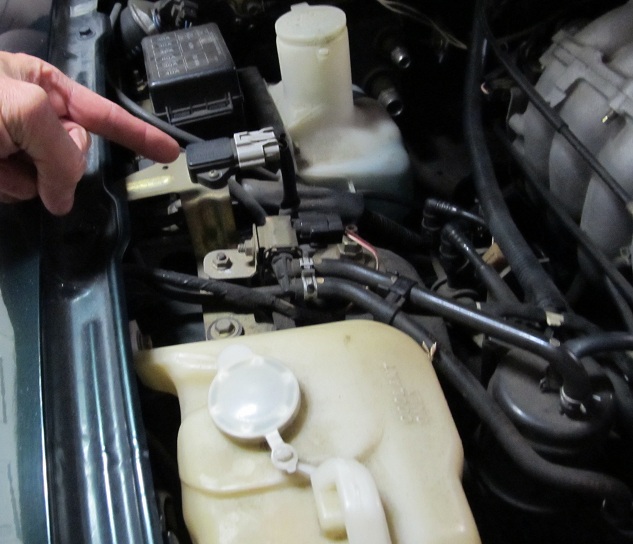

Cleaning engine bay, how much of this can I eliminate?-img_0385.jpg

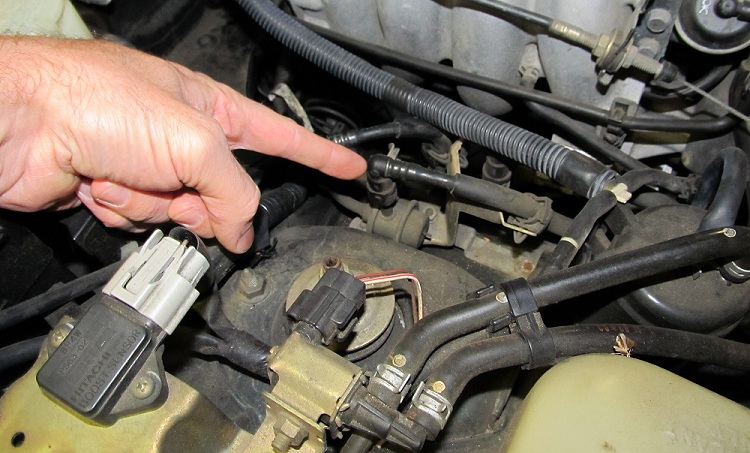

Cleaning engine bay, how much of this can I eliminate?-img_0386.jpg
thirdgen is offline   Reply With Quote
Old 10-15-2011, 08:32 PM   #2
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

The charcoal canister can be removed for sure. The second and third pictures, I have no idea. With the charcoal canister, the purge valve and related can also be removed.
RyanRaduechel is offline   Reply With Quote
Old 10-15-2011, 08:51 PM   #3
Senior Member
iTrader: (8)

Join Date: Sep 2010
Location: misery
Posts: 1,130
Total Cats: 9
Default

#2 is also related to emissions. i can't recall if #3 is also related.
phillyb is offline   Reply With Quote
Old 10-15-2011, 09:23 PM   #4
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

You can junk it all. The canister you can remove + the bracket that holds it. Then loop the lines. The emissions stuff you can remove completely as well just take care of the vacuum lines.
soviet is offline   Reply With Quote
Old 10-15-2011, 09:27 PM   #5
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

Awesome. I was looking at my passengers side this morning and I was like, "this junk needs to go". Thanks for the advice guys!
thirdgen is offline   Reply With Quote
Old 10-15-2011, 09:35 PM   #6
Senior Member
iTrader: (8)

Join Date: Sep 2010
Location: misery
Posts: 1,130
Total Cats: 9
Default

whoa...
schuylkill...
we're close.
horra
phillyb is offline   Reply With Quote
Old 10-15-2011, 09:39 PM   #7
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

Where in pa are you?
thirdgen is offline   Reply With Quote
Old 10-15-2011, 09:51 PM   #8
Senior Member
iTrader: (8)

Join Date: Sep 2010
Location: misery
Posts: 1,130
Total Cats: 9
Default

east stroudsburg
not close, but not far
phillyb is offline   Reply With Quote
Old 10-15-2011, 11:07 PM   #9
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Your pointing at all the wrong ****!

Move your overflow to behind the bumper skin and your washer tank replaced with something small that you can hide (unless you use it all the time...otoh if you never use it like me take it out completely)

Like others have stated you can pitch all that other stuff and cap off the vac source and whatnot.
astroboy is offline   Reply With Quote
Old 10-16-2011, 04:40 AM   #10
Junior Member
iTrader: (2)

Join Date: May 2008
Location: Bethalto, Il
Posts: 318
Total Cats: 2
Default

can i delete all this on my 01 plus car without a cel ?
turbotyla is offline   Reply With Quote
Old 10-16-2011, 11:49 AM   #11
Senior Member
iTrader: (8)

Join Date: Sep 2010
Location: misery
Posts: 1,130
Total Cats: 9
Default

can't a megasquirt get rid of the cels?
idk if you run one, just saying
phillyb is offline   Reply With Quote
Old 10-16-2011, 12:11 PM   #12
Junior Member
iTrader: (2)

Join Date: May 2007
Location: Tulsa, OK
Posts: 182
Total Cats: 4
Default

#3 is a pulsation damper for the fuel system. It's a returnless system so it's supposed to help smooth the flow to the injectors. I didn't remove it on mine, but removed #1 and #2
ILoveOffRamps is offline   Reply With Quote
Old 10-16-2011, 08:00 PM   #13
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Yes, remove all those vacuum lines and that stupid microchip in a box looking thing. Do not remove the thing attached to the fuel lines.

Also, when you do your upgrade get rid of EGR.
Faeflora is offline   Reply With Quote
Old 10-16-2011, 10:27 PM   #14
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

EGR is definately gonna go, I didn't forget about that.
thirdgen is offline   Reply With Quote
Old 10-17-2011, 01:06 AM   #15
Junior Member

Join Date: May 2011
Location: Outside of Chicago
Posts: 153
Total Cats: -3
Default

Will removing these things get a cel light?

on a stock MSM ecu.
vplukas101 is offline   Reply With Quote
Old 10-17-2011, 01:47 AM   #16
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

yes, on a stock ECU removing those will give a CEL with about 95% guarantee.

Quote:
Originally Posted by phillyb View Post
can't a megasquirt get rid of the cels?
idk if you run one, just saying
standalone ecu doesn't "throw a CEL" unless you chose to physically connect the CEL wire and trigger it.
soviet is offline   Reply With Quote
